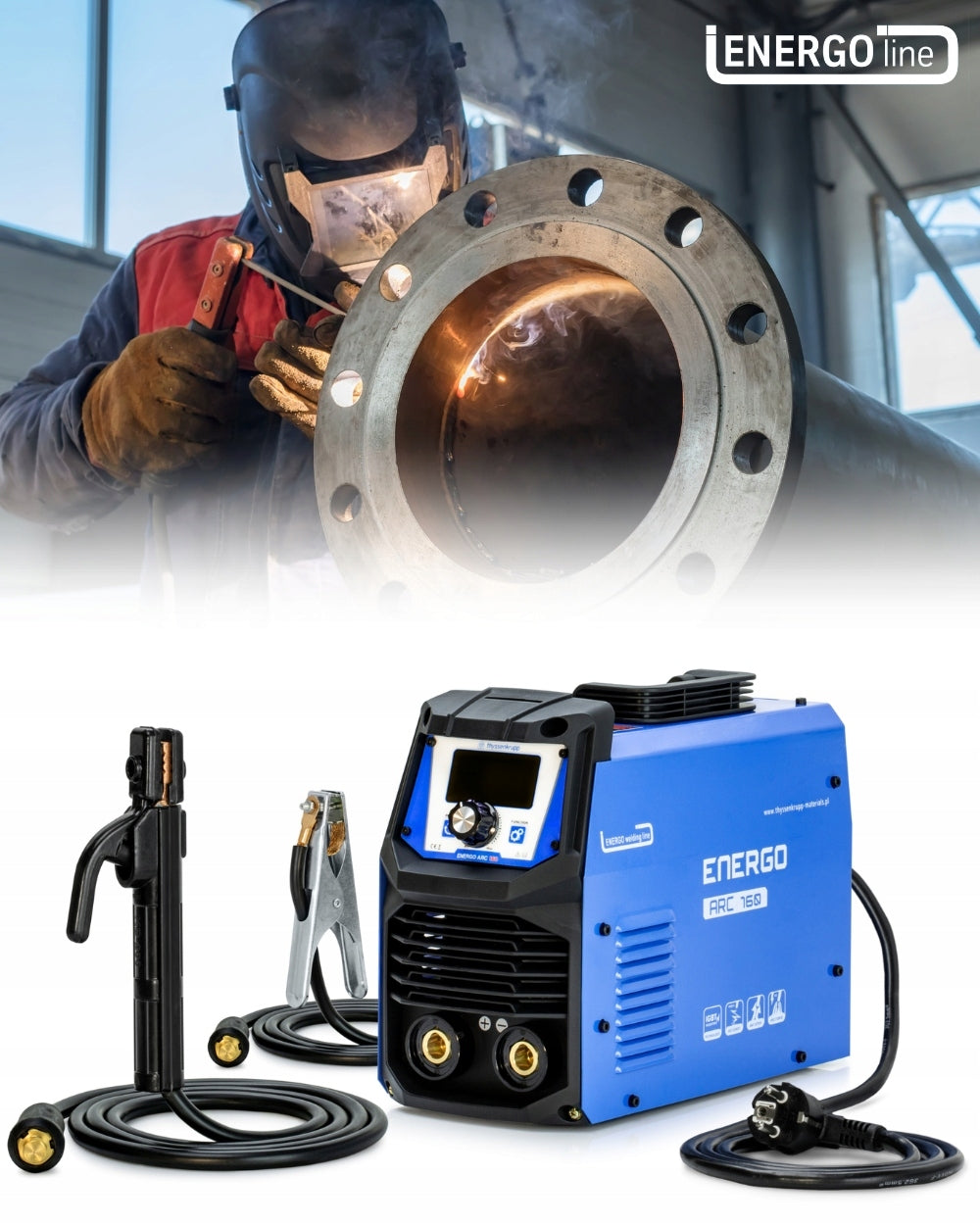

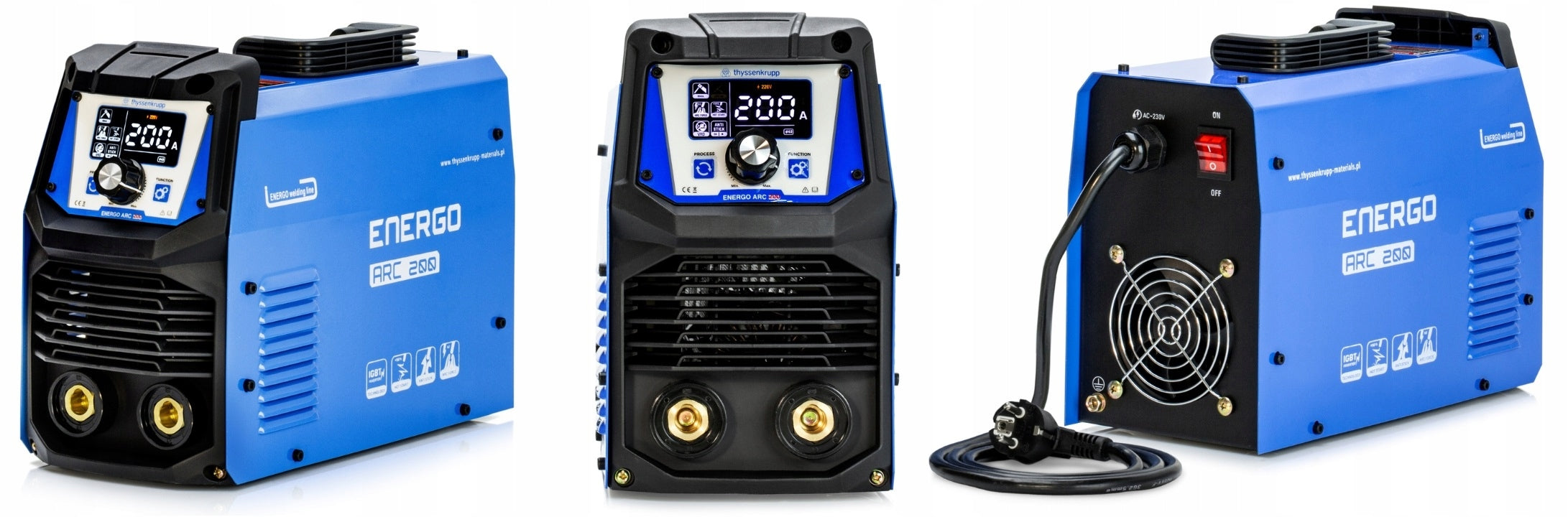

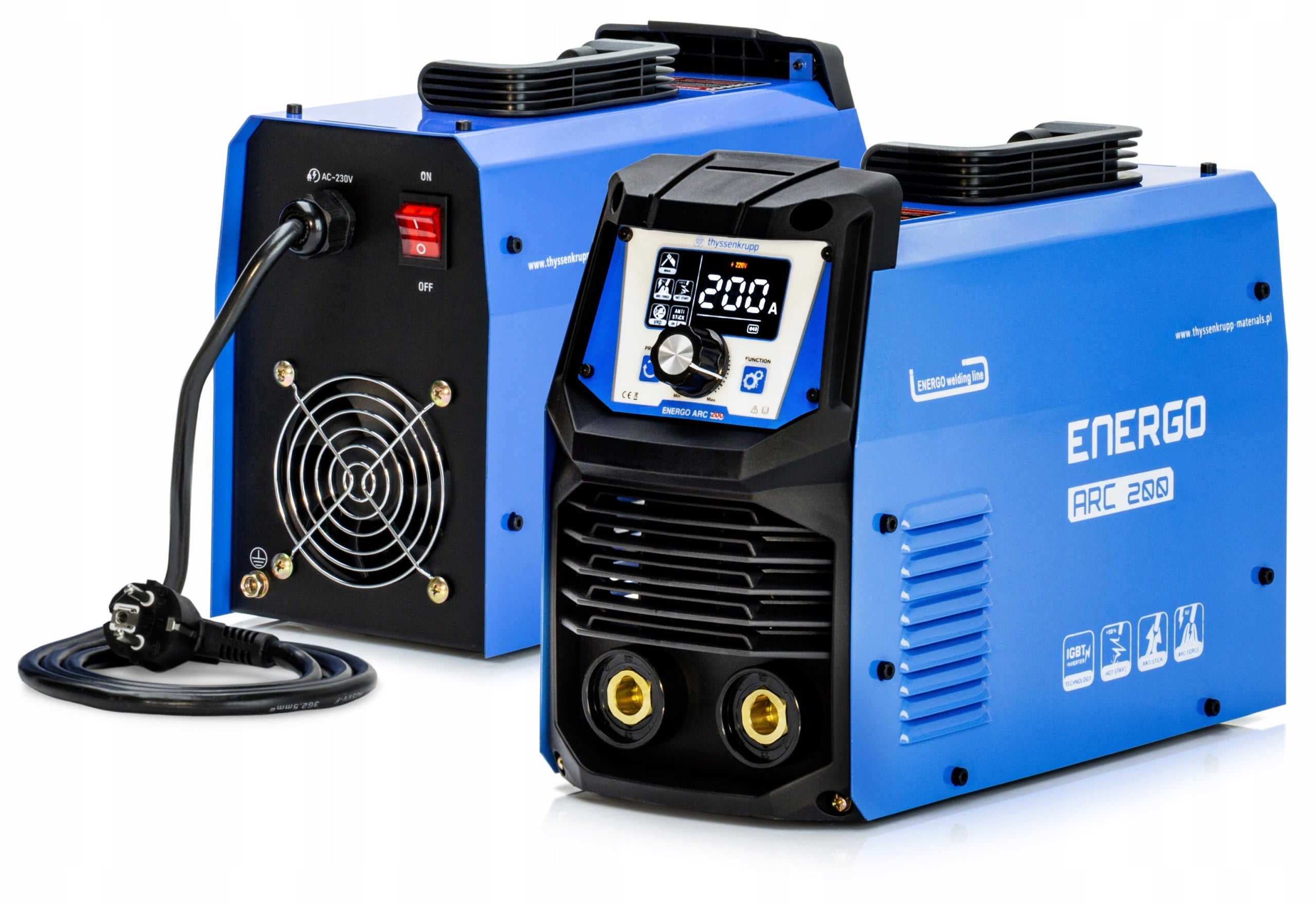

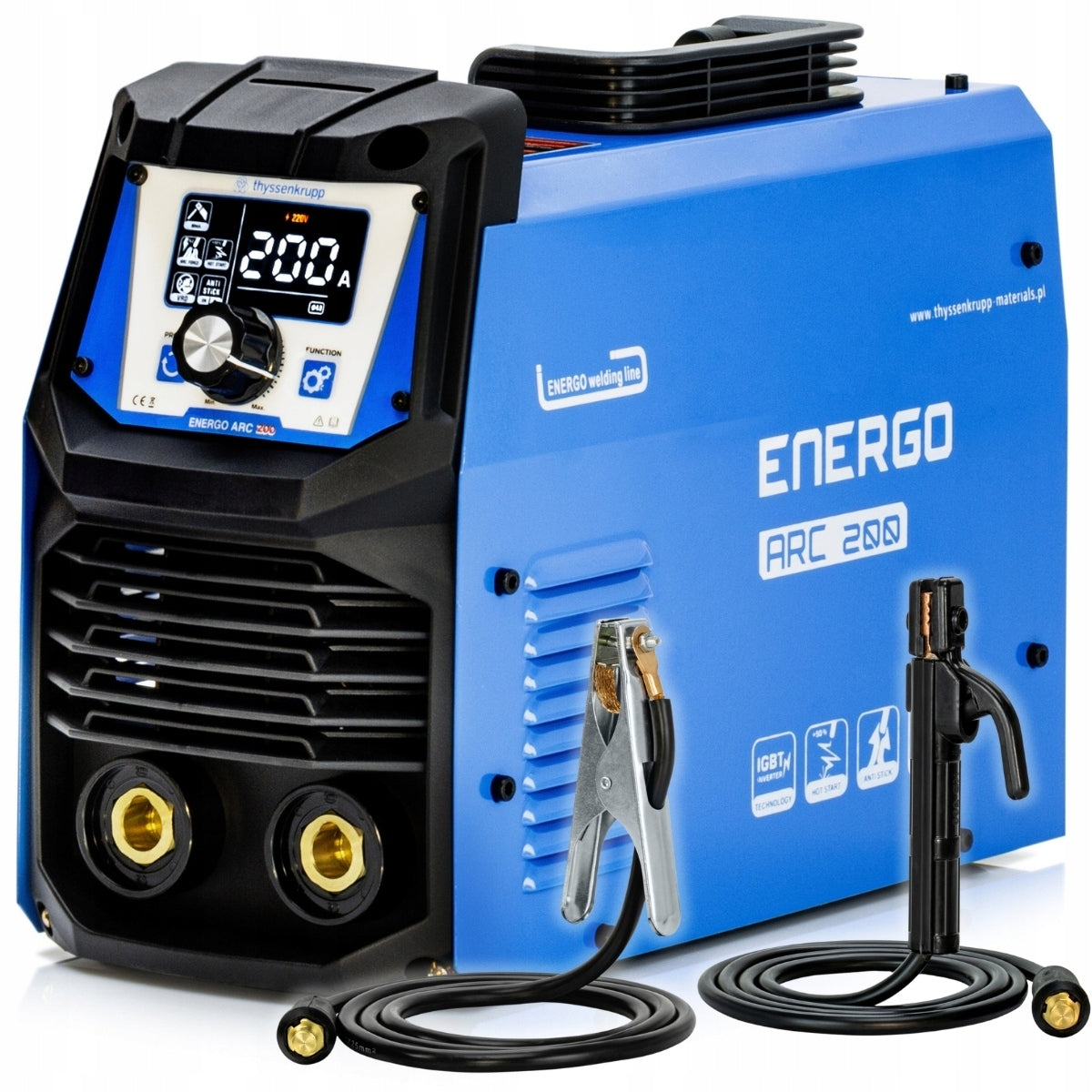

Suvirinimo aparatas ENERGOarc 200A, MMA, TIG Lift

Trumpai apie prekę

Prekė: Suvirinimo aparatas ENERGOarc 200A, MMA, TIG Lift. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: no brand
• Modelis: ENERGOarc 200A

Manufacturer: thyssenkrupp Materials Poland ║ Brand: ENERGOline ║ Model: ENERGOarc 200 ║ Welding Methods: TIG Lift, MMA ║ Power Supply: 230V ║ Welding Current: 200A║

⭐Powerful power, compact form! ⭐

We invite you to discover the revolutionary inverter welding machine with a power of up to 200A, designed to take your welding experience to a whole new level!

The ENERGOarc 200 inverter welder is designed to provide excellent arc welding performance at a low price.

It is perfect for any repairs and maintenance in your home, garden, or garage.

This compact 200A welding machine enables welding:

• wrapped electrode(MMA)
• by TIG Lift method.

Built to withstand the most demanding working conditions. This inverter welder is your reliable partner for many years.

Solid construction and high-quality materials guarantee not only efficiency, but also durability.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖➖

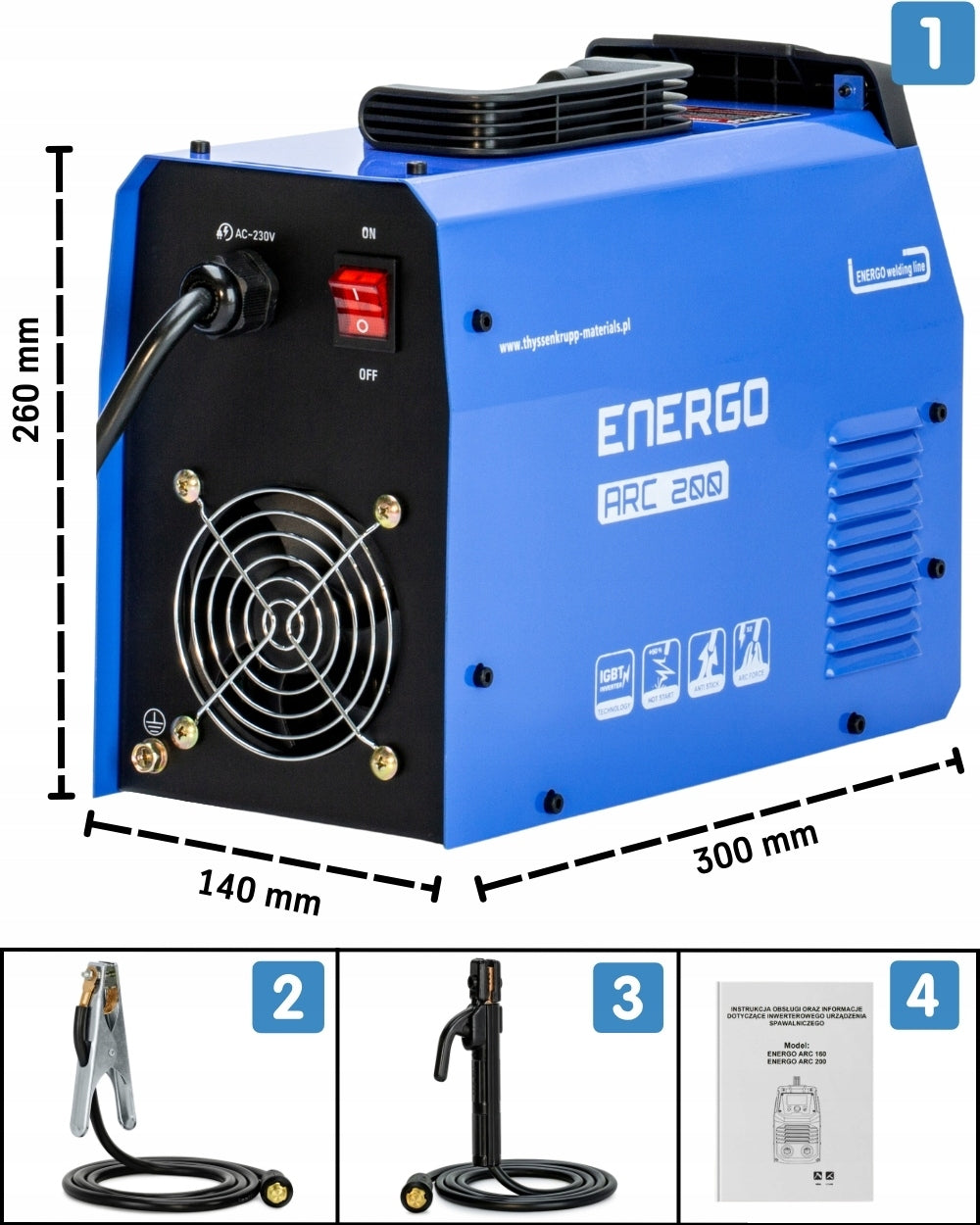

1 Welding device ENERGOarc 200 - 1 pc.

2 MMA working cable 1x25mm² (200 cm) - 1 pc.

3 Cable with mass clamp 1x25mm² (200 cm) - 1 pc.

4 User manual for welding machine - 1 pc.

✔ Ease of transport: ENERGOarc is lightweight and compact compared to traditional transformer welding machines. This makes it easy to transport to different jobsites or around a workshop.

✔ Energy efficiency: Our welding machine has the latest inverter technology. This means that you can save on electricity costs when using the welding machine.

✔ Versatility : The ENERGOarc 200A offers both MMA (wrapped electrode) and TIG Lift welding capabilities. This versatility allows you to perform a wide range of welding tasks without the need for multiple machines.

✔ Ease of use: ENERGOarc is equipped with a user-friendly interface and settings, making it suitable for both beginners and experienced welders. The TIG Lift function can also provide a smoother arc start compared to traditional TIG welding with start-up from the beginning.

✔ Quality and durability: thyssenkrupp Materials Poland is known for producing high-quality welding equipment. Investing in our equipment is a guarantee that the welding machine will be durable and built to withstand the demands of regular use.

✔ Support & Warranty: When you buy ENERGOarc, you get a 24 month warranty, so you can rest assured of your purchase.

• Power supply: 1-phase, 230V ± 15%, 50/60 Hz
• Idle Voltage: 73V
• Housing Protection Class: IP21S
• Protection: 20A
• Welding Current: 20-200A
• MMA permissible load: 60% duty cycle 200A; 100% duty cycle 156A
• TIG LIFT permissible load: 60% duty cycle 200A; 100% duty cycle 156A
• Dimensions: 30 x 14 x 26 cm
• Weight of the device: 6,2 kg

✔ Features: HOT START, ANTI STICK, ARC FORCE, VRD

✔ Universal application - MMA welding and TIG Lift

✔ Low weight and reduced size of welding machine

✔ Security through the use of advanced security measures

✔ Control and monitoring welding currents with LCD display

✔ Stable power supply provides great welding results

✔ High efficiency (60% duty cycle 200A)

✔ Possibility of welding with electrodes with a diameter: 1,6; 2,0; 2,5; 3,2; 4,0; 5,0

ENERGOarc with a power of 200A enables welding with a wrapped electrode (MMA) as well as TIG Lift method. It is perfect for any repairs and maintenance in your home, garden, or garage.

Compact yet efficient DC welding machine provides precise, controlled welding arc.

⭐In our cases, we give real, not fictitious welding parameters that contradict the basic laws of physics. ⭐

The ENERGOarc 200 welder achieves and even slightly exceeds the declared 200A during workshop tests ❗

Thanks to the light weight of the 6,2 kg and the dimensions of 30x14x26 cm, this welding machine is easy to store and transport.

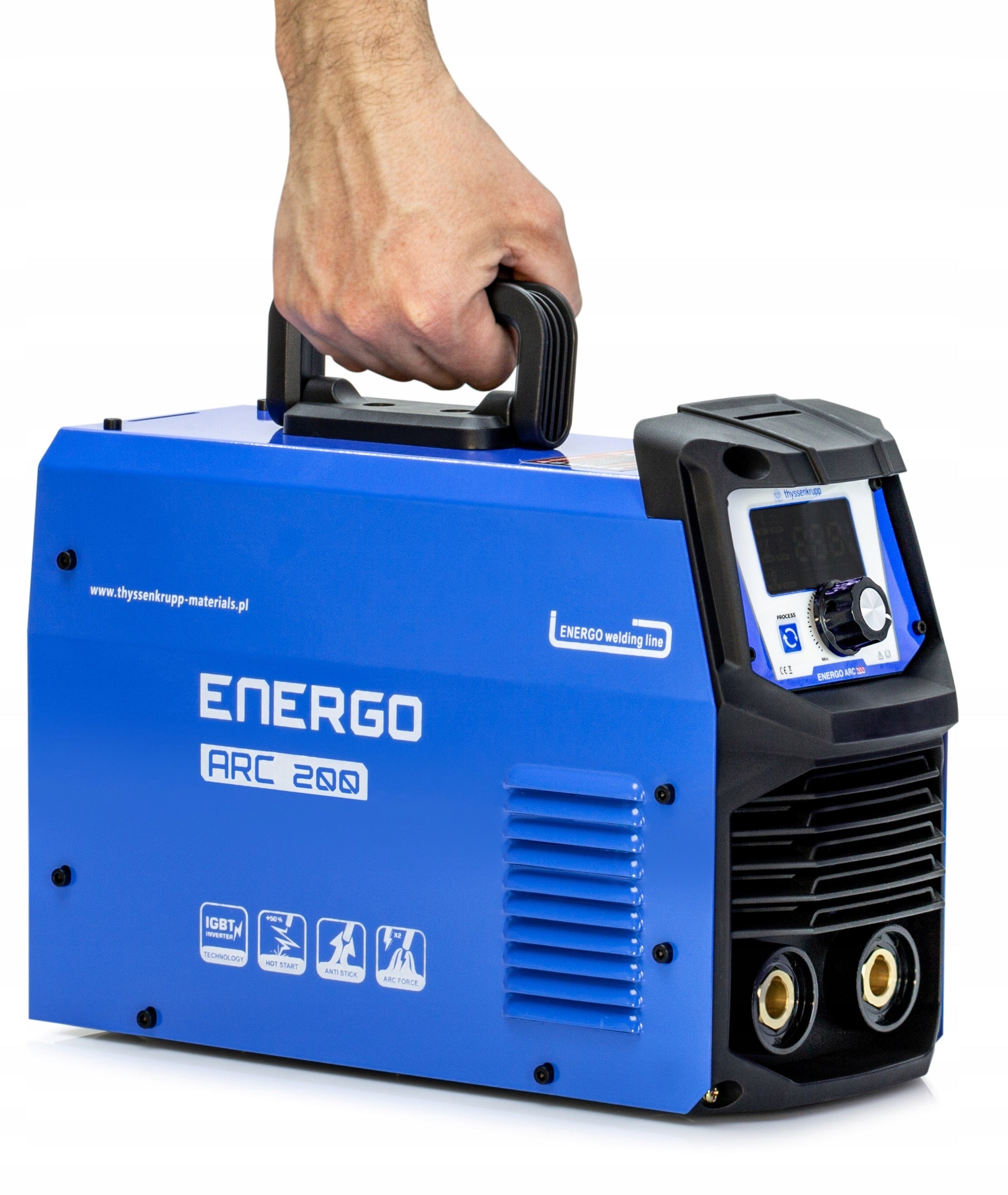

An additional, ergonomic handle allows for convenient carrying of the welding machine.

Take the ENERGOarc 200 with you wherever you need it. With this compact welding machine, you can handle repairs, manufacturing, and construction with ease.

One of the most important advantages of our welding machine is its ease of use.

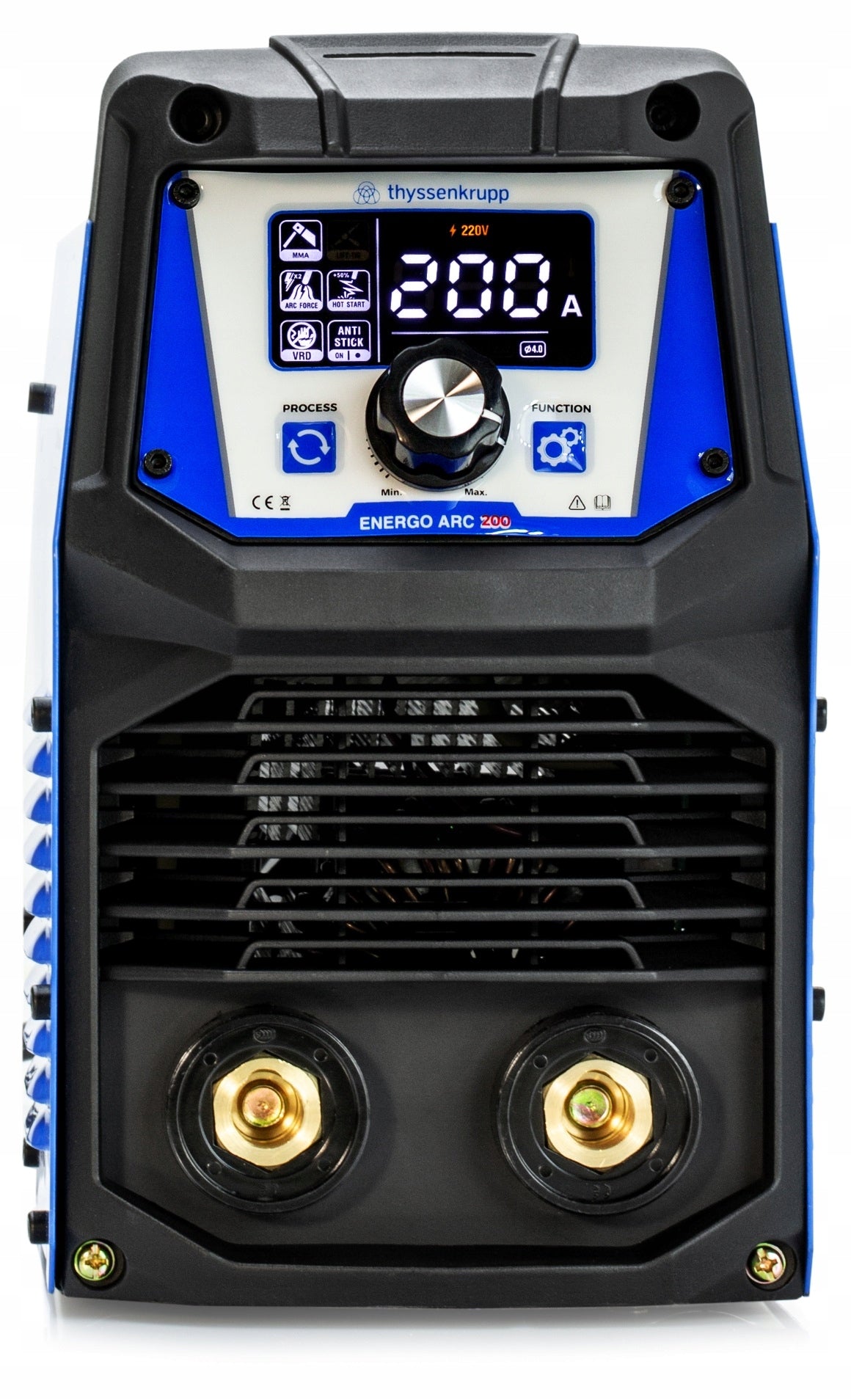

Digital display allows you to monitor the current in real time. Adjustable knob ensure high precision arc glow, guaranteeing excellent results regardless of whether you use rutile, acid or alkaline electrodes. With ENERGOarc, even novice welders will feel confident and able to adjust the settings to their needs.

Intuitive control panel ensures the correct configuration of the machine and selection of appropriate welding functions. This technology will allow you to reduce the time needed for setting and improve welding results.

Regardless of your level of experience, our welding machine will help you achieve professional results.

MMA mode - The maximum current is 200A, and you can weld with various electrodes with a diameter of 1,6~5mm. Additionally, you can use VRD, Hot Start, Arc Force, and Anti Stick for easy welding.

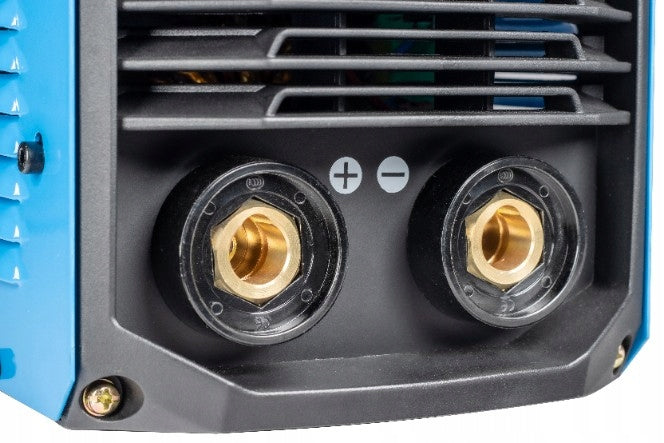

TIG Lift Mode - The TIG welding torch connects to the negative output of the welding inverter, and the return wire to the positive output.

• Thermostatic protection
• Protection against accidental short circuits caused by burner contact with the mass
• Protection against unstable voltage (too high or too low supply voltage)
• VRD and Anti-Adhesive (MMA)

Our equipment is also a solid and durable construction. It is made of high quality materials, and carefully fitted elements testify to the reliability of the device.

✅ VRD (Voltage Reduction Device) - voltage reduction system, whose task is to turn off the power supply within a few milliseconds from the end of welding. The use of the VRD system is a way to provide the welder with a higher level of safety during operation, especially in an environment where there is a very high probability of electric shock (for example, in a hot and damp place).

✅ ANTISTICK - function allows you to easily disconnect the welding electrode if it starts to stick to the workplace. When the device senses that the electrode is sticking, it will reduce the welding current so that the electrode can no longer blend into the object, allowing it to be easily released.

✅ HOTSTART- function, which for a short time increases the current during arcing. The higher current makes it easier to light the arc without sticking the electrode to the base metal. so-called The "hot start" also helps to quickly heat the base metal for deep penetration at the stitch starting point.

✅ ARCFORCE - is a function that detects a drop in arc voltage caused by shortening the arc length. The arc force compensates for the voltage drop by increasing the current. The increased intensity ensures that the heat remains the same and the electrode does not stick to the base metal.

Our shop makes every effort to ensure the safe shipping of goods to our customers. We take care of proper protection of goods against possible damage during transport.

We are aware that shipping security is crucial for our customers, which is why we use high-quality protective materials, such as protective polystyrene, thick cardboard boxes with handles for easy carrying, and professional fillers.

In this way, we provide adequate protection against shocks, impacts or displacement during transport.

Additionally, our packages are carefully labeled to ensure identification and avoid unnecessary delivery problems.

─────────────────────────────────

➕ After purchase in electronic form, we provide information for users about the correct rules for handling waste electrical and electronic equipment and an extensive instruction manual for the welding machine.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Welding methods	MMA
Parametry	Power consumption	7 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	5 mm
Parametry	Device weight	6 kg
Parametry	Welding range	20–200 A
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	200 cm
Parametry	Product weight with unit packaging	6.5 kg
Parametry	Manufacturer code	Spawarka inwertorowa
Parametry	EAN (GTIN)	5905741757754
Parametry	Packaging status	original
Parametry	Model	ENERGOarc 200A
Parametry	Additional features	infinitely adjustable welding current,EURO handle,LCD display
