Suvirinimo aparatas EXPERT TIG 202 AC/DC PULSE LCD, 200A, titano, aliuminio, vario suvirinimui

Trumpai apie prekę

Prekė: Suvirinimo aparatas EXPERT TIG 202 AC/DC PULSE LCD, 200A, titano, aliuminio, vario suvirinimui. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: EXTIG202AC

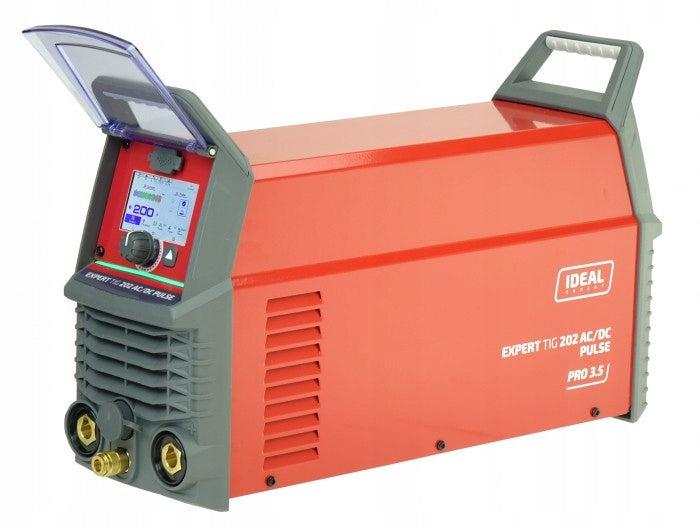

EXPERT TIG 202 AC/DC PULSE Pro3.5 LCD professional inverter welding machine – precise welding of any metal

EXPERT TIG 202 AC/DC PULSE Pro3.5 LCD is a portable, advanced inverter welding machine designed for welding a variety of metals, including aluminum and stainless steel, using the TIG method. With IGBT technology and a wide range of welding functions, this machine is perfect for both workshops and construction sites, ensuring the highest quality welds.

Key features and benefits of EXPERT TIG 202 AC/DC PULSE Pro3.5 LCD

• Comprehensive welding modesThe welding machine supports many modes, such as TIG AC, TIG DC, TIG AC PULS, TIG DC PULS and MMA PULS, which allows you to fully adjust the parameters to the type of material and specific weld requirements.
• Advanced pulsed functionsThe TIG PULS function allows you to adjust the parameters of pulsed welding, which gives you full control over the amount of heat supplied to the material. This is crucial when working with thin materials, minimizing their deformation.
• Arc glow HF/LIFTThe welding machine offers the possibility of non-contact (HF) and tactile (LIFT) arc glow, which makes the device safe to use in environments with high electromagnetic interference.

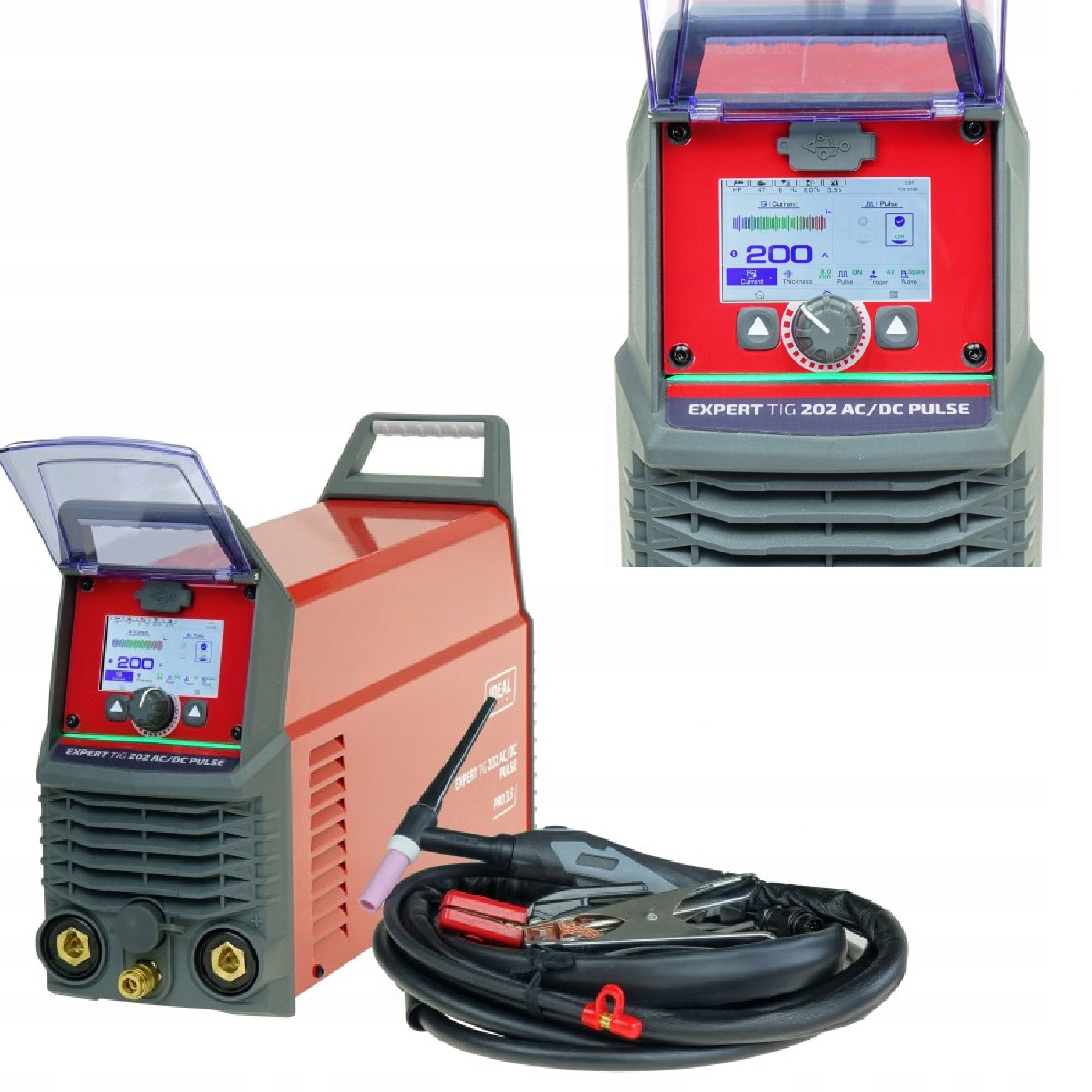

• Intuitive control panel with LCD displayDigital control panel with LCD screen allows you to easily manage all the functions of the device, ensuring stable operating parameters and full control over welding.
• Synergy and SMART TIG modeSMART TIG mode allows you to select the initial welding parameters by automatically adjusting the output settings, which allows you to quickly start working without the need for accurate configuration.
• Safety and efficiencyThe welding machine has a fan cooling system and overload protection, which increases its reliability and extends its service life. The gas connection quick coupler allows you to connect the welding torch immediately.

• Model: EXPERT TIG 202 AC/DC PULSE Pro3.5 LCD
• Power Supply: 230V, 50-60Hz (1ph)
• Power: 7,6 kW
• Welding current range: 10-200 A
• Power at work 100%: 100 A
• Power at work 60%: 200 A
• Idle voltage: 67 V
• AC frequency: 50-250 Hz
• Pulse frequency: 0,5 - 999 Hz
• Pulse length: 5-95%
• AC Balance: -5 to +5
• Protection rating: IP21S
• Weight of the device: 9 kg (with set: 14 kg)
• Device dimensions: 505 x 160 x 305 mm
• Package dimensions: 565 x 220 x 360 mm

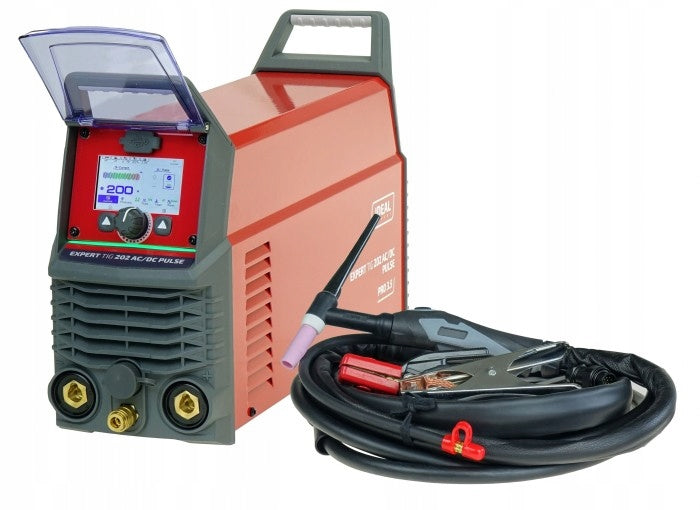

• TIG 26 welding torch with remote adjustment (4 m)
• MMA electrode cable (3 m)
• Bulk cable (3 m)
• Gas hose with quick coupler

Application EXPERT TIG 202 AC/DC PULSE Pro3.5 LCD

EXPERT TIG 202 AC/DC PULSE Pro3.5 LCD is ideal for workshop and field work where the highest precision and control over the welding process is required. With numerous functions and operating modes, the welding machine is suitable for welding aluminum, stainless steel, brass and many other metals, meeting the requirements of professional welders.

EXPERT TIG 202 AC/DC PULSE Pro3.5 LCD is a robust and versatile welding machine that offers a wide range of functions, intuitive operation and reliability, being the ideal choice for advanced welding work.
