Suvirinimo aparatas Fronius Artis 210 TIG DC

Trumpai apie prekę

Prekė: Suvirinimo aparatas Fronius Artis 210 TIG DC. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Fronius
• Modelis: Artis 210

The TIG Fronius Artis 210 welding machine is a device that combines the stability of a welding arc with a wide range of welding system functions.

The most important advantages of Fronius Artis 210:

- Upgradeable via USB

- Adaptation to power supply from a generator set

– The remote foot control button is also standard equipment of the device.

– HF (high frequency) glow

– 40% duty cycle at maximum output power

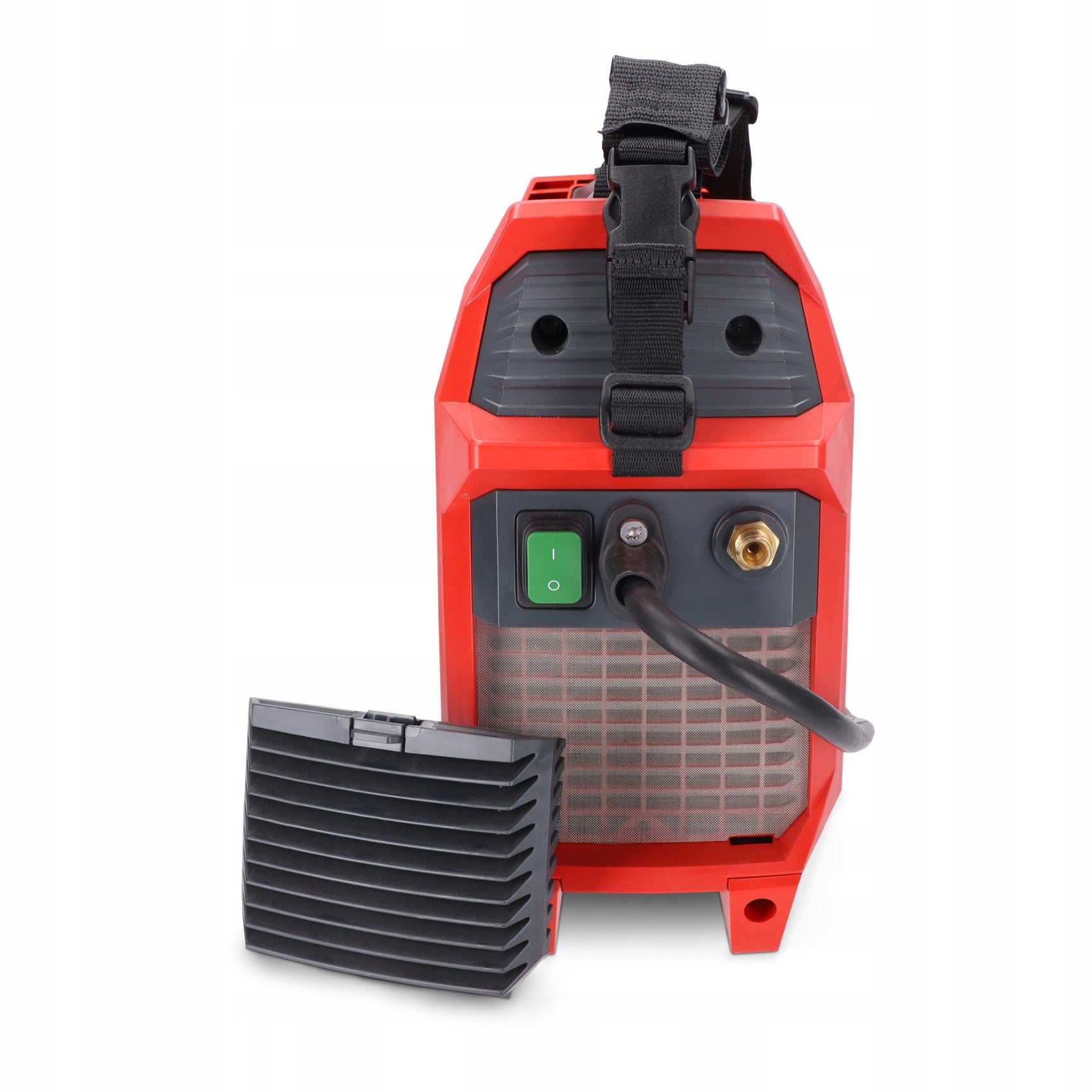

- Filter as standard - the device is equipped with a reusable dust and dirt filter that prevents contamination of electronic components inside the device.

- TMC - TIG Multi Connector - Universal connection to peripheral devices, such as a welding torch equipped with special functions (Up/Down, potentiometer) or a remote controller, are additional advantages for the user.

Mains supply voltage 96 to 265 V

With a wide range of supply voltages, the Artis 210 welding system can be connected to almost any electrical network anywhere in the world.

WELDING FUNCTIONS TIG

Automatic and manual regulation of gas outflow before welding and after welding - This welding system is intelligent: depending on the set welding current, the Artis device automatically calculates the duration of the optimal gas outflow after welding. This improves the gas shield of the end of the weld and tungsten electrode.

Trigger Mode OFF: automatic shutdown - When the welding process is completed, the welding arc is deliberately extended, the welding current is automatically switched off.

Save up to 50% of the time for the user compared to conventional bonding - The pulsating current makes the welding lake vibrate. This makes it easier to attach elements and reduces the time of attachment. There is no discoloration in the clinging areas.

PTD – Pulse / TAC Display - This feature allows you to extend the function curve on the control panel with two additional parameters “Pulse” and “TAC”.

TIG Pulse welding: TIG Pulse welding: welding also of thin sheets - Pulse welding is used primarily in forced positions or when welding particularly thin materials. The range of settings during pulsed welding is in the range from 1 Hz to 990 Hz.

High Frequency Lighting - High Frequency Touch Lighting is useful when e.g. due to difficult access to the welded element, it is required to use a welding torch without a button. The device detects contact with the welded element and after a certain period of time causes the welding arc to glow at the selected place with point accuracy.

Point and multi-stitch welding: cyclic, repetitive welds - Spot welds can be made at equal intervals in spot mode. According to the freely set interval time, they can also be continued as intermittent welding.

ELECTRODE WELDING FUNCTIONS

Pulse arc electrode welding - Pulse mode of electrodes allows for better welding properties in forced positions and better filling of gaps. This mode is best suited for vertical welding from bottom to top.

Hot Start function during arc welding - To ensure easier arcing of the electrode, during flashing, the welding system provides a higher value current for a fraction of a second.

Cellulose electrodes - Optimal characteristics for welding with cellulose electrodes. This requires a higher power output.

Dynamics - If alkaline electrodes are welded using low current (too low load), and the passage of the material is carried out with large drops, there is a danger of sticking. To exclude them, shortly before sticking, the system provides a higher value of current for a fraction of a second. The electrode releases, which prevents sticking.

Anti-Stick - In the event of a short circuit (sticking the electrode during electrode welding), the welding source is immediately switched off. This prevents the electrode from annealing and welding defects.

TECHNICAL DATA

Power factor: 0,99

OVERALL DATA

Minimum welding current: 3 A

Maximum welding current: 210 A

Operating voltage range min. : 10,1 V

Idle Voltage: 101 V

Degree of protection: IP23

Dimensions Length: 435 mm

Dimensions Width: 160 mm

Dimensions Height: 310 mm

Weight 9,7 kg

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Fronius
Parametry	Device weight	9.8 kg
Parametry	Manufacturer code	4,075,272
Parametry	EAN (GTIN)	9007947607270
Parametry	Packaging status	original
Parametry	Model	Artis 210
