Suvirinimo aparatas IDEAL EXPERT MIG 210 Synergy MMA TIG, 200A, 4T

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL EXPERT MIG 210 Synergy MMA TIG, 200A, 4T. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: EXPERT MIG 210 SYNERGIC PRO 4 LCD
• Ilgis: 571 mm
• Plotis: 206 mm
• Aukštis: 411 mm

Manufacturer: IDEAL ║ Welding methods: MIG/MAG, MMA, TIG Lift, FLUX, Soldering ║ Power supply: 230 V ║ Welding current: 200 A ║ Efficiency: 60 %

─ ...

By buying from us, you gain ⭐ ENGINEER SUPPORT ⭐, which can be envied by the competition!

In our store, buying a welding machine is just the beginning! Because we know that a wise choice is not only a matter of the lowest price, but also of certainty and support after the transaction. It is a comprehensive solution with invaluable after-sales support, which is in vain to look elsewhere.

🧠CHOOSE WISELY 🧠

⏬ See details below ⏬

────────────────────────────────────────────────────────────────────

🏆⭐ Modern technology and comfort of use in one. Discover the Ideal Expert MIG 210 Synergic Pro4 LCD! ⭐🏆

• 200 Amps in all welding methods
• Working cycle at 60 % (10-minute cycle, or 60% is 6 minutes of work, 4 minutes break)
• Designed for welding carbon steel, stainless steel, copper, aluminum, magnesium nickel and bronze.
• Synergy significantly facilitates the welding process by automatically selecting welding parameters. Dedicated programs for steel wires, self-shielding steel, stainless steel, aluminum, as well as for soldering.
• Lutowelding is particularly useful when combining galvanized sheets and thin materials (repair of car bodies).
• Inductance adjustment allows you to set the “hardness” of the arc and the heat associated with it. The smaller the value, the more stable the arc, more heat, but also more chipping. At a higher value, the arc is less stable, the heat is less, and the amount of chipping decreases.

• The SPOT function allows you to perform spot welds or spot welding of thin plates. Especially useful in the automotive industry.
• 2T/4T/S2T/S4T, which increases comfort and flexibility of work. In two bars, welding is carried out as long as you hold the button in the handle. At four bars, pressing and releasing the button starts welding and ends the process the same way the next time you press and release the button. S2T and S4T are extended versions of 2T and 4T modes. They also allow you to set the time and value of the initial and final current, which improves the quality of the weld.
• Pre Gas / Post Gas - flow before and after welding. Pre Gas prepares the welding area, and Post Gas protects the weld after the process, minimizing the risk of oxidation and ensuring optimal cooling conditions
• Slow Feed is a wire access speed control, thanks to which you have control over the number of chippings at the beginning of welding. Allows stable arcing.
• Burn Back is a function that prevents welding wire from sticking to the current tip after welding.

• Arc Force automatically adjusts welding current depending on arc length
• Hot Start increases welding current for a fraction of a second at arc ignition
• Professional, 2-roll roller feeder made of pressure cast aluminium
• VRD reduces the idle voltage on the electrode to a safe value.
• Fan cooling system equipped with 2 modes: NORMAL or SMART
• Sending and receiving welding programs from an external storage medium
• Memory channel (20 places) to save your welding parameters

Ideal Expert MIG 210 Synergic Pro4 LCD is a versatile, synergistic semi-automatic welding machine designed for arc welding using the MIG/MAG method, self-shielding wire (FLUX), TIG LIFT and wrapped electrode (MMA). The welder is designed for a wide range of applications, from maintenance work to welding steel structures or repairing car bodies. It enables welding of carbon steel, low alloy steel, alloy steel, as well as aluminum and its alloys.

Thanks to the synergy and the 4-inch LCD display, the configuration is very simple. Choose the material and thickness of the material, and the automatic arc control system will select the best settings for each welding position and for each material.

Paweł P. ⭐⭐⭐⭐⭐

"Very decent welding machine and great thing, menu simple and legible. Just weld. "

Joanna G. ⭐⭐⭐⭐⭐

"Husband super happy, so I guess it's ok. Lots of different gadgets. The product conforms to the description, I think it is worth the price. "

Robert M. ⭐⭐⭐⭐⭐

"I recommend, great set for a DIYer. The price is good too. It works flawlessly. "

👨 🔧💡 Manual adjustment and advanced handle modes! 💡👨 🔧

The possibility of manual correction of the length of the welding arc has also been preserved to adjust the settings and appearance of the weld to your preferences. Different operating modes of the handle are available for the MIG/MAG method: SPOT, 2-bar, 4-bar, S2-bar, S4-bar.

💾🔧 JOB function: Save and Load Settings 🔧💾

The device is also equipped with an extensive task management system (JOB function), which allows you to store and quickly load defined welding parameters, simplifying work in various conditions, e.g. when changing the material, shielding gas or type of wire.

The welder has manual mode and synergic mode (MIG SYN) with the possibility of adjusting:

• gas before welding (Pre-gas)
• gas after welding (Post-gas)
• Wire access speed (Slow Feed)
• Wire Burning (Burn Back)
• voltage corrections
• spot welding time
• inductance
• Rise/fall current (Slope Up/Down)

In the TIG LIFT welding method we set:

• welding current
• time of current drop
• final outflow of shielding gas
• Button mode: 2T or 4T
• thickness of welded material

And in the MMA method, we will also find functions supporting the welding process with a wrapped electrode, i.e.:

• Hot Start
• Hot Start Time
• Arc Force

💻🧠 Intuitive control panel 🧠💻

1. JOB - Button with folder icon. A single press opens the device’s JOB dashboard, where you can load, save, import, or export your saved welding parameters.
2. USB socket - Thanks to the USB port, you can transfer saved welding settings to an external media or load them from such a media to the device.
3. SETTING - A button with a sprocket icon, with which you can set the device to your preferences.
4. LCD display - Touch screen, showing all parameters and functions of the device.
5. Left potentiometer (LP) - It is responsible for adjusting some functions/parameters. It allows both left/right rotation (to select or change parameter values) and pressing (to approve the selected option).
6. Functional button left (LK) - Pressing the button triggers the menu for selecting the welding method or selecting to the main board, previously selected method.
7. Functional button right (PK) - Pressing the button triggers the menu of additional functions or returns to the main board, previously selected method.
8. Right potentiometer (PP) - Responsible for adjusting some functions/parameters. Allows left/right rotation as well as pressing.

In our store, buying a welding machine is just the beginning! We want you to fully use its potential, which is why each customer after purchase, giving the number of their order, receives access to an individual consultation with our experienced welding engineer!

How to use the dedicated support of the Engineer?

1. 📞 Contact us!
2. # Provide your order number: This is the key that will open the door for you to talk to our expert.
3. 🧯 Prepare questions: Think about what you need help with – whether it is the first start-up, selection of parameters for a specific project or advanced welding techniques.
4. 💬 Talk directly to the Engineer: Our specialist will take the time to answer your questions, help you set up the welding machine and share practical tips.

Why is our Engineer Support MORE than just a phone call to the store?

• ✅ Expert on the other side: After verifying your order number, you can be sure that you are talking to a experienced welding engineer, not just general customer service. It is a practitioner with in-depth technical knowledge.
• ⌚ Focused attention on your needs: This is not a rushed answer. Our engineer will take the necessary time to understand your problem or question and provide comprehensive assistance.
• 🔍 Custom-made advice: The help is tailored to your level of advancement and specific applications of the welding machine in your projects – from minor repairs to more complex structures.
• 🚀 Faster results, fewer errors: Instead of long searches and trial and error methods, you get professional tips that will allow you to achieve the intended results faster and avoid costly mistakes.
• 💡 Solutions to unusual challenges: The general hotline may not be enough for more complex issues. Our engineer will help you with unusual problems or advise you on advanced welding techniques.

With us you can be sure that your investment in a welding machine will bring the best results, and you will gain a partner ready to support you at every stage of work! 🏅😎

🔧 Technical specification 🔧

POWER SUPPLY PARAMETERS

• Power supply: 230 V
• Number of phases: 1 ph
• Frequency: 50/60 Hz
• Power protection: 25 A type C

TECHNICAL PARAMETERS

• MIG/MAG welding current: 20 ÷ 200 A
• MMA/TIG welding current: 10 ÷ 200 A
• Idle voltage: 70 V
• Efficiency: 60 %
• Feeder: 2R
• Spool diameters with wire: D100 / D200
• Max. spool size: 5 kg
• Wire diameter: 0.6 / 0.8 / 0.9 / 1.0 mm

PHYSICAL PARAMETERS

• Housing protection: IP21S
• Cooling: Fan
• Weight: 14 kg

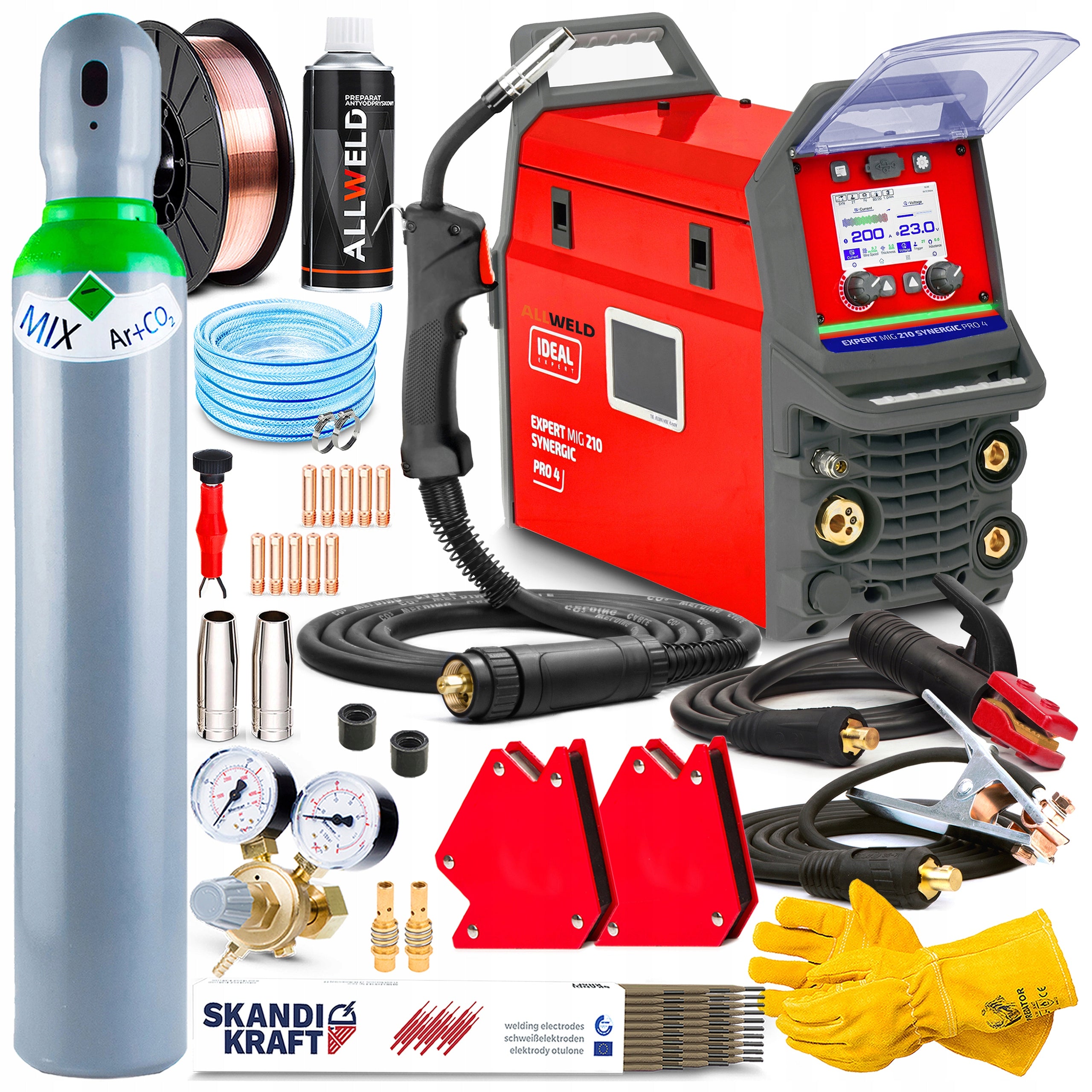

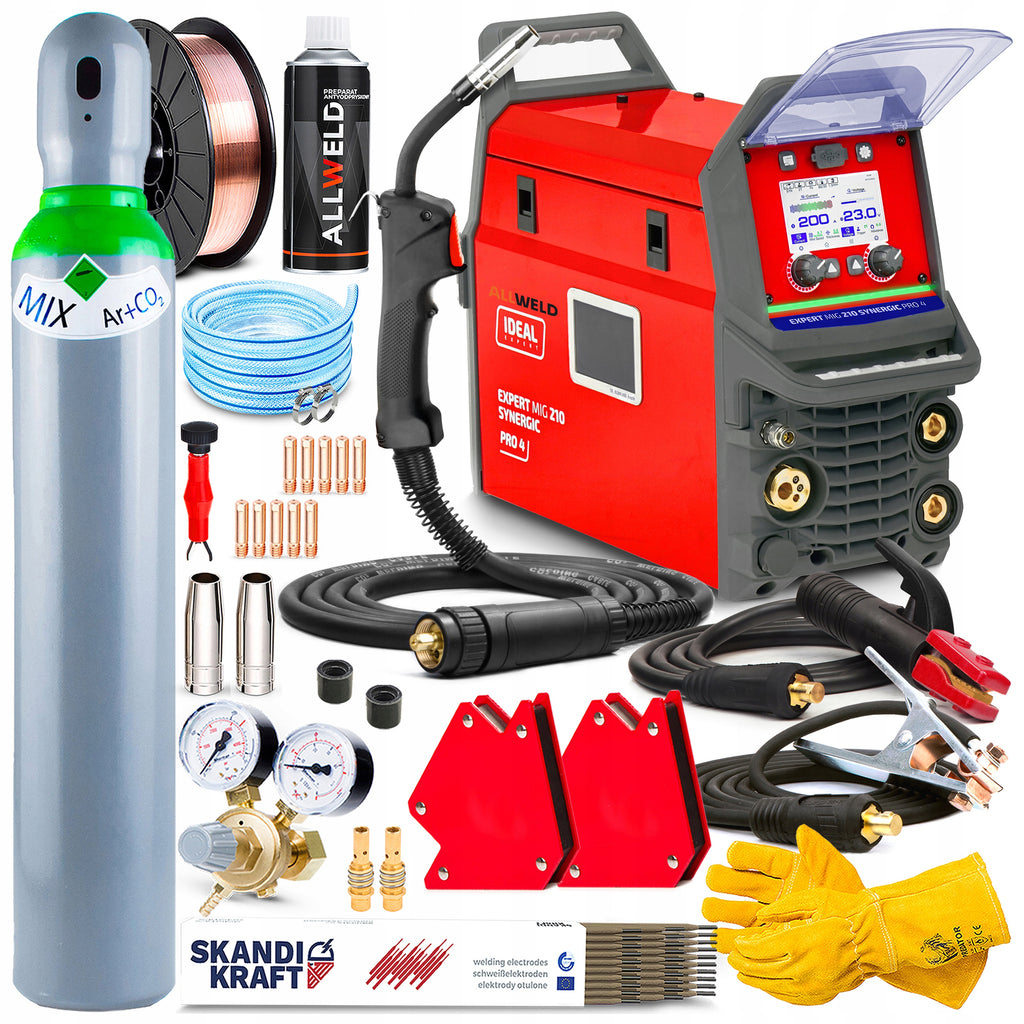

📦 Set includes: 📦

• Welding machine Ideal Expert MIG 210 Synergic Pro4 LCD
• Welding torch MIG/MAG type MB 15 - 3 m
• Electrode holder - 3 m
• Bulk holder - 3 m
• User manual in Polish

ADDITIONAL ACCESSORIES

• Factory new reusable cylinder with a mixture of Ar(82%)/CO2(18%) with a capacity of 8 l. Cylinders have 10-year legalization and can be filled at any point with technical gases.
• Gas hose - for connecting the reducer to the welding machine.
• Reducer with two pressure gauges - precise reducer with adjustment. Our model has a pressure gauge to control the pressure in the cylinder and a second to the amount of gas flowing out.
• ALLWELD anti-chipping preparation - protects the nozzle and metal against welding chipping.
• Welding wire SG2 0,8 mm 5 kg - precision winding
• Clamp ties - 2 pcs
• Gloves welding - 1 pair
• Scraper (cleaner) for gas nozzles
• Set of MB15 handle consumable parts (gas nozzles - 2 pcs., current connectors - 2 pcs., current tips - 10 pcs., gas distributor - 2 pcs. )
• Angles magnetic 11 kg - 2 pcs
• Electrodes SkandiKraft 3,2 mm 1 kg - 1 pack
