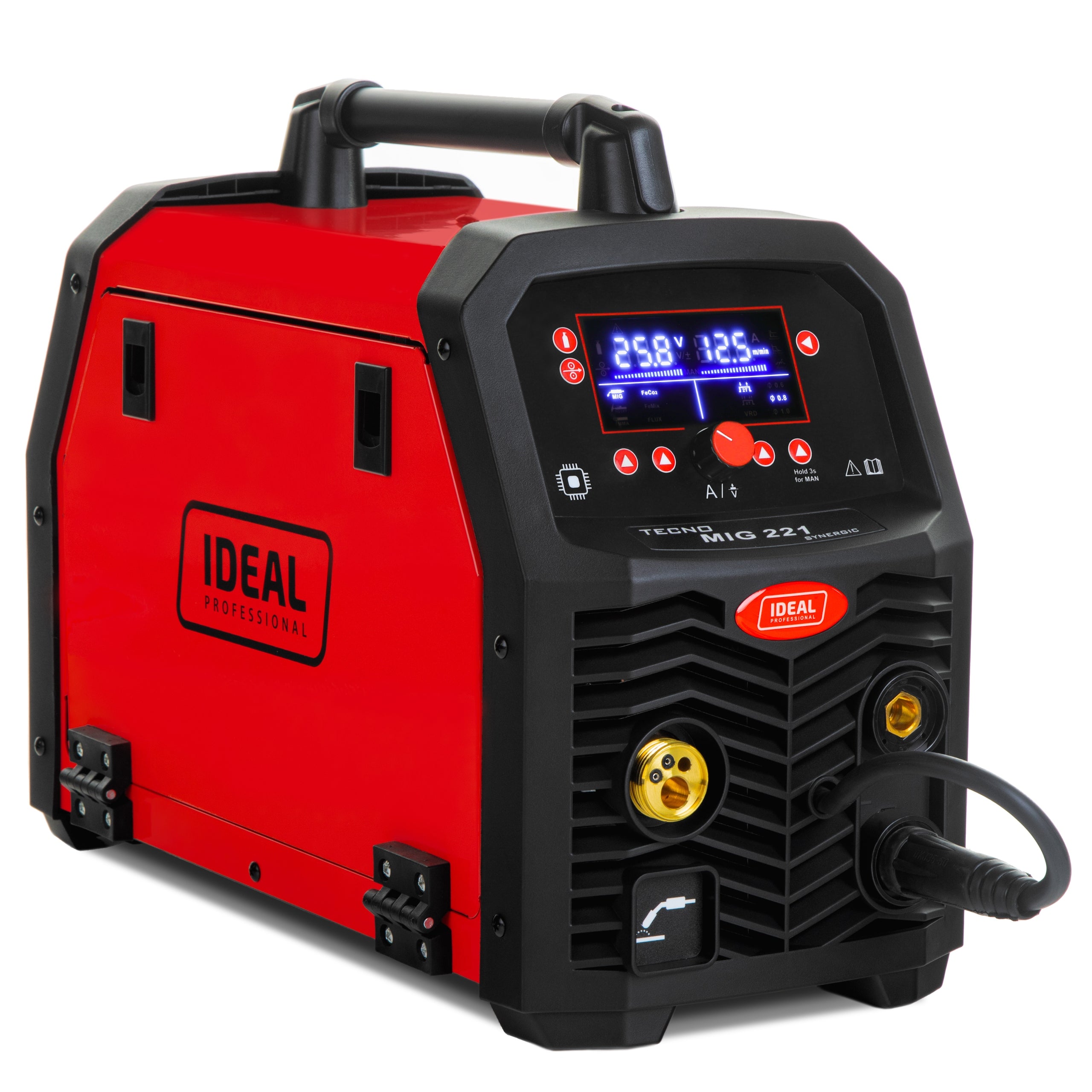

Suvirinimo aparatas IDEAL MIG 221 Synergy, 200A, 230V, MIG/MAG/MMA/TIG, 3 viename

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL MIG 221 Synergy, 200A, 230V, MIG/MAG/MMA/TIG, 3 viename. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TMIG221SYN
• Ilgis: 510 mm
• Plotis: 230 mm
• Aukštis: 370 mm

Manufacturer: IDEAL ║ Welding methods: MIG/MAG, MMA, TIG LIFT, SOLDERING ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%

Ideal TECNO MIG 221 SYNERGIC is an inverter semi-automatic welding machine designed for arc welding using the MIG/MAG, MMA, TIG LIFT and FLUX methods. This versatile piece of equipment is designed for a variety of applications, from maintenance to car body repairs.

• 2T/4T - Yes
• 3IN1 WELDER- Yes
• ARC FORCE- Yes
• FLUX - Yes
• HOT START- Yes
• INDUCTANCE- Yes
• VRD - Yes

TECNO MIG 221 SYNERGIC is equipped with special synergistic programs that enable welding of carbon and low alloy steels. In addition, it is possible to manually weld stainless steel and aluminum. The welding process takes place in the presence of inert gas, active gas or mixture, as well as in gas-free mode with reverse polarity.

In the case of the MIG method, the user can choose the operating mode using the button on the welding machine holder. 2T (without button lock) and 4T (with button lock for long welds) modes are available.

The welder is equipped with a large, readable LED display that allows you to monitor and adjust welding parameters in real time.

Additional functions of the device are inductance adjustment in MIG/MAG mode and HOT START and ARC FORCE regulations in MMA method.

THE MOST IMPORTANT ADVANTAGES OF THE DEVICE:

2T/4T - when the start button is pressed, the welding process takes place, while after releasing the button, the welding process is stopped. Four-point is particularly useful for long welds as well as during work when we need to freely maneuver the handle, e.g. during welding of pipes. After pressing and releasing the button, the arc is lit only again pressing and releasing completes the process.

3IN1 WELDER – an inverter source that efficiently and trouble-freely combines several welding methods. Migomat or inert and active gas welding MIG MAG together with welding MMA wrapped electrode. In addition, it allows the use of a TIG handle with a valve for welding in the Lift method with a tactile arc glow.

ARC FORCE – is used to improve stability in the arc and prevent the electrode from “sticking”. Reducing its value to some extent also reduces electricity consumption, the arc is soft and the depth of the melt is reduced. This makes it easier to work with thinner materials. Similarly, increasing ARC FORCE, the arc becomes more focused melting and the stability of the arc increases.

FLUX - arc welding with powder wire, not requiring the use of gas cylinders. We use self-shielding wire, which is filled with flux or a chemical that produces protective gases during welding.

HOT START "hot start" - consists in temporarily increasing the welding current above the set value at the moment of arcing. This prevents the phenomenon of “sticking the electrode” in the initial phase of welding, making it easier to start the whole process. It is recommended to disable this function p for thin elements.

INDUCTANCE – allows you to optimize the welding process depending on the thickness of the welded element and welding conditions. Reducing inductance makes the arc more stable and concentrated and thus greater blending into the material. Increasing the inductance useful for welding thin elements contributes to the formation of a more liquid lake. The arch becomes soft, the amount of chipping decreases. The function is useful for thin elements and in the soldering process to avoid damage to the protective zinc layer.

VRD - This function lowers the voltage in the unloaded state. Within milliseconds after welding, the voltage on the wrapped electrode is reduced to a safe level. The correct voltage value is restored only just before the arc is ignited. This minimizes the risk of electric shock. In extreme cases, it makes it difficult to light the arch.

• Methods: MIG/MAG, MMA, TIG LIFT, FLUX

POWER SUPPLY PARAMETERS

• Power supply: 230V
• Number of phases: 1ph
• Frequency: 50Hz

TECHNICAL PARAMETERS

• Power: 6,5 kW
• Idle voltage: 51 V
• Maximum current: 200 A
• Power at work 100%: 160 A
• Power at work 60%: 200 A(MIG/TIG) / 160 A(MMA)
• Aluminum wire diameter: 0,8 - 1,0 mm
• Diameter of self-shielding wire: 0,8 - 1,0 mm
• Steel wire diameter: 0,6 - 1,0 mm
• Stainless steel wire diameter: 0,6 - 0,8 mm
• Diameter of welding electrode: 1,6 - 4,0 mm
• Welding current adjustment range: 50 - 200 A(MIG) / 10 - 200 A(TIG) / 10 - 160 A(MMA)
• Wire spool size: D100 (0,45kg and 1kg), D200 (2kg and 5kg)

PHYSICAL PARAMETERS

• Housing protection: IP 23S
• Cooling: fan
• Dimensions: 510x230x370mm
• Weight: 11kg

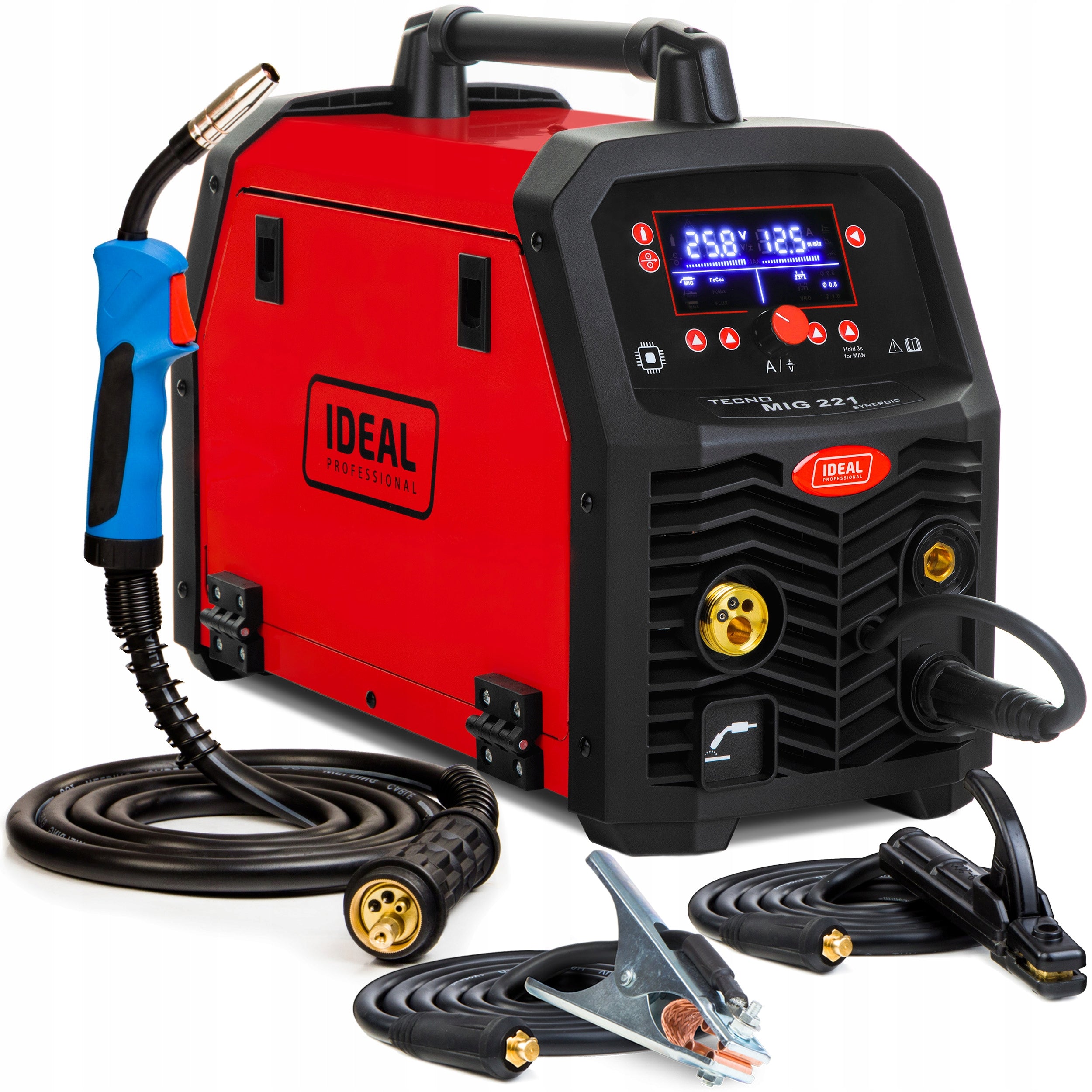

The set includes:

• Welding machine IDEAL TECNO MIG 221 SYNERGIC
• Welding torch MIG/MAG MB 15 - 3 m
• Electrode holder - 2 m
• Bulk holder - 2 m
• Roll for steel wire 0,8-1,0 - 1 pc
