Suvirinimo aparatas IDEAL PRAKTIK MIG 140 Synergy, MIG/MAG, FLUX, MMA, TIG

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL PRAKTIK MIG 140 Synergy, MIG/MAG, FLUX, MMA, TIG. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: PRAKTIK MIG 140 SYNERGIA

Manufacturer: IDEAL ║ Welding methods: MMA, TIG LIFT, FLUX ║ Power supply: 230 V ║ Welding current: 140 A ║ Efficiency: 60%

• 3in1 welding machine: MMA (wrapped electrodes), TIG LIFT (tungsten electrodes), FLUX (self-shielded wire)
• Synergy - automatic selection of parameters based on the selected wire diameter (0,8 mm, 0,9 mm)
• Less power consumption, stable operation even at higher overloads, thanks to modern IGBT transistors
• 2T/4T, which increases the convenience and flexibility of work. In two bars, welding is carried out as long as you hold the button in the handle. At four bars, pressing and releasing the button starts welding and ends the process the same way the next time you press and release the button.
• Precision wire feeder 2R
• Simple and clear control panel
• Fan cooling system
• Settings memory - When turned off and on again, the device remembers the last set parameters.
• Manual mode for experienced welders who prefer control over the welding process. Allows you to independently select the correction of wire voltage and speed.
• VRD reduces the idle voltage on the electrode to a safe value.
• Protection rating IP21S – safe work in the workshop
• Ultra mobile – only 4 kg in weight, ideal for workshops and field work

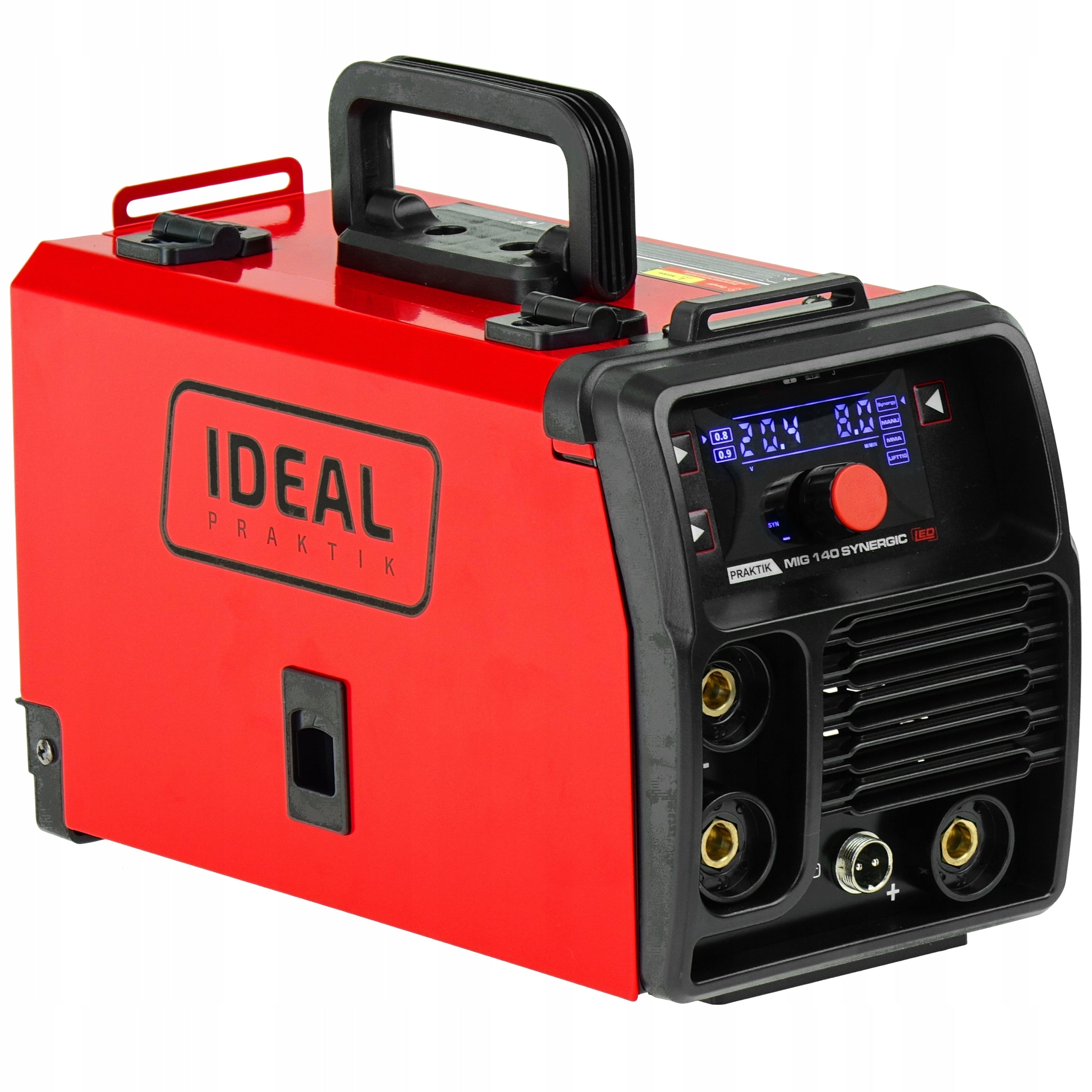

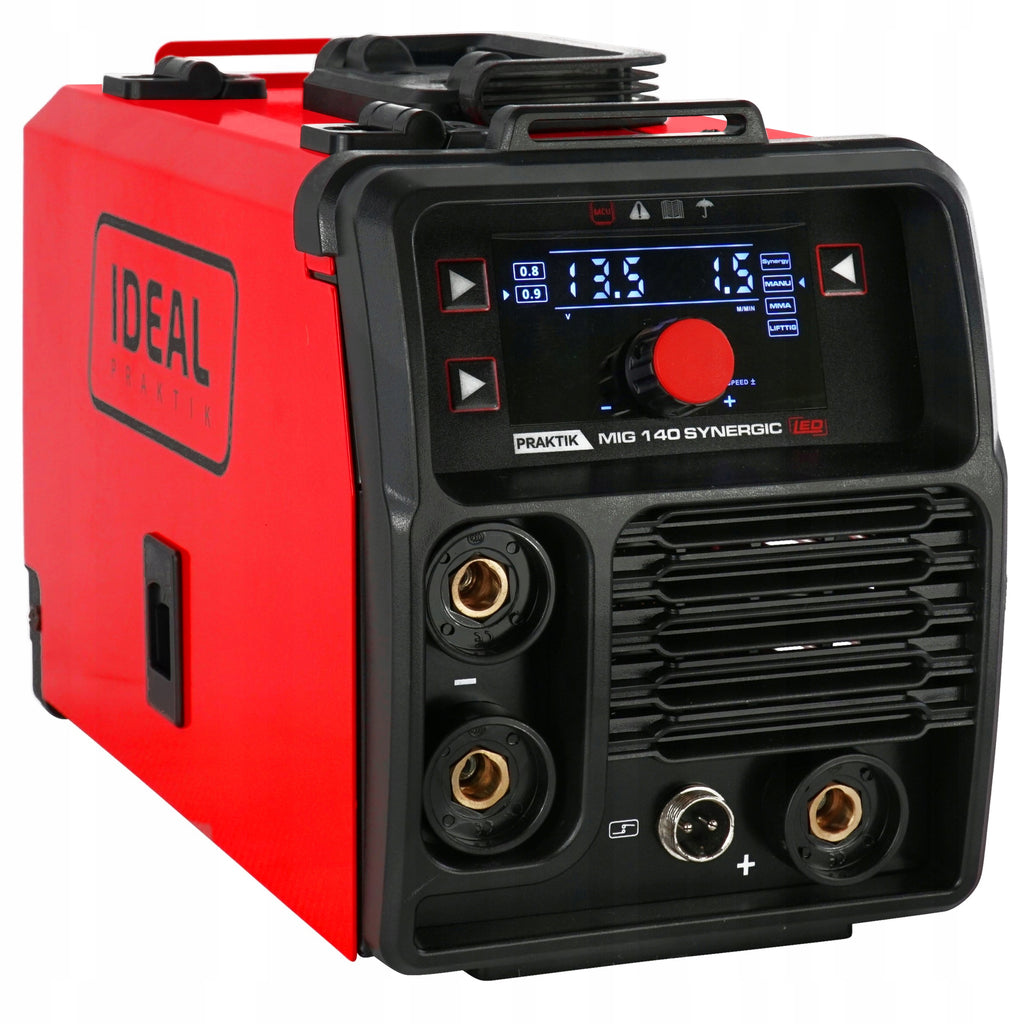

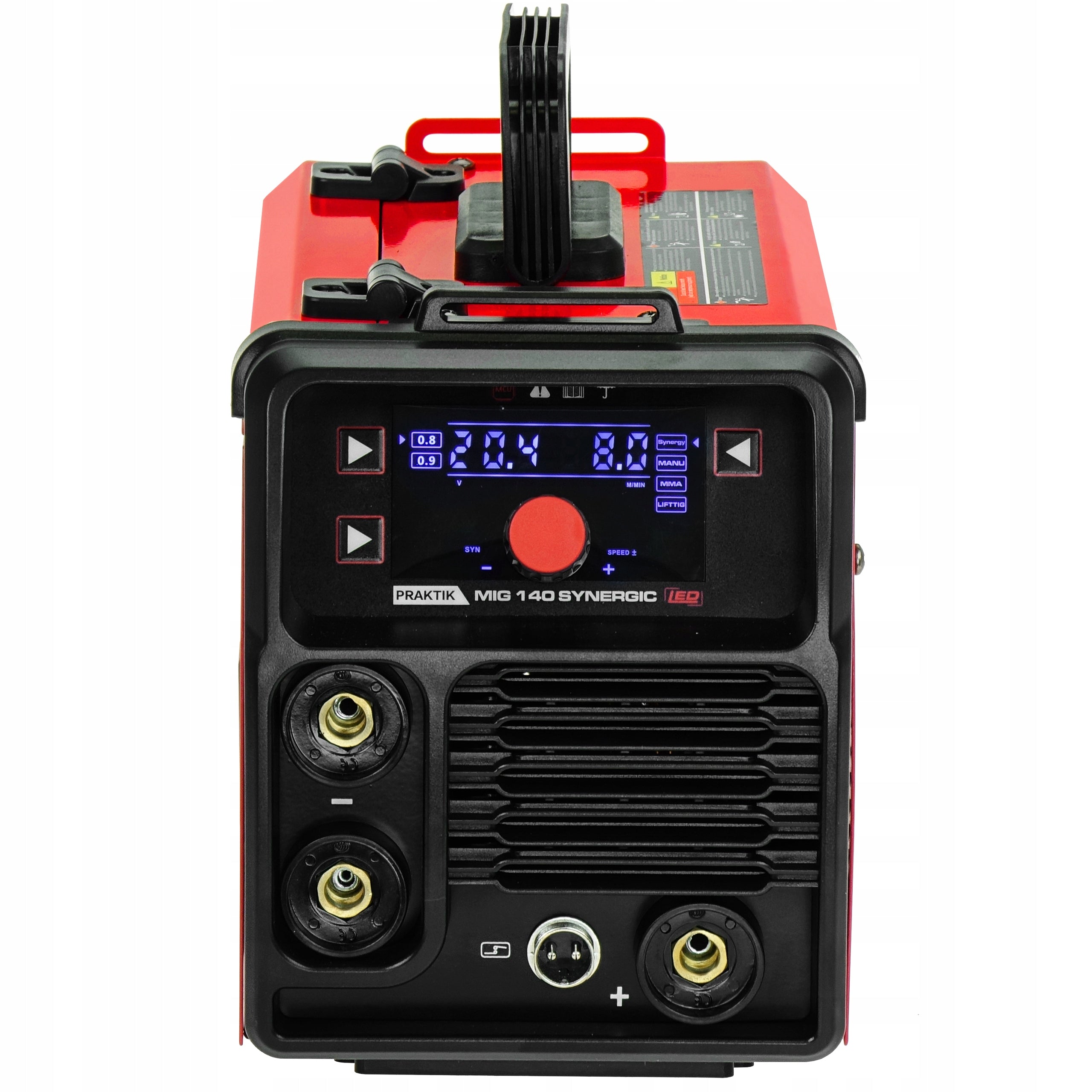

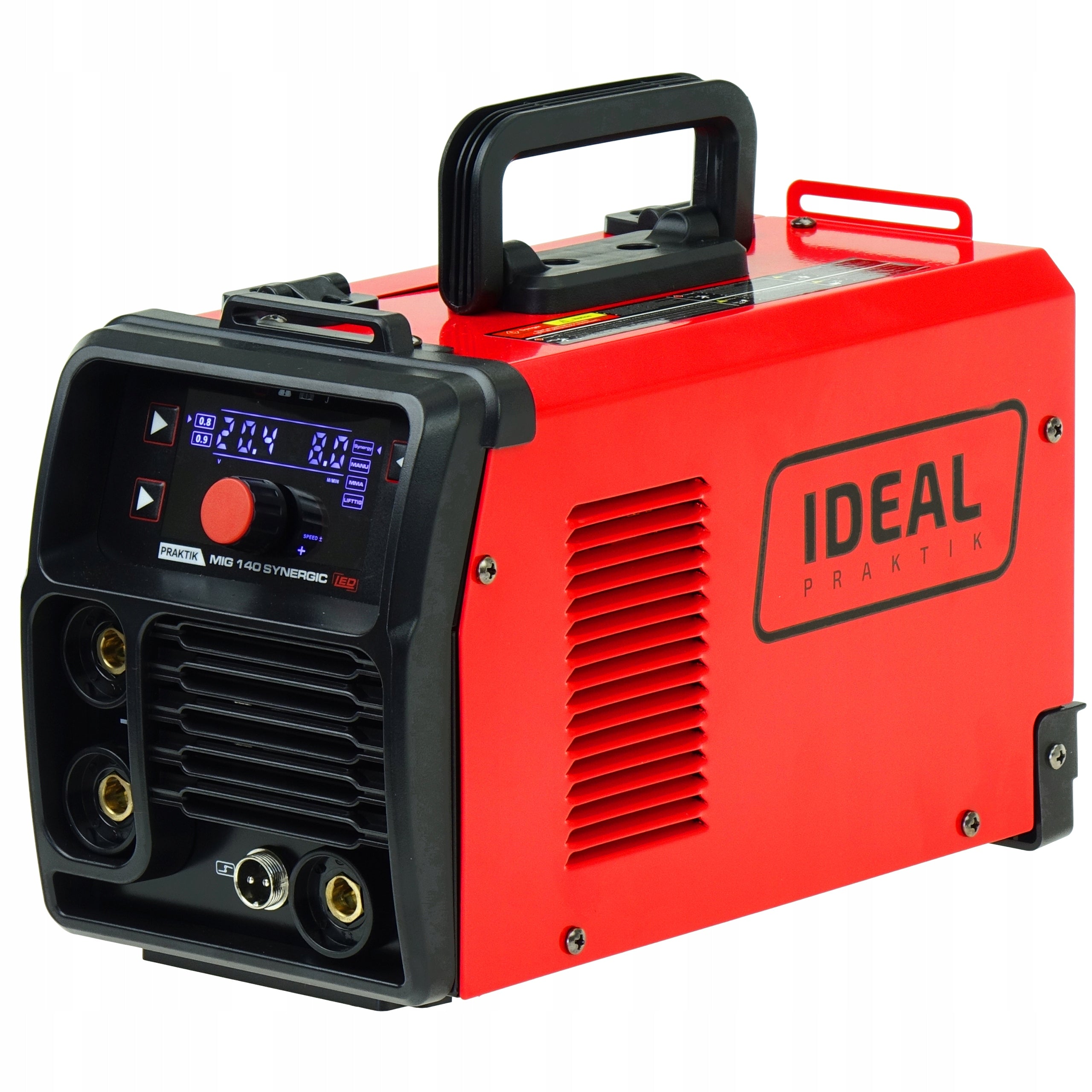

PRAKTIK MIG 140 SYNERGIC LED is a synergistic semi-automatic welding machine designed for welding with three methods: FLUX (without gas), TIG LIFT and MMA. The device has been designed for a wide range of applications – from maintenance work to repairs of simple steel structures. Thanks to synergy, intuitive LCD display and compact housing, the welding machine is ideal for workshops, construction sites and in the field.

🔶 Three welding methods in one machine

Universal welding machine allows for welding methods:

• FLUX – welding with self-shielding wire without additional shielding gas (wire contains flux in the core)
• TIG LIFT – TIG arc welding with touch ignition (LIFT), ideal for welding with non-ferrous metals
• MMA – wrapped electrode welding, classic arc welding

🔶 Synergistic control system

Advanced electronics automatically adjusts welding parameters (current, voltage) depending on the wire diameter and selected mode, eliminating the need for manual tuning and guaranteeing high quality welds even for less experienced users.

🔶 Fan cooling system

Integrated cooling system with fan significantly increases the efficiency of the device, allowing for longer welding sessions without the risk of overheating.

🔶 Automatic memorization of settings

When turned off and on again, the welder automatically restores the last remembered settings – separately for Φ0.8 and Φ0.9 wire.

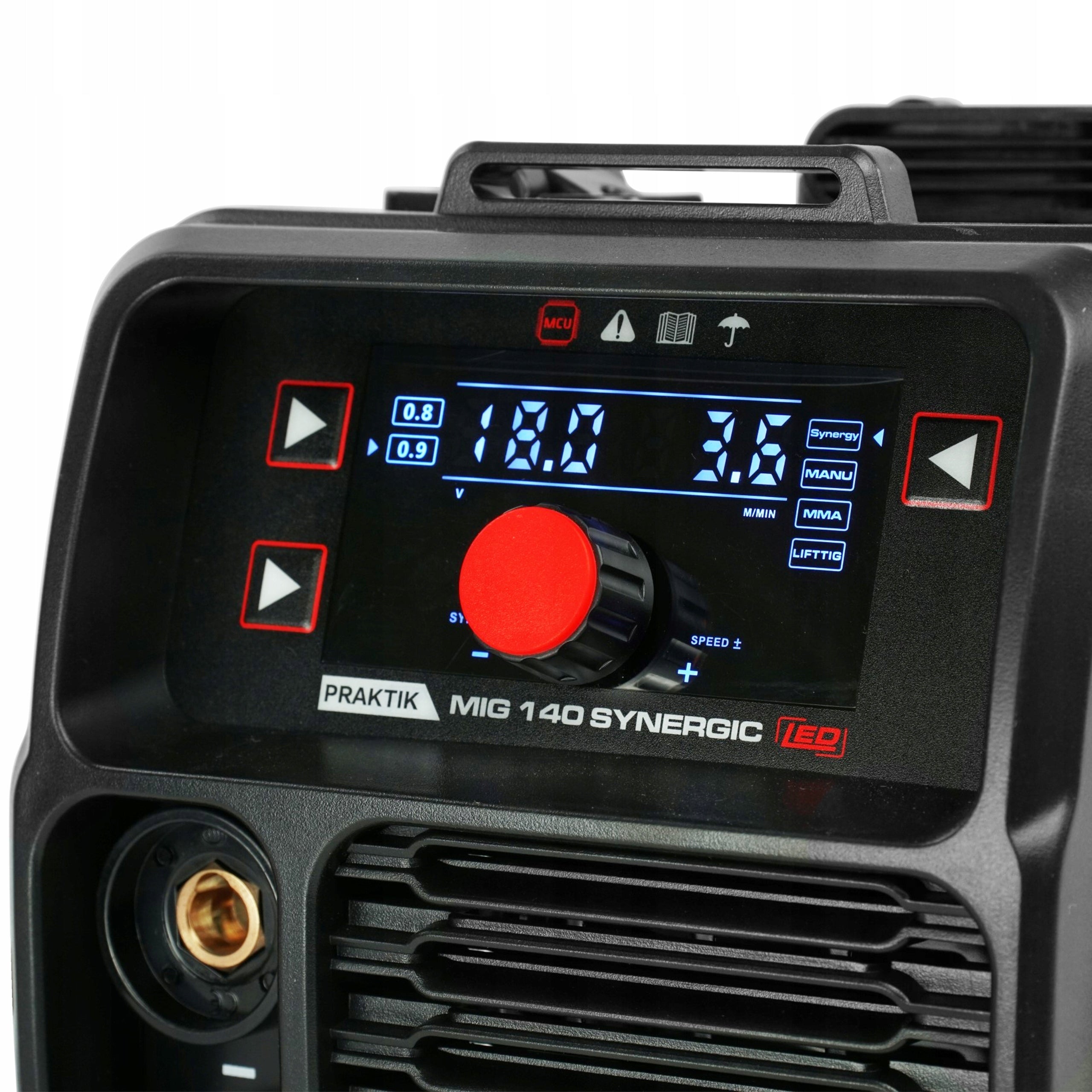

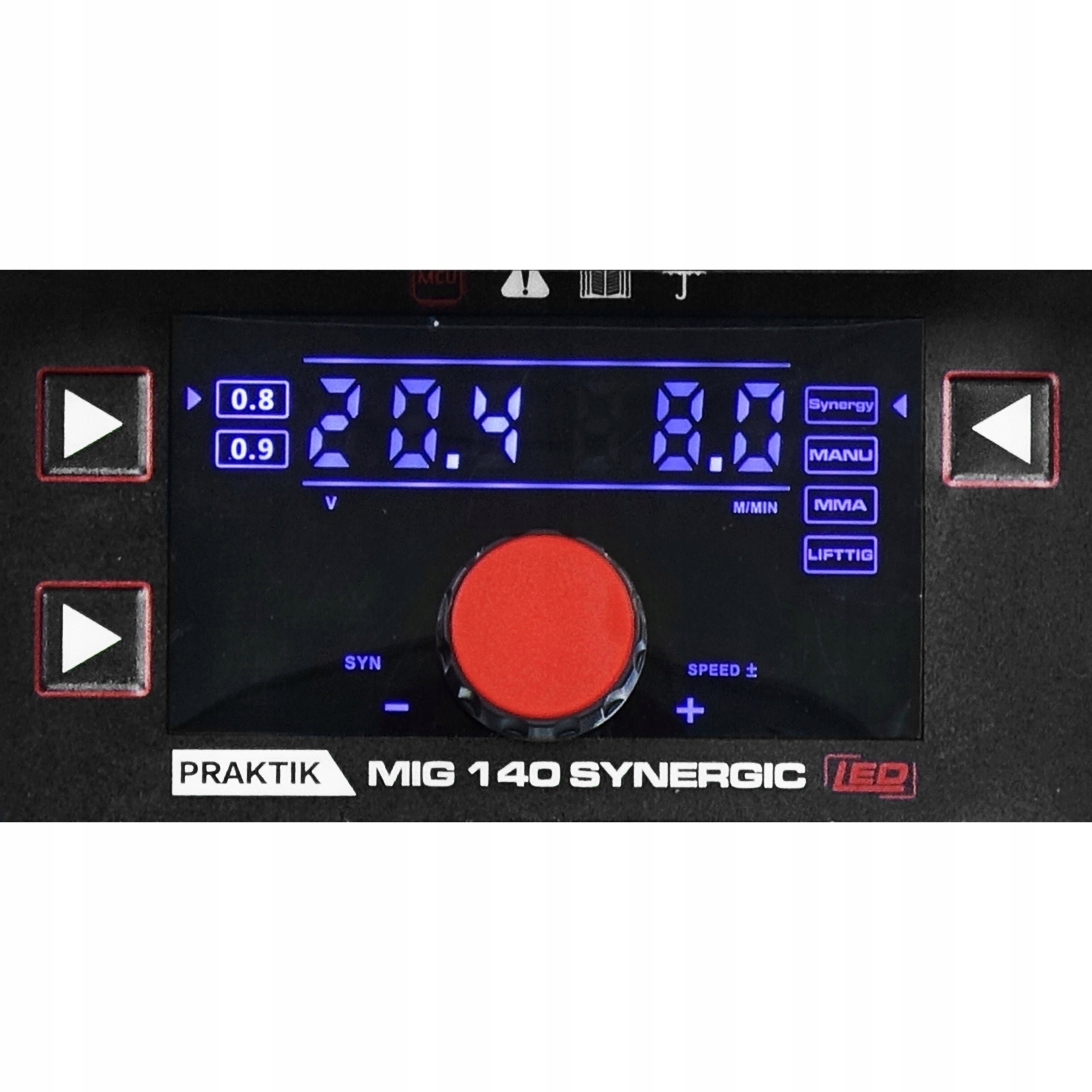

🔶 LCD display with clear parameters

The left side of the display shows the arch voltage. If the appropriate symbol appears under the value:

• (V) – voltage value is regulated
• (V +/-) – voltage correction is adjustable (ranging from -2.5V to +2.5V)

The right side of the display shows the welding current. If the appropriate symbol appears under the value:

• (A) – welding current is regulated
• (m/min) – wire feed speed is adjustable

In addition, the right side shows the values of welding voltage correction. If “SYN” appears, then the correction value is 0.

🔶 Flexible parameter adjustment

• Wire diameter selector knob for FLUX method
• Parameter adjustment knob (current, voltage, wire feed speed)
• Welding method selection button (SYNERGY/MANU, MMA, LIFTTIG)
• Button select button mode – 2T (press and hold) or 4T (press and work)

POWER SUPPLY PARAMETERS

• Power supply: 230 V
• Number of phases: 1 ph
• Frequency: 50 Hz
• Power protection: C20

TECHNICAL PARAMETERS

• Power: 4 kW
• Idle voltage: 56 V
• FLUX welding current adjustment range: 30 - 140 A
• Regulatory range MMA/TIG welding currents: 15 - 140 A
• Maximum current: 140 A
• Power at work 100%: 108 A
• Power at work 60%: 140 A
• Wire spool size: D100 (0,45kg and 1kg)

PHYSICAL PARAMETERS

• Degree of protection: IP 21S
• Weight: 3,5 kg
• Dimensions: 305 x 160 x 240 mm

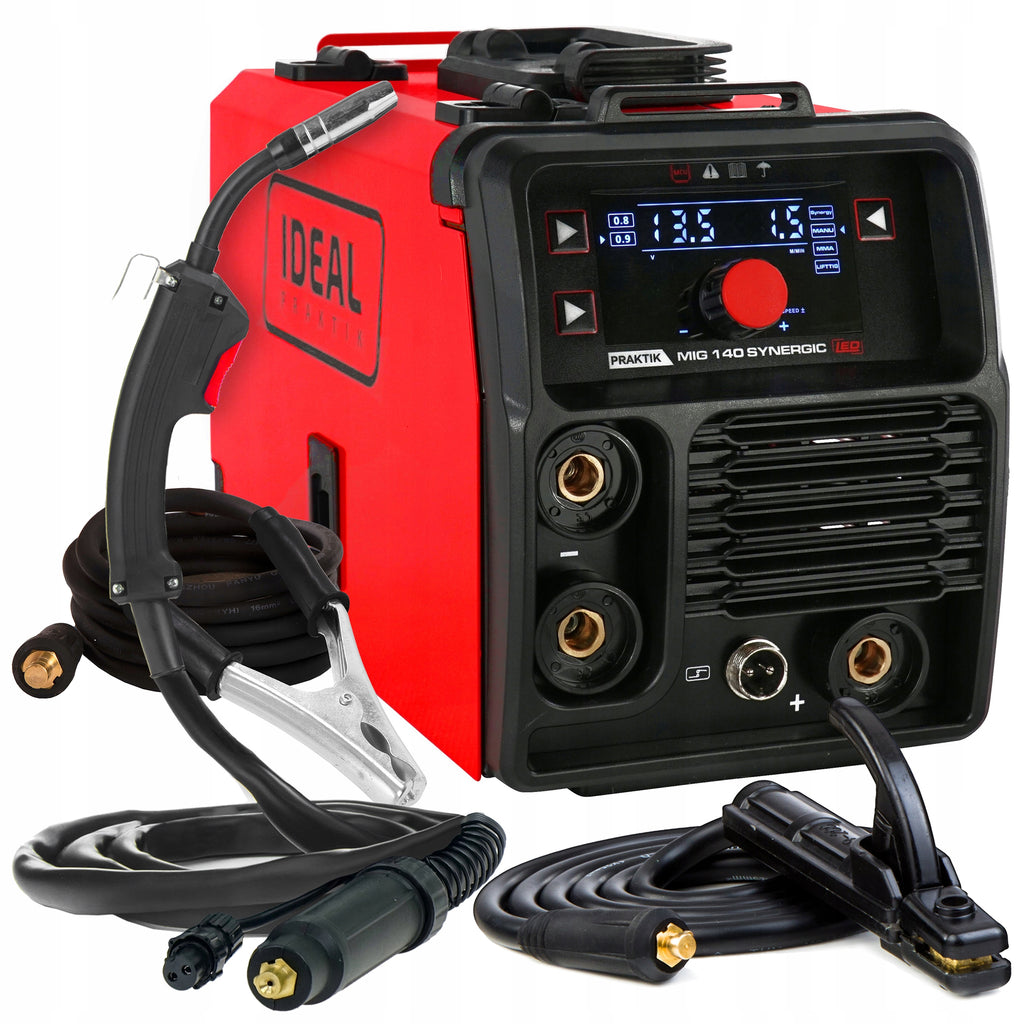

• Welding machine IDEAL PRAKTIK MIG 140 SYNERGIC LED
• Welding torch MIG TW-14 - 2 m
• Bulk cable - 1,2 m
• Electrode cable - 1,5 m
• User manual in Polish

Specifications
