Suvirinimo aparatas IDEAL PRAKTIK TIG 200 AC/DC, 200A, 230V, impulsinis, MMA, HF, LED

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL PRAKTIK TIG 200 AC/DC, 200A, 230V, impulsinis, MMA, HF, LED. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: PRAKTIK TIG 200 AC/DC LED

• Welding methods: TIG AC/DC, PULS, MMA, SPOT WELDING (DC only)
• Power supply: 230V
• Operating cycle 60% at maximum welding current 200A
• For welding: stainless steel, carbon steel, low alloy steel, copper, titanium, aluminium and its alloys and brass
• Contactless HF arc initiation and tactile LIFT
• Smooth adjustment of parameters
• Modes and functions: 2T/4T, HOT START, ARC FORCE, ANTI-STICK, PRE-GAS/POST-GAS,
• Protection against overload
• Cooling with fan
• For workshop and field work
• Clean, aesthetic welds
• Made in IGBT technology

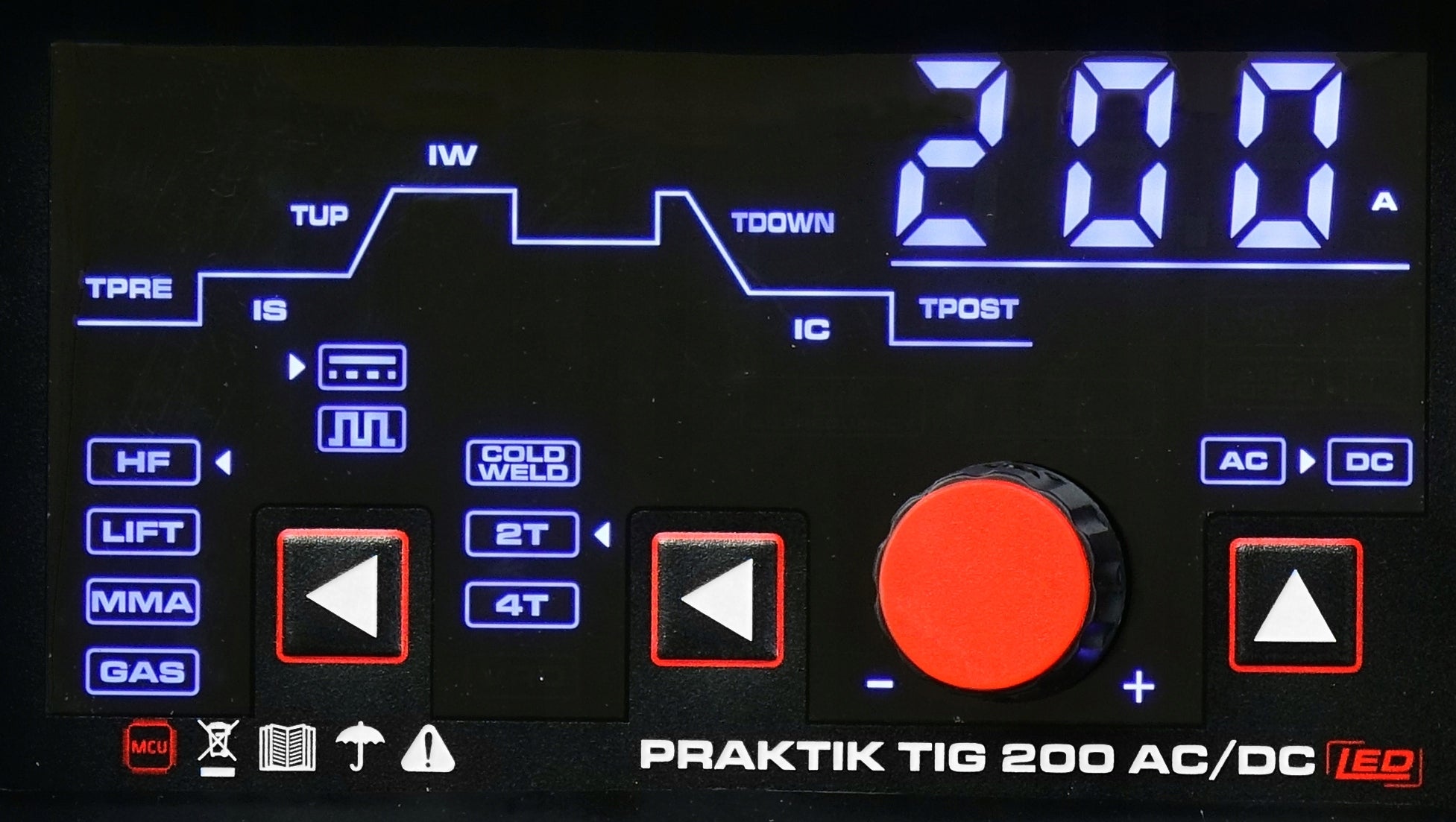

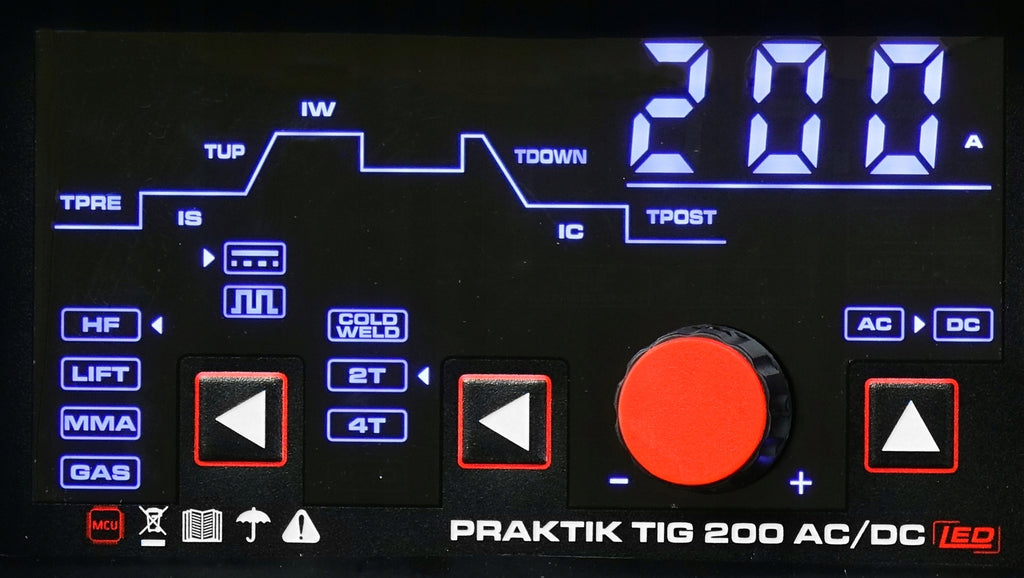

LED display makes it easy to adjust the parameters of the welding machine:

• initial outflow of shielding gas
• initial current
• time of increasing current welding current
• base current
• time of current drop
• final current
• final outflow of shielding gas
• pulse length
• pulse frequency
• AC frequency
• AC balance

✔ FEATURES AND ADVANTAGES:

• HF - contactless arc glow through built-in ionizer; uses high frequency current; the weld is free from tungsten contamination,

• TIG LIFT - arc glow by rubbing the electrode against the material; used in places where there is a risk of interference of electronics by high frequency current; welds are of high quality,

• PULS - welding of very thin elements, reducing the linear energy of the arc and the risk of overheating / burning materials; welds are better quality,

• 2 TAKT - welding begins after pressing and ends after releasing the button,

• 4 TAKT - welding begins after the first press and release of the button, and ends after pressing again; more convenient with longer welds,

• SPOT WELDING - point joining of elements; allows for fast, precise, durable connections, minimizing deformation and wear of materials,

• PRE-GAS/POST-GAS - protects the welding lake from the harmful effects of atmospheric air,

• HOT START - temporary increase in welding current during arc ignition; prevents "sticking of the electrode", facilitates the start of welding,

• ARC FORCE - adjustment of welding arc dynamics, allowing to adjust the depth of melting,

• ANTI-STICK - allows easy separation of the electrode from the welded material; in case of short circuit, the welding current is automatically reduced,

• OVERLOAD SWITCH - protects against overvoltage, cutting off power to protect the network and device from damage,

• IGBT- bipolar transistors increase the efficiency and reliability of the device, ensure lower power consumption.

⚙ TECHNICAL SPECIFICATION:

• Power supply: 230V 50/60Hz (1ph)
• Network security: 25A “C”
• Power consumption in idle state: 45W
• Welding current: TIG: 10 - 200A | MMA: 10 - 180A
• Power at work 100%: TIG: 89A | MMA: 80A
• Power at work 60%: TIG: 115A | MMA: 104A
• Idle voltage: 78V
• Diameter of welding electrode: 1.6 - 4.0 mm
• Protection rating: IP21S "H"
• Dimensions: 44.5 x 17 x 29.5 cm
• Weight: 14kg

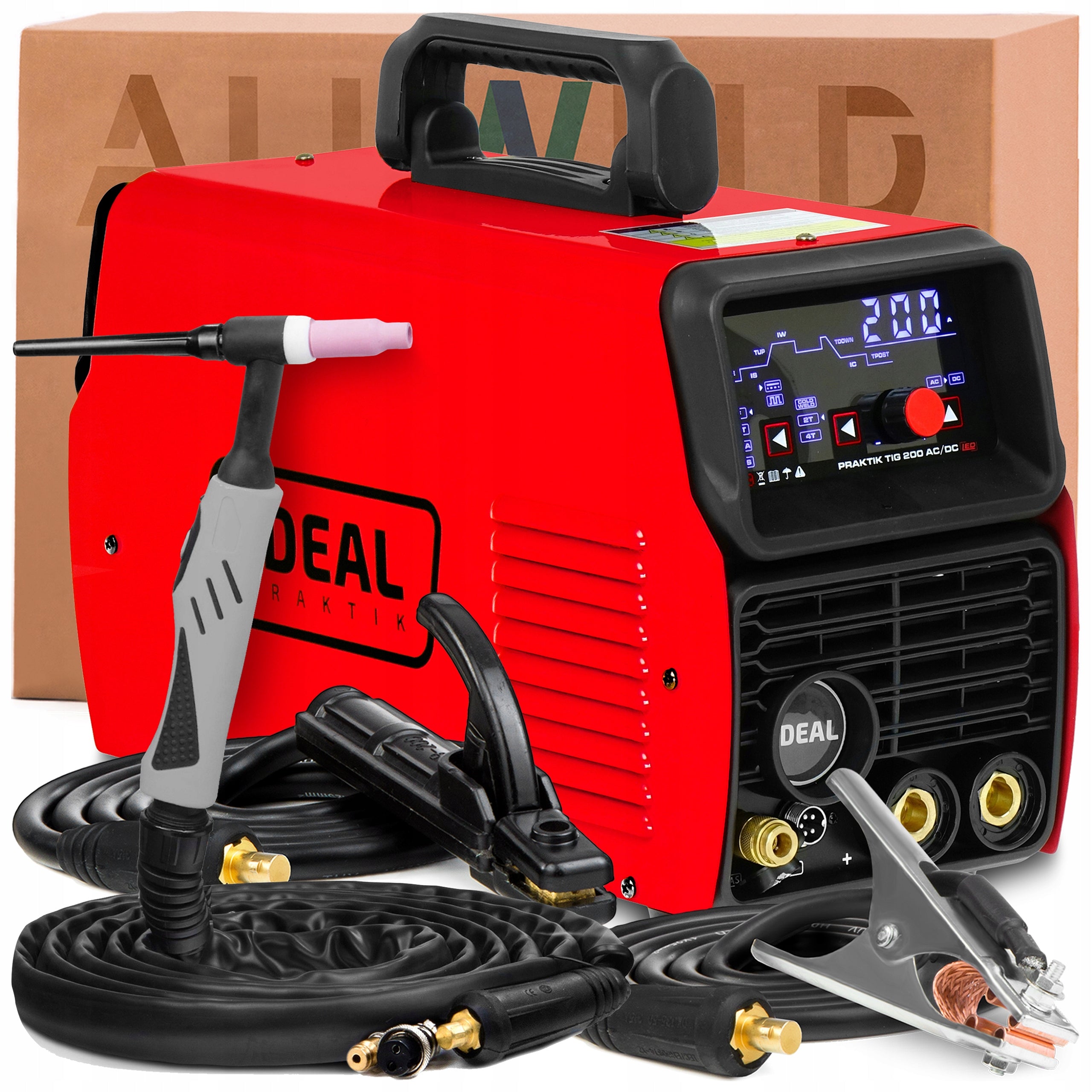

THE SET INCLUDES:

• IDEAL PRAKTIK TIG 200 AC/DC LED welder,
• Welding torch TIG type 17 - 4m,
• mass handle - 2m,
• electrode handle - 3m,
• User manual in Polish.
