Suvirinimo aparatas Ideal TECNO MIG 211 LED MAG MMA 200A

Trumpai apie prekę

Prekė: Suvirinimo aparatas Ideal TECNO MIG 211 LED MAG MMA 200A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TECNO MIG 211 S-PULSE ALU SYNERGIC
• Ilgis: 590 mm
• Plotis: 250 mm
• Aukštis: 455 mm

MANUFACTURER: IDEAL || WELDING METHODS: MIG/MAG, MMA, TIG Lift || SELECTED ADVANTAGES: Synergy, Pulse, 2T/4T, VRD || POWER SUPPLY: 230V 1ph

➡ Versatility of welding methods: MIG/MAG, MMA, TIG LIFT, FLUX.

➡ Professional metal 2-roll feeder: Certainty of smooth wire feeding.

➡ Synergistic programs and Manual mode: Use ready-made welding programs or adjust the settings yourself.

➡ Pulse welding: Thanks to the PULSE function, welding aluminum is easier than ever – without excessive chipping and with excellent weld aesthetics.

➡ Power supply from the mains 230V: Stable operation in all conditions.

➡ A number of improvements: VRD, Arc Force, Hot Start, 2T/4T.

Power supply parameters:

• Power supply: 230 V
• Number of phases: 1 ph
• Frequency: 50 / 60 Hz
• Power protection: 20 A type C

Welding parameters:

• MIG/MAG welding current: 30 ÷ 200 A
• MMA welding current: 20 ÷ 180 A
• TIG welding current: 15 ÷ 200 A
• Aluminium wire diameter: 0,9 - 1,2 mm (MAN/SYN) / 1,0 mm (PULS)
• Self-shielding wire diameter: 0,6 - 1,0 mm (MAN/SYN)
• Steel wire diameter: 0,6 - 1,0 mm (MAN/SYN)
• Stainless steel wire diameter: 0,8 - 1,0 mm (MAN/SYN)
• Welding electrode diameter: 1,6 - 4,0 mm
• Idle Voltage: 62 V
• Efficiency: 60%
• Feeder: 2R
• Wire spool size: D100 (0,45 kg and 1 kg), D200 (2 kg and 5 kg)
• Max. spool size: 5 kg
• Wire diameter: 0.6 / 0.8 / 0.9 / 1.0 / 1.2 mm

Physical parameters:

• Housing protection: IP21S
• Cooling: Fan
• Weight: 9,5 kg
• Dimensions: 460 x 205 x 350 mm

▶ VERSATILITY AND PRESIDENCY - LEARN ABOUT NEW WELDING TECHNOLOGIES

TECNO MIG 211 S-PULSE ALU SYNERGIC is a modern, synergistic inverter semi-automatic welding machine designed for arc welding using MIG/MAG, MIG PULS, TIG LIFT, FLUX and MMA methods. The device is designed for a wide range of applications, from maintenance and servicing to precise repairs of car bodies.

The TECNO MIG 211 S-PULSE is perfect for welding carbon steels, low alloy steels and aluminium. The welding process can take place in an inert gas shield, active gas or their mixtures, as well as without the use of gas – using reverse polarity.

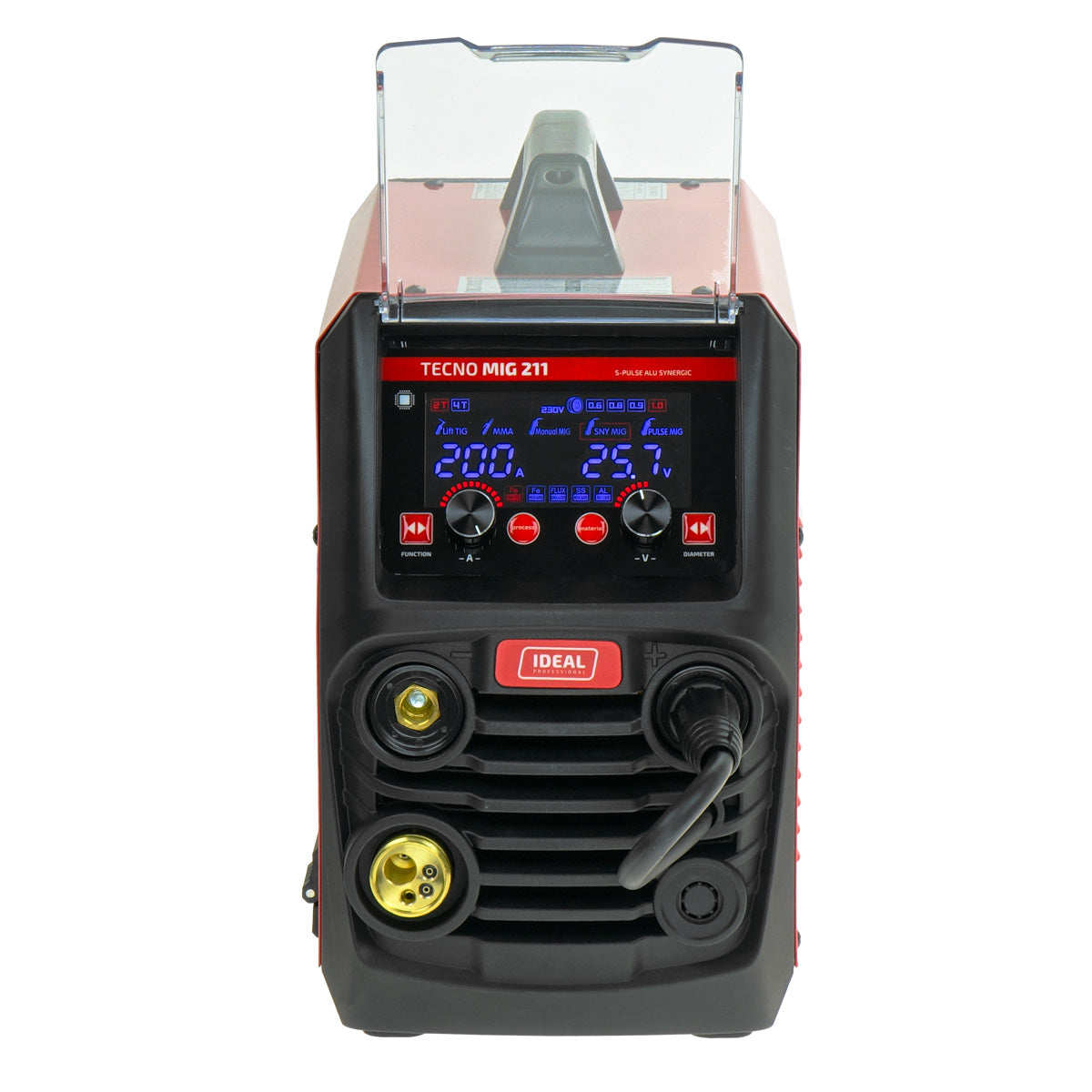

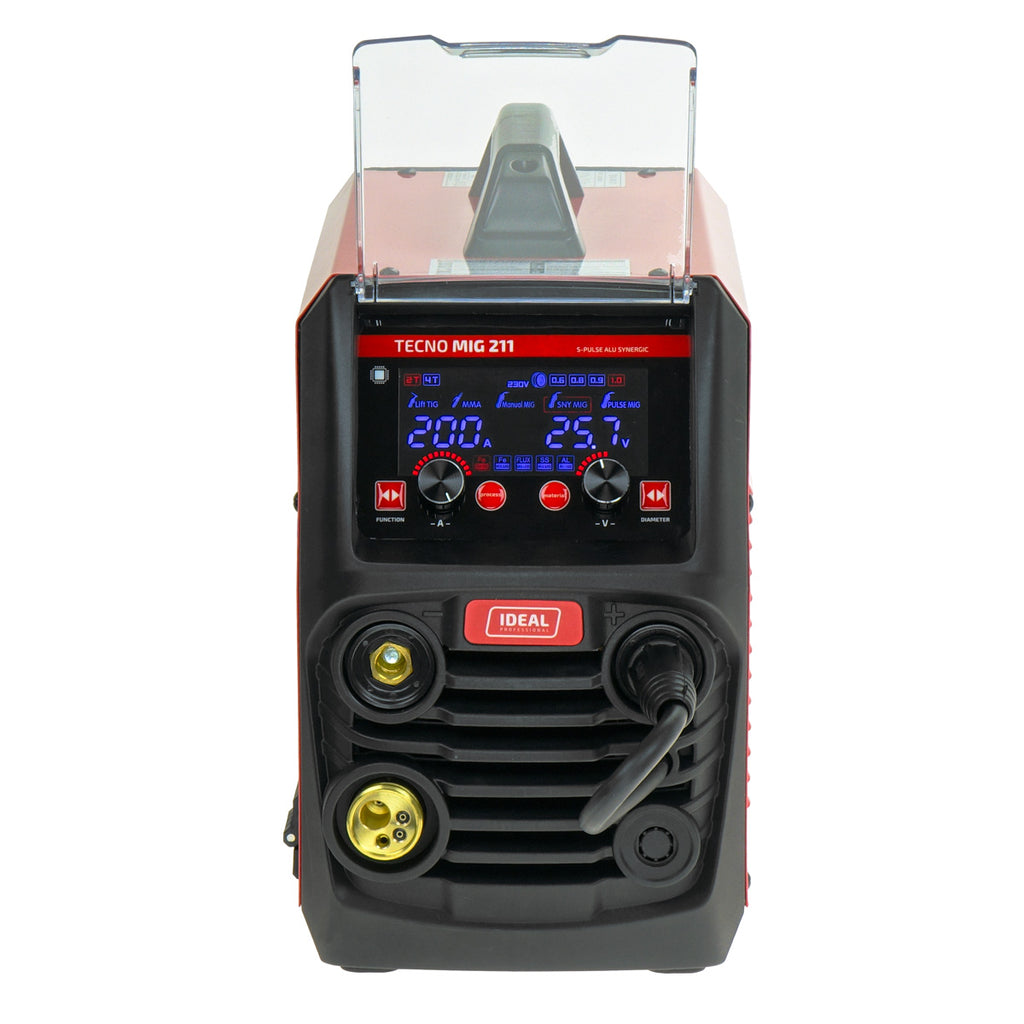

Intuitive and easy-to-read control panel with LED display provides easy operation and quick selection of one of the five available welding methods:

• LIFT TIG
• MMA
• MANUAL MIG
• SYNERGIC MIG
• PULSE MIG

ADVANTAGES OF THE DEVICE:

• smooth adjustment of all welding parameters,
• welding in synergy mode or manual mode,
• euro socket - the possibility of using any MIG holder equipped with a EURO plug,
• operating modes 2T/4T/,
• pulsed welding,
• regulation of welding inductance - wider face and smaller melt or narrow face and deep melting? Choose the optimal settings for the work you are currently doing,
• two-roll feeder,
• MMA welding improvement functions: Hot Start, Arc Force, VRD,
• solid, durable housing,
• easy-to-read LED display, showing all parameters,
• an improved version of the popular welding machine for years.

✳ Professional wire feeder ✳

Professional 2R feeder - reliable and precise wire feeding, thanks to the use of a professional feeder - ensures smooth wire feeding to the handle and stable welding parameters.

MIG welding with Pulse

In MIG welding with so-called. With a pulsating arc, the end of the electrode wire melts accelerated, forming and peeling off metal droplets. The resulting welding arc and metal flow characteristics from the end of the wire to the welding lake, ensure better quality of the welded joint and less chipping. Pulsed MIG welding also reduces thermal deformations caused during welding. This process is recommended for use e.g. when welding stainless and acid-resistant steels.

Features to improve work in the MMA method

• VRD (Voltage Reduction Device) function - reduces the resting voltage of the idle state on the electrode to a safe value. Provides shock safety when working in humid environments.
• Arc Force: facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake.
• Hot Start: facilitates the ignition of the electrode by providing more welding current with each arc.

For whom?

Workshops, plants, repair companies

Enthusiasts, work in the garage

Beginners and professionals - one machine, many possibilities

Solid workmanship

The power source was built on IGBT transistors providing a minimum of electromagnetic interference, small power losses in basic systems, enabling increased efficiency and reliability of the power source. Very high efficiency, which translates directly into lower energy consumption, and high switching frequency, ensure rapid adjustment of the current to changes in parameters during welding.

The compact and compact design makes the device applicable in workshop and repair work, both in halls and in the field. The transport handle makes it easy to carry the device.

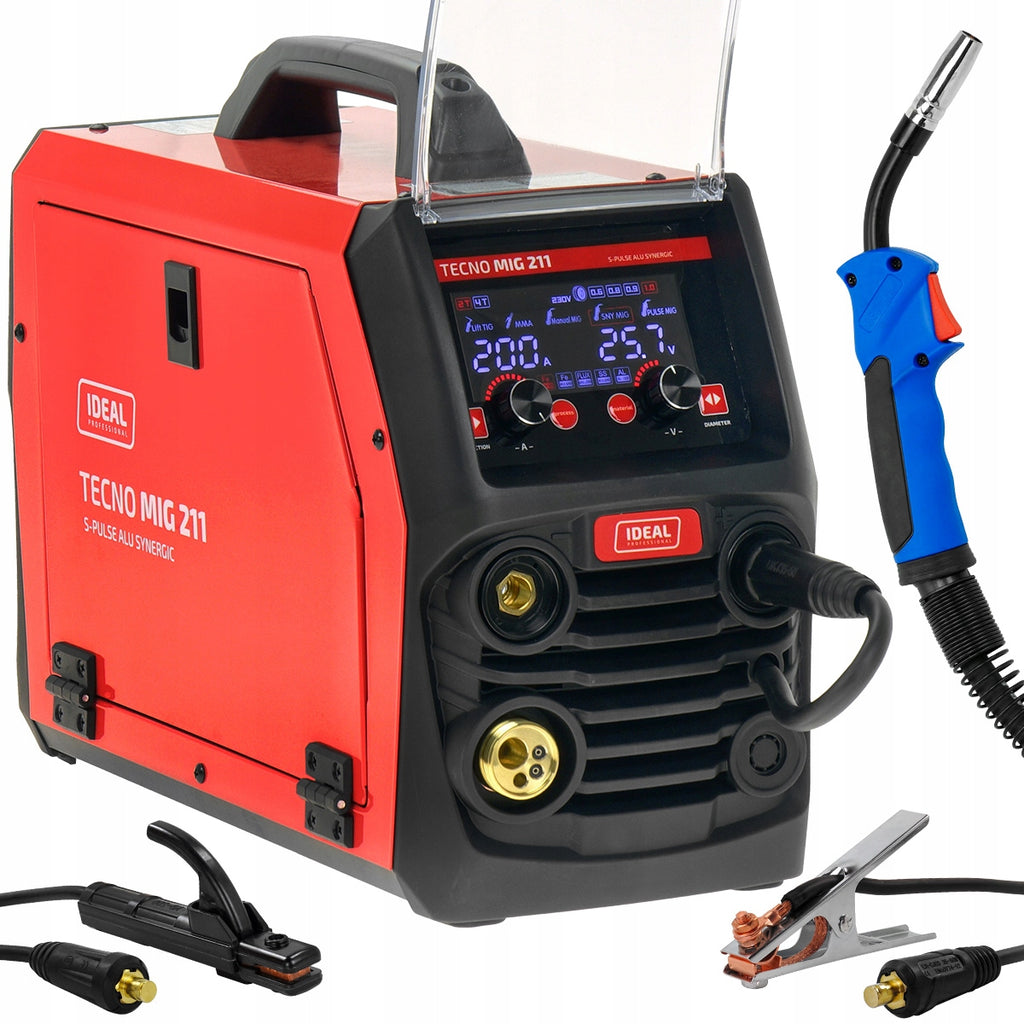

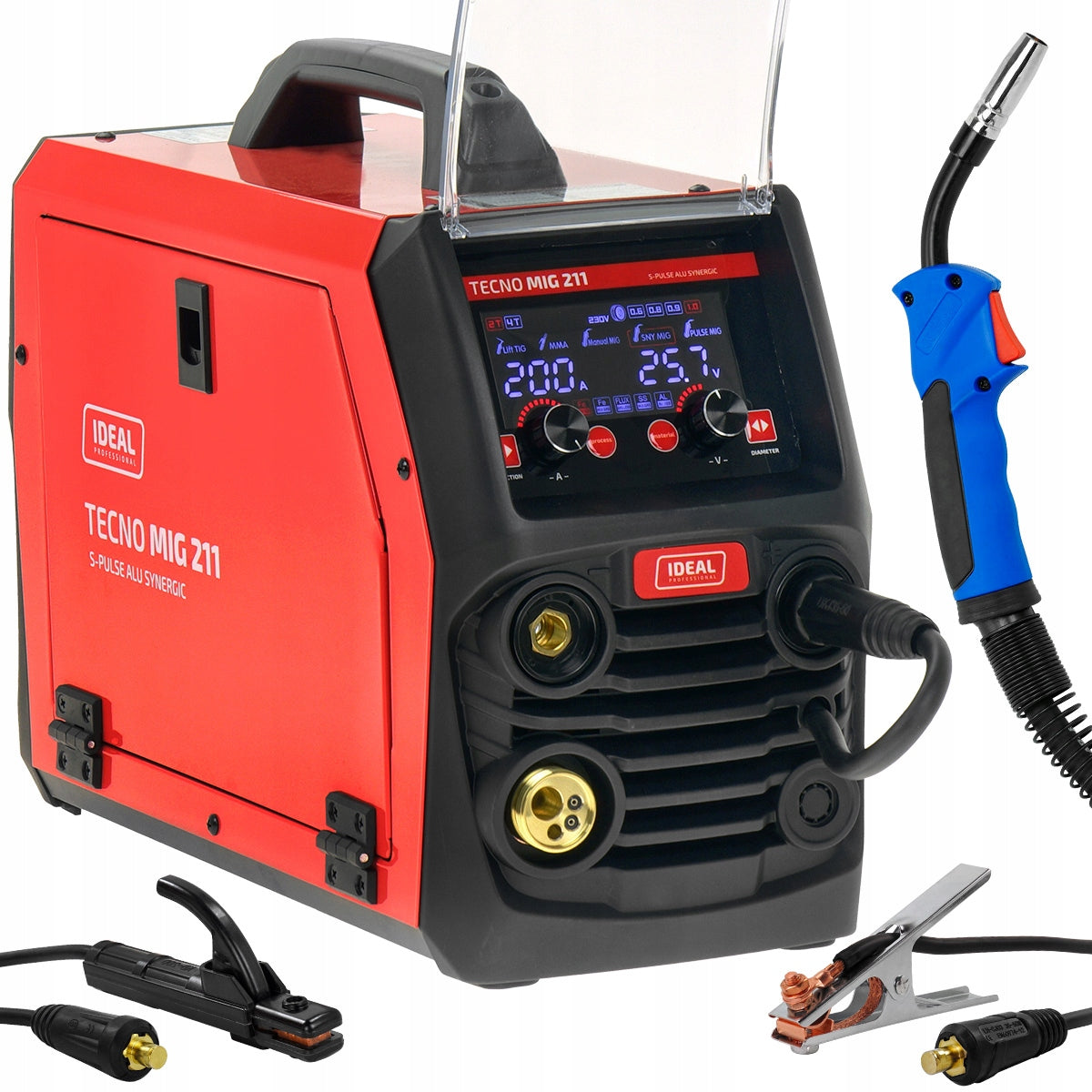

• Ideal TECNO MIG 211 S-PULSE SYNERGIC
• Welding torch MIG MB 15/3m
• MMA electrode holder
• Mass cable
• User manual in Polish

Photo gallery

View the offered device from every possible angle. In our offers we focus on full exposure and transparency, which is why we show all the most important elements of the welding machine up close.

Specifications
