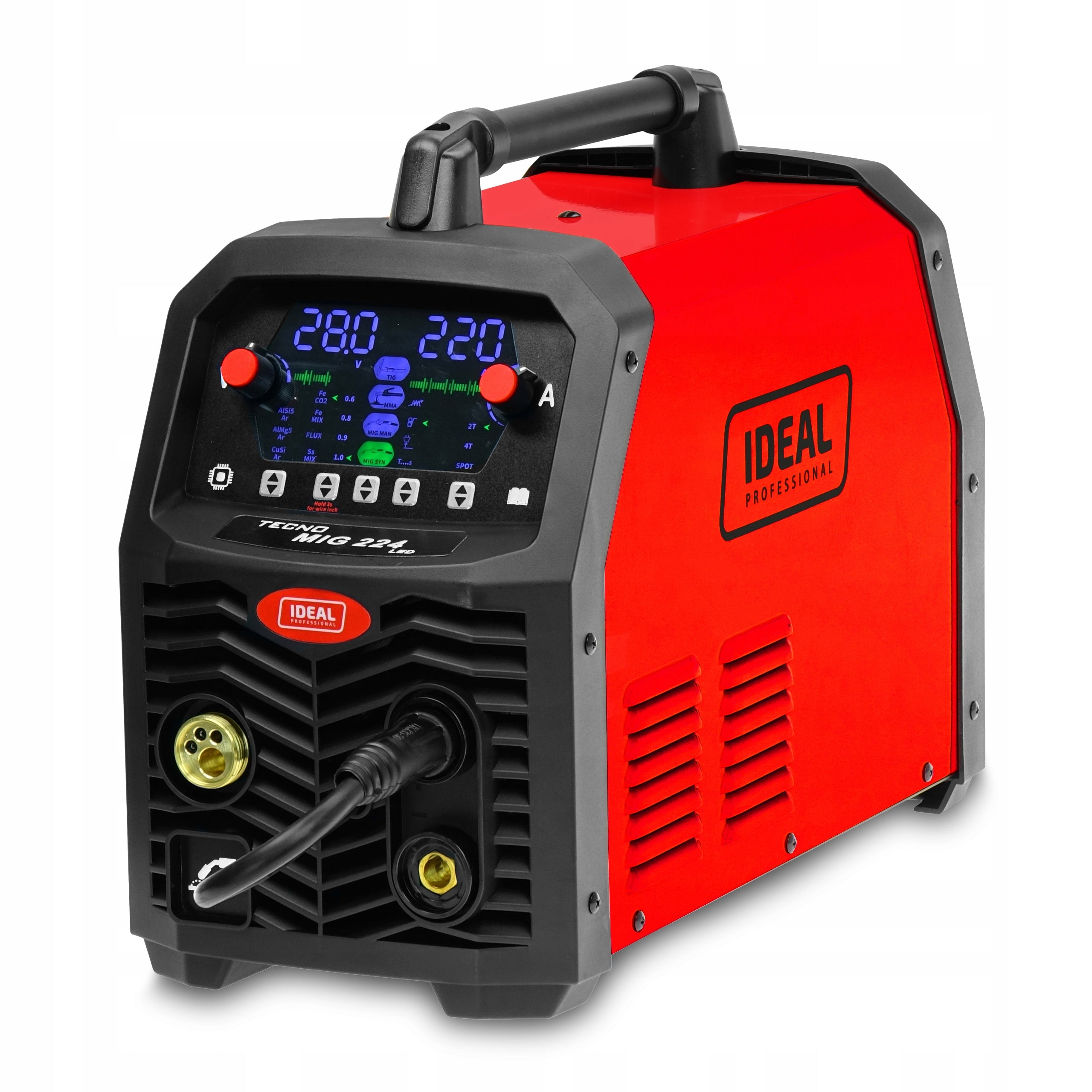

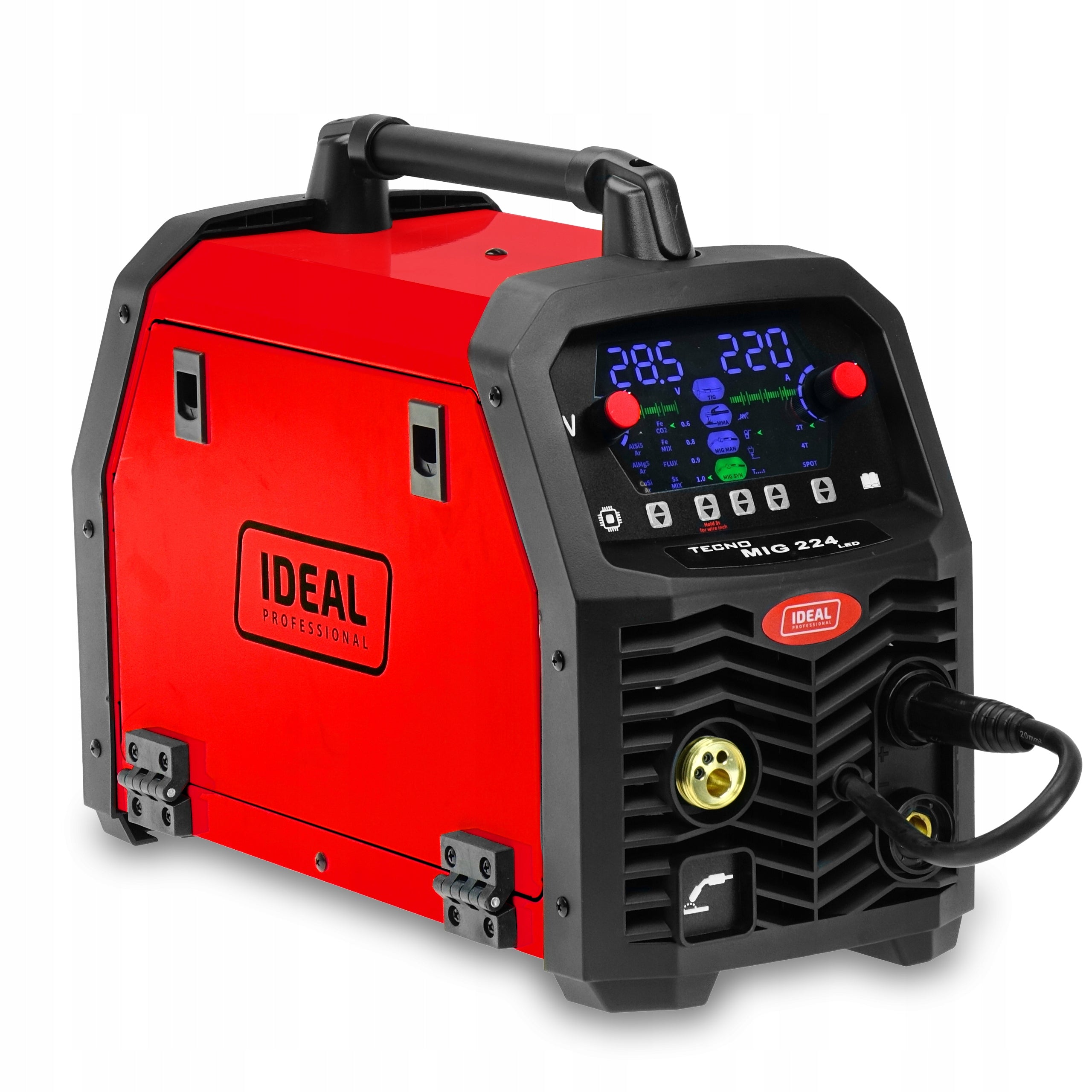

Suvirinimo aparatas IDEAL TECNO MIG 224 SYNERGIC LED 4x4, MMA, TIG, aliuminiui

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL TECNO MIG 224 SYNERGIC LED 4x4, MMA, TIG, aliuminiui. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TECNO MIG 224 SYNERGIC LED 4x4
• Ilgis: 510 mm
• Plotis: 230 mm
• Aukštis: 370 mm

Manufacturer: IDEAL ║ Welding methods: MIG/MAG, MMA, TIG Lift, FLUX ║ Power supply: 230V ║ Welding current: 220A ║ Efficiency: 60%

────────────────────────────────────────────────────────────────────

By buying from us, you gain ⭐ ENGINEER SUPPORT ⭐, which can be envied by the competition!

In our store, buying a welding machine is just the beginning! Because we know that a wise choice is not only a matter of the lowest price, but also of certainty and support after the transaction. This is a comprehensive solution with invaluable after-sales support, which is in vain to look elsewhere.

🧠CHOOSE WISELY 🧠

⏬ See details below ⏬

────────────────────────────────────────────────────────────────────

🥇 Take your welding to the master level with the IDEAL TECNO MIG 224 SYNERGIC LED 4x4! 🥇

• Designed for welding low carbon, low alloy, high alloy stainless and acid resistant steels, aluminum alloys
• Synergy significantly facilitates the welding process by automatically selecting the welding current and wire feed rate depending on the type of material being welded and the diameter of the electrode wire. It is possible to correct the welding voltage.
• Lutowelding is particularly useful when combining galvanized sheets and thin materials (repair of car bodies). Most importantly, the lower operating temperature ensures that the galvanized layer remains intact. This means that the sheet retains its anti-corrosion properties.
• Professional 4-roll wire feeder
• Works well in welding aluminium and its alloys, acids and stainless steel
• Device for locksmith, repair, production plants
• Works great in economic work
• To work in automotive workshop

• Inductance adjustment allows you to set the “hardness” of the arc and the heat associated with it. The smaller the value, the more stable the arc, more heat, but also more chipping. At a higher value, the arc is less stable, the heat is less, and the amount of chipping decreases. This also prevents deformation of thin welded materials.
• 2T/4T, which increases the convenience and flexibility of work. In two bars, welding is carried out as long as you hold the button in the handle. At four bars, pressing and releasing the button starts welding and ends the process the same way the next time you press and release the button.
• The SPOT function allows you to perform point welds or point welding of thin plates. Especially useful in the automotive industry.
• Arc Force automatically adjusts the welding current depending on the arc length.
• Anti Stick prevents the electrode from sticking to the welded material.
• Hot Start increases the welding current for a fraction of a second at the moment of arcing.
• Manual mode for experienced welders who prefer full control over the welding process. Allows independent selection of all parameters
• VRD reduces the idle voltage on the electrode to a safe value.

TECNOMIG 224 SYNERGIC LED 4x4 is a modern inverter synergistic welding machine that offers a choice of four welding methods: MIG/MAG, TIG LIFT, MMA and FLUX. The device is designed for a variety of applications, from precise maintenance to expert car body repairs.

✅ Key features and benefits ✅

• Ideal for soldering galvanized sheets, as well as welding stainless steel, carbon steel, low alloy steel and aluminum.
• Welding under the cover of inert gas, active gas, gas mixtures and without gas at reverse polarity.
• The 4-roll wire feeder ensures stable, smooth wire feeding, which is necessary especially for aluminum and when working with long, 5-meter handles.
• Various MIG/MAG welding modes. Selectable button function: fast 2T mode without lock, 4T mode with button lock for long welds and precise SPOT spot welding.

✅ Intuitive control and advanced options ✅

• The large, easy-to-read LED display allows for ongoing control and precise adjustment of MIG/MAG welding parameters, such as inductance, wire access, wire burning or spot weld time.
• MMA welding adjustments and functions, including ARC FORCE adjustment, HOT START, ANTISTICK function to prevent electrode sticking and VRD (Voltage Reduction Device), which reduces resting voltage, allowing safe operation in wet conditions.

TECNOMIG 224 SYNERGIC LED 4x4 is an advanced tool for demanding users that combines power, precision and ergonomics. With its modern features and robust design, it is an excellent choice for a wide range of welding tasks, ensuring high quality and reliability.

1. LED display

• Left side: arc/correction voltage (V) or additional functions.
• Right side: welding current (A), wire feed speed (MIG MAN) or additional functions.

2. Left knob (LP): voltage regulation

3. Right Knob (PP): wire current/feed adjustment

4. Selection of material and gas:

• AlSi5, AlMg5 – aluminium (argon)
• CuSi – soldering (argon)
• FeCO2 – steel (CO₂)
• FeMIX – steel (Ar+CO₂)
• FLUX – self-shielding wire (without gas)
• SsMIX – stainless steel (Ar+CO₂)

5. Wire diameter: choice and feeder test (hold button)

6. Welding method:

• TIG (LIFT)
• MMA
• MIG MAN – manual
• MIG SYN – synergistic

7. Additional functions (for MIG/MAG):

• Inductance (ind): -10 to +10
• Wire access (rin): 0 to 10
• Wire burning (bbt): 0 to 10
• Spot Weld Time (SPt): 0.0–3.0s

8. Button mode (MIG/MAG):

• 2T (holding)
• 4T (without holding)
• SPOT (point)

🏮 Professional 4R feeder. Guarantee of precise wire feeding 🏮

The TecnoMIG 224 Synergic LED 4x4 uses a professional, all-metal wire feeder with four rollers (4R). Its metal construction guarantees exceptional durability and resistance to mechanical damage, eliminating the risk of failures often encountered in feeders made of plastic.

The four-roller system provides extremely smooth and stable wire guidance, which translates into high quality and weld aesthetics, without unwanted interruptions. The use of a double pair of rolls minimizes the risk of the wire slipping and ensures its uninterrupted supply to the handle.

────────────────────────────────────────────────────────────────────

Cuba J. ⭐⭐⭐⭐⭐

"Great migomat for the price! Ampere is an amp :) Synergy works, and SPOT mode makes it easy to attach thin elements. It copes with thin plate and thick steel! 🔧"

Przemysław W. ⭐⭐⭐⭐⭐

"Welding beautifully! Thin sheets and thick material are not a problem. ✨ For the amateur - mega recommend! Easy operation and solid workmanship. 🤟"

Paweł P. ⭐⭐⭐⭐⭐

"I am a welder and this welder wins price and quality! 🏆 In the home workshop it performs well, even with 6/8mm sheets. I recommend 100%! ✅"

────────────────────────────────────────────────────────────────────

In our store, buying a welding machine is just the beginning! We want you to fully use its potential, which is why each customer after purchase, giving the number of their order, receives access to an individual consultation with our experienced welding engineer!

How to use the dedicated support of the Engineer?

1. 📞 Contact us!
2. # Enter your order number: This is the key that will open the door for you to talk to our expert.
3. 🧯 Prepare questions: Think about what you need help with – whether it is the first start-up, selection of parameters for a specific project or advanced welding techniques.
4. 💬 Talk directly to the Engineer: Our specialist will take the time to answer your questions, help you set up your welding machine and share practical tips.

Why is our Engineer Support MORE than just a phone call to the store?

• ✅ Expert on the other side: After verifying your order number, you can be sure that you are talking to an experienced welding engineer and not just general customer service. This is a practitioner with in-depth technical knowledge.
• ⌚ Focused attention on your needs: This is not a rushed answer. Our engineer will take the necessary time to understand your problem or question and provide comprehensive assistance.
• 🔍 Tailor-made consulting: The assistance is tailored to your level of advancement and specific applications of the welding machine in your projects – from minor repairs to more complex structures.
• 🚀 Faster results, fewer errors: Instead of long searches and trial and error methods, you get professional tips that will allow you to achieve the intended results faster and avoid costly mistakes.
• 💡 Solutions for unusual challenges: The general hotline may not be enough for more complex issues. Our engineer will help you with unusual problems or advise you on advanced welding techniques.

With us you can be sure that your investment in a welding machine will bring the best results, and you will gain a partner ready to support you at every stage of work! 🏅😎

POWER SUPPLY PARAMETERS

• Power supply: 230 V
• Number of phases: 1 ph
• Frequency: 50 Hz
• Power protection: 25 A type C

TECHNICAL PARAMETERS

• MIG/MAG welding current: 50 ÷ 220 A
• MMA welding current: 20 ÷ 180 A
• TIG welding current: 15 ÷ 220 A
• Aluminum wire diameter: 1,0 mm
• Diameter of soldering wire: 1,0 mm
• Diameter of self-shielding wire: 0,8 - 1,0 mm
• Steel wire diameter: 0,6 - 1,0 mm
• Stainless steel wire diameter: 0,8 - 1,0 mm
• Diameter of welding electrode: 1,6 - 4,0 mm
• Degrees of welding current adjustment: Gradually
• Idle voltage: 62 V
• Efficiency: 60 %
• Feeder: 4R
• Spool diameters with wire: D200 (2 kg and 5 kg)
• Max. Spool size: 5 kg
• Wire diameter: 0.6 / 0.8 / 0.9 / 1.0 mm

PHYSICAL PARAMETERS

• Housing protection: IP23S
• Cooling: Fan
• Weight: 15 kg
• Dimensions: 510 x 230 x 370 mm

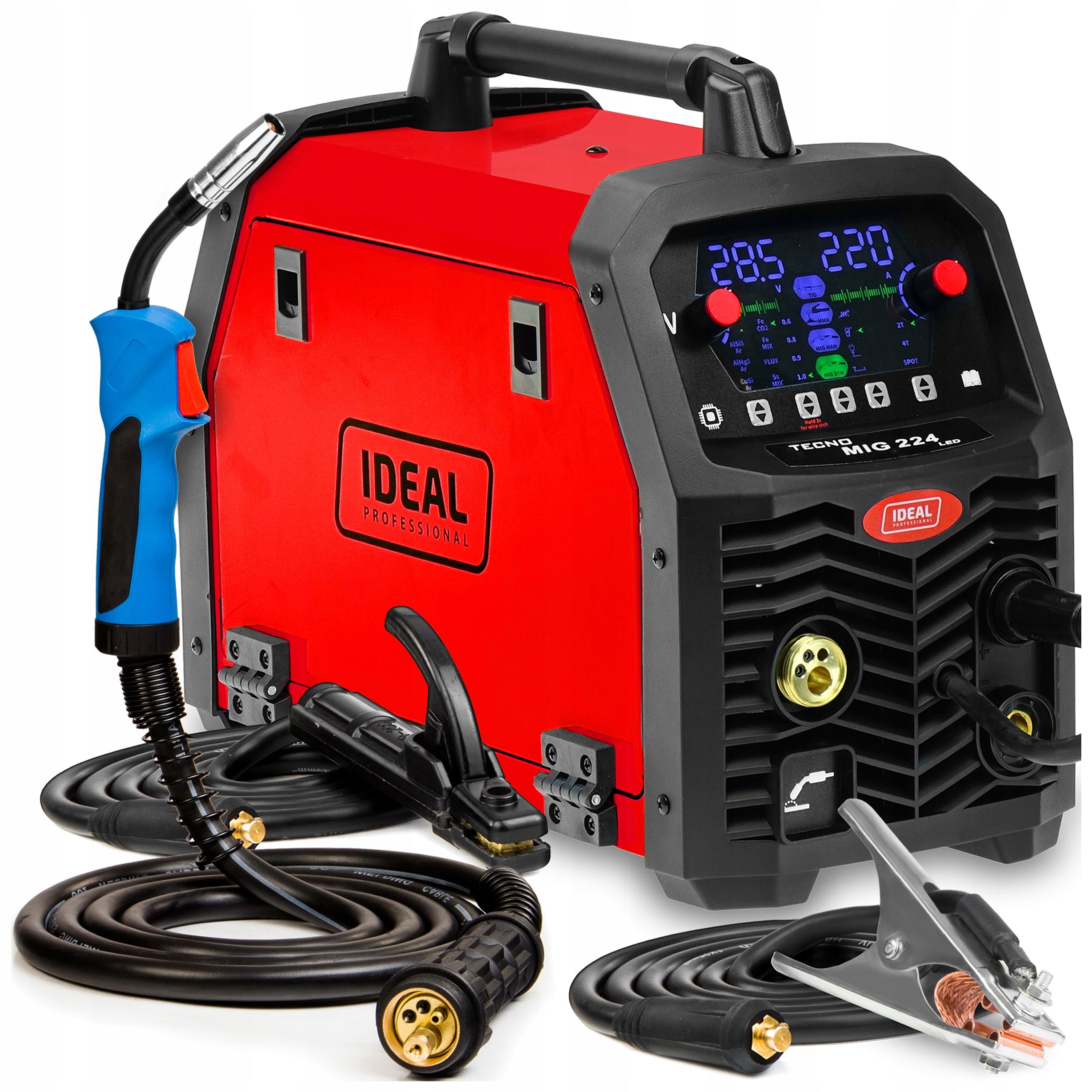

• Ideal TECNO MIG 224 SYNERGIC LED
• Welding torch MIG/MAG type MB 15 - 3 m
• Electrode holder - 2,5 m
• Bulk holder - 2,5 m
• User manual in Polish
