Suvirinimo aparatas IDEAL TECNO MIG 280 4x4, 400V, 280A, skaitmeninis, tinkamas aliuminiui

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL TECNO MIG 280 4x4, 400V, 280A, skaitmeninis, tinkamas aliuminiui. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TMIG280V2
• Ilgis: 550 mm
• Plotis: 310 mm
• Aukštis: 860 mm

Manufacturer: IDEAL ║ Welding methods: MIG/MAG, MMA ║ Power supply: 400V ║ Welding current: 280A ║ Efficiency: 60% ║ Weight: 50kg

TECNO MIG 280 4x4 DIGITAL MMA is an inverter semi-automatic welding machine designed for MIG/MAG and MMA arc welding.

Applied is to welding aluminum and its alloys, stainless steel and carbon steel and low alloy. Welding is carried out in an inert or active gas shield.

Electronically controlled smooth current regulation of welding and wire feed speed and smoothly adjustable electronic choke allows you to get a small amount of chipping during welding.

ADVANTAGES OF THE DEVICE:

• Welding by: MIG/MAG and MMA
• With method MIG/MAG we can adjust: welding current, wire feed speed, inductance
• Welding Current: 280A
• Three-phase power supply: 400V
• Welding wire diameter: 0,6-1,0mm
• 4-roller wire feeder - ensures stable feeding of the binder
• Welding current stabilization system - guarantees current control and obtaining a high-quality binder
• Smooth current regulation - electronic choke allows you to get a small amount of chipping during welding
• 2T/4T mode - for short and long welds
• IGBT inverter technology
• Digital meter (voltmeter, ammeter) - allows for ongoing control of welding parameters
• Fan cooling system - increases the efficiency of the device
• Overload protection - increases the reliability of the device

IGBT - modern bipolar transistors, ensuring minimum electromagnetic interference and low power losses. They increase efficiency and extend the reliability of the power source. They enable high switching frequency, thus ensuring rapid adjustment of the current to changes in parameters during welding.

2T- double-bar welding. To release the arc, press the button on the welding torch and hold it during welding, releasing the button results in the expiration of the welding arc. In addition, the function for TIG has before and after the gas outflow.

4T-welding by four bars. To release the arc, press the button on the welding torch and then release it. The arch maintenance will continue. To extinguish the welding arc, press again and then release the button.

TECHNICAL DATA:

POWER SUPPLY PARAMETERS

• Power supply network protection: C16 A
• Rated supply voltage: 3x400 V; 50Hz (3ph)
• Power: 8,3 kW
• Idle Voltage: 56 V

TECHNICAL PARAMETERS

• Current at 100% operation: 210 A (MIG/MAG) / 130 A (MMA)
• Aluminium wire diameter: 1,0 - 1,2 mm
• Steel wire diameter: 0,6 - 1,2 mm
• Stainless steel wire diameter: 0,8 - 1,0 mm
• Welding electrode diameter: 1,6 - 4,0 mm
• Welding current adjustment range: 30 - 280 A

PHYSICAL PARAMETERS

• Wire spool size: 5 kg / 15 kg
• Degree of protection: IP 21S
• Weight: 50 kg
• Overall dimensions L x W x H: 960 x 680 x 400 mm
• Package Dimensions L x W x H: 860 x 310 x 580 mm

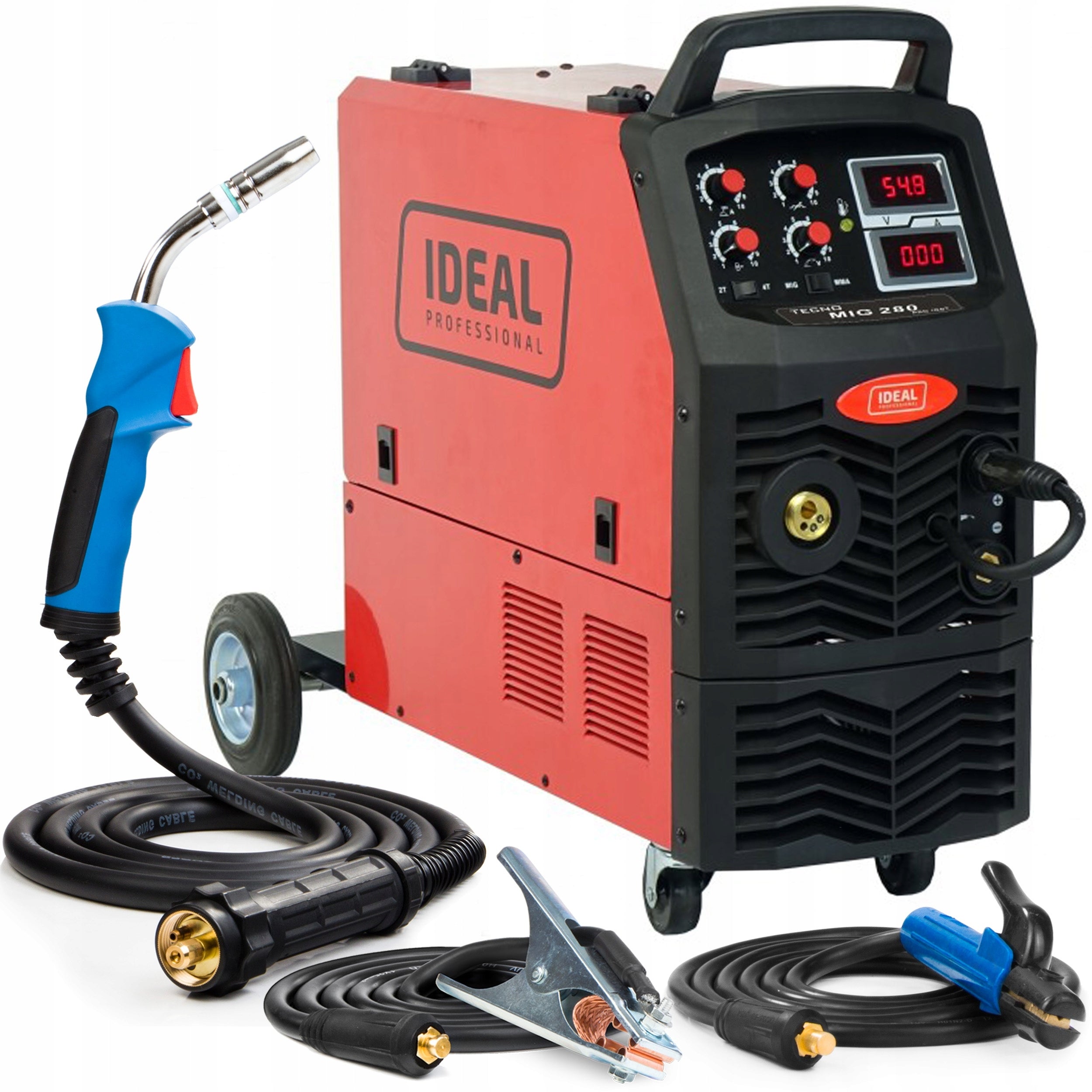

THE SET INCLUDES:

• TECNO MIG 280 4x4 DIGITAL MMA
• Welding torch MIG 25 with a length of 3 meters
• Electrode cable with a length of 3 meters
• Bulk cable with a length of 3 meters

Specifications
