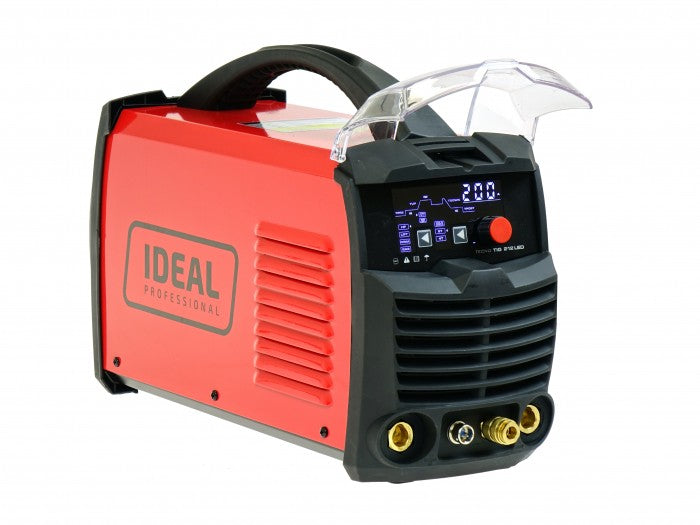

Suvirinimo aparatas IDEAL TECNO TIG 212 DC PULSE, MMA, TIG, LED

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL TECNO TIG 212 DC PULSE, MMA, TIG, LED. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TTIG212DCLED

from authorized distributor and service IDEAL

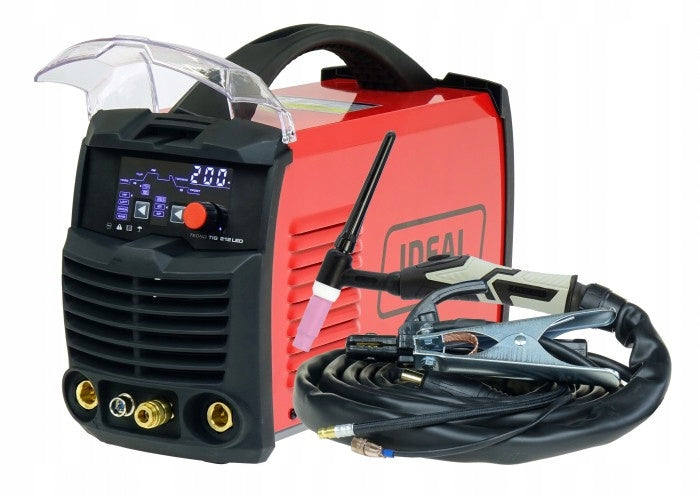

• Ideal Tecnotig 212 DC Pulse Led welding machine
• TIG welding torch
• MMA welding torch
• mass cable with tick clamp
• instruction manual

• TECNO TIG 212 DC PULSE LED is a portable power source, made in IGBT technology, designed for welding using the TIG and TIG PULS method and the MMA method with a direct current (DC) electrode. The small size and weight make the device perfect for both workshop work and field work.
• The device has three welding modes: TIG DC, TIG DC PULS, MMA.
• The TIG DC and TIG DC PULS functions are used for welding stainless steel, carbon and low alloy steels, copper and titanium. Welding is carried out in an inert gas shield.
• By adjusting the parameters of pulse welding TIG DC PULS we have an impact on the shape of the weld and the focus of the arc. Pulse welding also reduces the amount of heat supplied to the material and is applicable when welding thin materials.
• Arching occurs in non-contact (HF) or touch mode (LIFT). Both with HF touchless and LIFT touchless ignition, we have the option of selecting the button function in the TIG handle between working in 2-bar or 4-bar mode (button lock for long welds).

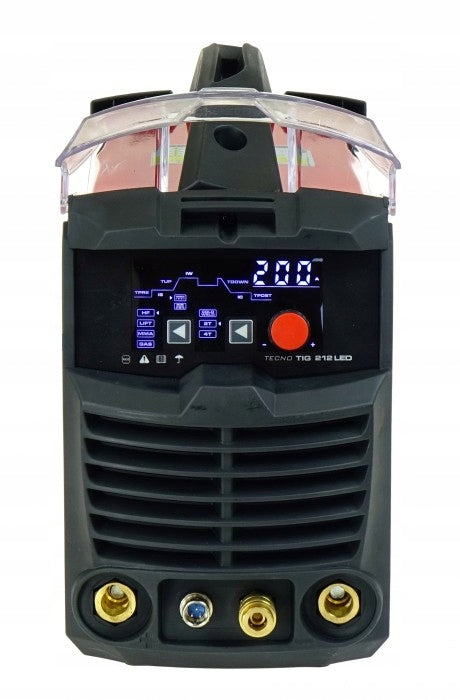

Clear and easy to use control panel enables precise adjustment of the device, ensures stable parameters and high welding quality.

LED display makes it easy to adjust the parameters of the welding machine:

• initial outflow of shielding gas
• initial current
• time of electricity build-up
• welding current
• base current
• time of current drop
• final current
• final outflow of shielding gas
• pulse length
• pulse frequency

The welder also has functions facilitating the welding process using the MMA method with a wrapped electrode:

ARC FORCE: short-circuit current adjustment - facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake

HOT START: hot start adjustment - facilitates the ignition of the electrode by providing more welding current with each arc.

The device has a fan cooling system which significantly increases its efficiency.

The quick connection connector of the gas to the welding torch allows you to immediately connect and disconnect the welding torch without the use of tools.

The device is equipped with overload protection, which increases its reliability.

• Current taken from the mains: 26 A
• Power supply network protection: 20A
• Rated supply voltage: 230 V; 50Hz (1ph)
• Power: 7,2 kW
• Idle Voltage: 64 V
• Maximum current: 210 A
• Current at 60% operation: 200 A
• Welding electrode diameter: 1,6 - 4,0
• Welding Current Adjustment Range: 5 - 210 A
• Degree of protection: IP21S
• Overall dimensions L x W x H: 375x134x240 mm

Specifications
