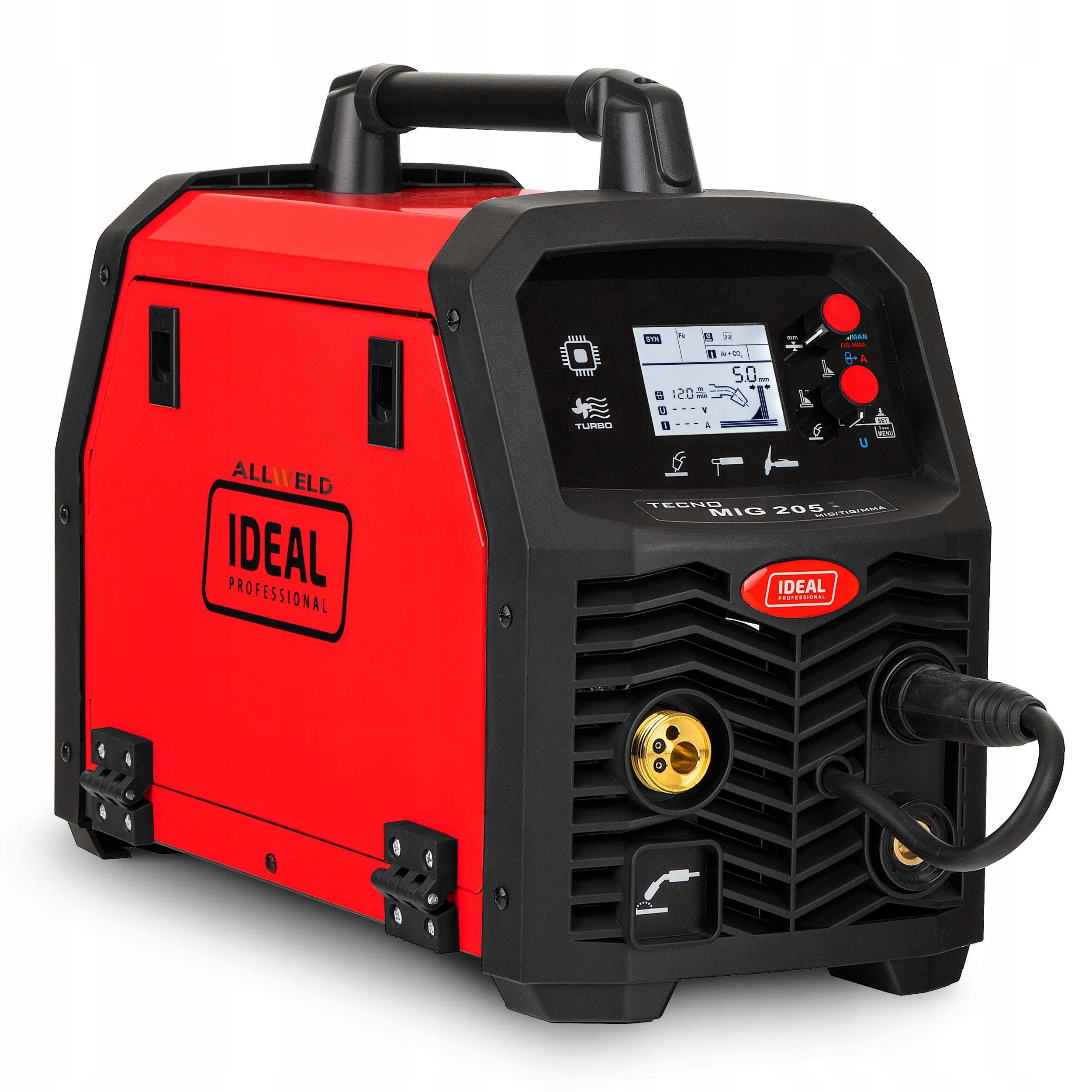

Suvirinimo aparatas IDEAL TECNOMIG 205 LCD V2, 200A, MIG/TIG/ALU

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL TECNOMIG 205 LCD V2, 200A, MIG/TIG/ALU. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TMIG205LCDV2 MAPL-15
• Ilgis: 541 mm
• Plotis: 241 mm
• Aukštis: 386 mm

Manufacturer: IDEAL ║ Welding methods: MIG/MAG, MMA, TIG LIFT ║ Power supply: 230 V ║ Welding current: 200 A ║ Efficiency: 60 % ║ Weight: 15 kg

BET ON A PROVEN MODEL! GREAT PARAMETERS AND LOTS OF FEATURES!

LEARN ABOUT THE BENEFITS OF THE DEVICE:

• Large duty cycle 60% at 200 A
• Starting current from 35 A!
• Automatic selection of parameters!
• Automatically selects operating parameters
• Wide application: small workshops and industry!
• Easy to use
• Perfect display contrast!
• Proven manufacturer
• Additional Features: Burnback, overload switch
• Handle for easy transport
• Optimal dimensions and weight
• Transistors IGBT - modern inverter
• Built-in programs for: STEEL, ALUMINUM, INOX and SOLDERING CuSi
• Adjustable INDUCTANCE!
• ATC function - optimization of thin sheet welding
• Manual mode and SYNERGY
• Precise weld
• Fan - perfect cooling of the welding machine!
• The display shows the impact of changing welding parameters on the shape of the weld face.

KNOW THE OTHER ADVANTAGES!

INTUITIVE CONTROL PANEL WITH LCD DISPLAY

Ideal SYNERGY welder with LCD display allows full control of welding parameters. The clear display with high contrast allows you to work in bright rooms.

SYNERGISTIC AND MANUAL MODE

Two operating modes : MANUAL - in this mode, the user manually sets welding parameters such as welding current, wire feed and inductance. SYNERGY - the microprocessor selects the settings of the welding machine based on: the type and thickness of the welded material and the type of gas and wire diameter. The operator adjusts the parameters to his own needs from -9 to +9.

FAST AND AUTOMATIC SELECTION OF PARAMETERS

The biggest advantage of this type of welding machine is the fast and automatic selection of welding parameters thanks to built-in programs. After giving the basic parameters, it is enough to adjust the welding machine with one knob. Thanks to this solution, you can weld any material very precisely, without unnecessary waste of time on the selection of appropriate parameters.

• IGBT - the welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, enabling increased efficiency and reliability of the power source.
• 2T/4T - when the start button is pressed, the welding process is stopped after releasing the button - when the button is pressed and released for the first time, the welding process takes place at the second press, it is a more convenient solution for longer welds.
• FULL SYNERGY - this is a modern electronic microprocessor control that automatically selects operating parameters depending on the wire diameter, type and thickness of the material.
• REG. INDUCTION - allowing less heat to be introduced into the welding site. The sheet does not deform and the protective layer of zinc is not damaged, useful in soldering.
• LUTOSPELING - this method is quite similar to MIG/MAG welding, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material we work with. The second part of the name, MIG/MAG, comes from the use of the method of melting wire in an electric arc surrounded by protective gas, as well as from the preparation of the edge of the material in the same way as for traditional welding. However, the soldering method is used not only for bonding galvanized sheets, but also thin sheets made of stainless steel and various connections, m.in. acid-resistant steel of ordinary quality steel or copper with steel.
• FCAW - the possibility of welding with core wire without the use of a gas cylinder. The wire itself (FLUX) is filled with a gas-producing substance during welding.
• SPOT WELDING - MIG MAG function rarely found in this class of devices is much more versatile than in TIG, although showing lower metallurgical purity. It does not require a perfect combination of elements.
• BURN BACK - does not allow the electrode wire to be melted to the current tip, due to the momentary extension of the wire after the welding process.
• ATC - advanced thermal control function, active for welding thin materials with a thickness of less than 1,5 mm. Stabilizes the electric arc, reducing the peak value of the welding current. The amount of heat transferred to the material is reduced, reducing the risk of deformation of the material.

POWER SUPPLY PARAMETERS

• Power Supply: 230V - 1 Ph
• Frequency: 50 Hz
• Power protection: 25 C
• Current taken from the network: 20,3 A

TECHNICAL PARAMETERS

• MMA welding current: 20-150 A
• TIG welding current: 20-150 A
• MIG/MAG welding current: 30-200 A
• Efficiency: 60 %
• Idle voltage: 64 V
• Aluminum wire diameter: 0,8 - 1,0 mm
• Diameter of solder wire: 0,8 - 1,0 mm
• Diameter of self-shielding wire: 0,8 - 1,2 mm
• Steel wire diameter: 0,6 - 1,0 mm
• Stainless steel wire diameter: 0,8 - 1,0 mm
• Diameter of welding electrode: 1,6 - 3,2 mm

AVAILABLE FUNCTIONS

• MMA function: YES
• TIG LIFT function: YES - rubbing
• SYNERGY function: YES
• HOT START function: YES
• ARC FORCE function: YES
• Gas-free welding function: YES

FEEDER DATA

• Feeder: 2R
• Reel weights used: 1-5 kg
• Spool size: D100/D200
• Wire diameter: 0.6/0.8/1.0 mm

TIG LIFT WELDING

The welding machine also allows you to weld the TIG LIFT method using the TIG handle of the SR17 type visible in the photo next to it. The arc is contacted by the LIFT method, and the gas is controlled through a valve in the handle.

The TIG holder is not included in the equipment, but is available at our other auctions.

ONLY WITH US - PROFESSIONAL WELDING KIT!!!

Buying in a set - YOU SAVE MONEY

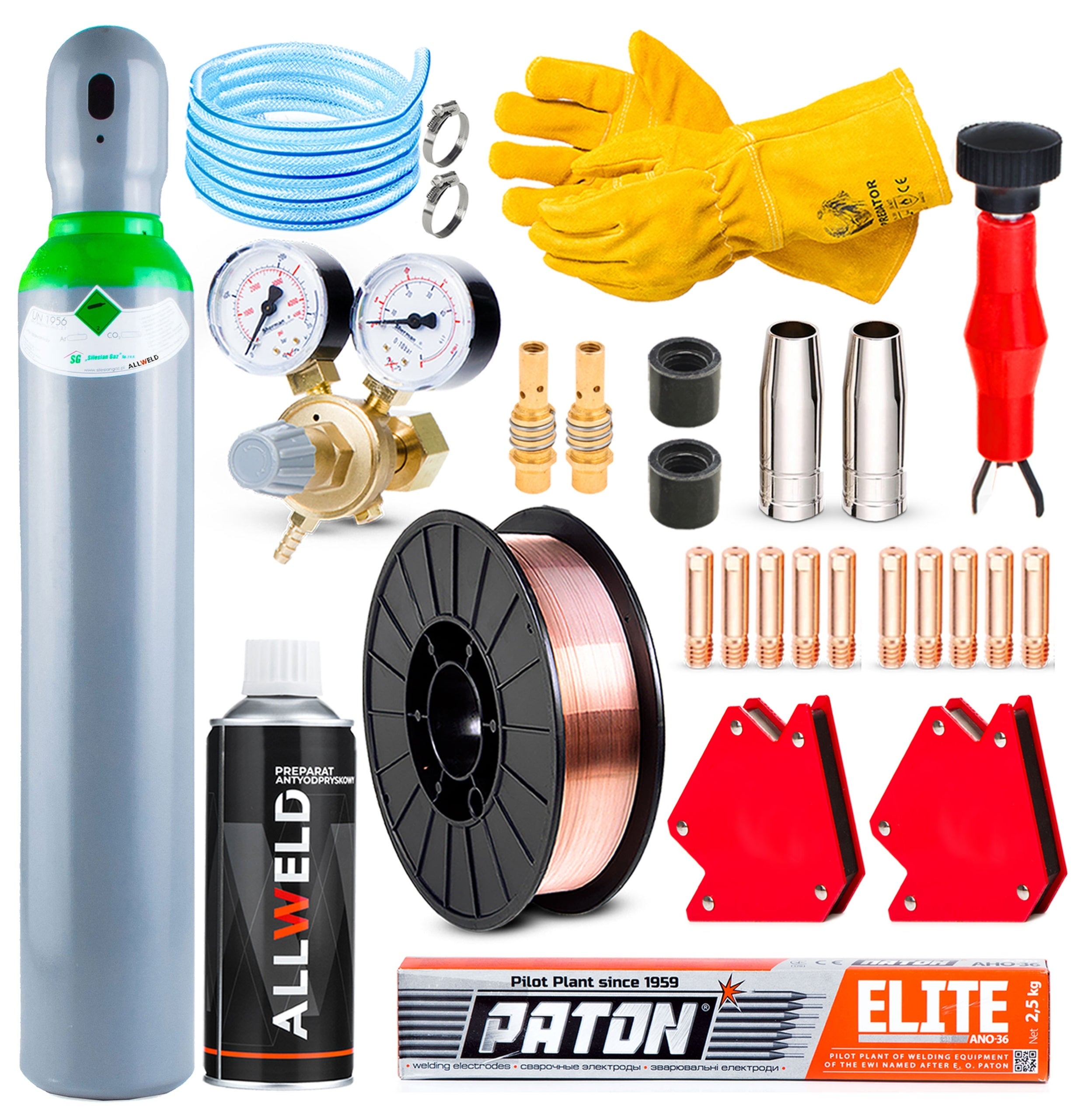

INCLUDED IN THE SET:

• Factory new reusable cylinder with Ar(82%)/CO2(18%) mixture with a capacity of 8l. The cylinders have 10-year-old legalizations and can be filled at any point with technical gases.
• Gas hose - for connecting the reducer to the welding machine.
• Reducer with two pressure gauges - precise reducer with adjustment. Our model has a pressure gauge to control the pressure in the cylinder and a second to the amount of gas flowing out.
• Anti-chipping preparation - protects the nozzle and metal against welding chipping.
• Welding wire SG2 5kg - precision winding
• Clamp bands - 2pcs
• Gloves welding - 1 pair
• Scraper for gas nozzles
• Set of MB15 handle consumable parts (nozzles, connectors, tips, insulators)
• Angles magnetic 11kg - 2pcs
• Electrodes PATON 1kg - 1 pack

NECESSARY SET NEEDED TO START WELDING WORK WITH MIGOMAT.

Welding visor, you can choose yourself by looking at our other auctions or rely on our help!

BY BUYING FROM US YOU GAIN

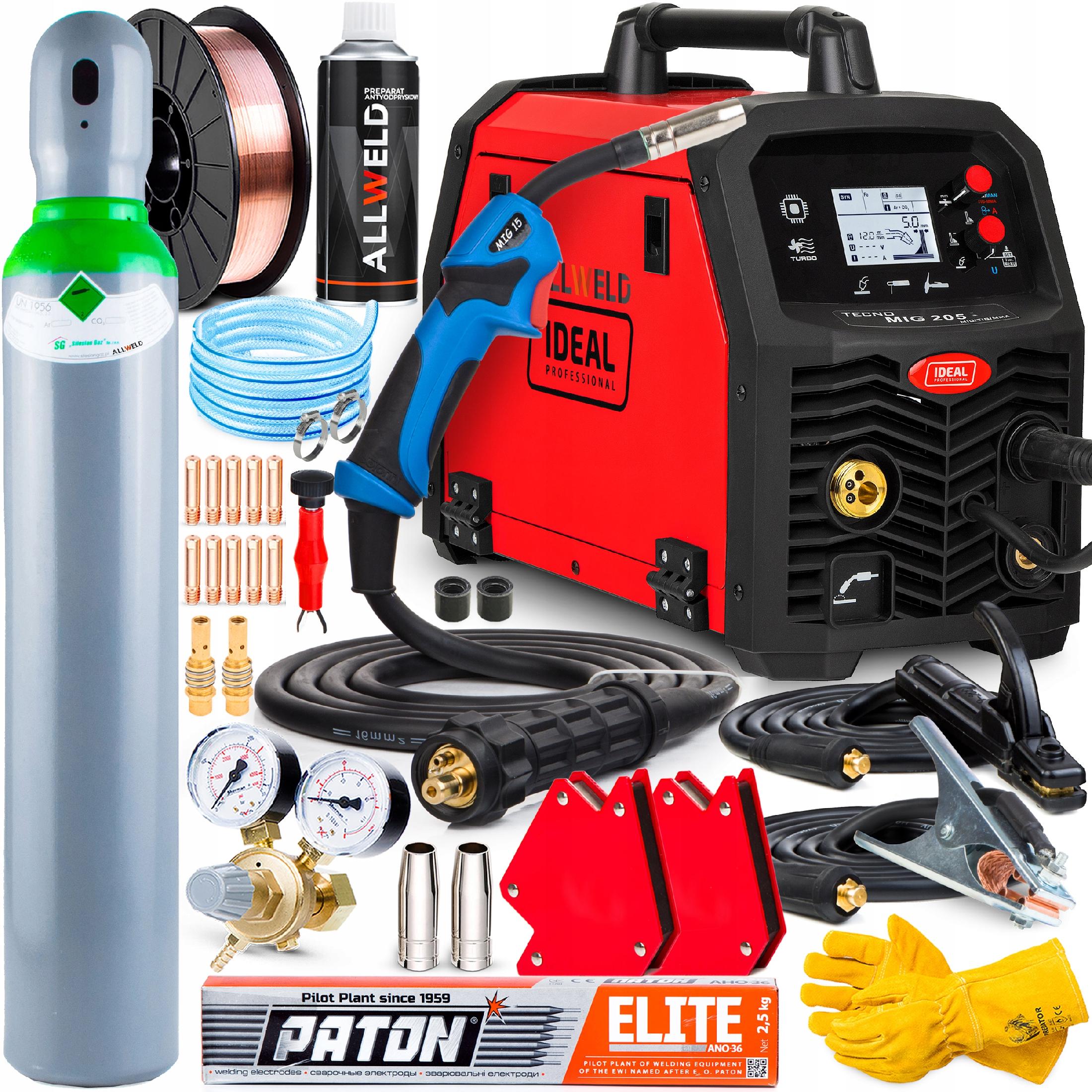

THE SET INCLUDES:

• Welding machine IDEAL TECNOMIG 205 V2 LCD SYNERGY,
• Welding torch MIG/MAG type MB 15 - 3m,
• mass handle - 2m,
• electrode holder - 2m,
• User manual in Polish.

ADDITIONAL ACCESSORIES:

• Bottle with gas mixture Argon/CO2,
• Reducer cylinder Ar/CO2 MINI with two pressure gauges,
• Welding wire SG2 0,8mm - 5kg,
• Preparation anti-chipping ALLWELD,
• Angle magnetic 11kg - 2 pcs.,
• Electrodes SkandiKraft - 1kg,
• Flame-retardant gloves for welding,
• Hose for connecting gas with clamps - 2m,
• Scraper for gas nozzles.

+ HANDLE CONSUMABLE PARTS:

• Gas nozzle - 2 pcs.
• Current connector - 2 pcs.
• End current - 10 pcs.
• Gas distributor - 2 pcs.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Power consumption	7.7 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	3.2 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	16 kg
Parametry	Welding range	50–200 A
Parametry	Height	386 mm
Parametry	Length	541 mm
Parametry	Width	241 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	19 kg
Parametry	Manufacturer code	TMIG205LCDV2 MAPL-15
Parametry	EAN (GTIN)	5905214998912
Parametry	Packaging status	original
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO handle,LCD display
