Suvirinimo aparatas įlenkimams Weldman Spotter 7500

Trumpai apie prekę

Prekė: Suvirinimo aparatas įlenkimams Weldman Spotter 7500. Kategorija: Sandarikliai.

• Gamintojas: Weldman
• Modelis: 106 132
• Įtampa: 400 V

Spotter 7500 Welding machine WELDMAN 7500 400V Bla

WELDMAN

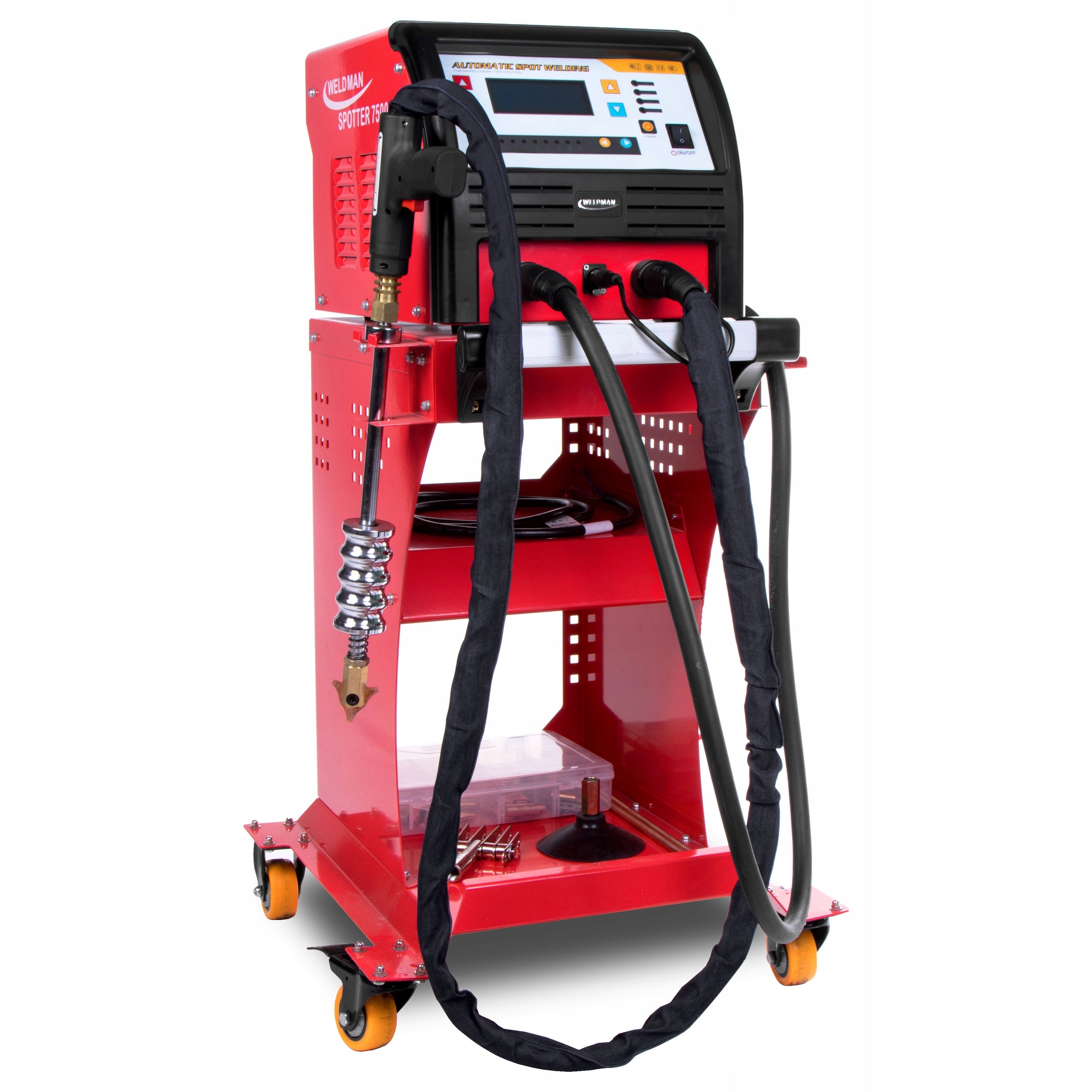

Let's get down to the specifics of the Spot Welder 7500, designed for workshop use. This is a microprocessor-controlled spot welder designed for sheet metal work involving single-sided welding, pulling (by welding elements of various shapes), cutting, and heating with a carbon electrode.

As mentioned in the title, this spot welder has a wide range of applications, especially in workshops performing auto body repairs. The Spot Welder 7500, controlled by a microprocessor, is an extremely efficient, reliable, and easy-to-use tool. It will definitely be a great asset in the hands of experienced professionals.

The product is equipped with an advanced control panel featuring settings such as: 10 different operating modes, a monochrome display, current and time adjustment, and material thickness selection. The microprocessor-controlled Spot Welder 5500 can handle all the tasks encountered in body shops. If you are looking for a high-quality device and want to be sure that it will serve you for many years, be sure to choose the Spot Welder 7500.

✅ dedicated, robust transport trolley

✅ Single-sided welding 1,5+1,5 mm MAX 3 mm

✅ Possibility to manually set welding time and current

✅ Protections: against overheating, over and undervoltage

✅ WELDING CURRENT 7000 A

✅ APPLICATION FOR BODY REPAIRS

✅ 10 operating modes

✅Power supply:12,5kVA

✅Welding current voltage:1-13V

✅Welding time adjustment:0,1-9,9s

✅Power supply voltage: 400V

✅10 operating modes,

✅regulation of current and welding time,

✅ choice of thickness of welded material (synergy),

✅monochrome display.

• welding machine
• transport trolley
• kinetic hammer for handle (gun) for triangular washers
• kinetic hammer with hook for corrugated wire or round and straight washers
• mechanical vacuum suction cup
• carbon electrodes 2 pcs.
• working wire with handle (gun) 2,2 m
• power cord 2,5 m
• mass cable with a mass tip of 2 m
• 6 Finger Comb Weld Holder
• box of working tools and consumables containing:

– 12 mm round washers: 30 pcs.

– triangular washers: 5 pcs.

– straight washers: 10 pcs.

– straight twisted washers: 10 pcs.

– screw M5 L=16 mm: 20 pcs.

– screw M6 L= 16 mm: 20 pcs.

– corrugated wire L= 300 mm: 10 pcs.

– electrode for screws

– electrode for round washers

– electrode for straight washers

– electrode for crushing irregularities (created after pulling out the sheet metal)

– double-sided electrode for corrugated wire and spot welding

– electrode holder for corrugated wire

– handle for triangular washers

– end of mass

WELDMAN

Weldman is a poland innovative brand that has its roots in passion for modern technologies related to the field of workshop technology.

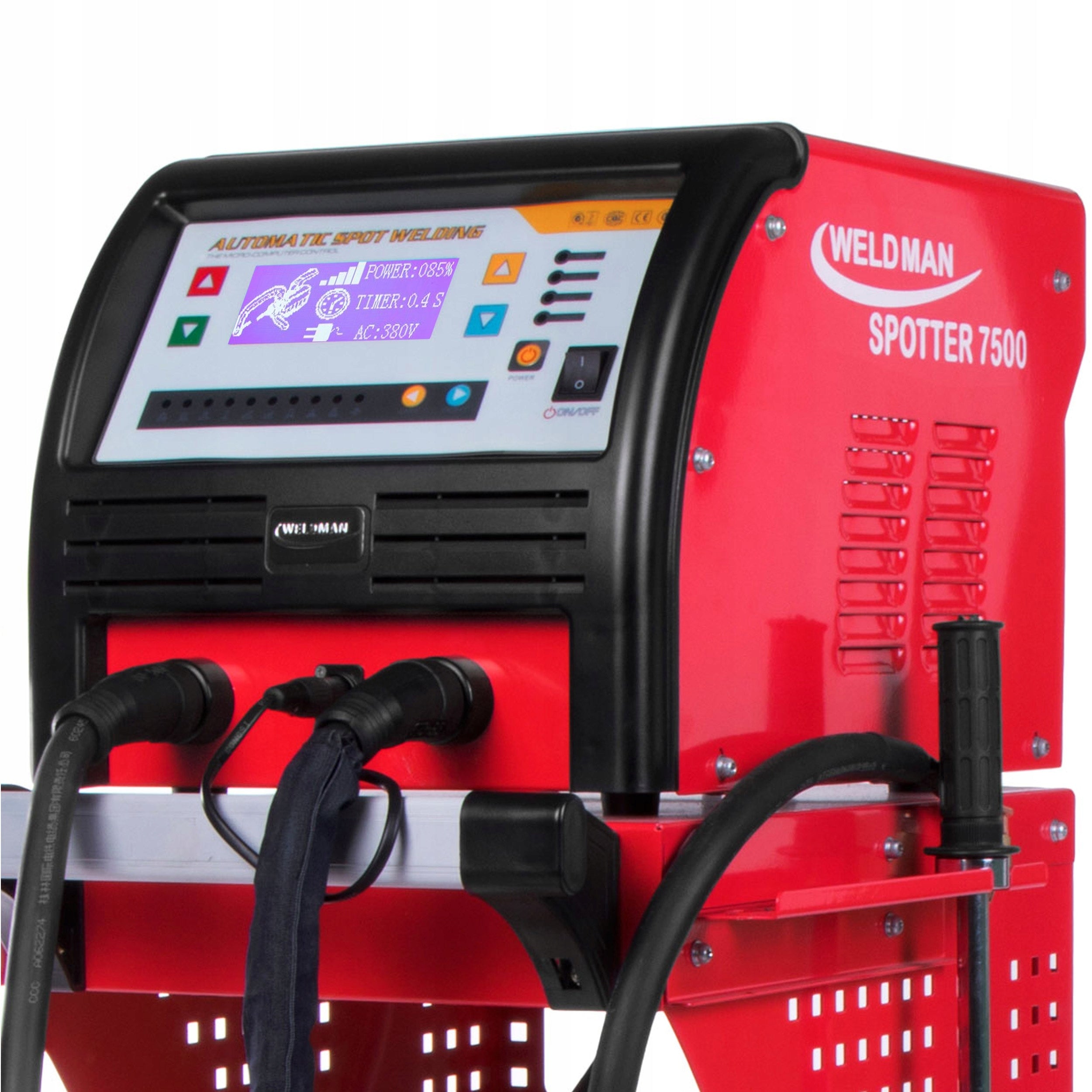

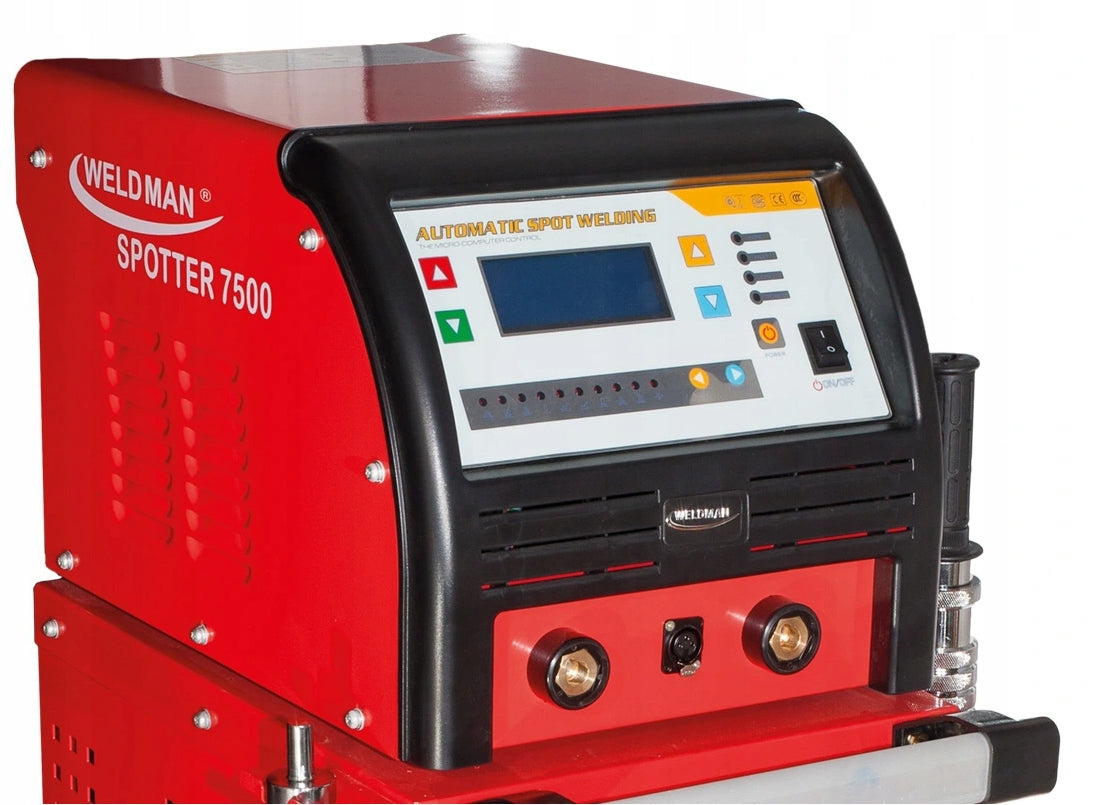

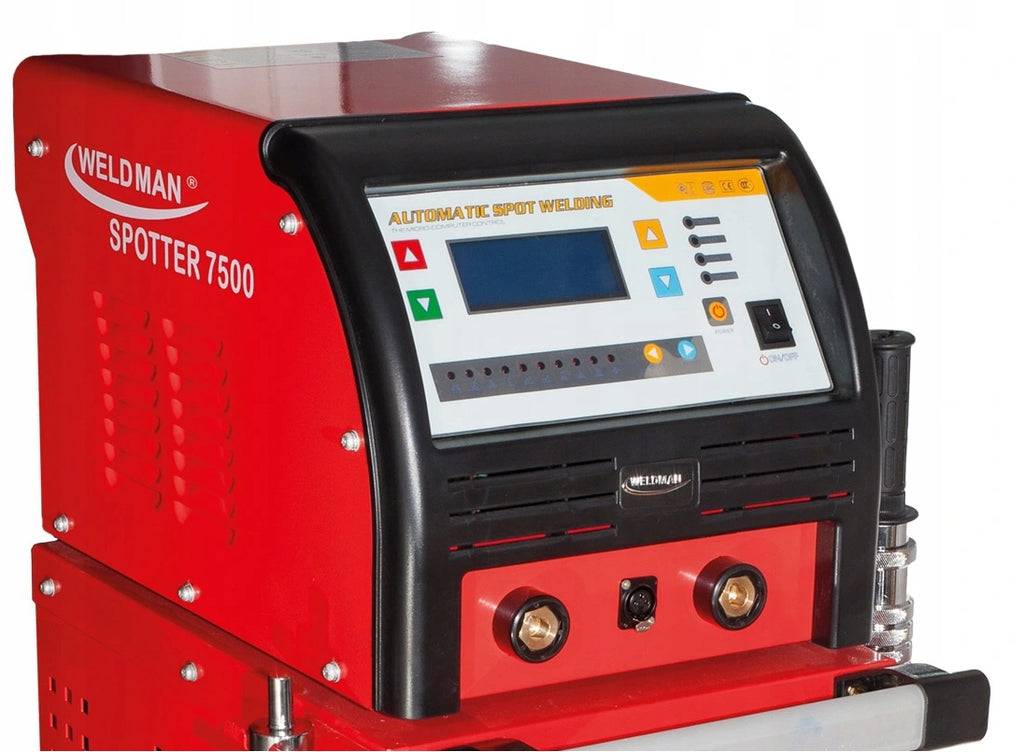

1. Adjustment of welding current: reduction – green / increase - red
2. Monochrome graphic display (displays welding machine operating mode, welding current, welding time, supply voltage)
3. Adjustment of welding duration: reduction – blue / increase - yellow
4. LED indicating the trigger of the gun (WORK)
5. LED indicating an error in the operation of the welding machine (FAULT)
6. LED indicating compressed air connection (GAS) - function inactive in a given model
7. Power Indicator LED (POWER)
8. Main switch ON/OFF
9. POWER welding machine power switch
10. Selection of welding machine operating mode: left/right with LEDs indicating the selected operating mode

Technical data

• Code 106 132
• Type of SPOTTER 7500
• Power supply voltage [V] 400
• Power supply [kVA] 15,5
• Power supply [A] 20-75
• Welding current [A] 7000
• Welding current voltage [V] 1-11,5
• Welding time adjustment [s] 0,1-9,9
• Max. thickness of welded material [mm] 3
• Protection class [IP] 21
• Dimensions of welding machine [cm] 51x35x34
• Dimensions of welding machine with trolley [cm] 62x55x107
• Weight of welding machine [kg] 28
• Weight of welding machine with trolley 47

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Weldman
Parametry	Series	Spotter 7500
Parametry	Maximum power	12700 W
Parametry	Power supply	mains
Parametry	Supply voltage	400 V
Parametry	Product weight with unit packaging	50 kg
Parametry	Device weight	28 kg
Parametry	Manufacturer code	106 132
Parametry	EAN (GTIN)	5902701750732
Parametry	Batteries included	no
Parametry	Purpose	for sheet metal
