Suvirinimo aparatas INVERTER 180A su LCD ekranu, MMA, IGBT, kaukė ir šepetėlis

Trumpai apie prekę

Prekė: Suvirinimo aparatas INVERTER 180A su LCD ekranu, MMA, IGBT, kaukė ir šepetėlis. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: Verke
• Modelis: V75008

The VERKE inverter welding machine is a top-of-the-line welding device for MMA (welding with a wide range of wrapped electrodes). Smooth adjustment and digital display current settings allow you to choose the optimal parameters depending on the type and thickness of the materials being processed and the electrodes used. The device has an integrated cooling system (thermostat and fan), which protects against overheating and significantly extends the time of uninterrupted operation. It is equipped with the functions of optimizing the welding arc HOT START (supports arc ignition), ARC FORCE (stabilizes the arc in case of fluctuations in its length) and ANTI STICK (limits sticking the electrode to the material being processed). The welder uses a standard mains power supply of 230 V. Light weight and compact dimensions make the device convenient for transport and work at height as well as trouble-free storage.

The IGBT 180T welding machine is equipped with the VRD function - a voltage reduction system that turns off the power supply within a few milliseconds after welding. This function is also responsible for reducing the voltage on the wrapped electrode to a safe level.

TECHNICAL DATA:

• rated voltage 230 V – 50 Hz
• welding current regulation: 20-180 A
• work cycle: 60%
• electrode diameter: 2,5-4,0
• Arch glow: contact
• degree of protection: IP21
• cooling: fan

Advanced IGBT inverter technology

Bipolar transistor with insulated gate. The high frequency of the inverter significantly reduces the volume and weight of the welding machine. Significant reduction of magnetic losses and resistance obviously increases welding efficiency and translates into energy savings.

The switching frequency is outside the audible limit range, which almost completely eliminates noise.

Advanced control technology meets the requirements for various welding applications and greatly improves welding efficiency. This technology can be widely used in electrode welding with acidic and alkaline sheath.

Efficiency, energy saving, portable, stable arc, high idle voltage and with good arc pressure compensation, can meet different requirements when working in the field.

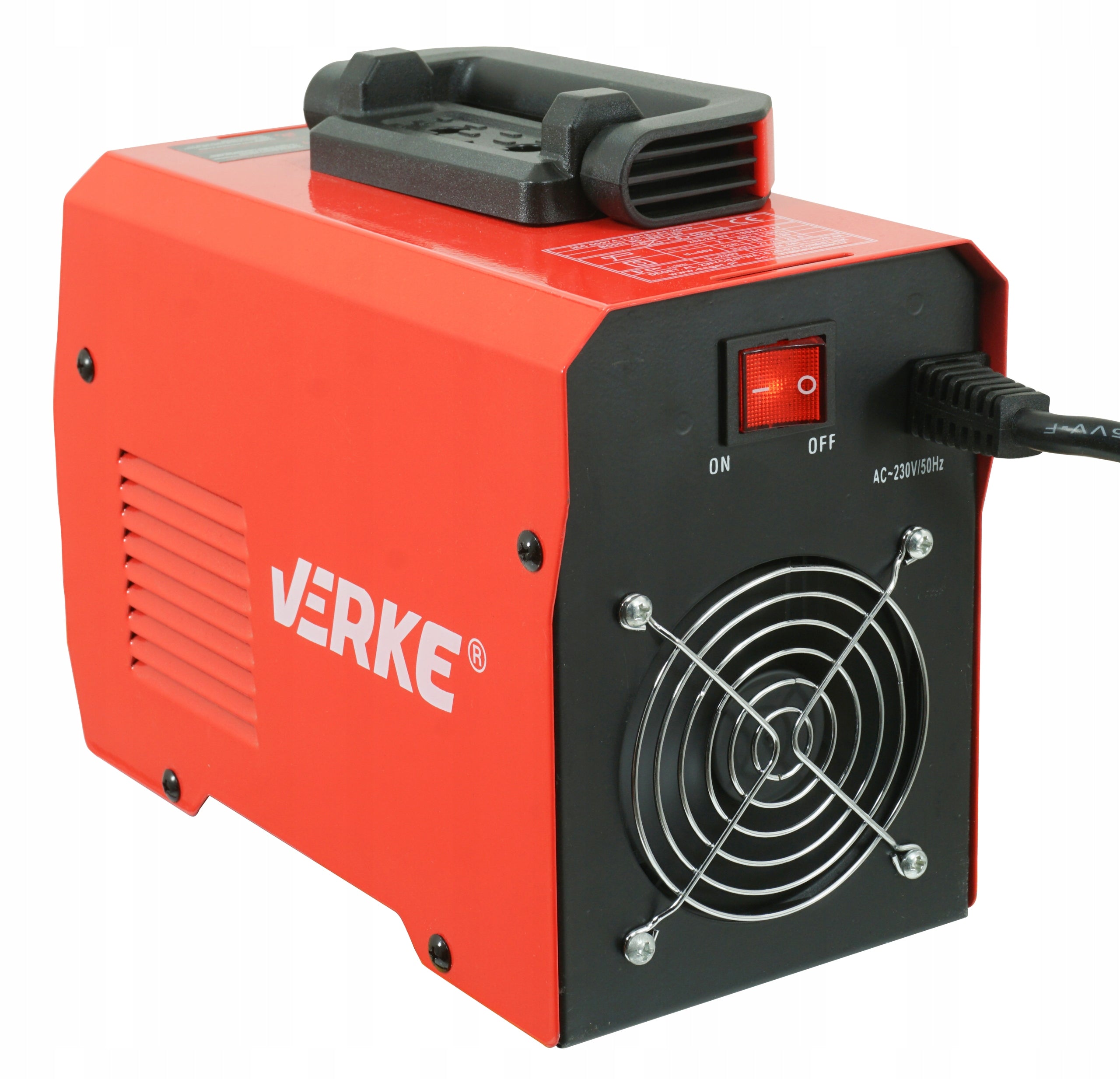

Efficient cooling

Thanks to the use of a large fan in a small welding machine housing, the air flow was increased, which reduced the temperature of the transistors. The efficiency of the device is up to 60%.

▶ Built-in automatic functions to facilitate work:

✔ HOT START

Popularly called hot start, it allows by temporarily increasing the welding current above the value set by the welder. HOT START works at the moment of arcing and is designed to prevent the electrode from sticking to the material. It is a great convenience when lighting the electrode.

✔ ANTI STICK

cuts/minimizes welding voltage and current in case of short circuit of the electrode with the welded material. ANTI STICK allows the welder to detach the electrode more easily.

✔ ARC FORCE

stabilizes the arch regardless of its length. Regulates the dynamics of the welding arc. By reducing the value of the function, it gives a soft arc and a smaller depth of melt, while increasing the value of the function causes deeper melting and the possibility of welding with a short arc. At the highest value for the ARC FORCE function, it is possible to "press the electrode into a lake of molten metal and burn the material through.

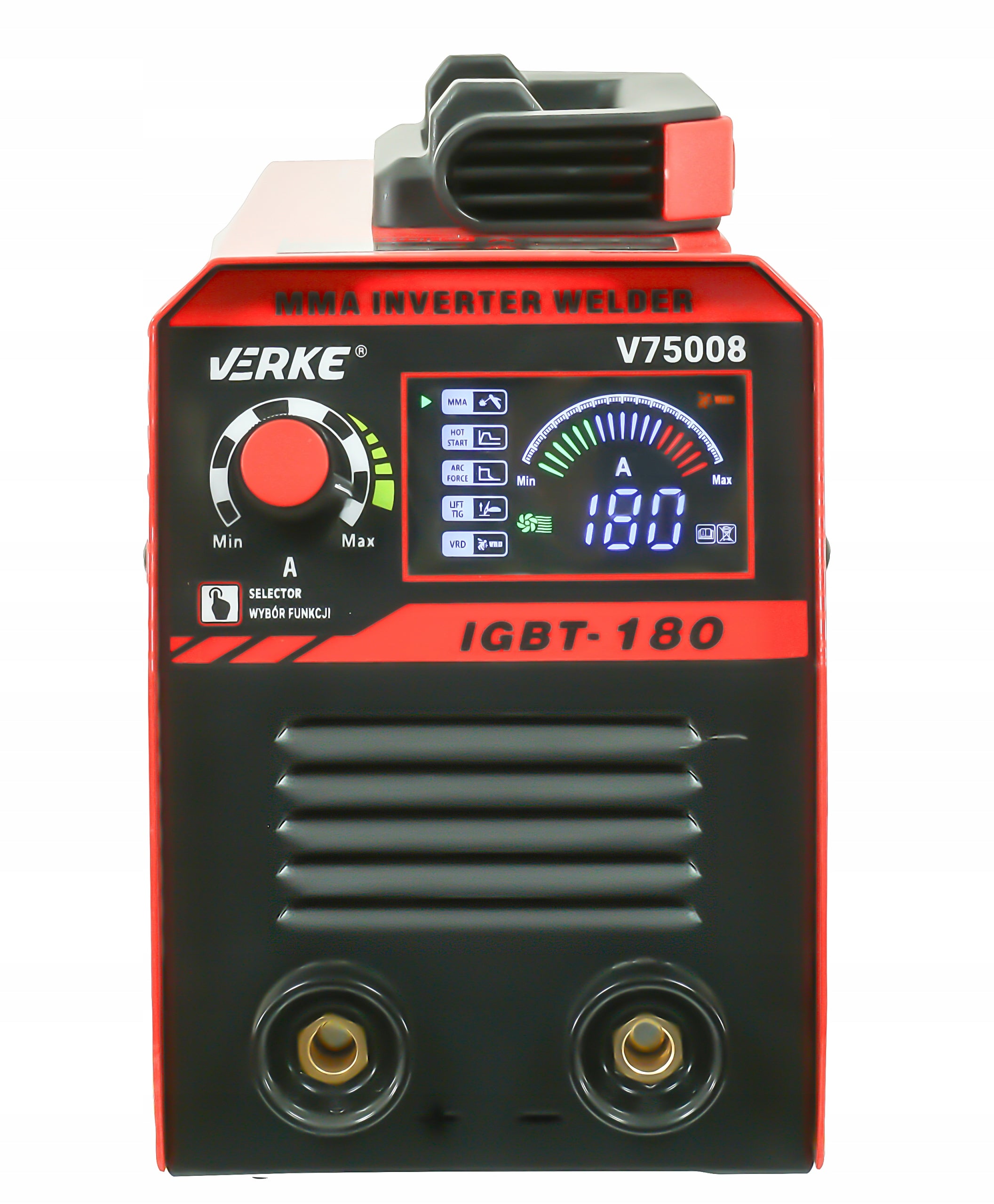

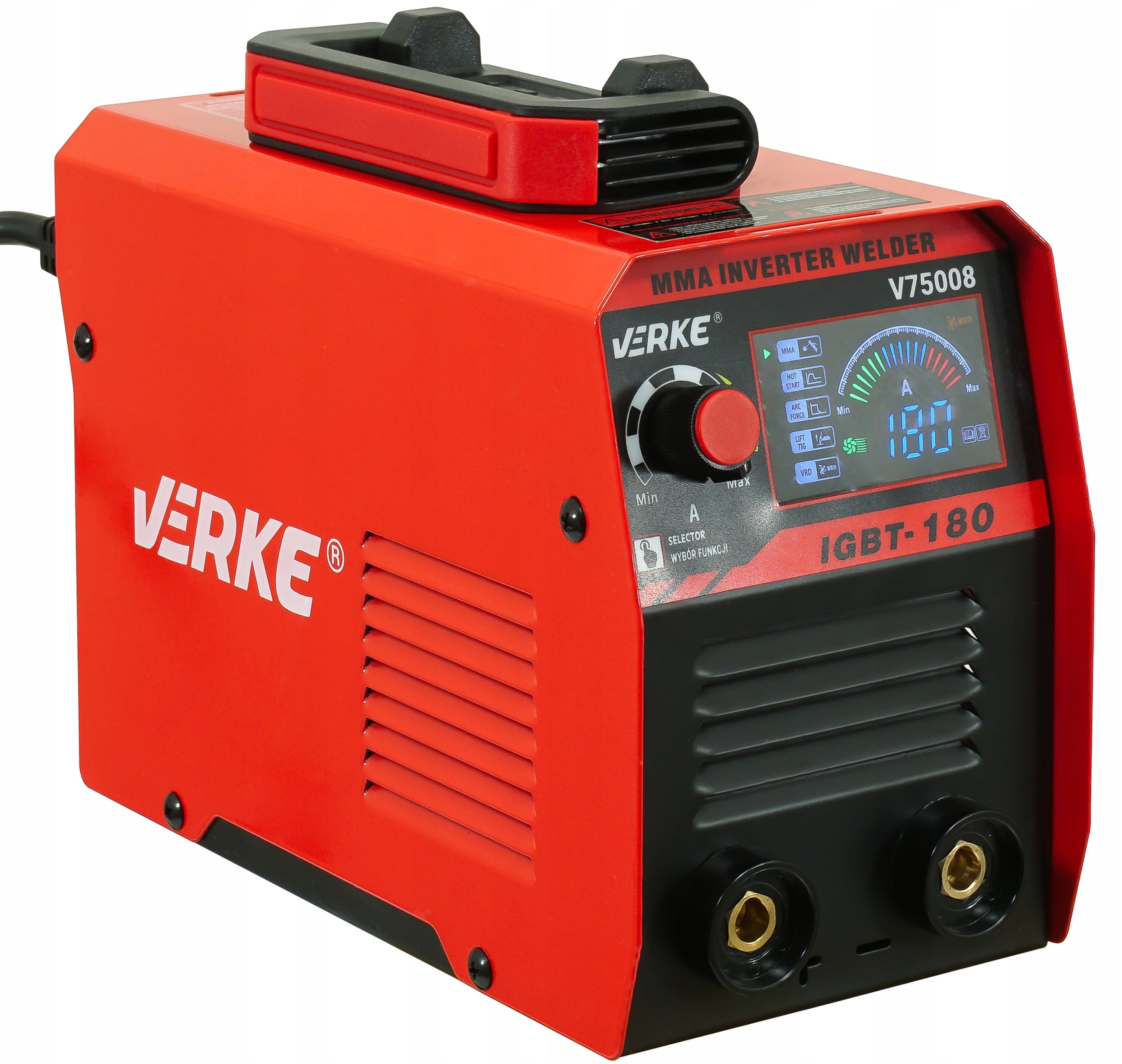

► VERKE® 180T IGBT Welding Machine with LCD Display

Features: ANTI STICK, HOT START, ARC FORCE

► Smooth Adjustment from 20-180A LCD

► Fan and Thermostat for Continuous Operation

► Arc ignition by scratching, electrode does not stick

Electrodes from 2.5-4.0 mm 180A

► For welding various types and grades of metals and alloys: non-alloy and alloy steels, cast iron, nickel, copper and alloys

The most powerful, compact, and easy-to-use welding machine, praised by specialists as one of the best in the price range up to 400 PLN

► True power of 180A and high efficiency of 60% means that it does not turn on practically at all even when welding long welds.

It has a versatile application, used for welding stainless steel, alloy steel, carbon steel, copper and other metals.

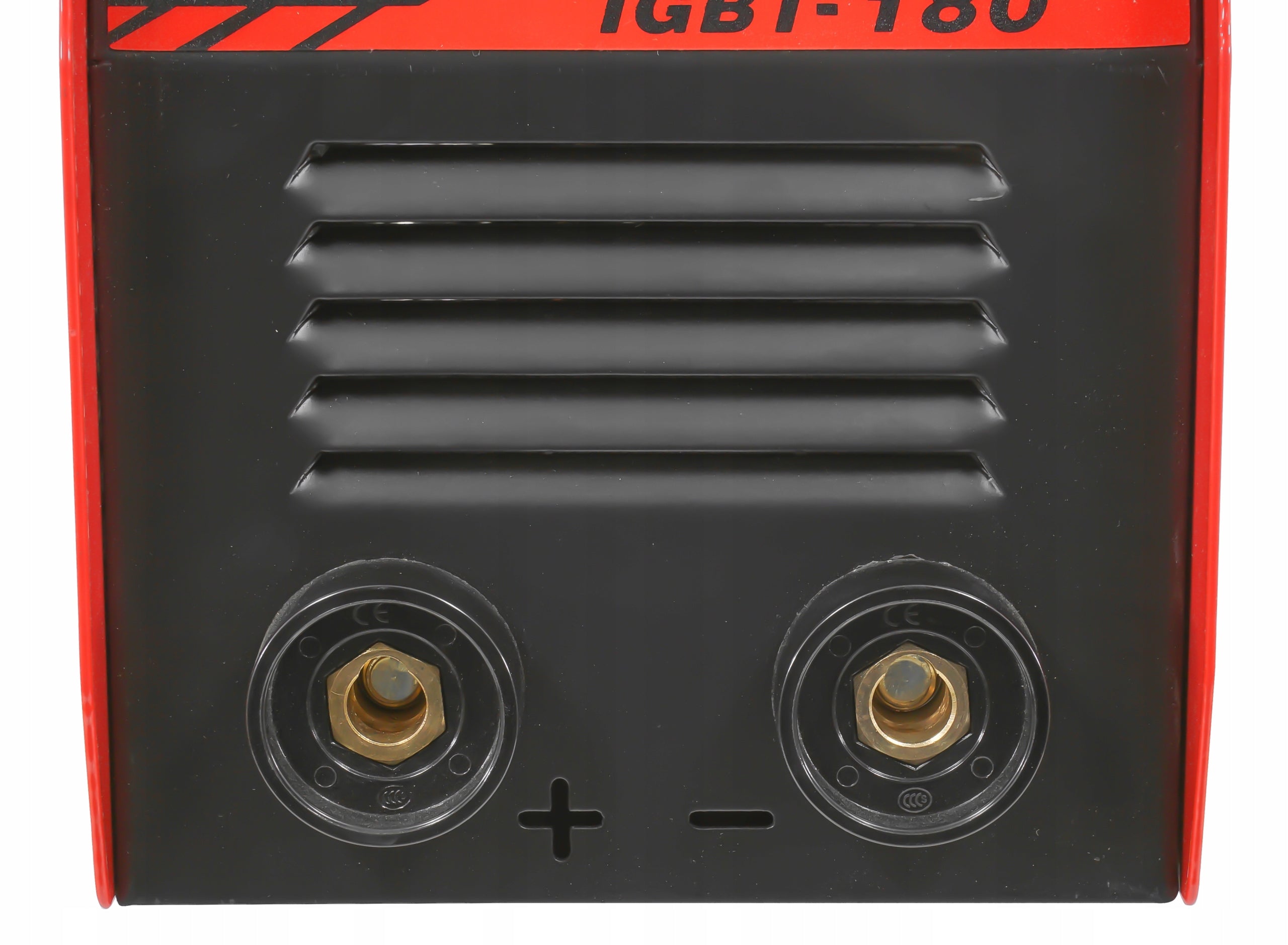

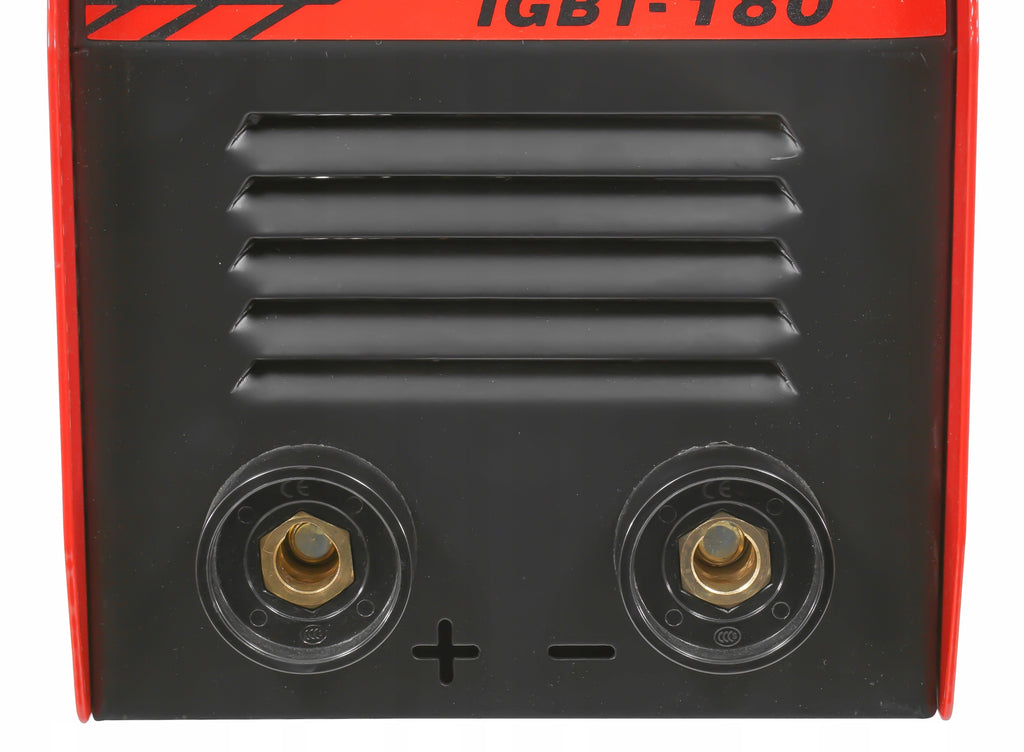

Equipped with fan, LCD display, potentiometer for smooth adjustment and quick connectors.

The converter, which uses high-quality IGBT transistors, allows for a smooth weld position and a significant reduction in the amount of chipping.

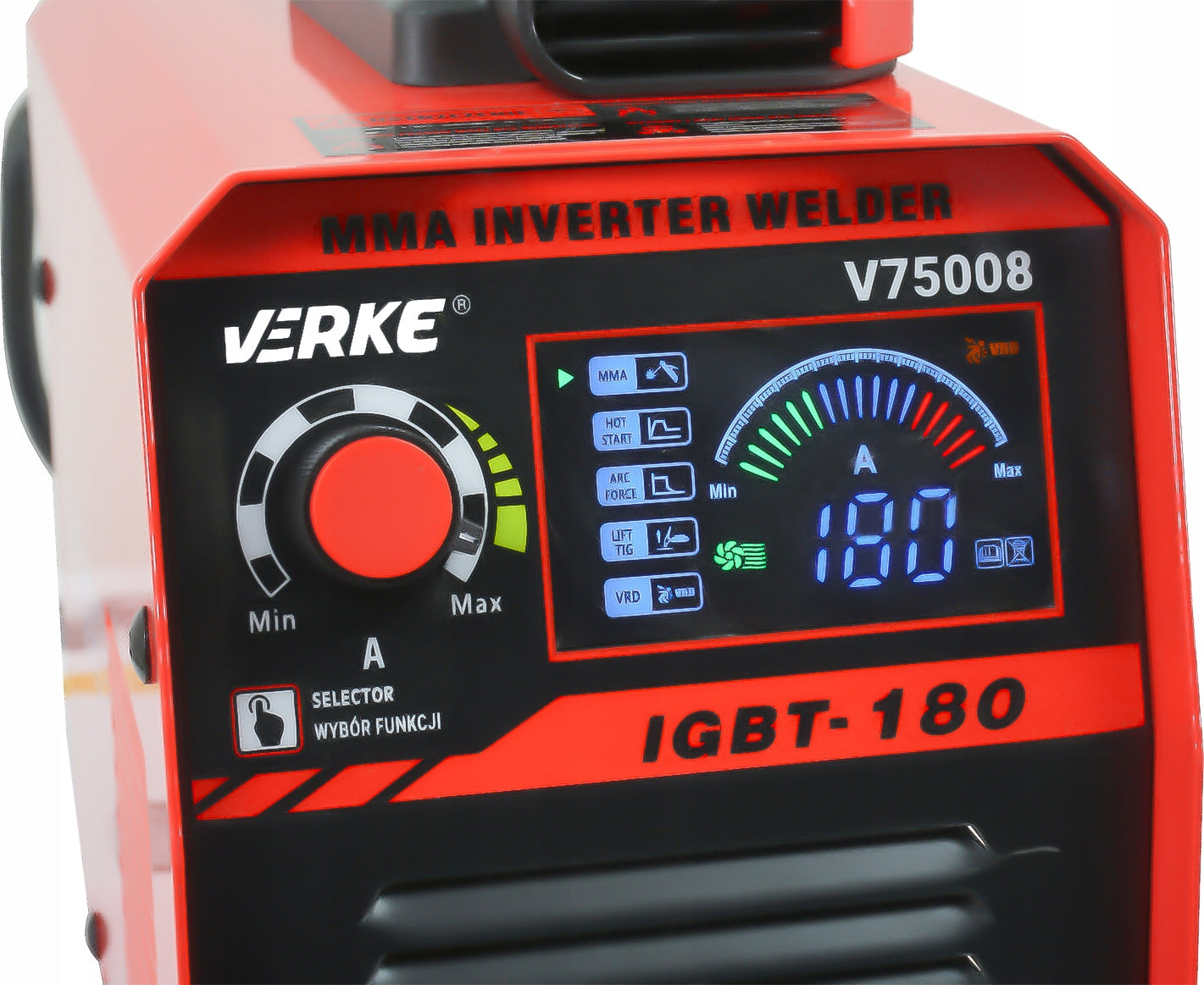

Large readable display allows you to accurately set the correct welding current.

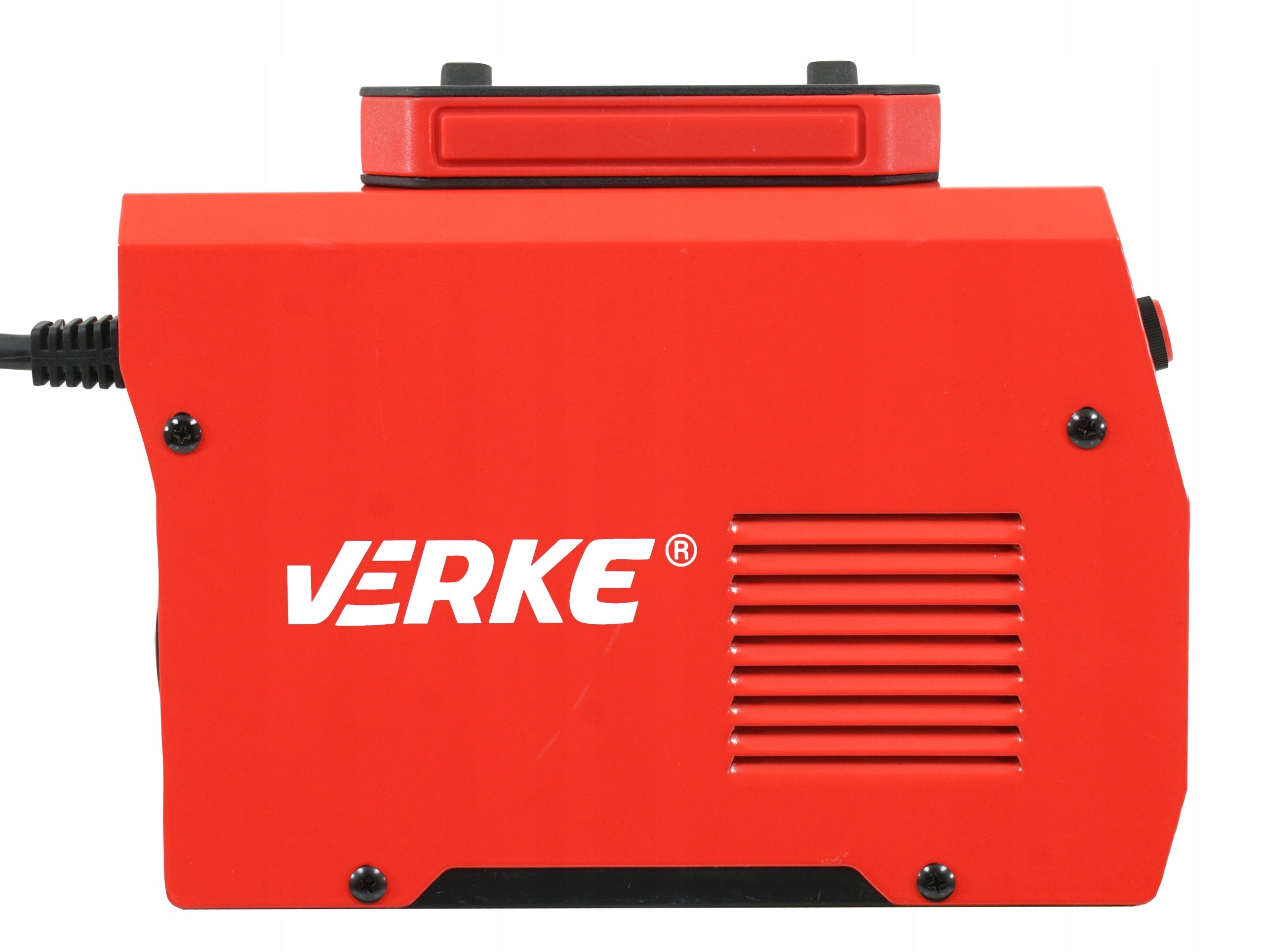

You can take the device anywhere, and small dimensions and weight will make it much easier.

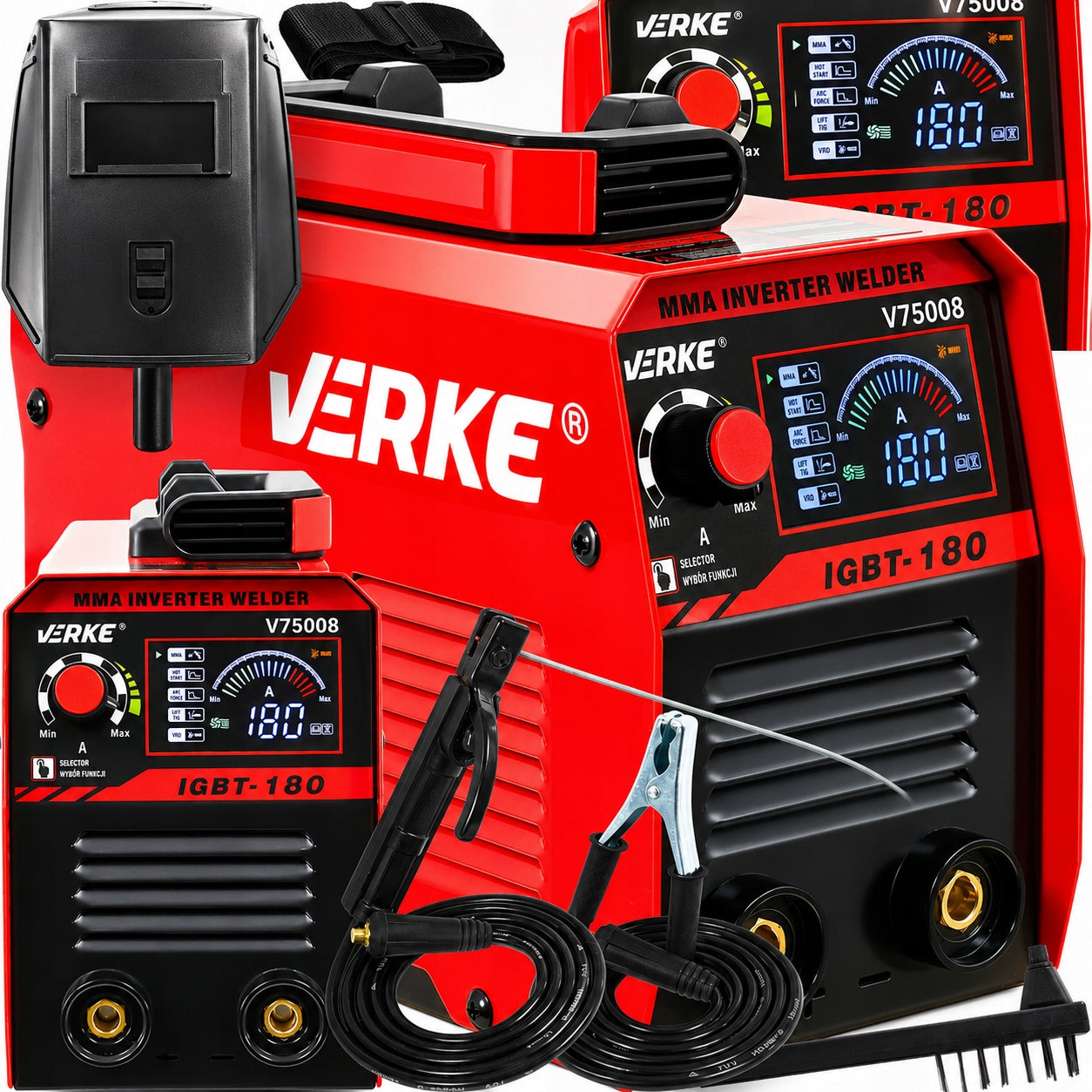

INCLUDED IN THE SET:

MMA DIN welding cable with electrode holder

DIN mass cable with clamp

WELDING VISOR MASK FOR WELDING DISC

The welding disc is designed to protect the eyes, face and neck of the welder from the accompanying welding process of intense visible light and harmful ultraviolet and infrared radiation of the electric arc and chipping of molten metal and slag.

+ BRUSH WITH HAMMER FOR UPHOLSTERING AND CLEANING THE SHEATH

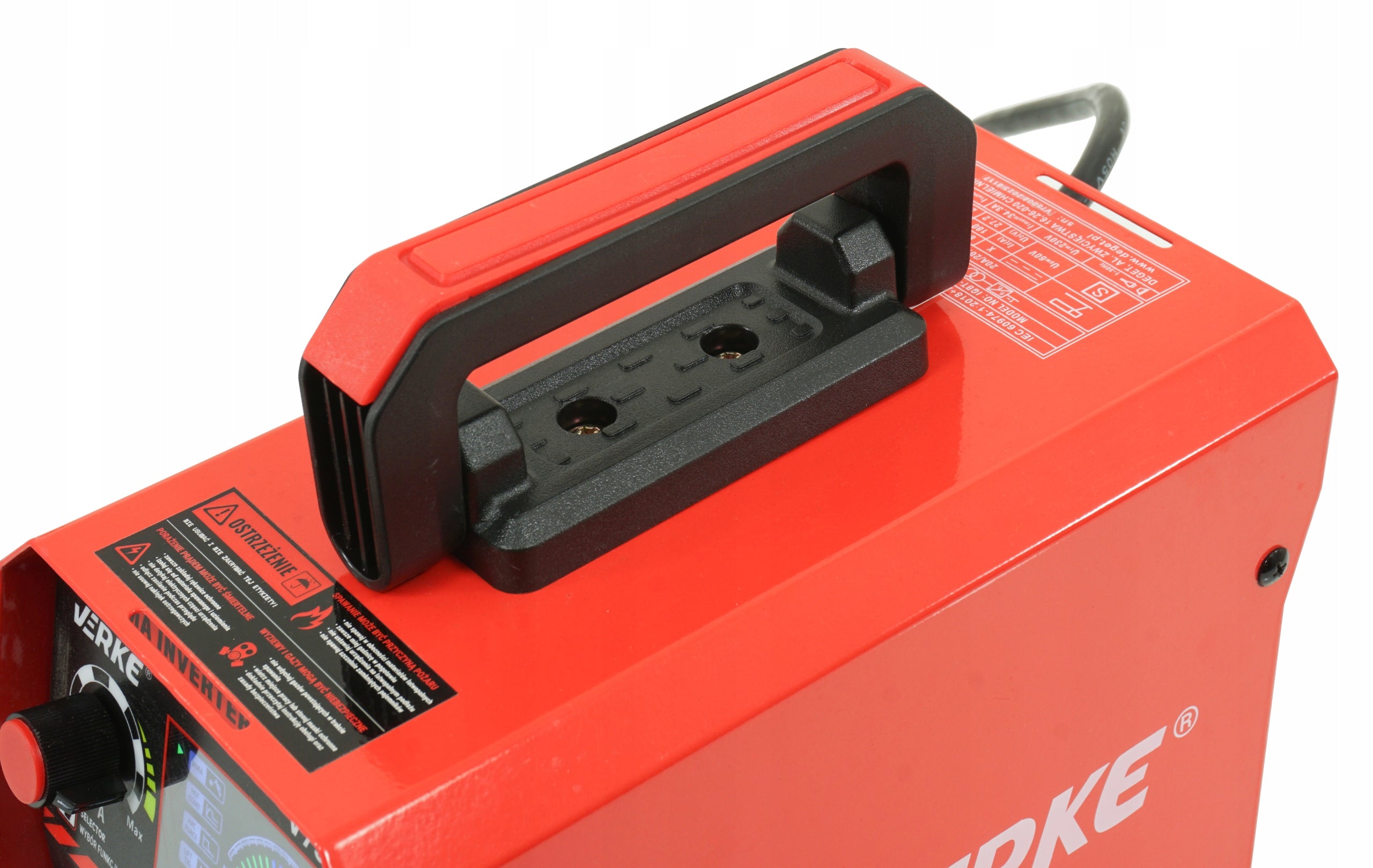

+ SHOULDER STRAP

▶ You do not need to be an experienced welder to bond metal with a strong melt, the functions used in the most expensive IGBT welding machines are included in this device!

▶ Simplicity of operation will make it possible for everyone to cope with the welding machine, and eliminating unnecessary elements makes it trouble-free.

░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░

▶ High quality of workmanship can be seen even with the naked eye!
