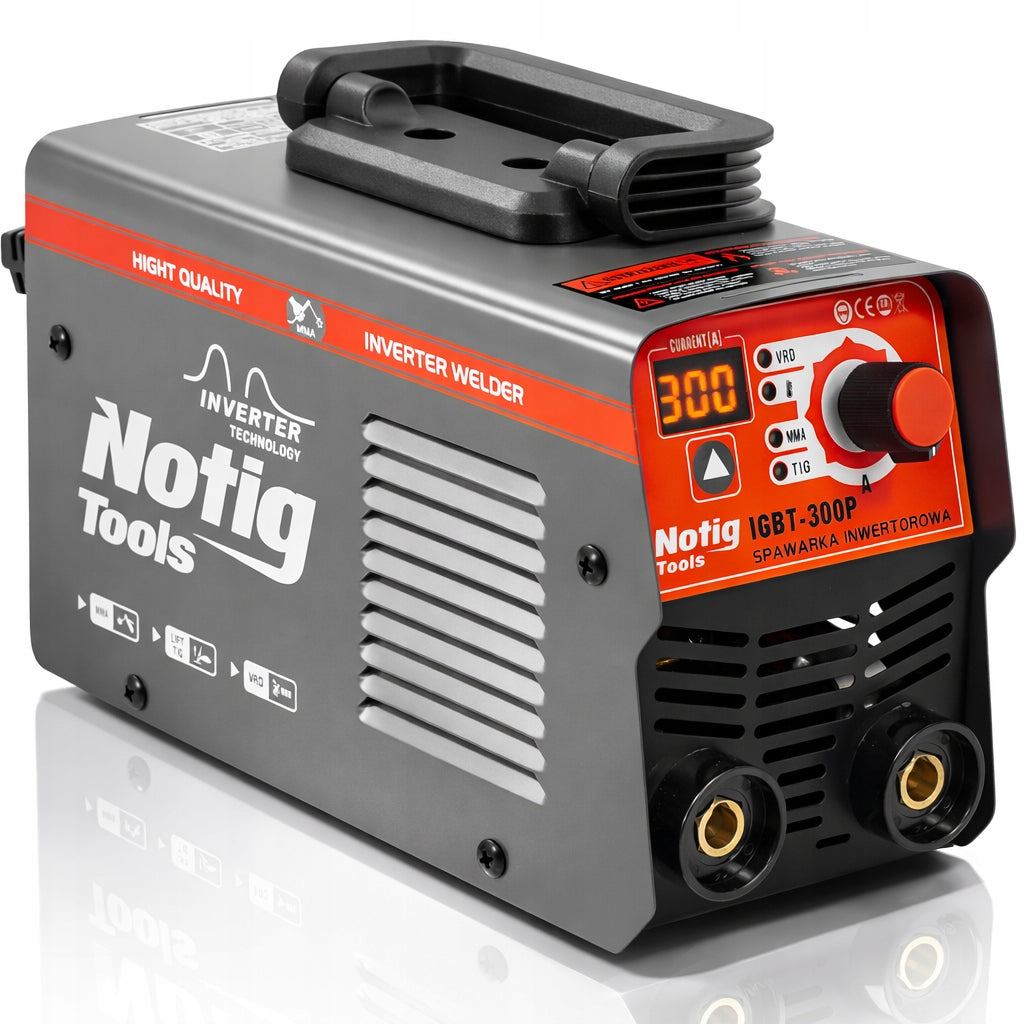

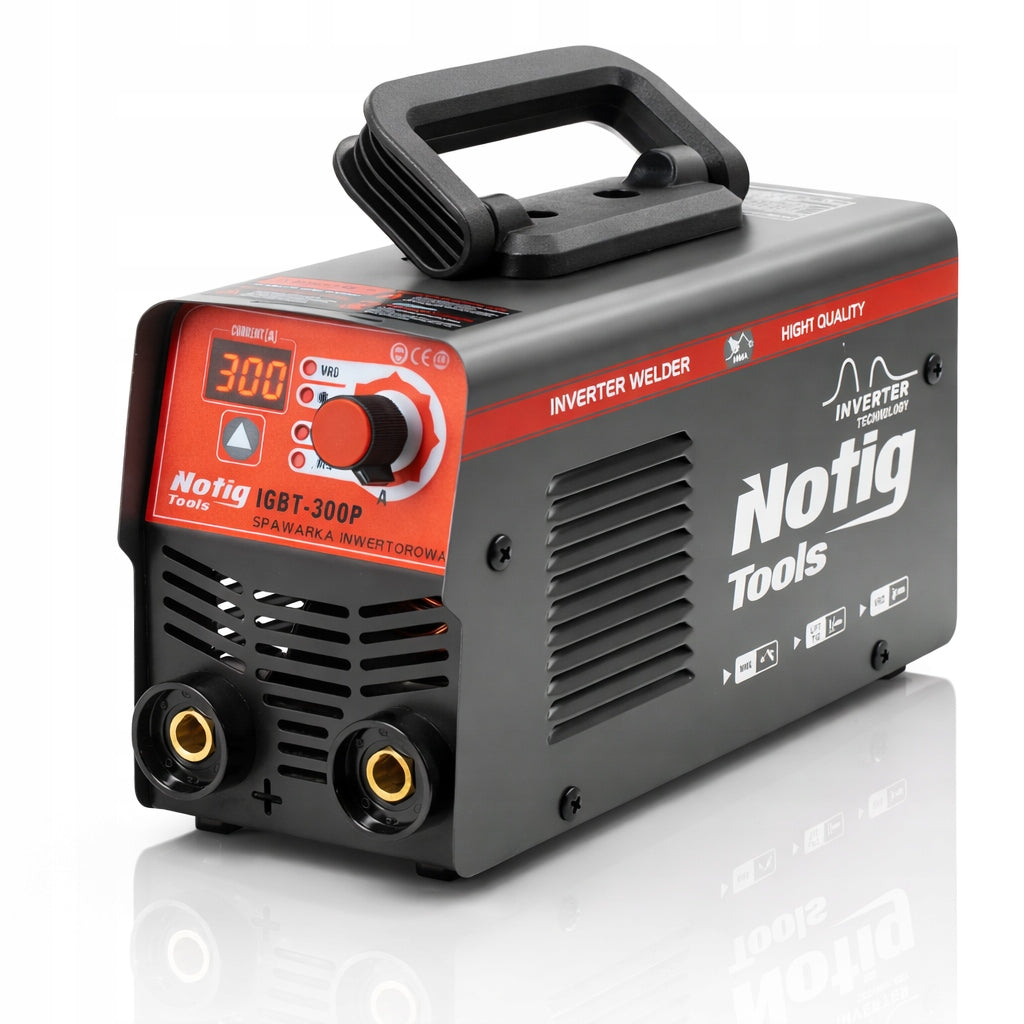

Suvirinimo aparatas INVERTER 300A MMA/TIG LIFT, 20–300A, 230V, STRONG

Trumpai apie prekę

Prekė: Suvirinimo aparatas INVERTER 300A MMA/TIG LIFT, 20–300A, 230V, STRONG. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: Notig Tools
• Modelis: N1307

► IGBT Transistor ► Working Cycle 60% ► MMA ► TIG ► 20-300A ► VRD ► Hot Start, Arc Force, Anti-Stick ► LCD Display ► Thick and Long Wires 1,5 m ► Professional Service

LIGHTWEIGHT AND EFFECTIVE PERFORMANCE

✅ Device Operating Time ► The welder offers a 60% duty cycle, meaning it can operate for 5 minutes at full load, followed by a necessary 5-minute break.

✅ Welding Current Adjustment ► The range from 20A to 300A allows for precise parameter adjustment based on material thickness and weld type.

✅ Largest Electrode Supported ► The equipment allows for work with electrodes up to a maximum diameter of 4 mm, enabling the welding of thicker materials that require higher power.

✅ MMA Welding Mode ► Enables efficient and stable welding of materials using coated electrodes.

✅ TIG ► The welder can perform TIG welding when used with the appropriate welding torch.

WELDING MACHINE AVAILABLE FOR EVERY USER

✅ IGBT ► technology is responsible for high energy efficiency and stable and even welding current

✅ VRD ► or an important protective function that reduces idle voltage to safe level

✅ Extended cooling system ► effectively dispels excess heat, which allows longer operation of the device without the risk of overheating

✅ Hot Start, Arc Force, Anti-Stick ► these functions provide comfortable and simple operation, even for beginners. Forget about the problem of sticking the electrode to the material!

✅ TIG LIFT - TIG welding with a special TIG handle with valve. Arc ignition is carried out by lightly rubbing the non-melting electrode against the welded material. (not included)

✅ Wires 1,5 m ► used long welding wires allow convenient operation in all conditions

► WE PROVIDE 100% SATISFACTION WITH YOUR PURCHASE OR MONEY BACK GUARANTEE!

⭐ What makes it worth betting on our devices?

✔ Our welding machines are made using the highest quality components and based on proven production technologies,

This makes them one of the best choices in their price segment

► Very high standard of performance

► Taking care of every technical and aesthetic detail

► Devices of a reputable brand with an established position on the market

► Constant availability of spare parts and fast service

⭐ High power and welding accuracy

► The welding machine operates in the current range from 20A to 300A, offering high flexibility in the selection of the electrode and precise adjustment of parameters to the type of welded metal, which translates into equal and aesthetic welds

► Thanks to this, the device works efficiently with both thin and thick elements, which makes it a universal tool for many applications – from small repairs to more demanding constructions

► Wide current adjustment range also provides appropriate weld properties, regardless of the type of material, such as carbon steel, stainless steel or cast iron

► High-capacity electrolytic capacitors are responsible for voltage stabilization and its controlled release, guaranteeing a stable welding arc during each operation

⚙ TECHNICAL DATA:

Manufacturer: Notig Tools

Supply Voltage: 230-240V / 50Hz

MMA Output Current Range: 20-300A

Operating cycle < 25°C : 60%

Operating cycle 26-35°C< : 30%

Idle Voltage: 60V

Rated current consumption: 17A

Possibility of welding with electrodes with diameter: 1.6-4 mm

Protection class: H

Degree of protection: IP21S

Ambient temperature - operation: -10 ̊C~+40 ̊C

Ambient temperature - storage: -25 ̊C~+55 ̊C

Length of mass cable: 1,5 m

Length of electrode cable: 1,5 m

⭐ Smart Features: Hot Start, Arc Force, Anti-Stick

✔ Hot Start

The Hot Start function automatically increases the welding current at the start of operation, which allows for fast and reliable arc ignition, especially when welding more demanding materials

This provides a stable start to the weld, which is a great support for less experienced welders

✔ Arc Force

Arc Force is responsible for maintaining a stable welding arc by dynamic correction of current when the arch is shortened

Thanks to this, the welding process is more smooth and even, which works especially when working in difficult welding positions and under variable operating conditions

✔ Anti-Stick

Anti-Stick eliminates the problem of sticking the electrode to the material, automatically reducing the current when the electrode is too close

This solution reduces the risk of sticking the electrode and facilitates its fast detachment, which significantly increases the comfort and smoothness of work, especially in beginner users

⚡ Great quality combined with a great price

You do not need to be a welding specialist to get a deep melt using this welding machine

✔ Solutions and functions, which are usually found only in the most expensive IGBT models, are also available in Notig Tools

Making a aesthetic, surface weld is relatively easy, but the real challenge remains to obtain a deep melt, which guarantees a clean, full and extremely durable weld

✔ Our welding machine offers parameters, thanks to which it is possible to achieve such results even for people without experience

✔ The welder also has the possibility of TIG Lift welding

(method of arcing by rubbing after using the appropriate handle - to be purchased separately)

After its installation, the welding machine turns into a TIG welding machine while maintaining many parameters of expensive TIG devices.

⚡ Power supply parameters – power and rated current

With a nominal current consumption of 16A, the welding machine remains energy-efficient and at the same time safe for home and workshop installation, which significantly reduces the risk of overloading the electrical network

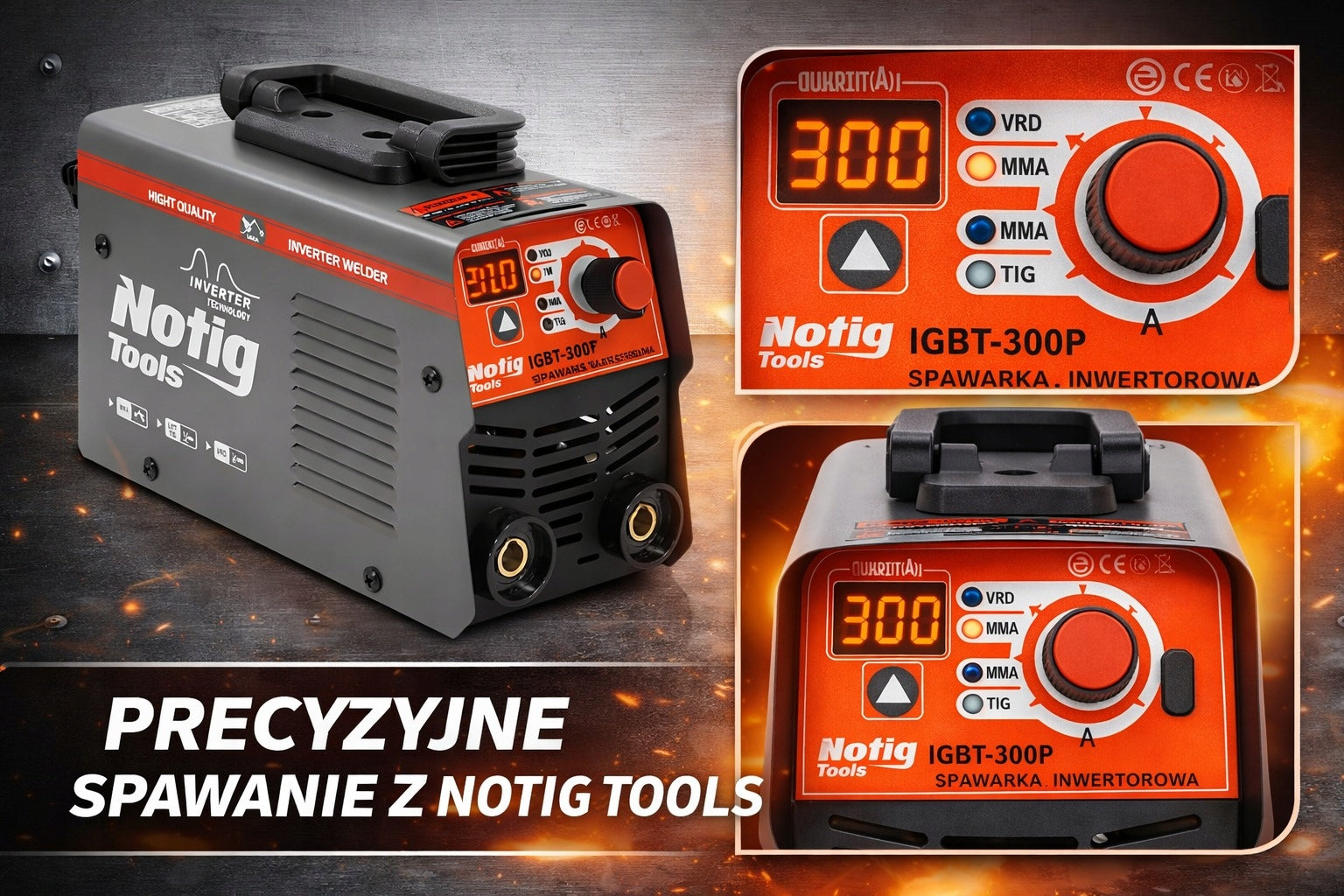

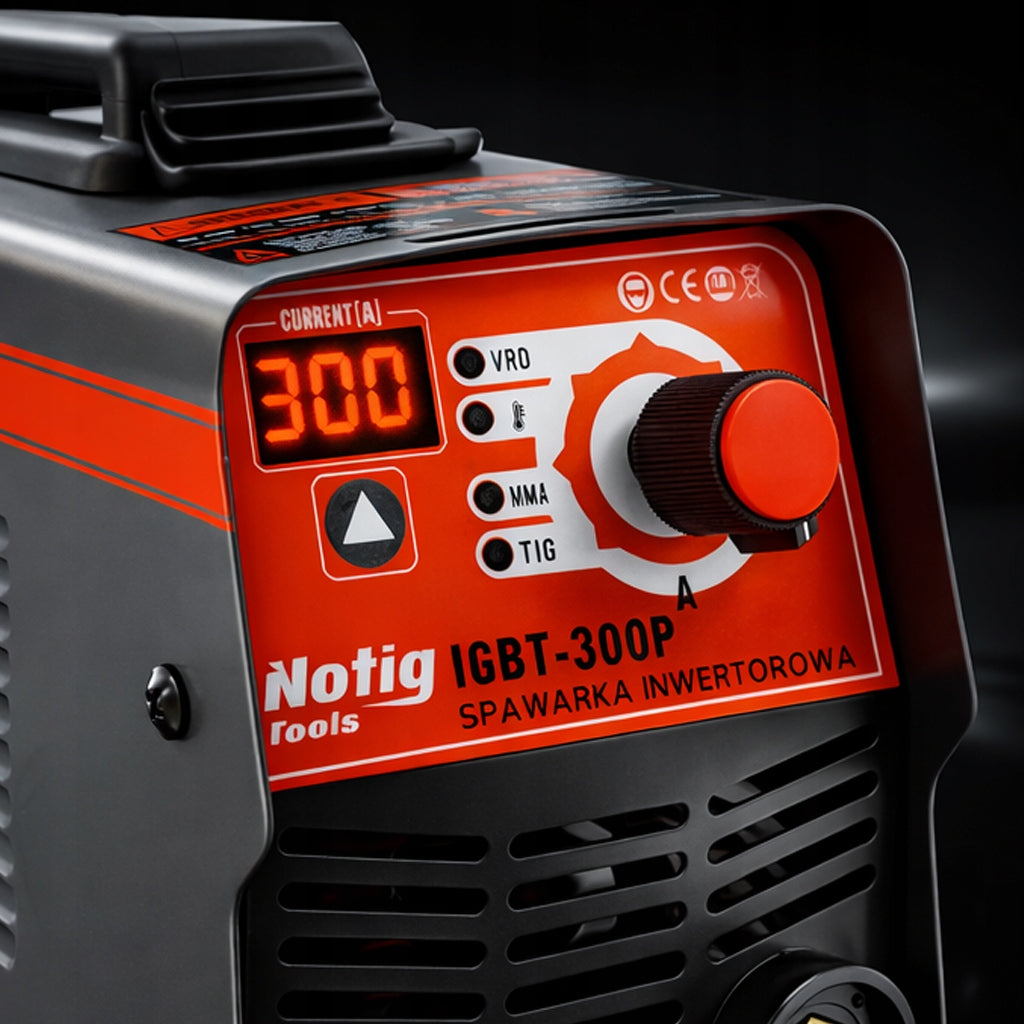

⭐ Clear LCD panel

All parameters and the selected welding mode are displayed on the screen, so that you always have a preview of the current current and active mode

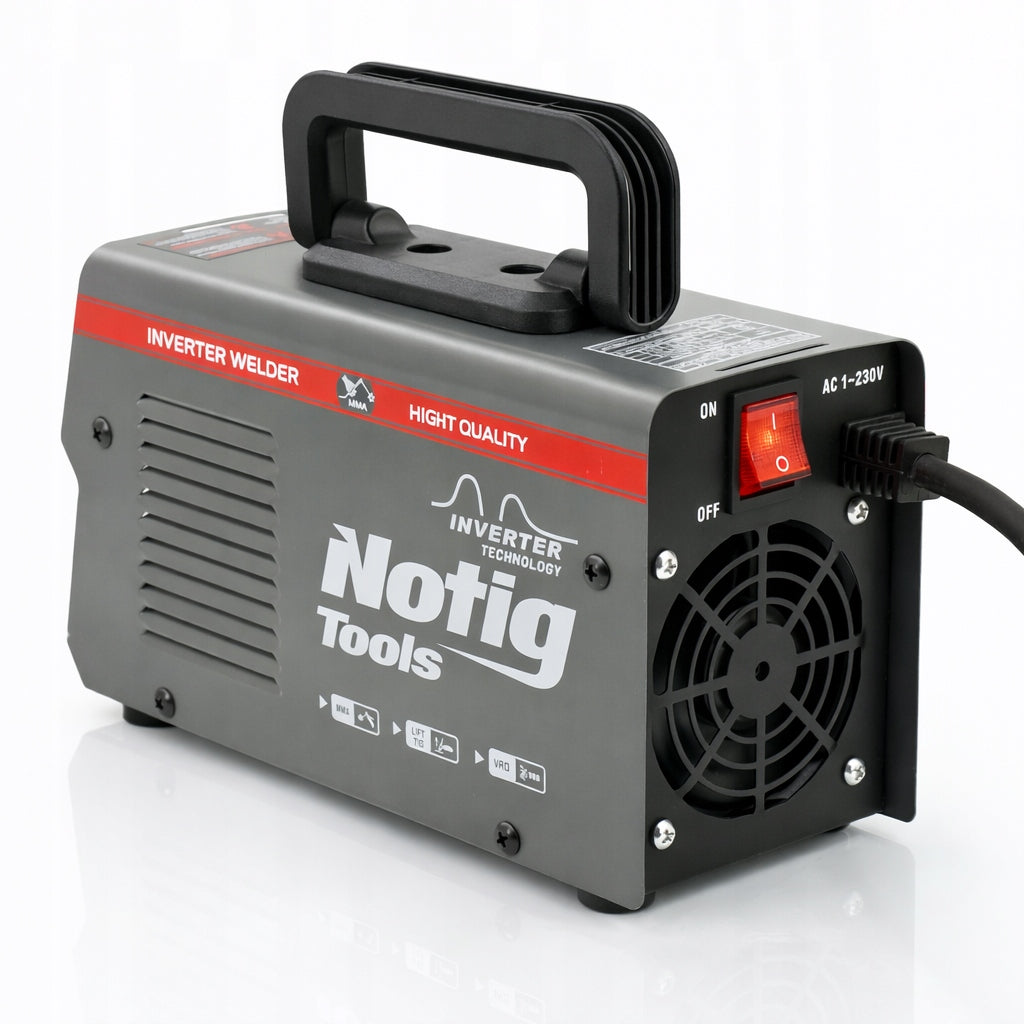

❄ Advanced cooling system

Thanks to the modern cooling system, the Notig Tools welding machine maintains stable operating parameters even in difficult conditions, minimizing the risk of overheating

The system is particularly effective under heavy use, which extends the life of the device

► Efficient fan and three reliable heat sinks effectively dissipate excess heat, ensuring optimal operating temperature of the welding machine

✅ IGBT technology – a great choice for beginners

The welder uses Insulated Gate Bipolar Transistor (IGBT) technology, making it an ideal tool for those starting their welding adventure

► IGBT is distinguished by high energy efficiency and stable welding current, which allows to obtain high-quality welds, even with limited experience

For novice welders, IGBT technology offers a number of benefits:

► IGBT-based devices are more forgiving of errors that may occur during welding, such as uneven handling of the handle or unoptimal parameter settings

✅ TIG Lift welding capability

The welder is equipped with the option of TIG Lift welding, which allows for precise and clean welds, typical for professional TIG devices. The TIG Lift method involves arcing by lightly rubbing the electrode against the material, which allows you to start welding without accidentally without the risk of damaging the material.

To use this feature, you need a dedicated TIG handle, available as an accessory to buy separately.

After mounting the handle, the welder transforms into a full-fledged TIG welding machine, maintaining many advanced parameters that usually occur in more expensive TIG devices, such as:

• precise regulation of welding current,
• stable and even arc,
• The ability to work with different types of electrodes and materials.

This makes the welding machine combines the universality of the MMA device with the precision and control of TIG welding, which makes it ideal for both professionals and demanding hobbyists.

✅ Heart of the welding machine – reliable control board

The control board is an advanced electronic module that coordinates all key functions such as current regulation, voltage and other welding parameters

► Efficient capacitors

Provide stable and constant power for all electronic components

Their efficiency directly affects the ability of the welding machine to deal with voltage fluctuations

► Effective heat sinks

They guarantee optimal cooling and protect key electronics components from overheating

They are responsible for efficient heat dissipation from the components generating the most energy, such as the processor and IGBT transistors.

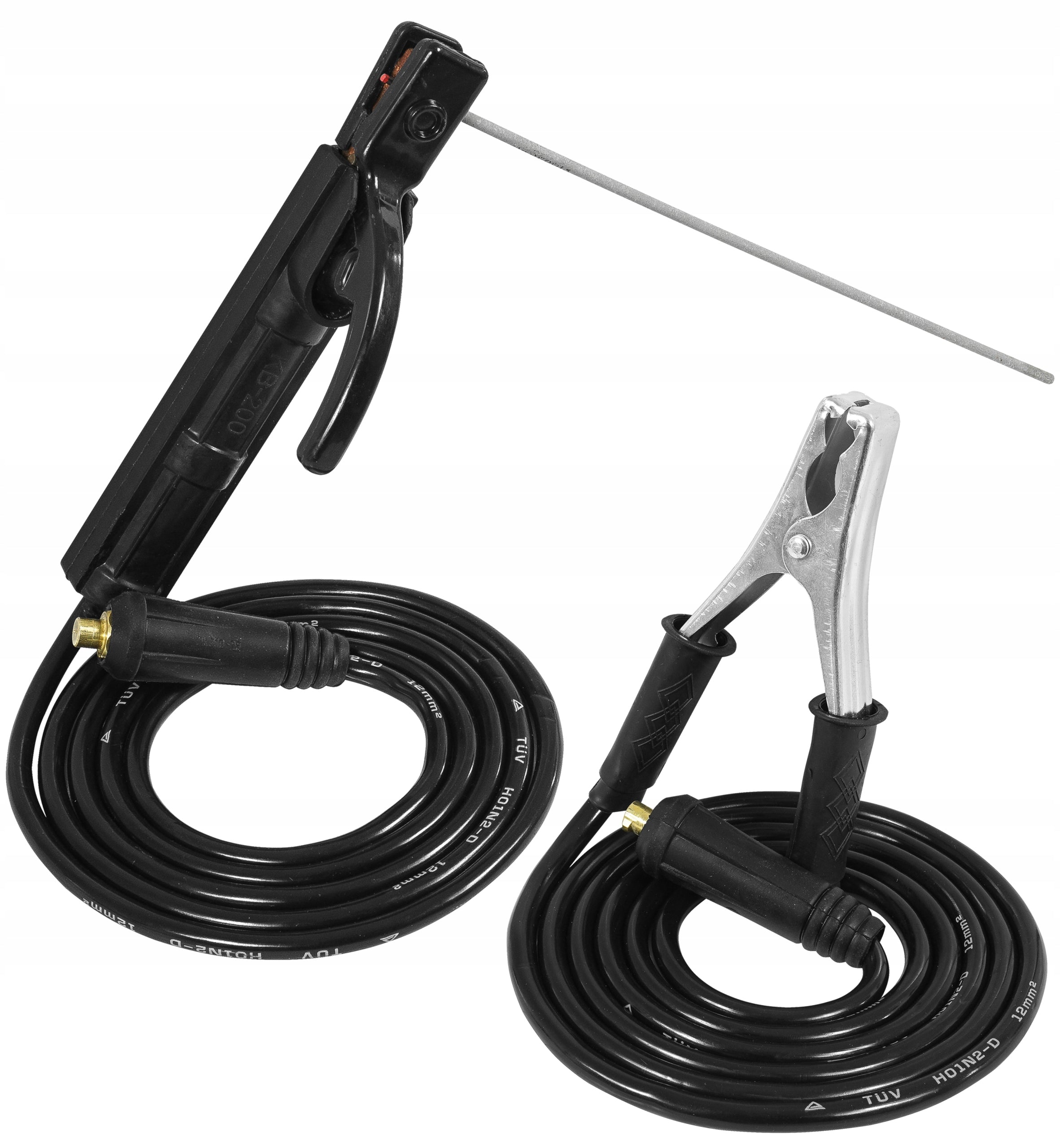

⭐ Thick and long wires

The device is distinguished by its compact dimensions and low weight, which makes it an excellent choice for people who need mobile equipment

Bulk cable – 150 cm

Electrode cable – 150 cm

► Wires have thick copper winding, which increases their strength

Such cables provide safer and more convenient operation in various conditions, allowing free access to the welded material

✅ Supported electrode diameter

The welder allows you to work with electrodes with a diameter of 1,6 mm to 4 mm, which gives you the opportunity to weld a variety of materials with different thickness

► See other welding machines available at our other auctions!

⭐ Welding machine cycle

✔ The welder has a working cycle of 60%, which means that it can work continuously for 5 minutes at full load, and then requires a break of similar time

✔ Thanks to this you do not have to take frequent breaks during welding. You can weld long elements without worrying about overheating the device

⭐ VRD – Safe and convenient welding

The VRD system is responsible for lowering the voltage on the wrapped electrode and for fast power off within a few milliseconds after welding

Thanks to this, work with the welding machine is comfortable, effective and safe, even for beginners

✅ SmartWeld System

⚡ The welder is equipped with the SmartWeld System, which coordinates the operation of all electronic components, ensuring high efficiency and reliability

► The heart of the system is a powerful processor that guarantees stable and even power delivery

⚡ Modern cooling system, combined with thermostat and reliable heat sinks, protects key components from overheating, as well as optimizes airflow, which extends the duty cycle and increases the durability of the device

⚡ Protection class and degree of protection

The device has a protection class H, which means that all components are protected against overheating and other hazards resulting from long-term operation

Protection rating IP21S provides resistance to dust and moisture, which is particularly important when working in difficult conditions, such as outdoor work or high humidity workshops

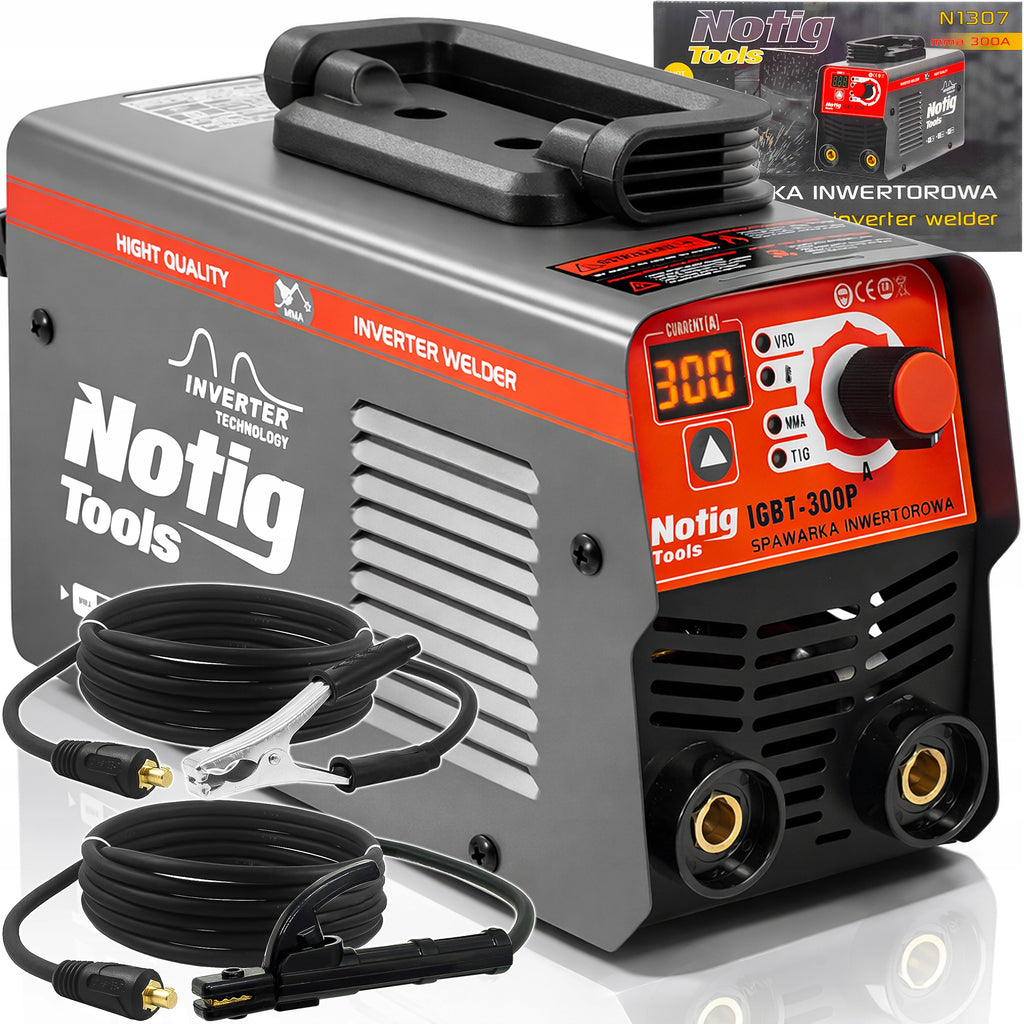

THE SET INCLUDES:

• ► Welding machine Notig Tools

• ► Bulk cable

• ► Electrode cable

• ► Clear User Manual

• ► Original manufacturer packaging
