Suvirinimo aparatas INVERTER MIGOMAT MIG/MAG MMA FLUX 200A LCD

Trumpai apie prekę

Prekė: Suvirinimo aparatas INVERTER MIGOMAT MIG/MAG MMA FLUX 200A LCD. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Heidmann
• Modelis: H00706

Product code: H00706

Professional inverter welding machine 3in1 designed for welding using MIG/MAG, MMA and FLUX methods (without gas). The device is characterized by performance 200A, a modern LCD display and functions facilitating work, such as HOT START, ANTI STICK and ARC FORCE. It is an excellent choice for DIYers and professionals alike.

⚡Product Features:

• ✔ 3 welding modes: MIG/MAG, MMA and FLUX – universal application
• ✔ Welding current up to 200A – high power for various jobs
• ✔ LCD display – convenient parameter adjustment
• ✔ Hot Start, Anti Stick, Arc Force – facilitating welding work
• ✔ Wire welding 0,8 – 1,0 mm and electrodes 1,6 – 4,0 mm
• ✔ Wire spool weight: up to 1 kg
• ✔ Degree of protection IP21S – safe work in the workshop
• ✔ Insulation class H – high temperature resistance
• ✔ Solid metal construction
• ✅ Product Dimensions: 35 cm x 15 cm x 19 cm [L x width x H ]
• ✅ Weight: 6 kg
• ✅ Convenient handle and carrying strap

✅ MMA (Manual Metal Arc)

Welding with a wrapped electrode involves the production of an arc between the electrode and the material. The electrode is a metal rod covered with a sheath, which acts as a protective gas and forms a slag protecting the weld.

Advantages:

• ✔ No need for protective gas
• ✔ Ability to work in the field, even on soiled surfaces
• ✔ Works well in harsh environments and with thicker components

✅ MIG/MAG (without gas – with self-shielding wire)

In this welding machine, MIG/MAG is implemented using self-shielding wire – without external protective gas. This is functionally similar to the FLUX method, however, it uses a classic MIG handle and wire supply from the feeder.

Advantages:

• ✔ Comfortable operation thanks to integrated MIG handle
• ✔ Faster welding than MMA
• ✔ Suitable for welding sheet metal and structures without the use of gas

✅ FLUX (MIG/MAG without gas – self-shielding wire)

It is a simplified form of MIG/MAG welding, where instead of protective gas, self-shielding wire with flux inside is used. During welding, the wire itself generates a gas shield – thanks to this, a gas cylinder is not needed.

Advantages:

• ✔ No need to connect gas cylinders
• ✔ Ideal for outdoor and outdoor work
• ✔ Good blending and strong welds even in adverse conditions

✅ Advanced features

• HOT START – The function provides easier arcing by temporarily increasing the welding current at the beginning of work. Thanks to this, it prevents problems with "adherence" of the electrode to the material.
• ANTI STICK – This mechanism eliminates the risk of sticking the electrode to the welded material, which increases the comfort of work, especially for less experienced users.
• ARC FORCE – Function stabilizing the electric arc, adapting it to changing welding conditions. Ideal for working with a variety of materials and thicknesses.

✅ Performance and safety

• Rated input capacity: 3,7 kVA
• Rated welding cycle: 60%
• Work cycle: 25%
• Performance: 85%
• Protection rating: IP21S

Thanks to its high efficiency and robust housing, the device is suitable for intensive work.

⚙ Technical Specifications:

✔ Brand: Heidmann

✔ Power supply voltage: 230V / 50Hz

✔ MIG welding current: 40-200 A

✔ MMA welding current: 20-200 A

✔ Electrode range: 1,6 - 4 mm

✔ Wire diameter: 0,8 - 1,0 mm

✔ Wire spool weight: max 1 kg

✔ Rated input capacity: 3,7 kVA

✔ Nominal welding cycle: 60%

✔ Work cycle: 25%

✔ Performance: 85%

✔ Degree of protection: IP21S

✔ Isolation class: H

✔ Cooling: fan

✔ Display: LCD

✔ Welding modes: MIG/MAG, MMA, FLUX

❓ Frequently Asked Questions (FAQ)

✎Does the welding machine work without gas?

Yes, thanks to the FLUX function, you can weld with self-shielding wire without the need for a gas cylinder.

✎ What materials can be welded?

The device is suitable for welding carbon steel, stainless steel and metal alloys, depending on the method used.

✎ Does the welding machine have a display?

Yes, the welding machine has an readable LCD display, which makes it easy to adjust the operating parameters.

⭐ Modern inverter technology

The device uses inverter technology, which provides ✅ a more stable arc, ✅ less energy consumption and ✅ compact and lightweight design. Compared to traditional transformers, the inverter welder offers ✅ higher efficiency, ✅ better control and ✅ more precise welding.

IGBT (Insulated Gate Bipolar Transistor) is a modern transistor technology that plays a key role in the operation of inverter welding machines. ✅ In practice, it affects the efficiency, reliability and energy efficiency of the device.

• provides high frequency control with low power consumption
• enables handling of high currents and voltages

✅ Strong and versatile

The Heidmann welder is equipped with a modern inverter IGBT module, which ensures stable operation of the device while low energy consumption. The rated voltage of 230V~50Hz means that the device can be connected to a standard household outlet.

Specification:

• Power supply: 230V / 50Hz
• Rated power: 3,7 kVA
• Welding current range (MIG): 40 – 200 A
• Welding current range (MMA): 20 – 200 A
• Supported welding methods: MIG/MAG-FLUX, MMA
• Supported electrodes: Ø 1,6 – 4,0 mm
• Diameter of welding wire: Ø 0,8 – 1,0 mm
• Maximum weight of wire spool: 1 kg
• Working cycle at rated load: 60%
• General duty cycle: 25%
• Energy efficiency: 85%
• Housing protection rating: IP21S (dust and water drop resistance)
• Isolation class: H (high thermal resistance of windings)
• Wire feeder: Single-roll, compatible with wire Ø 0,8 / 1,0 mm
• Support functions: HOT START, ANTI STICK, ARC FORCE

⭐ The Heidmann LCD MIG/MAG, MMA, FLUX 200A is a solid device for those looking for universality, efficiency and simplicity of use.

The ARC FORCE function is a key element in MMA welding, especially when working with materials that require precise control of the welding arc. ✅ Its operation consists in automatic adjustment of the arc force depending on the welding conditions.

• ✔ ARC FORCE is perfect for working with low-carbon and medium-carbon steels.
• ✔ When welding stainless steels, ARC FORCE helps avoid splashes of material that can damage the surface of the element. This makes it possible to obtain an aesthetic and clean weld.
• The function is particularly useful when welding thin sheets, where excessive heating can lead to burnouts, as well as with thick elements, where deep melting is required.

⭐ In short, IGBT is:

• Increased efficiency with lower energy consumption
• Higher operating frequency
• Compactness and lightness of the device
• Welding arc stability
• Protection against overloads

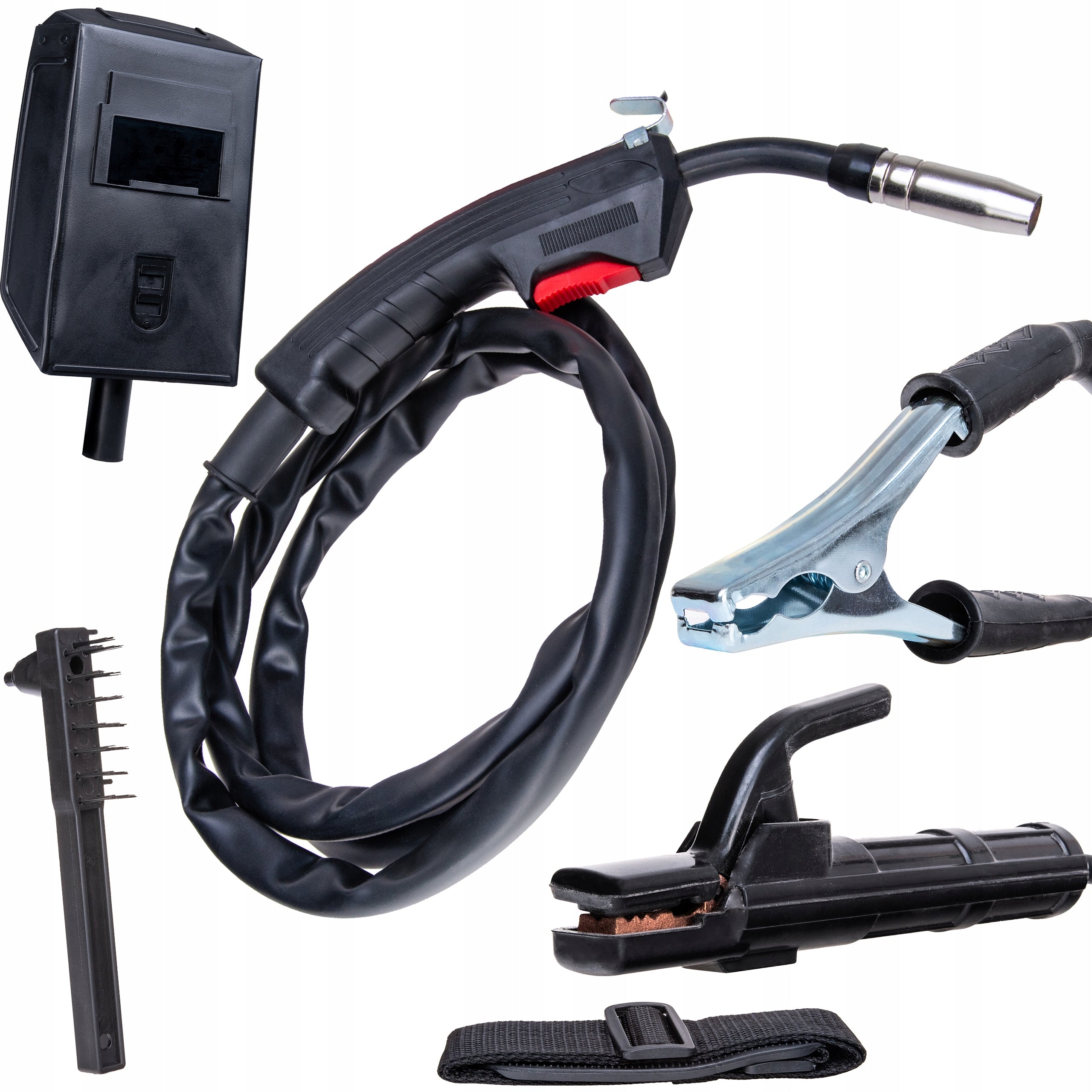

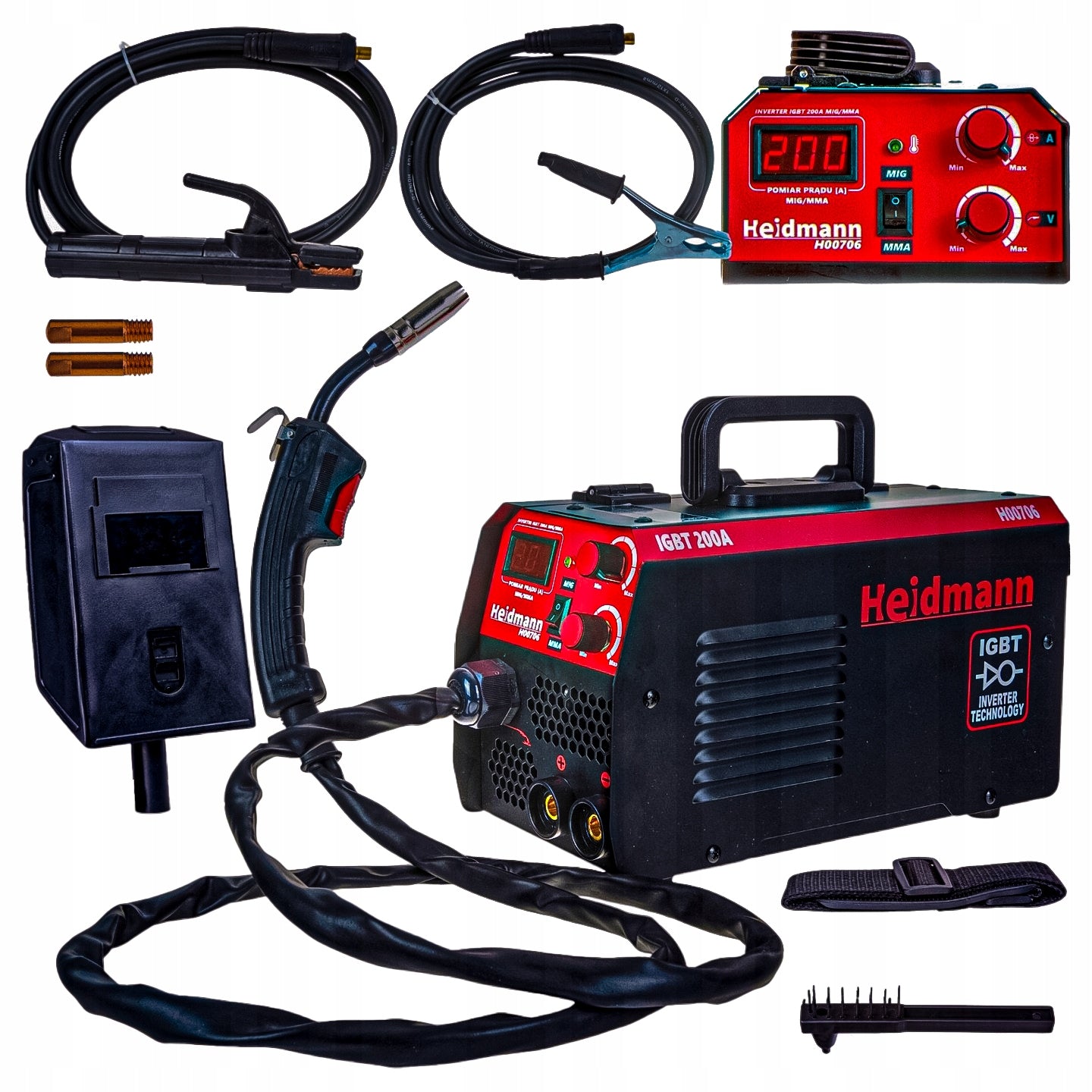

Set Contents:

✔ Inverter welding machine MIG/MAG, MMA, FLUX 200A

✔ Bulk cable – solid connection and stable grounding

✔ Electrode cable – for MMA welding

✔ Integrated MIG handle – convenient welding wire guidance

✔ Hand mask – basic protection during operation

✔ Brush with hammer – for cleaning welds and removing slag

✔ 2 current terminals (0,8 mm and 1,0 mm) – adapted to different wire diameters

⛔ Self-shielding wire not included
