Suvirinimo aparatas MAGNUM 205L su LCD

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM 205L su LCD. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: Magnum Mig 205 L

Welder MIG\MAG\MMA MAGNUM 205L LCD BRAZING

MAGNUM

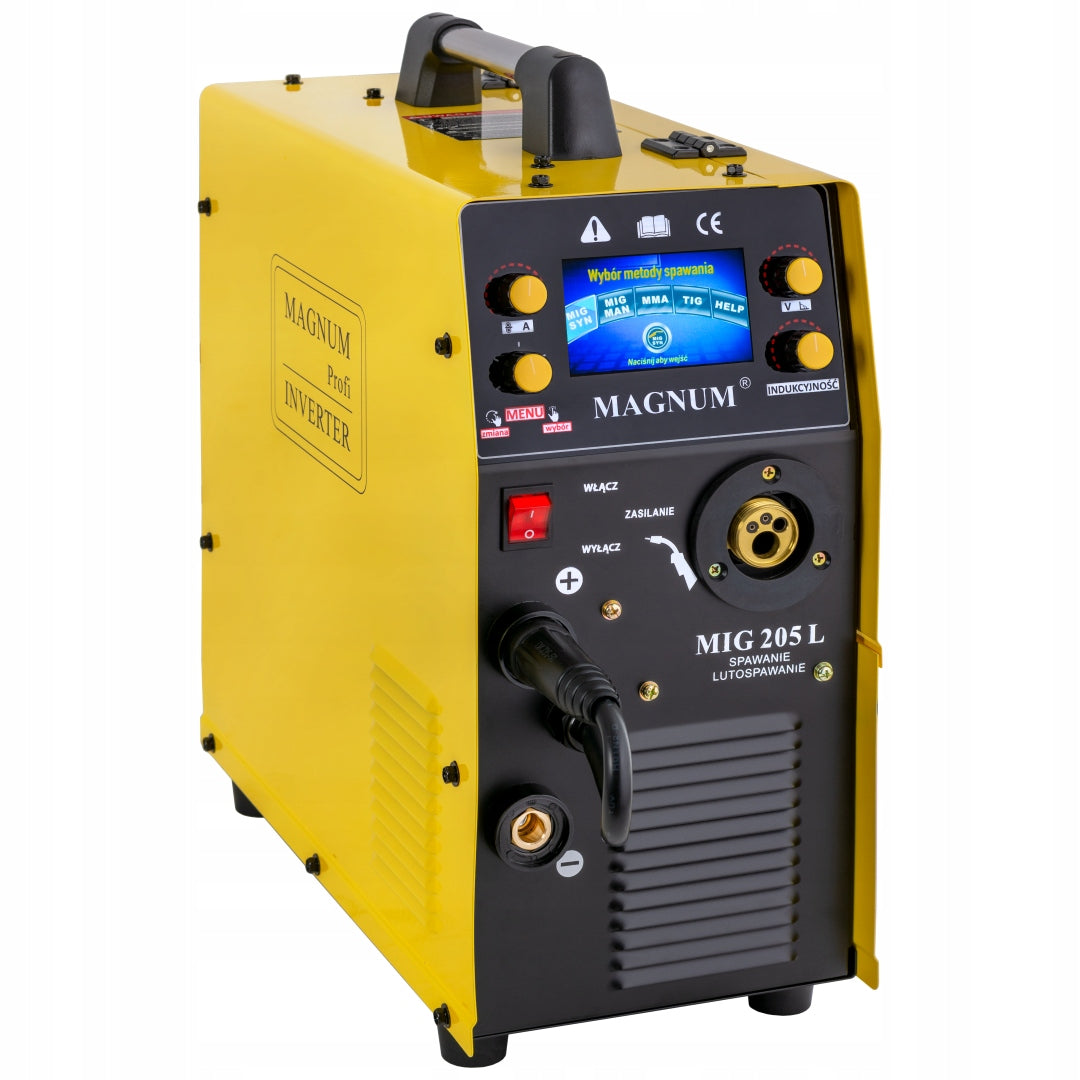

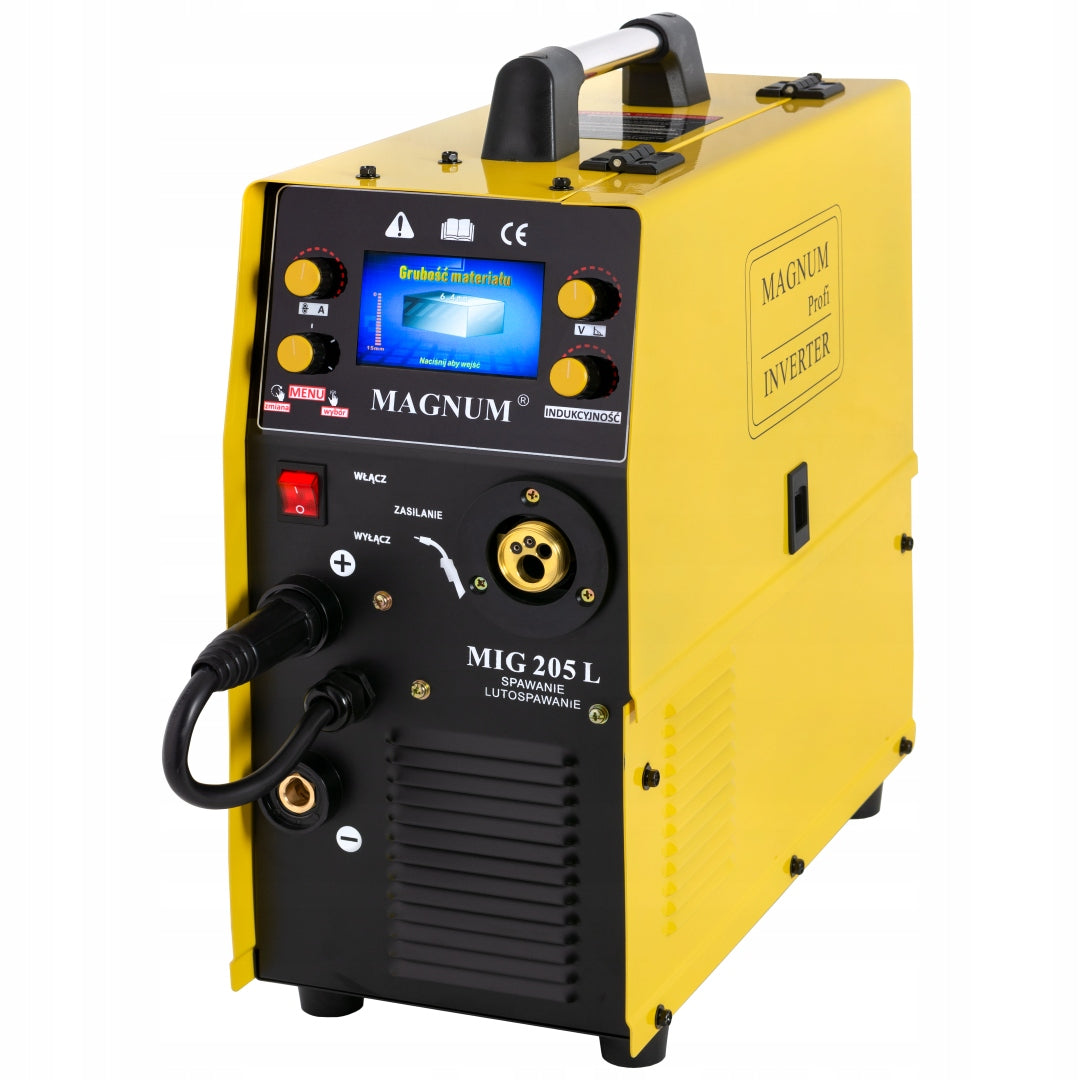

MIG 205 L by MAGNUM is a professional semi-automatic welding machine designed for welding low-carbon steel, low-alloy steel (MAG), alloy steel (MIG), aluminum and its alloys, and for brazing!!! It also has the option of welding with coated electrodes (rutile, basic, acidic - MMA), as well as self-shielding wires (welding "without gas"). This device is used in heavy production (industrial) conditions as well as in repair workshops. Thanks to the use of synergic settings and a clear LCD screen, the device is extremely easy to use and can be used by welders even with minimal experience.

It is designed to be powered from the mains 230 V, 50 Hz. MIG 205 L has a professional wire feeder, a "euro connector" socket, which allows the use of various types of welding guns and an output for a gas heater. This device is equipped with an overload thermal protection system that prevents excessive overheating.

MIG 205 L has the option of brazing. It is a metal joining process intermediate between brazing and welding. The connection is obtained only by melting a special binder-solder (copper-based binder SG-CuSi3, SG-CuSn6), without melting the joined metals, while the process technique and the method of preparing the edges of the joined objects are similar to welding.

Nowadays it is very common to use zinc coated sheets. In the welding process, evaporating zinc causes weld porosity, because high temperatures generated in this area destroy the protective layer, and the joined elements lose their corrosion resistance. Mechanical removal of zinc prior to welding, as well as reapplying where evaporation has occurred, is a very expensive process. On the other hand, supplementing the cavities with preparations such as "zinc spray" does not sufficiently protect the structure against corrosion. In addition, when welding galvanized sheets, there is a very large emission of zinc fumes that are harmful to the health of welders. All these problems are avoided by using MIG/MAG brazing technology.

The device has a clear, legible panel on which there are m.in. :

• - Welding current display,
• - Inductance adjustment knob (which allows us to set the "hardness" of the arc)
• - MIG-MAG and MMA welding current control knob,
• - Wire feed switch (fast/slow)
• - Switch (mig/mma)
• - Wire feed speed adjustment knob for MIG-MAG

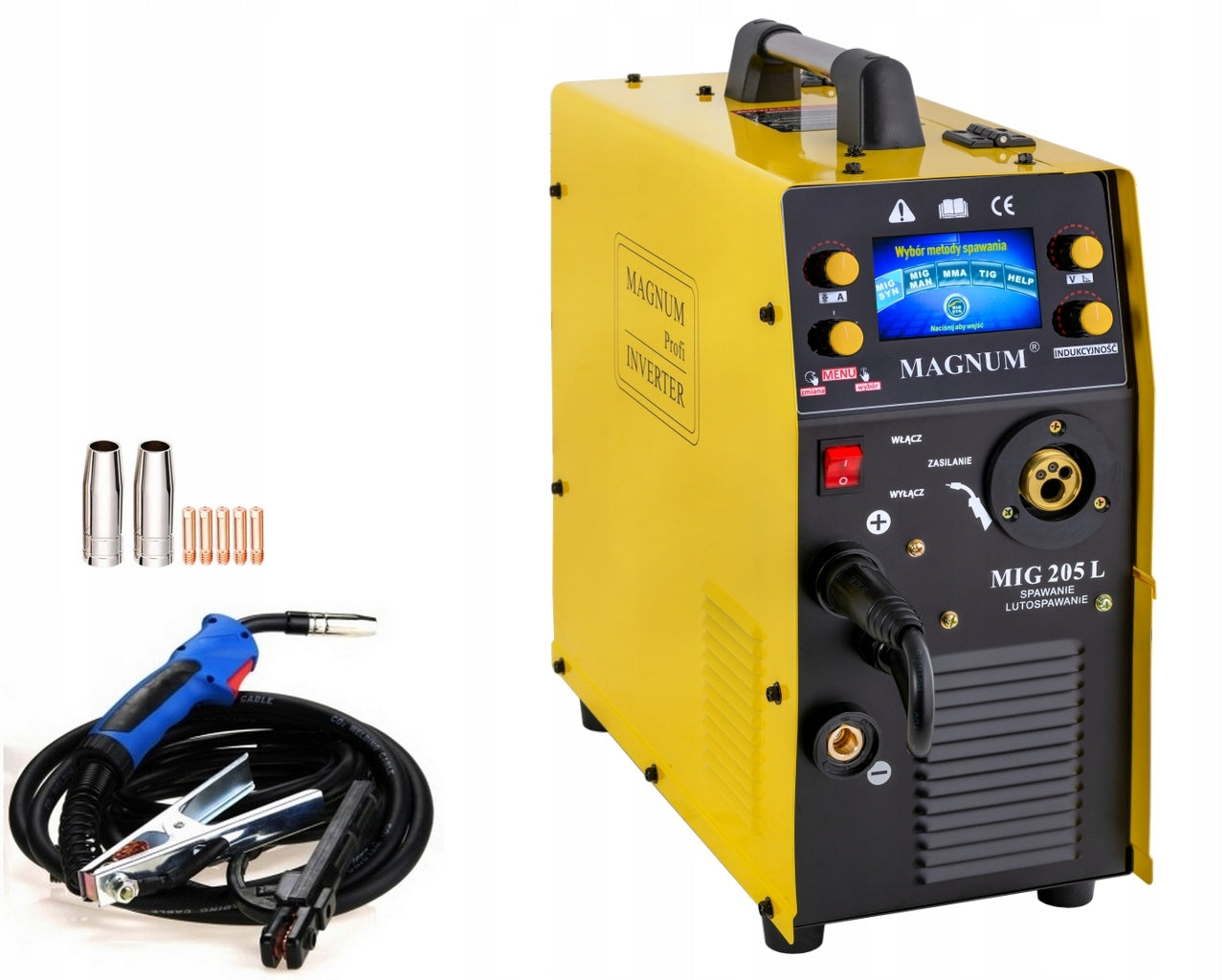

SET CONTAINS:

• MIG 205L LCD device
• MIG/MAG torch,
• electrode holder,
• mass handle,
• gas pipe.
• welding torch spare parts

• Power supply: AC 230 [V] / 50 [Hz]
• max . power consumption: 5.2 kVA
• Required protection: 20A
• MIG/MAG welding current: 40 - 200A
• MMA welding current: 50 - 180 A
• Efficiency : 60%
• Wire spool weight: max. 5 kg
• Wire diameter: 0.6/0.8/1.0mm
• Welding "without gas": YES
• Housing protection class: IP23- Weight: 9 kg

Specifications
