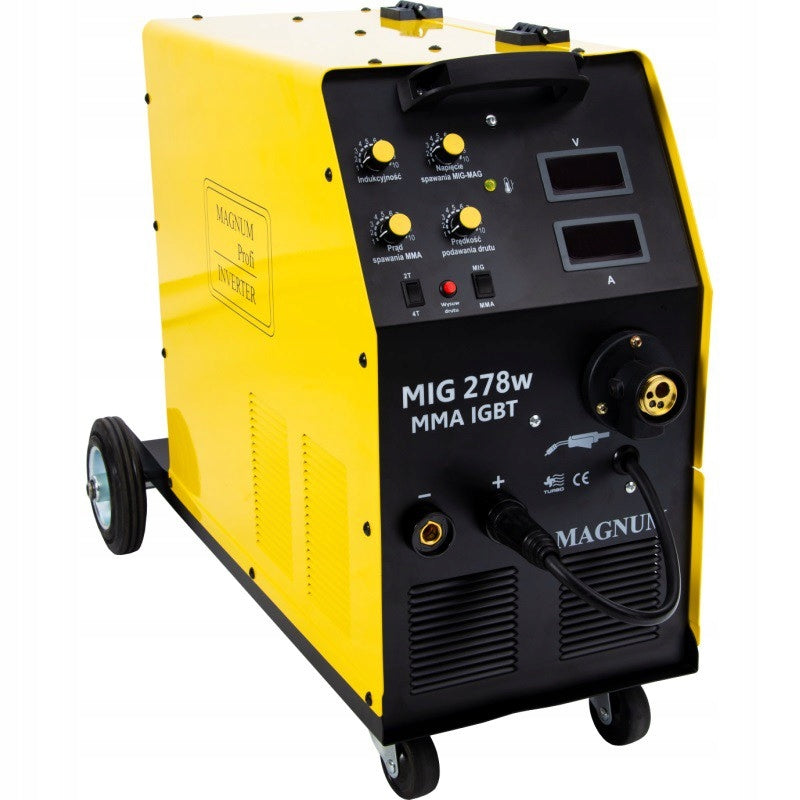

Suvirinimo aparatas Magnum 278W MIG/MAG/MMA 280A 400V

Trumpai apie prekę

Prekė: Suvirinimo aparatas Magnum 278W MIG/MAG/MMA 280A 400V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIG 278w
• Ilgis: 800 mm
• Plotis: 300 mm
• Aukštis: 620 mm

Magnum MIG 278W MMA IGBT is a semi-automatic welding machine. It is powered from a three-phase 400V network and allows welding with current up to 280 amps. The welding machine enables welding using the following methods: MIG/MAG in gas shielding, FCAW self-shielding wire and MMA method using wrapped electrodes of various types. The device has smooth adjustments of welding parameters, so you can set it precisely to the needs of the welder. The two operating modes 2T and 4T are a nod to users who have a large number of long welds to make.

⏩ SPECIFICATION

• Product: Inverter Semi-Automatic Welding Machine
• Producer: Magnum
• Model: MIG 278W MMA IGBT
• Technology: IGBT Inverter
• Welding methods: MIG/MAG, MMA
• Power supply: 400 V
• Power Frequency: 50 Hz
• Maximum power consumption: 8,4 kW
• Protection required: 16 A, characteristic C
• MIG/MAG welding current range: 50 – 280 A
• MIG/MAG welding voltage range: 16,5 – 26,5 V
• Maximum MMA welding current: 200 A
• Idle Voltage: 56 V
• Supported wire diameters: 0,6 / 0,8 / 0,9 / 1,0 / 1,2 mm
• Maximum weight of wire spool: 15 kg
• Efficiency: 60%
• Housing Protection Class: IP21S
• Weight: 42 kg

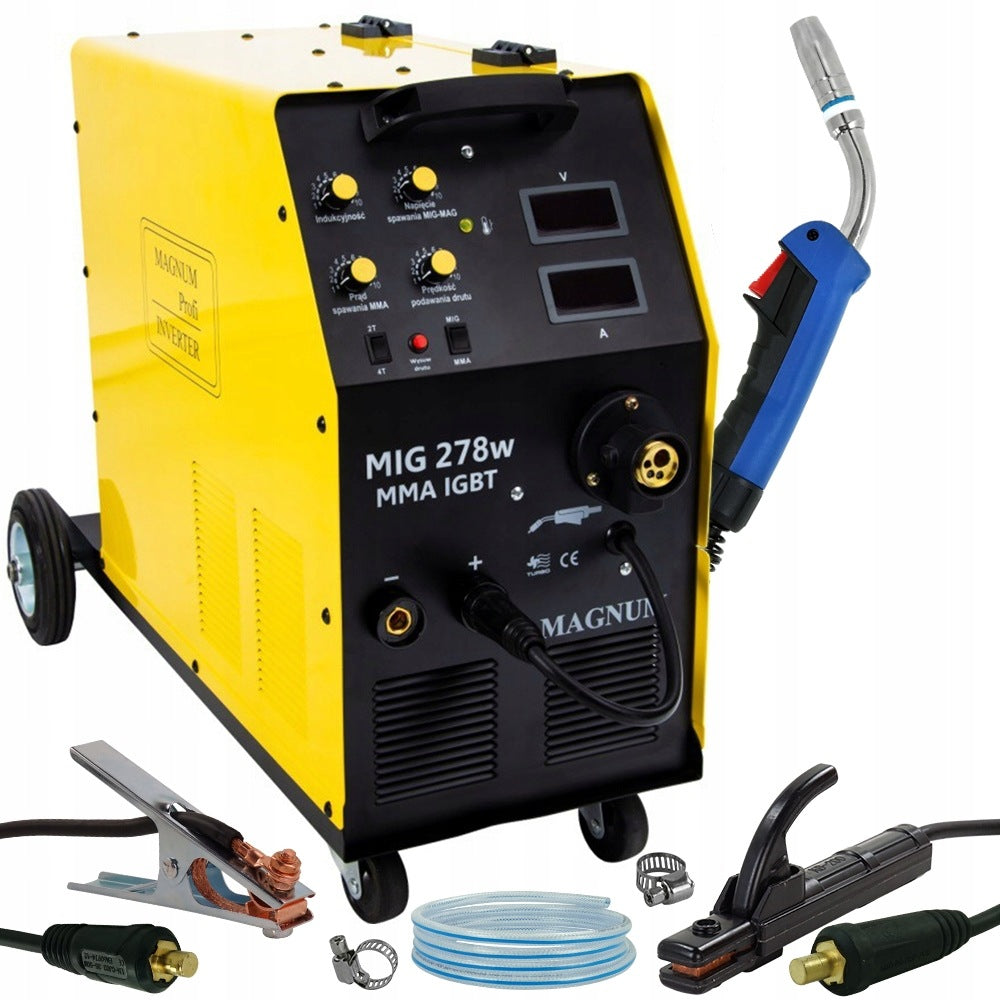

⏩ EQUIPMENT

• Magnum MIG 278W MMA IGBT welding machine
• MIG/MAG welding torch
• MMA Electrode Cable
• Cable with mass clamp

⏩WELDING ACCESSORIES FREE OF CHARGE

• clamp ties
• Hose for connecting cylinders

⏩ PARAMETERS AND REGULATIONS

• Adjustment of MIG/MAG wire feed speed – allows you to adjust the feed of the electrode material to the set voltage, wire diameter and type of weld.
• MIG/MAG voltage regulation – allows you to change the arc length, depth of melting and the appearance of the resulting weld.
• MIG/MAG inductance adjustment — allows you to change the characteristics of the arc. The higher setting provides a softer arch, wider lake, and fewer chipping, while the lower one allows for a more focused arch.
• Adjustable MMA current — allows you to set the appropriate intensity value when working with wrapped electrodes.
• Control modes 2T and 4T – allow you to adjust the handle to perform short or long welds.
• Polarity change — is done using a wire with a plug located on the front panel and allows you to adjust the polarity to the wire used.
• Quick wire extension — makes it easy to guide the wire through the guide and handle without having to start welding.
• MIG/MAG-MMA switch – allows you to quickly select the welding process currently used.

⏩ THE MOST IMPORTANT ADVANTAGES

• Comprehensive application — the device is designed for work performed in locksmith workshops, repair shops, industrial plants and factories.
• Ability to weld various materials — semi-automatic can be used for low-carbon steel, low-alloy steel, alloy steel, aluminum and its alloys.
• Self-shielded wire – proper polarity connection allows welding without an external gas shield.
• Stable feeding of electrode material – proper selection of rollers, guide and clamping force allows for even feed during operation.
• High efficiency of the current source – the IGBT transistors used reduce power losses and ensure quick adjustment of parameters to changes occurring during welding.
• Convenient operation – a clear layout of controls allows you to efficiently position the device before starting work.
• Easy handle replacement – The standard euroconnector allows you to quickly connect, disconnect or replace the MIG/MAG handle.
• Mobile design — the chassis makes it easy to move the entire set between stations.
• Place for gas cylinder — The rear shelf allows you to position the cylinder directly on the device and protect it from tipping over.
• Adaptation to different wire grades – the possibility of using the right rollers and guide inserts allows you to prepare the device for a specific material.

⏩ OTHER FEATURES

• Two digital displays showing welding voltage and current.
• Separate current output sockets marked with positive and negative poles.
• Eurosocket placed on the front panel of the device.
• 36 V gas heater socket located on the back of the welding machine.
• Connector for connecting protective gas located on the back of the housing.
• Main switch and fuse located on the back of the device.
• Possibility of using V-groove rollers for steel wires.
• Possibility of using U-groove rollers for aluminum wires.
• Possibility of using metal inserts leading to steel, copper and bronze.
• Possibility of using Teflon inserts for aluminum and alloy steels.
• Cylinder shelf equipped with a safety attachment with a chain.
• Housing designed to work in dry and properly ventilated rooms.

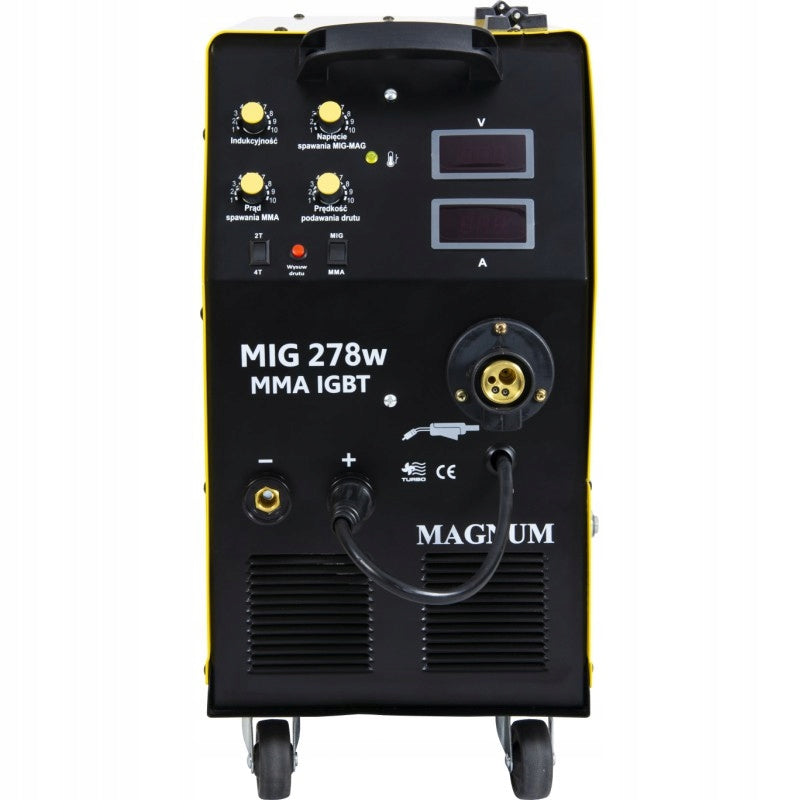

⏩READABLE FUNCTION PANEL in Polish

A clear function panel allows full control of parameters. Smooth adjustment of wire feed and welding voltage, allows precise regulation of welding current. The ability to work in two modes: 2T or 4T means even greater ergonomics during welding.

⏩ REGULATION OF MIG/MAG WELDING INDUCTANCE

Control of face shape and depth of melting thanks to smooth regulation of welding inductance. The function allows you to adjust the characteristics of the arc to the task at hand, reduce the number of chippings and get better weld quality.

⏩CHASSIS FOR GAS CYLINDER

Place the gas cylinder on the chassis and enjoy the mobility of this flashing. No more tangled gas lines between the wheels. The gas cylinder is now where the machine is with you.

With the chain included in the set, you can secure the cylinder.

⏩PROFESSIONAL 4R WIRE FEEDER

Professional wire feeder 4R (4x4) - is a reliable wire feeding regardless of the weight of the spool and the type of welding wire. The proven feeder mechanism has a big impact on the smoothness of wire feeding, and this already translates directly into the welding parameters of the device.

⏩ FREQUENTLY ASKED QUESTIONS

• Does the welding machine support several welding methods? Yes. MAGNUM MIG 278W MMA IGBT enables MIG/MAG and MMA welding.
• Can aluminum be welded with it? Yes. The device is designed for welding aluminum and its alloys.
• Does the welding machine have 2T and 4T mode? Yes. In the MIG/MAG method, two-bar and four-bar mode are available.
• Can inductance be regulated? Yes. The device has a smooth regulation of inductance in the MIG/MAG method.
• What wire diameters does it support? The welder supports wire diameter 0,6 / 0,8 / 0,9 / 1,0 / 1,2 mm.
• What is the maximum welding current? The maximum welding current is 280 A for MIG/MAG and 200 A for MMA.
• What wire spools can be used? The device supports wire spools weighing up to 15 kg.
• What power supply does it run on? The device operates on a three-phase power supply of 400 V, 50 Hz and requires 16 A class C protection.
