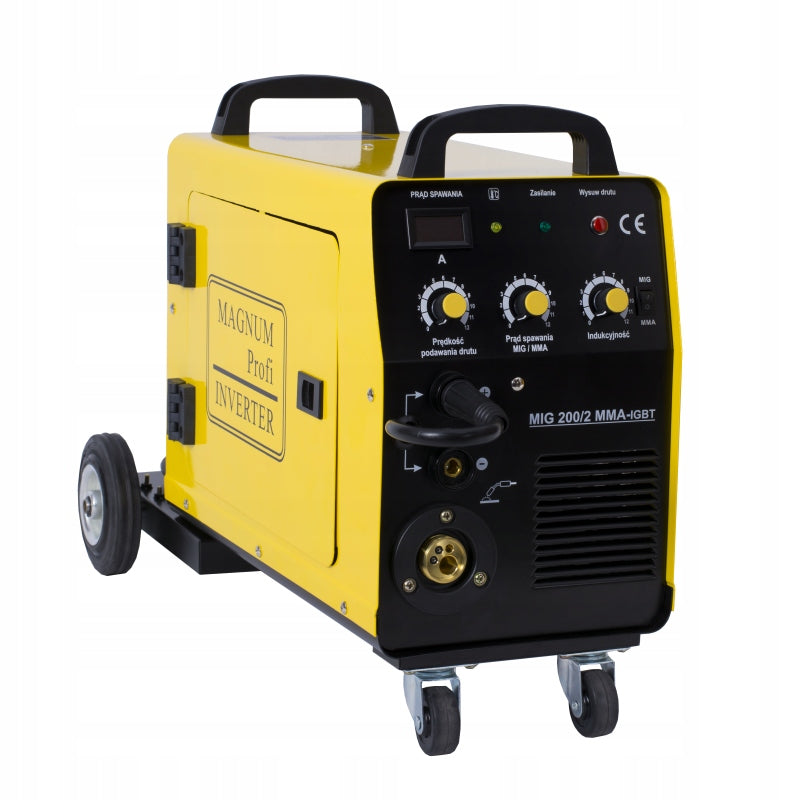

Suvirinimo aparatas MAGNUM MIG 200/2 MMA, MIG/MAG, FCAW, 200A, 230/400V, IGBT

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 200/2 MMA, MIG/MAG, FCAW, 200A, 230/400V, IGBT. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: SPAWARKA MAGNUM MIG 200/2 MMA

⚡ 200A power

🔌 230V / 400V power supply

🔧 MIG/MAG + MMA + FCAW

🎯 Regulation of inductance

Semi-automatic welding machine MAGNUM MIG 200/2 MMA KN is a universal workshop welding machine with a power of 200A, designed to work both in the workshop and in the assembly of steel structures. The device enables welding using MIG/MAG, MMA and FCAW (gas-free welding) methods, making it suitable for many applications – from thin sheets to structural elements. 🔧

A big advantage of the device is the ability to work on two supply voltages – 230V or 400V. ⚡

Thanks to this, the welding machine can be used both in the garage or home workshop, as well as in the production plant.

Modern IGBT technology ensures stable welding arc, high efficiency and lower energy consumption. ⚙

The electronics of the device quickly react to changes in parameters, which translates into smoother welding and greater comfort of work.

The welder is equipped with inductance adjustment, which allows you to adjust the arc characteristics to the thickness of the material. 🎛

This function is particularly useful for welding thin sheets and soldering galvanized elements.

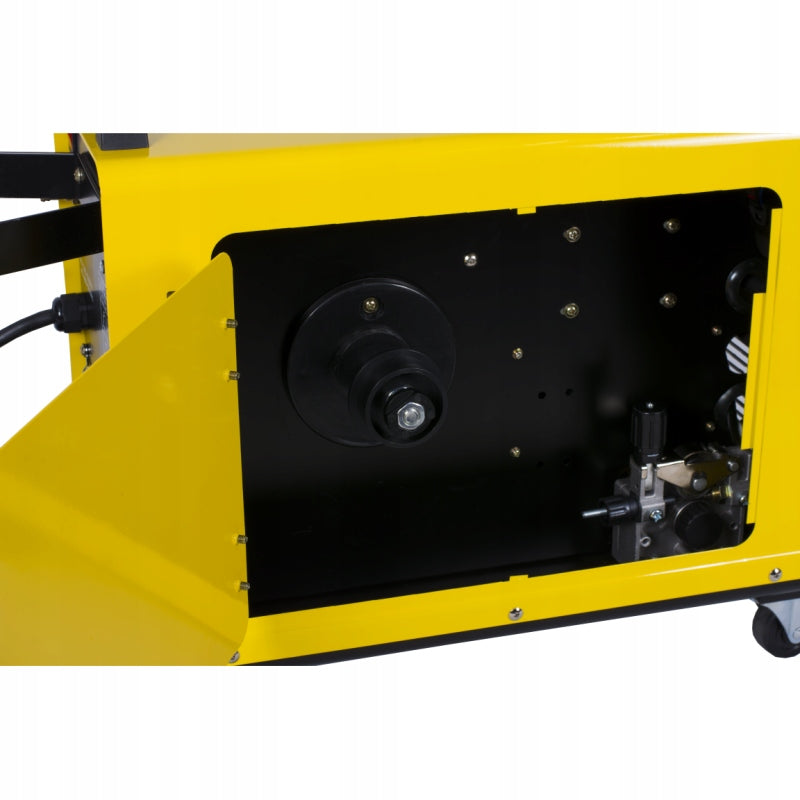

In addition, the professional wire feeder with euroconnector allows you to connect different types of welding torches, which increases the versatility of the device. 🔩

✔ ability to work on 230V or 400V

✔ power 200A

✔ adjustment of arc inductance

✔ professional feeder with EURO connector

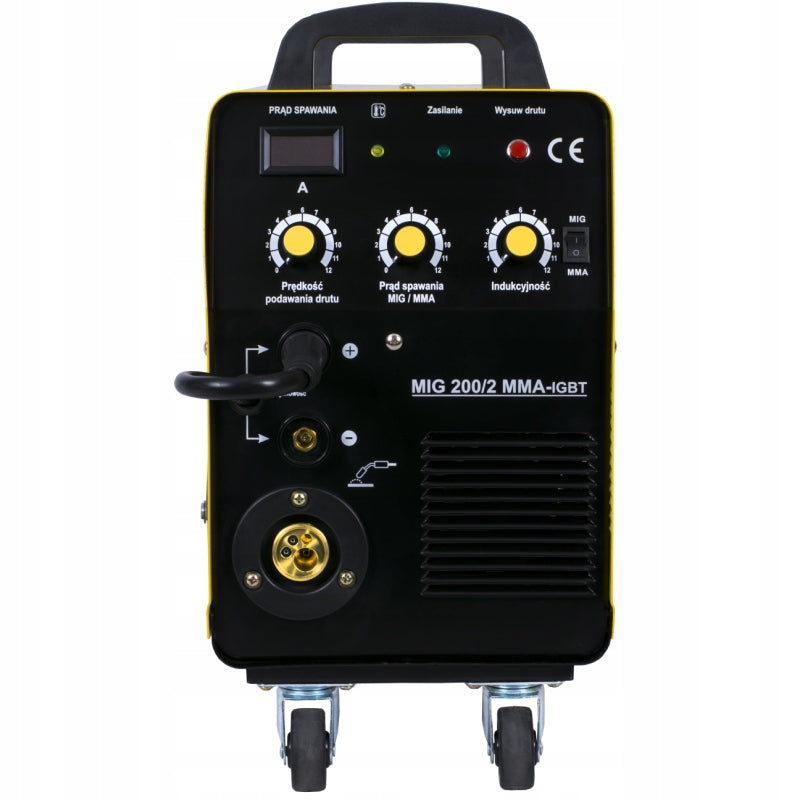

✔ digital display of parameters

✔ solid chassis with cylinder shelf

✔ IGBT technology – stable arc and high efficiency

The device offers:

✔ smooth adjustment of welding parameters

✔ regulation of inductance (arch hardness)

✔ thermal protection against overheating

✔ the ability to connect different MIG holders thanks to the euroconnector

Inductance adjustment allows:

• reduce burnout of thin sheets
• improve the aesthetics of the weld
• Optimize arc characteristics

✅ locksmith workshops

✅ repair workshops

✅ production facilities

✅ steel structures

✅ users who need 230V and 400V

🔧 fences and steel structures

🚗 flashing repairs

🏭 workshop and production works

🛠 field service and repairs

⭐ two power modes – 230V / 400V

⭐ 3 welding methods in one device

⭐ euroconnector compatible with multiple handles

⭐ inductance adjustment to improve weld quality

⭐ solid chassis and mobility

MIG/MAG

• welding current: 30 – 200 A
• welding voltage: 16,5 – 23 V

MMA

• welding current: 30 – 180 A
• idle voltage: 57 V

• power supply: AC 230 / 400 V
• Frequency: 50 Hz
• max power consumption: 6,2 kW
• Protection: 20 / 16 A
• Efficiency: 60 %
• welding without gas: YES
• wire spool weight: max 5 kg
• Wire diameter: 0,6 / 0,8 / 0,9 / 1,0 mm
• Protection class: IP21S
• Weight: 14 kg

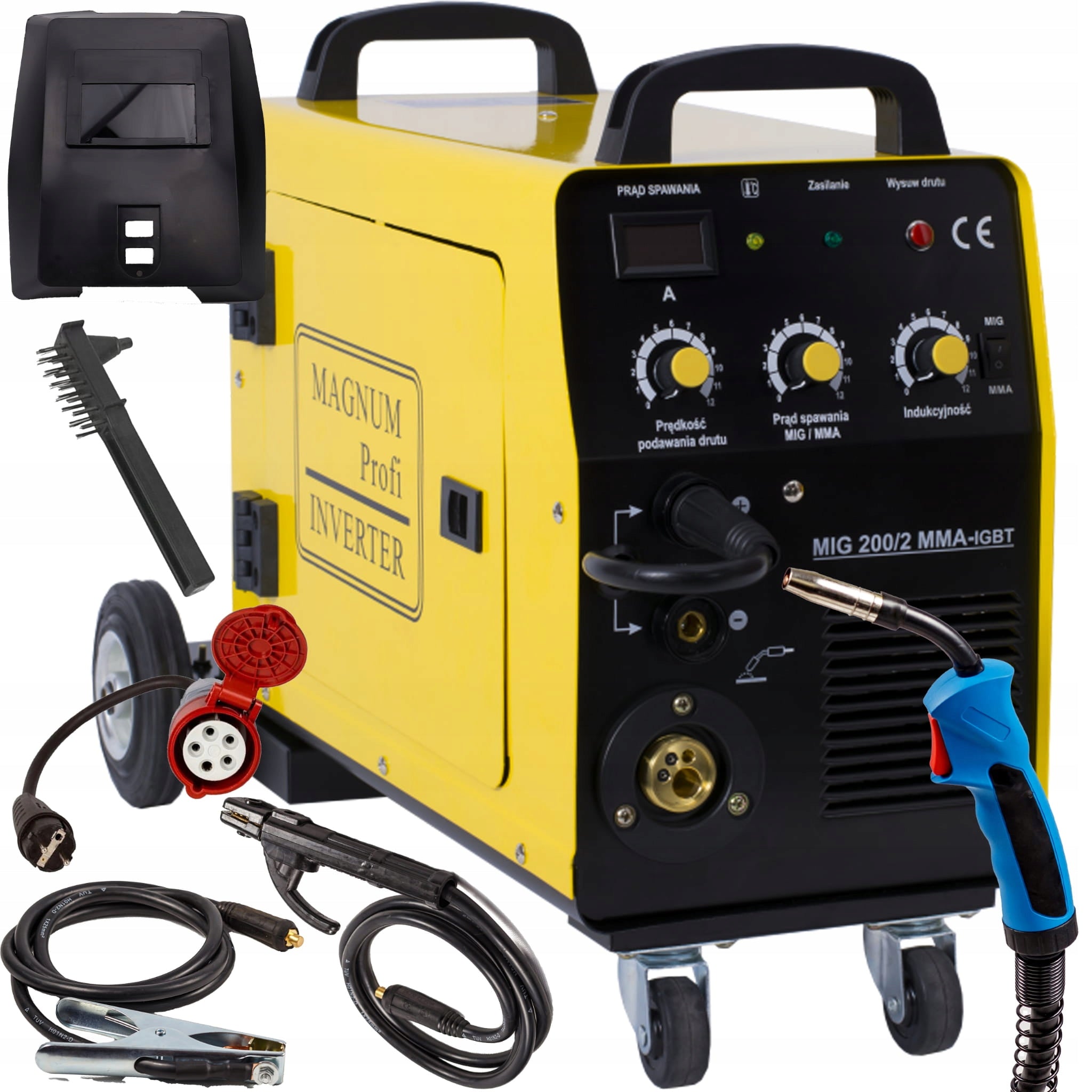

✔ MAGNUM MIG 200/2 KN welding machine

✔ MIG/MAG holder MB15 – 3 m

✔ MMA handle 2,5 m

✔ bulk handle 2,5 m

✔ User Manual

🎁 In addition, you get

🔒 Peace of work – stable arc and thermal protection.

⏱ Time saving – smooth adjustment and easy to read display.

🔧 Versatility – MIG/MAG, MMA and FCAW in one device.

✨ Professional effect – the ability to adjust the characteristics of the arc thanks to the regulation of inductance.

Does the welding machine work on 230V and 400V?

Yes – the device supports both power supply voltages.

Can weld without gas?

Yes – using FCAW self-shielding wire (after changing polarity).

What wire spool does it support?

Up to 5 kg.

Does it have a euroconnector?

Yes – allows you to connect different MIG/MAG handles.
