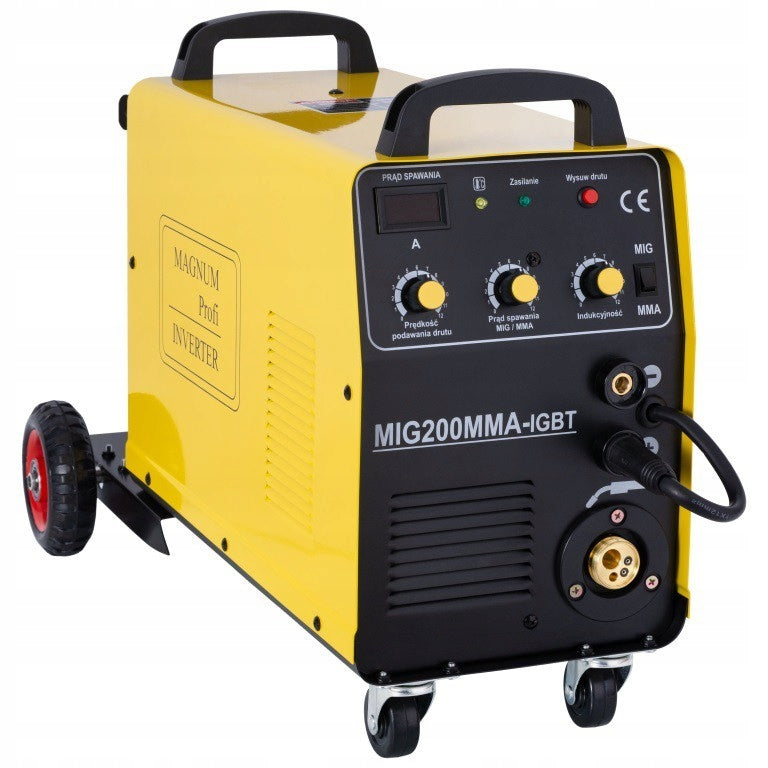

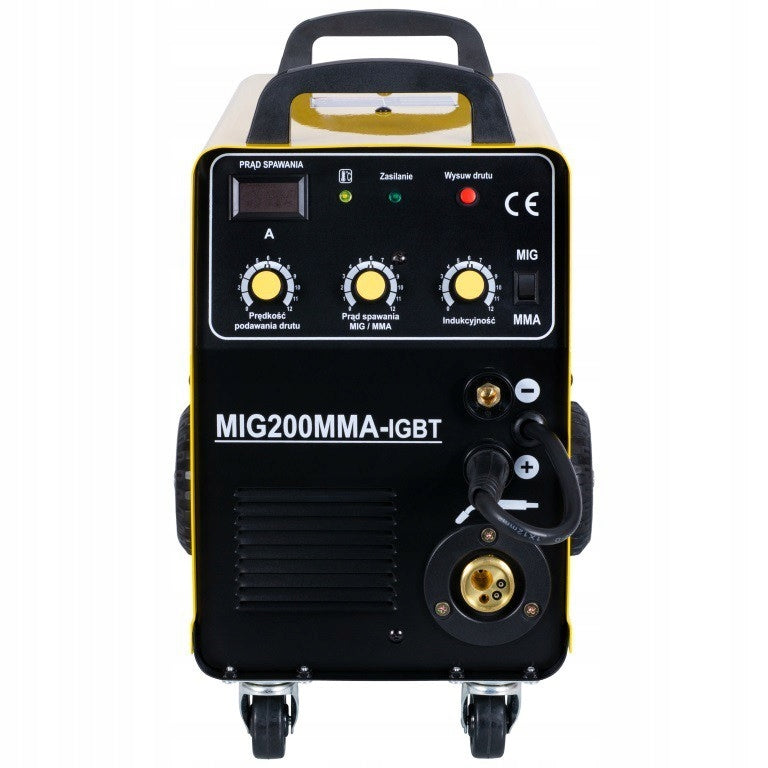

Suvirinimo aparatas MAGNUM MIG 200 MMA, 200A, 230V, IGBT

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 200 MMA, 200A, 230V, IGBT. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MAGNUM 200 KN IGBT

⚡ Welding current up to 200A

🔧 MIG/MAG + MMA + FCAW (without gas)

🎛 Inductance adjustment + EURO connector

🏠 Workshop, garage, repairs

MAGNUM MIG 200 MMA KN is a robust semi-automatic welding machine on 230V, designed for everyday work in the workshop, garage and service. The device welds using MIG/MAG, MMA and FCAW (self-shielded wire / without gas) methods, making it very versatile and suitable for both repairs and light steel structures. 🔩

Modern IGBT technology ensures stable arc, higher efficiency and lower energy consumption. ⚙

In addition, the welding machine has a euroconnector, so you can easily connect different types of MIG/MAG handles.

A great advantage is also the inductance regulation, which affects the characteristics of the arc – it helps to reduce burnout of thin materials and improves the appearance of the weld (especially with thin sheets and soldering). 🎛✨

✅ MIG/MAG welding current up to 200A

✅ welding MIG/MAG, MMA and FCAW (without gas)

✅ IGBT technology – stability and energy saving

✅ EURO connector – MIG handle compatibility

✅ regulation of inductance – less chipping and better weld control

✅ solid chassis + strong cylinder shelf

✅ 4 bearing wheels (2 swivels) – easy movement

The device has a smooth adjustment of welding parameters and a clear panel.

Key features:

✔ MIG/MAG and MMA welding current regulation

✔ wire feed speed adjustment

✔ regulation of inductance (arch hardness)

✔ possibility of welding without gas (FCAW) – after changing polarity

✔ thermal protection against overheating 🌡

✅ locksmith workshops

✅ repair and service workshops

✅ garage and DIY

✅ assembly work, repairs, light constructions

🔧 steel structures and profiles

🚗 minor flashing repairs

🛠 workshop and garage work

🏠 fences, gates, brackets, brackets

⭐ 3 welding methods in one device (MIG/MAG + MMA + FCAW)

⭐ euroconnector = easier expansion and replacement of the handle

⭐ inductance adjustment improves the comfort and appearance of the weld

⭐ mobile chassis + cylinder shelf – convenience in the workshop

⭐ stable arc thanks to IGBT – less nerves, more work 💪

MIG/MAG

• Welding current: 30 – 200 A
• Welding voltage: 16,5 – 23 V

MMA

• Welding current: 30 – 180 A
• Idle Voltage: 57 V

• Power supply: AC 230 V / 50 – 60 Hz
• Max. power consumption: 6,2 kW
• Security Required: 20 A
• Efficiency: 60%
• Welding without gas: YES
• Wire spool: max 5 kg
• Wire diameter: 0,6 / 0,8 / 0,9 / 1,0 mm
• Protection class: IP21S
• Weight: 14 kg

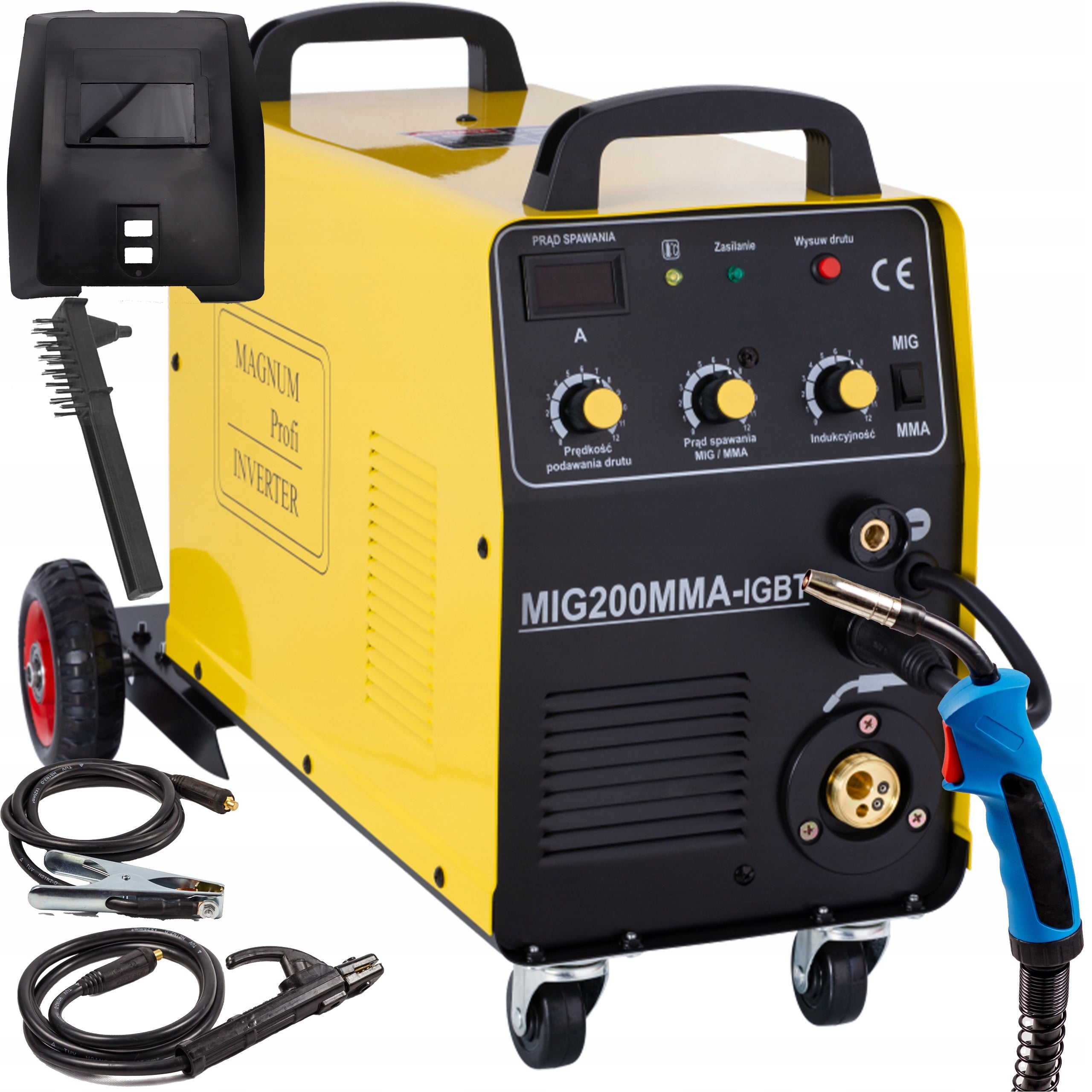

✅ MAGNUM MIG 200 MMA KN

✅ MIG/MAG holder MB15 – 3 m

✅ Electrode holder 2 m

✅ Mass holder 2 m

✅ User Manual

✅ Peace of mind – stable arc and thermal protection protect equipment in intensive work.

✅ Saving time and nerves — easy adjustment and quick parameter setting. ⏱

✅ Versatility — MIG/MAG, MMA and FCAW (without gas) in one device. 🔁

✅ Professional effect — Inductance adjustment helps to achieve cleaner and stronger welds. ✨

Can weld without gas?

Yes — the device supports FCAW self-shielding wire (polarity change required).

Can the handle be replaced with another?

Yes — with the EURO connector you can connect different MIG/MAG holders.

What wire spool does the welding machine support?

Up to 5 kg.

Is it suitable for thin sheets?

Yes — inductance adjustment helps reduce burnout and improves arc control.
