Suvirinimo aparatas MAGNUM MIG 200 MMA KN IGBT, 230V, 200A, komplektas

Kaina:
€590,82
Sandėlys:
Yra sandėlyje

Aprašymas

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 200 MMA KN IGBT, 230V, 200A, komplektas. Kategorija: Invertoriniai suvirinimo aparatai.

  • Gamintojas: Magnum
  • Modelis: MIG 200 MMA

MIGOMAT WELDING MACHINE WITH CHASSIS FOR HOME AND WORKSHOP - FUNCTIONAL WELDING MACHINE AT A REASONABLE PRICE!

Manufacturer: MAGNUM ║ Welding methods: MIG/MAG, MMA, FLUX ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%

Security Required: 20A

  • Allows welding of any type of steel and aluminium
  • Variable polarity allows welding without gas
  • Single-phase power supply 230V

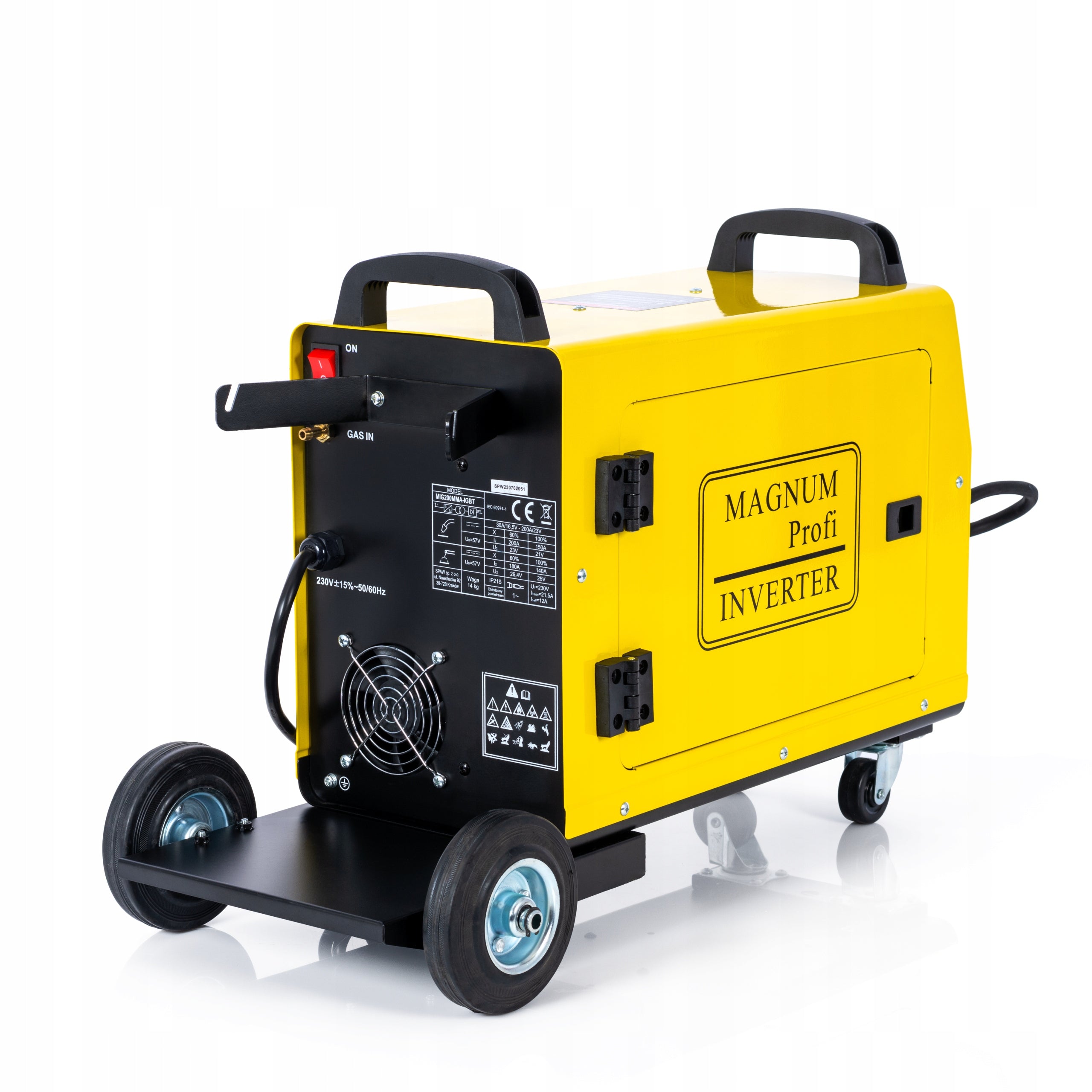

  • Heavy-duty chassis with cylinder space
  • EURO socket
  • Transistors IGBT!
  • Driving wheels - even easier transport
  • MIG MAG and MMA welding option
  • Maximum current 200A
  • Adjustable INDUCTANCE
  • Option LUTOWELDING CuSi.
  • Overload switch
  • Flux
  • Optimal dimensions and weight
  • Solid workmanship

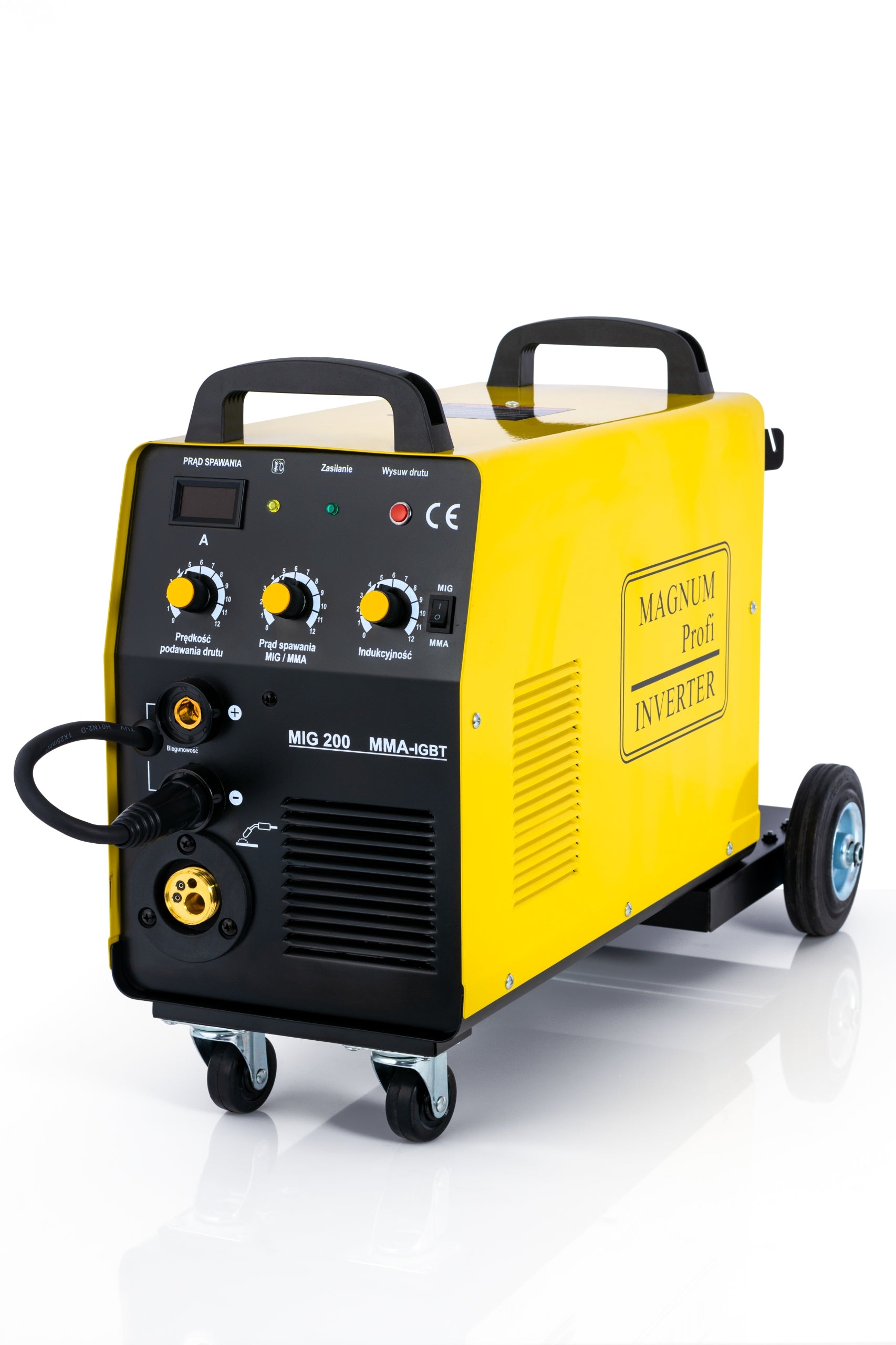

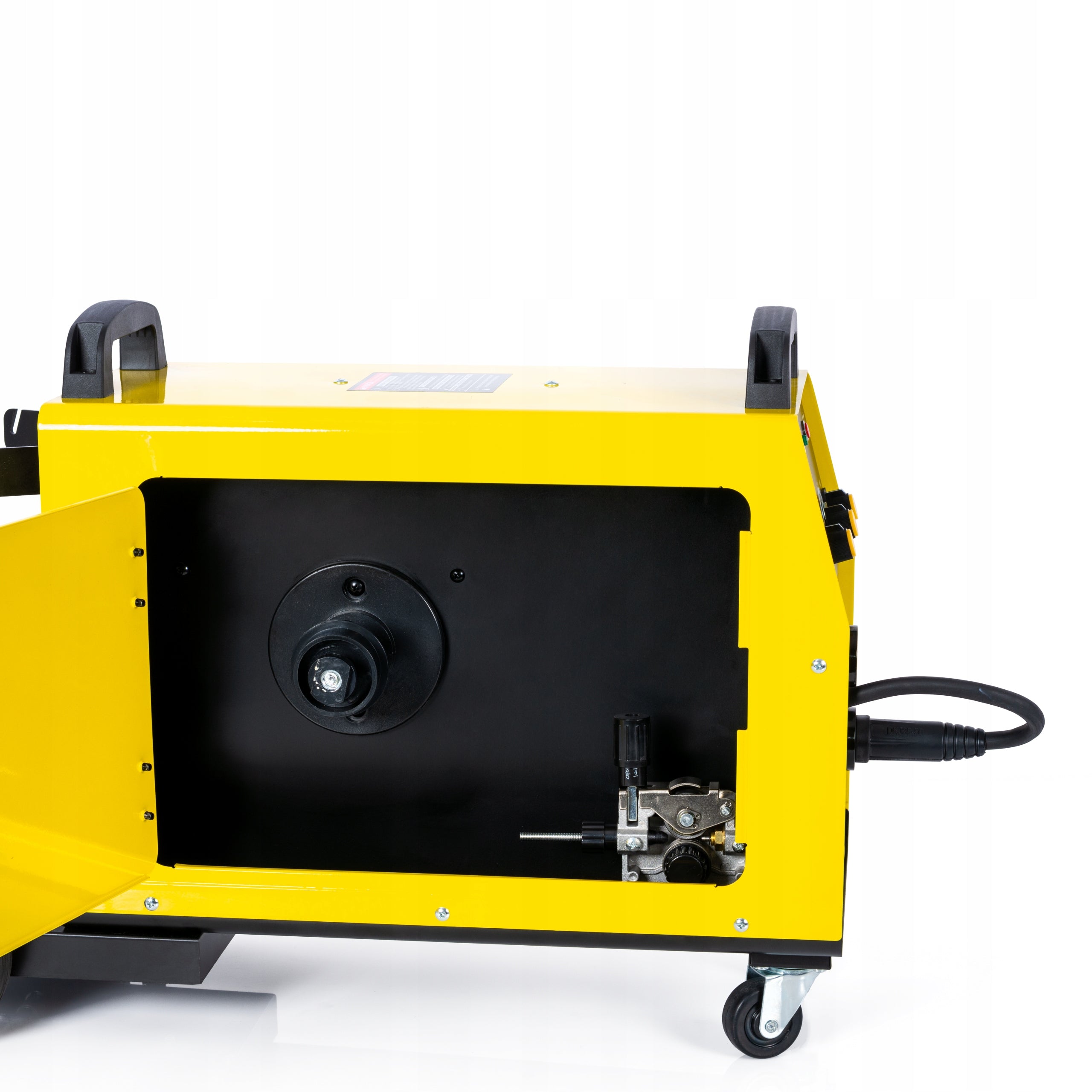

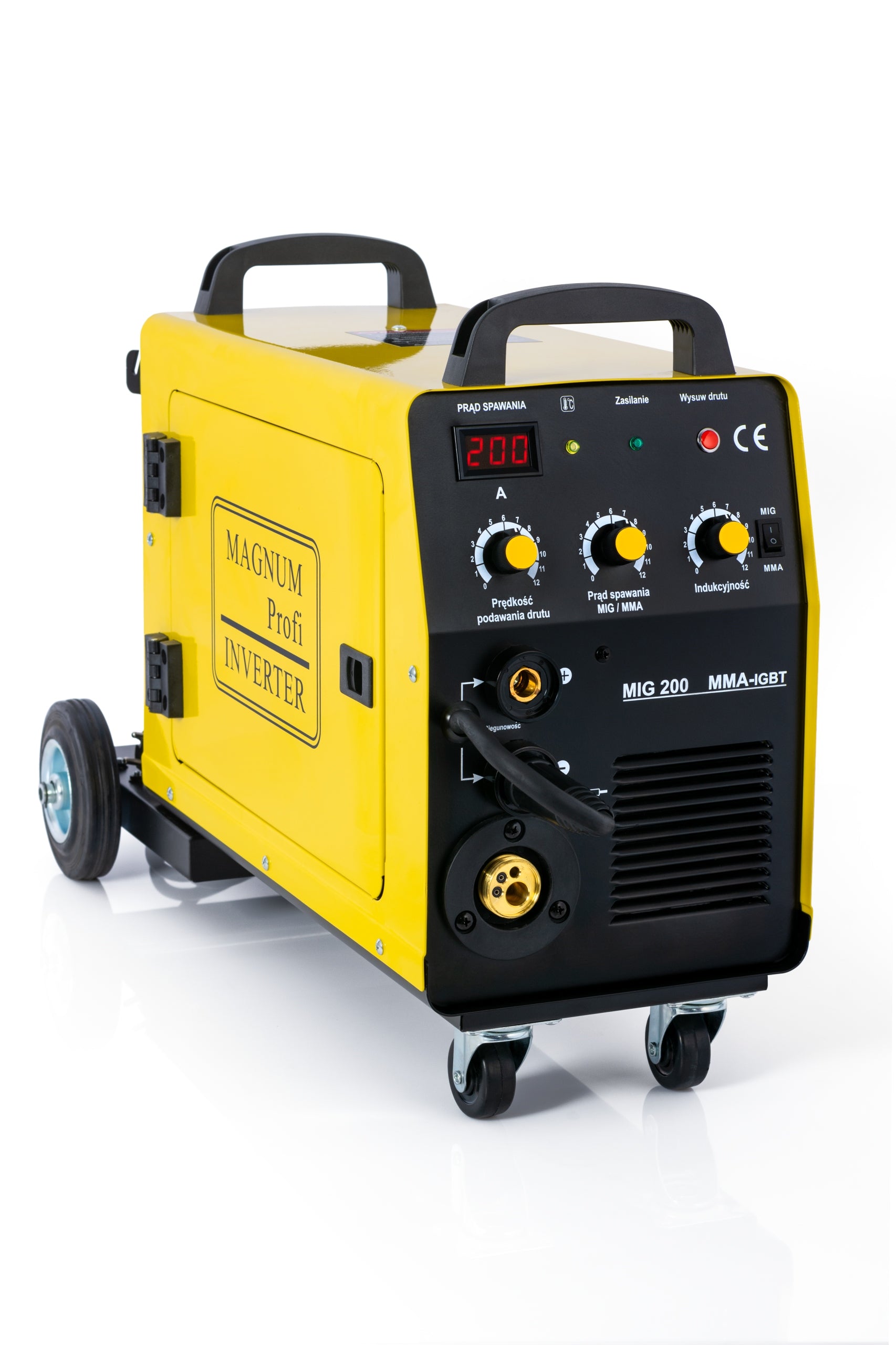

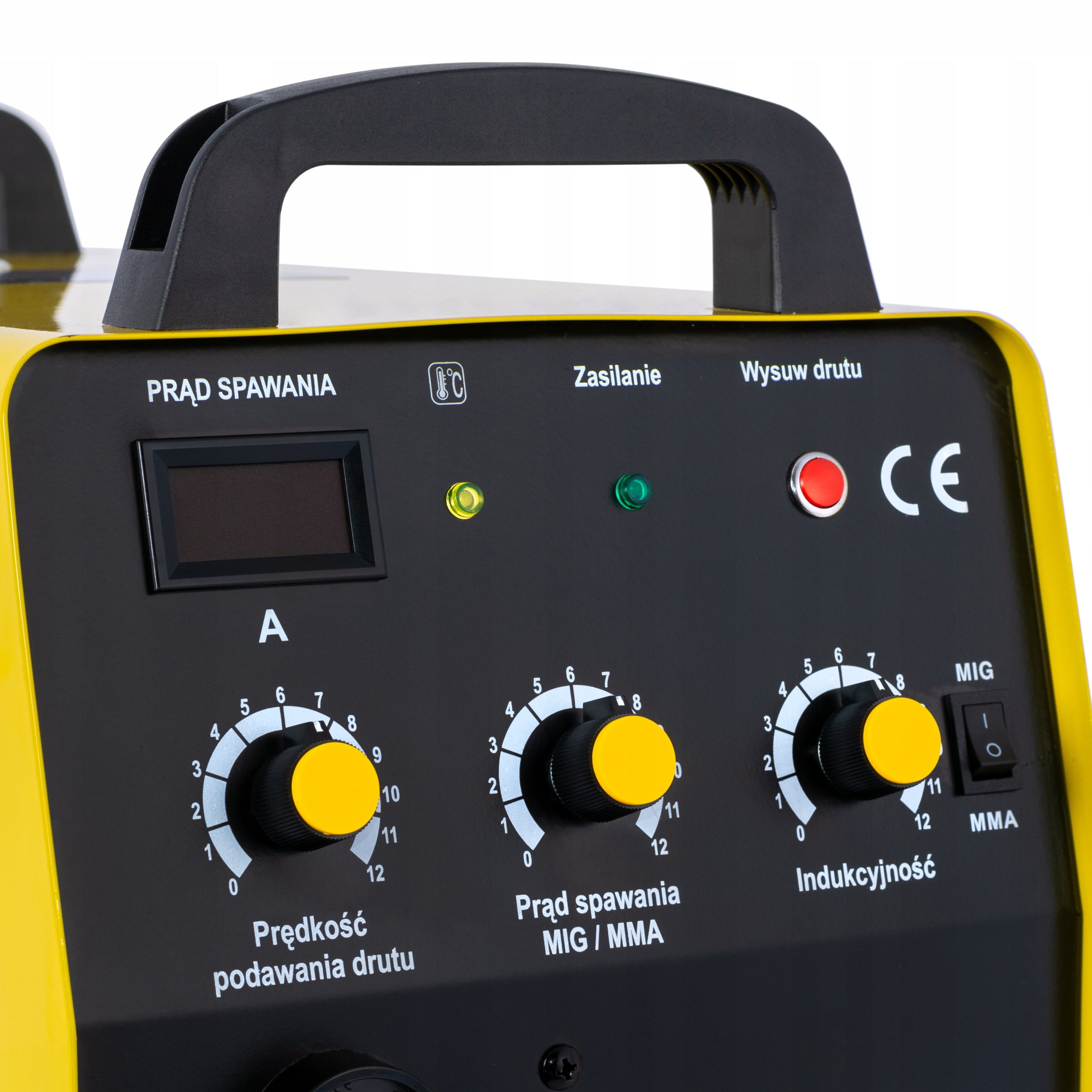

The MAGNUM MIG 200 MMA KN welding machine is a semi-automatic welding machine designed for welding steel using the MIG/MAG method and aluminum and its alloys. Semi-automatic MAGNUM is built on IGBT transistors. This solution provides lower electricity consumption, greater resistance to interference, voltage drops, but also trouble-free operation. The MAGNUM MIG 200KN MMA welder has an easy-to-use function panel with knobs for smooth adjustment of welding current, wire feed speed and inductance. The semi-automatic machine has solid wheels, including two front swivel wheels, which guarantee high mobility and give the possibility of moving the welding machine on uneven ground. The device is equipped with a high-quality professional 2-roller feeding unit designed to work under heavy loads.

POWER SUPPLY PARAMETERS:

  • Power supply voltage: 230V
  • Number of phases: 1ph
  • Power Current Frequency: 50Hz
  • Current protection: 20A

TECHNICAL PARAMETERS:

  • Maximum power consumption: 6,2kW
  • MIG/MAG welding current range: 30-200A
  • Maximum MMA welding current: 30-180A
  • Efficiency: 60%
  • Idle voltage: 57V
  • Wire diameter: 0,6/0,8/1,0mm
  • Feeder: 2R
  • Max. Spool size: 5kg
  • Inductance adjustment: Yes
  • Welding without gas: Yes

PHYSICAL PARAMETERS:

  • Degree of protection: IP21S
  • Cooling: fan
  • Size: 655x230x400mm
  • Weight: 14kg

EUROCONNECTOR - allowing the interchangeable use of various types of handles.

FLUX - arc welding with powder wire, not requiring the use of gas cylinders. We use self-shielding wire, which is filled with flux or a chemical that produces protective gases during welding.

LUTOSPELING - this is a process by which you can freely connect galvanized sheets, which are often used in car bodies. The main advantage of solder welding is the maintenance of a protective zinc coating at the solder-zinc interface.

OVERLOAD SWITCH - built-in protection against overheating of the device, prolonging its service life.

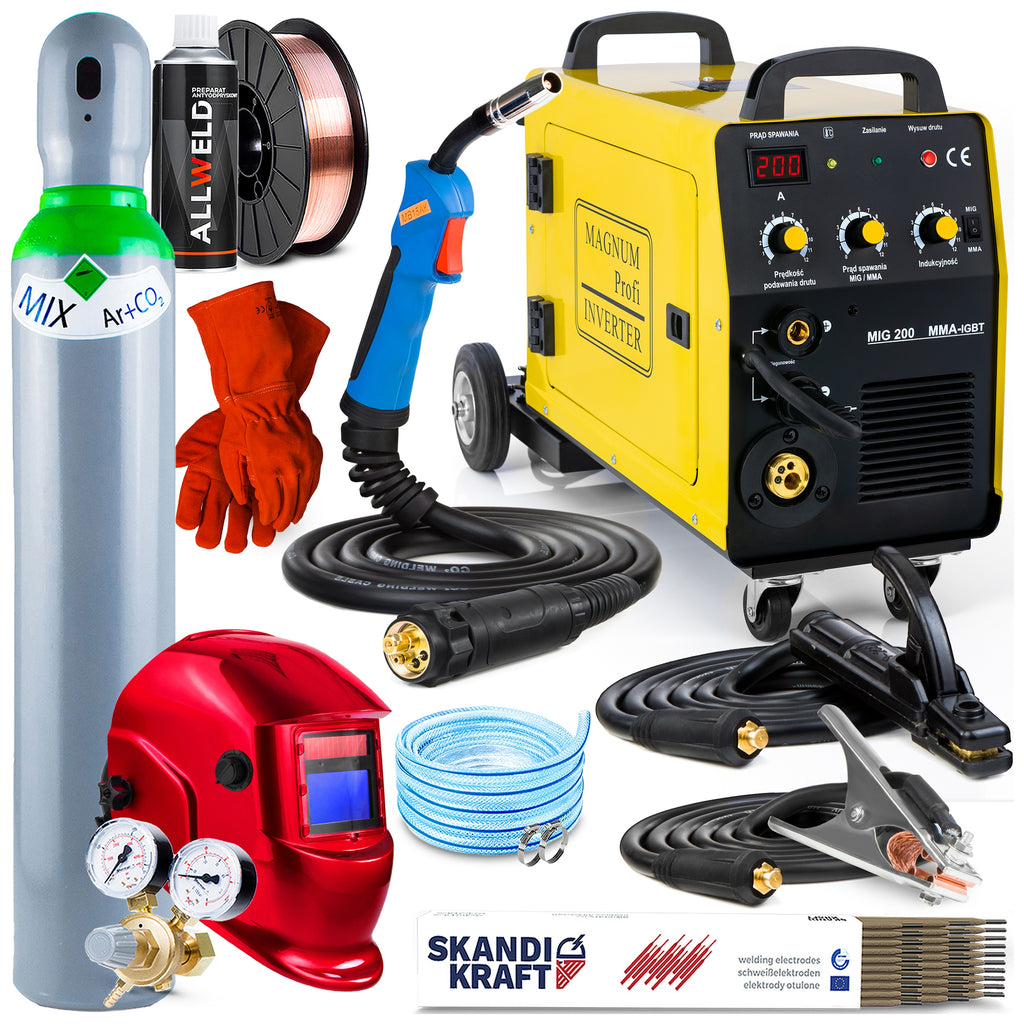

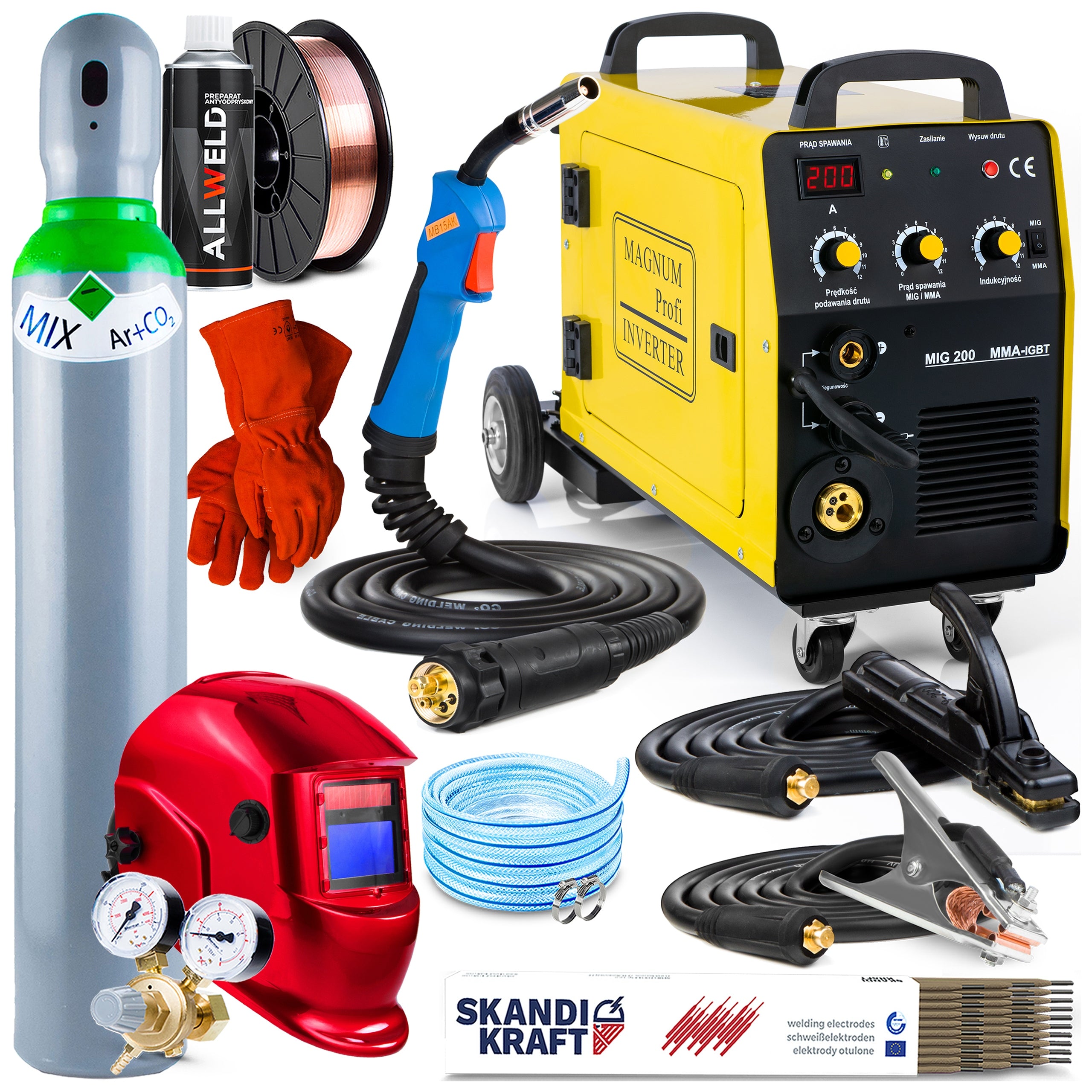

  • Welding machine MAGNUM MIG 200 MMA KN
  • Welding torch MIG/MAG type MB15 - 3m
  • Electrode holder - 2m
  • Bulk holder - 2m
  • Operating manual and warranty card

ADDITIONAL ACCESSORIES

  • Cylinder with gas mixture Argon/CO2
  • Cylinder reducer Ar/CO2 MINI with two pressure gauges
  • Welding wire SG2 - 5 kg
  • Anti-chipping preparation ALLWELD
  • Gas connection hose - 1 pcs
  • Clippers - 2 pcs
  • SKANDI KRAFT electrodes 1 kg - 1 pc
  • Welding gloves - 1 pair
  • Self-darkening visor

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With VAT invoice
Parametry Brand Magnum
Parametry Power consumption 7.7 kVA
Parametry Supply voltage (V) 230
Parametry Duty cycle time 60%
Parametry Device weight 14 kg
Parametry Welding range 30–200 A
Parametry Welding cable length 300 cm
Parametry Manufacturer code Magnum MIG 200 MMA KN XRS3
Parametry EAN (GTIN) 5904624047265
Parametry Packaging status original
Parametry Model MIG 200 MMA
Parametry Welding methods MIG/MAG,MMA
Parametry Additional features welding mask included,infinitely adjustable welding current,EURO handle,LCD display
