Aprašymas
Trumpai apie prekę

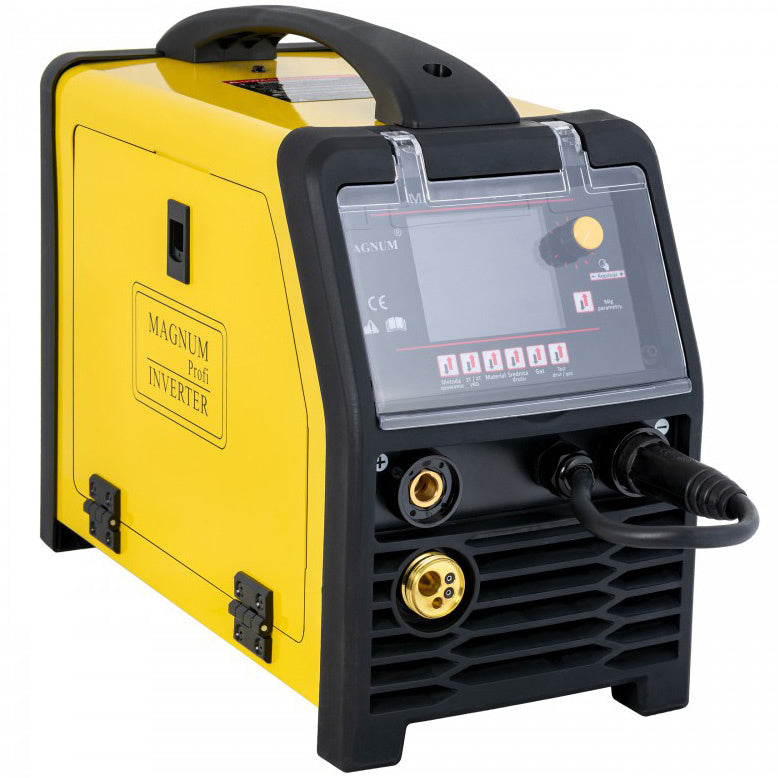

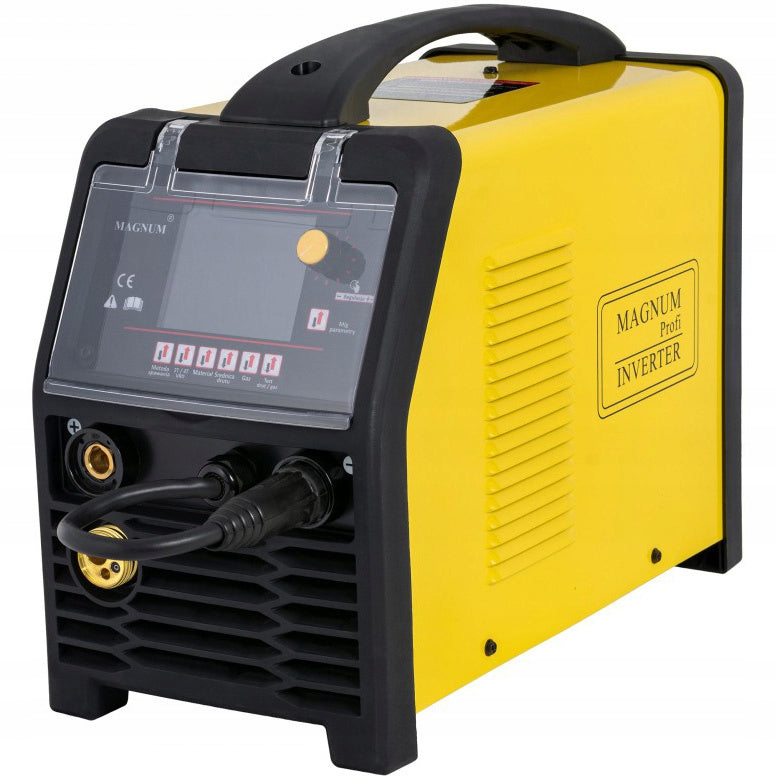

Prekė: Suvirinimo aparatas MAGNUM MIG 209 ALU SYNERGY 200A su skydeliu HAMMER. Kategorija: Inverteriniai suvirinimo aparatai.
- Gamintojas: Magnum
- Modelis: U MI 209AL SY
⭐ MIG 209 ALU Synergy 200A Magnum
✔ The MAGNUM MIG 209 Alu Synergy is a professional, synergistic semi-automatic welding machine designed for manual, electric welding of low-carbon steel, low-alloy steel (MAG), alloy steel and aluminum and its alloys (MIG).
✔ The device can also be SOLDERED, welded by MMA method and TIG Lift method. It is designed for all kinds of welding work, in locksmith workshops, repair workshops, industrial, factories, etc. Thanks to the use of synergistic settings and a clear LCD screen, the device is extremely easy to use and can be used by welders even with minimal experience.
✔ The power source was built on the basis of IGBT transistors providing a minimum of electromagnetic interference, enabling increased efficiency and reliability of the power source, lower energy consumption, and rapid adjustment of the current to changes in parameters during welding.
➡ Features and advantages:
- Synergistic program for: aluminum, black steel, stainless steel, soldering, core wires
- Possibility of manual settings
- Welding without gas - FLUX
- Inductance regulation - less chipping
- Soldering CUSI3
- Easy and smooth adjustment of welding parameters
- Easy-to-read LCD panel
- 2T and 4T function
- ARC FORCE function
- Sturdy metal feeder
⭐ List of synergistic programmes:
- Fe – ordinary steels 0.6 / 0.8 / 1.0 CO2 / Ar+CO2 - a program for welding black steel in CO2 or Ar/CO2 sheath.
- Flux – welding with core wires 0.8/0.9/1.2 - program for welding with self-shielding wires.
- CrNi – stainless steel and acid-resistant steels 0.8/1.0 Ar+O2 / Ar+CO2 (1-2%) - a program for welding stainless steel / acid-resistant steel in Ar+CO2 or Ar+O2 sheath.
- AlMg – aluminium and aluminium alloys 0.8/1.0 Ar - program for welding aluminium in Ar sheath.
- CuSi – soldering 0.8/1.0 Ar - program for welding copper and soldering in Ar shield.
➡ Technical data:
- Power supply: AC 230 V, 50/60 Hz
- Max. power consumption: 6,4 kW
- Security required: 20 A
- MIG/MAG welding current: 40 - 200 A
- MMA welding current: 20 -160 A
- TIG LIFT welding current: 20 -160 A
- Idle voltage: 60 V
- Efficiency: 60 %
- Wire spool weight: max. 5 kg
- Wire diameter: 0,6 / 0,8/ 0,9/ 1,0 mm
- Welding "without gas": YES
- Housing protection class: IP21S
- Weight: 10 kg

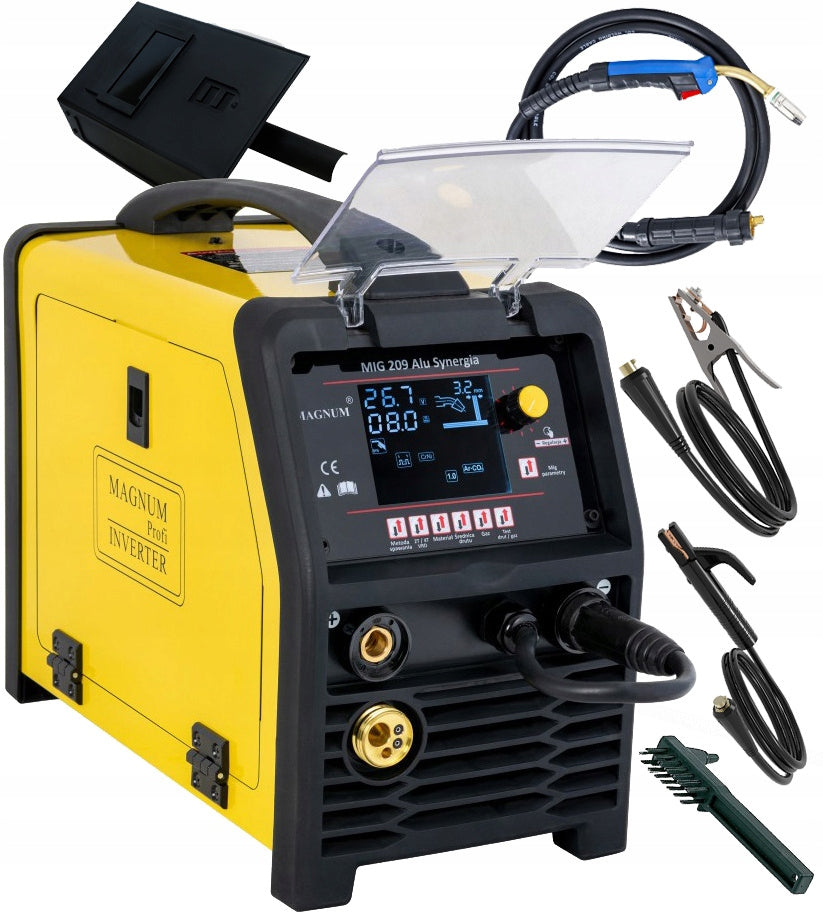

➡ Contents of the set:
- MIG 209 AL SY Magnum welding machine
- MIG/MAG holder MB15 3m
- Electrode holder
- Bulk Holder
- Welding mask
- Welding hammer with brush
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Magnum |
| Parametry | Power consumption | 6.4 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Device weight | 10 kg |
| Parametry | Welding range | 20–200 A |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 0.8 kg |
| Parametry | Manufacturer code | U MI 209AL SY |
| Parametry | EAN (GTIN) | 5905323101029 |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | welding mask included,infinitely adjustable welding current,EURO handle,LCD display |
