Suvirinimo aparatas MAGNUM MIG 213 SYNERGY, MIG/MAG, MMA, TIG, FLUX, 200A, 230V, SET4

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 213 SYNERGY, MIG/MAG, MMA, TIG, FLUX, 200A, 230V, SET4. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIG 213 SYNERGIA

⚡ MIG/MAG to 200A (manual)

🤖 Synergy + manual mode

🔧 MIG/MAG + MMA + TIG LIFT + FLUX

🛡 IP23 + VRD / Hot Start / Arc Force + SPOT

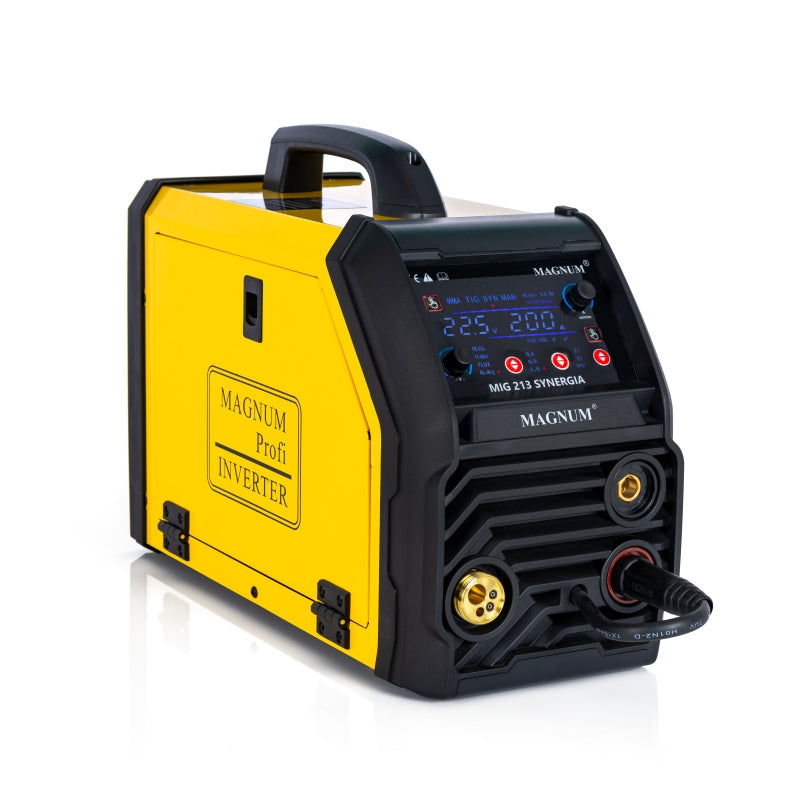

MAGNUM MIG 213 SYNERGIA is a modern semi-automatic welding machine on 230V, which combines the convenience of synergy with the possibility of manual work. It supports MIG/MAG, MMA, TIG LIFT and FLUX (self-shielded / gas-free wire) methods, making it perfect for both car and locksmith workshops, as well as in the garage or home workshop. 🔧

The biggest advantage of this model is simple operation: you choose a program, and the welding machine helps to choose parameters. Thanks to this, even a person without much experience can quickly get a stable arc and aesthetic welds. 🤖

For more advanced users, there is also a MAN (manual) mode, in which you set the parameters yourself.

IGBT technology ensures stable operation, high efficiency and lower energy consumption. ⚙

✅ welding MIG/MAG, MMA, TIG LIFT, FLUX

✅ synergic and manual mode

✅ programs: Fe-CO2, Fe-MIX, FLUX, Al-Arg

✅ functions 2T / 4T / SPOT

✅ adjustable Hot Start / Arc Force / VRD

✅ regulation of gas outflow time before and after welding

✅ wire access speed adjustment

✅ regulation of inductance

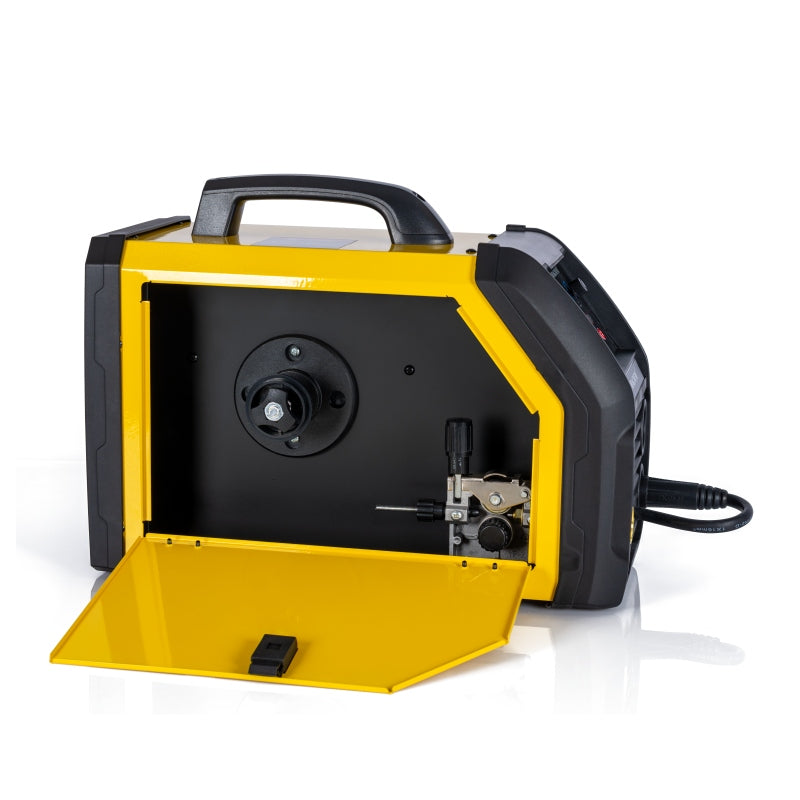

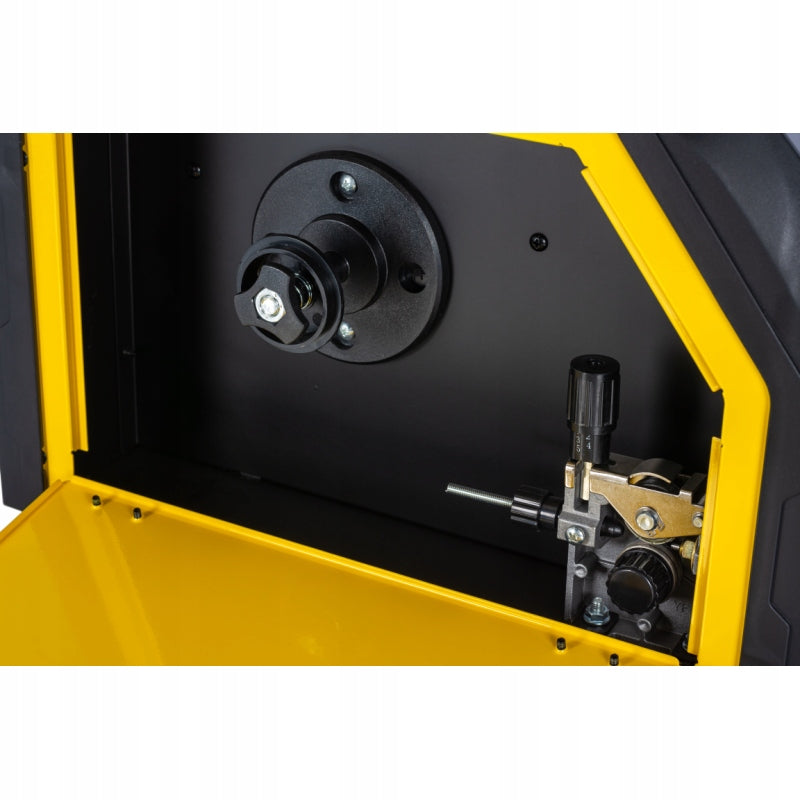

✅ solid metal wire feeder

✅ protection class IP23

The device offers two ways of MIG/MAG welding:

• SYN – synergy (easier to set)
• MAN – manual settings (full control)

Synergistic programmes:

✔ FE-CO2 – black steel with CO₂ coating

✔ FE-MIX – black steel in Ar+CO₂ / or stainless steel in Ar (according to settings)

✔ FLUX – welding without gas with self-shielding wire (requires polarity change – PLUS on the mass)

✔ AL-ARG – pure argon aluminium (Ar)

This is a great set of programs for the workshop: steel, aluminum and cylinder-free operation. 🎯

You can set the available parameters with one knob, m.in.:

🎚 welding current

🎚 wire feed speed

🎚 gas outflow time before and after welding

🎚 wire access speed

🎚 inductance

🎚 SPOT – spot welding time

🔥 Hot Start / ⚡ Arc Force / 🔒 VRD

Thanks to this, you can adjust the welding to thin sheets, longer welds and serial work.

• Power supply: AC 230 V / 50 – 60 Hz
• Protection required: 20 A (C)
• MIG/MAG current (manual): 40 – 200 A
• MIG/MAG current (synergy): 30 – 180 A
• MIG/MAG welding voltage: 14,5 – 27,5 V
• MMA/TIG current: 25 – 180 A
• Idle Voltage: 68 V
• Idle voltage with VRD: 16 V
• Wire diameter: 0,8 / 0,9 / 1,0 mm
• Wire spool: 1 – 5 kg
• Efficiency: 60%
• Degree of protection: IP23
• Weight: 10 kg

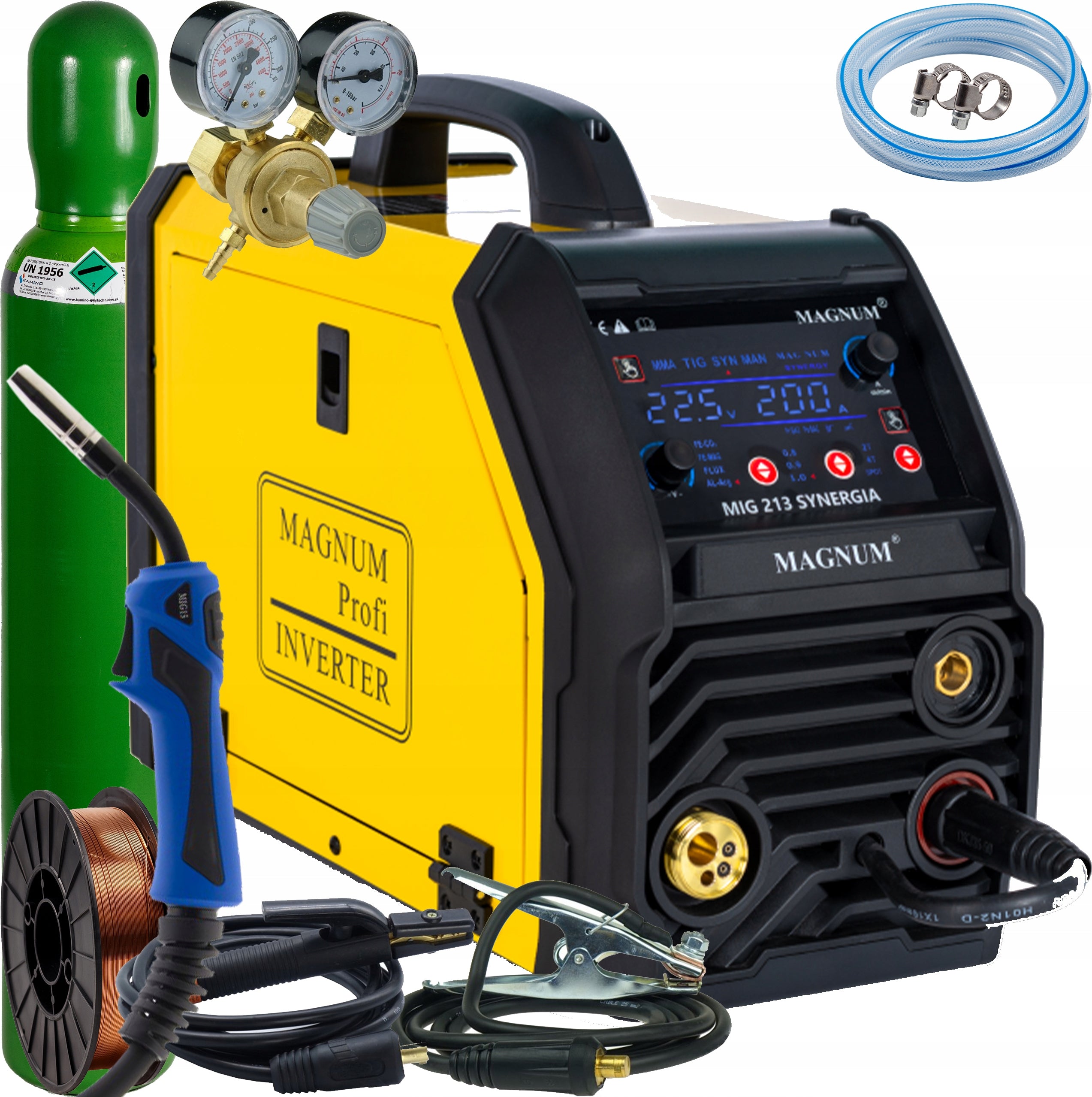

✅ MAGNUM MIG 213 SYNERGY welding machine

✅ MIG/MAG work cable MB15 – 3 m

✅ MMA work cable 2 m

✅ Ground cable 2 m

✅ Steel insert (blue) for 0.8 wire (in the work holder)

✅ Feed rollers for steel 0.8 / 1.0 (installed)

✅ User manual

✔ New 8l MIX ARG/CO2 cylinder with 10-year legalization and a protective cap for its transportation (cylinders can be filled at any point selling technical gases) 150BAR cylinders

✔ Welding wire 0.8/5 kg good quality!!!!

✔ 2-clock regulator showing the amount of remaining gas and gas flow during welding.

✔ Connecting hose to the cylinder and reducer.

✔ 2 cable ties

✅ Peace of mind and easy operation - synergy helps you select parameters and reduces setting errors.

✅ Save time – quick program switching and adjustments at your fingertips. ⏱

✅ Versatility - steel, aluminum and gas-free FLUX in one device. 🔁

✅ Professional effect - control of inductance, wire feed and gas improves the appearance of welds. ✨

Can weld without gas?

Yes – FLUX mode allows welding with self-shielding wire (requires a change in polarity – PLUS on the mass).

Is the welding machine suitable for beginners?

Yes — synergistic mode makes settings very easy.

Can I set everything manually?

Yes — MAN mode allows full adjustment of parameters.

Does it weld aluminum?

Yes — it has the AL-ARG program (with argon shield).
