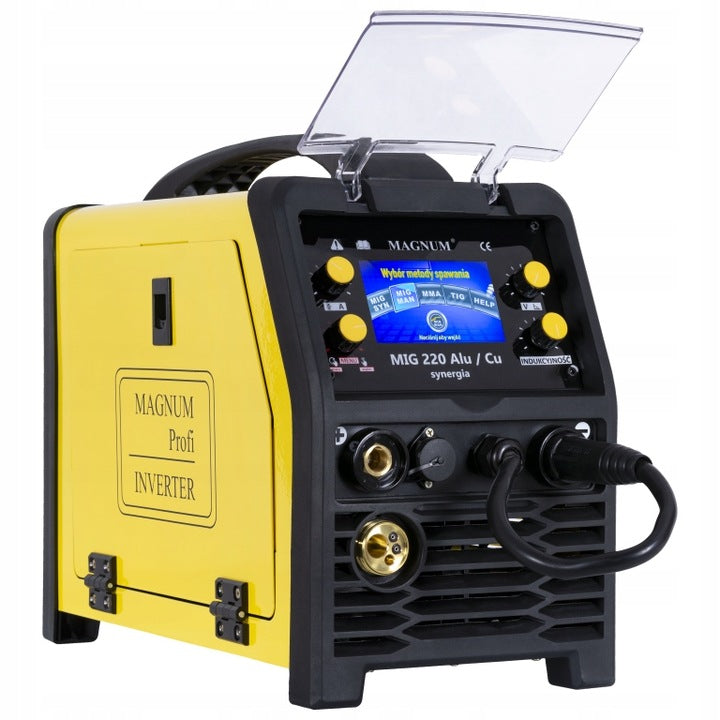

Suvirinimo aparatas MAGNUM MIG 220 ALU CU, 3 in 1, 230 V, 200 A, IGBT

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 220 ALU CU, 3 in 1, 230 V, 200 A, IGBT. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIG 220 Alu Cu LCD
• Ilgis: 431 mm
• Plotis: 212 mm
• Aukštis: 316 mm

MIG/MAG, TIG DC Lift, MMA, FLUX| Power supply: 230V | LCD display, Soldering | Aluminium welding

• full free post-purchase support
• You can call us at any time and we will help you set the parameters and operate the device

The MIG 220 Alu/Cu is an upgraded version of the iconic 208 Alu Synergy. The device is powered from a single-phase 230V network, and a number of modern solutions have been used in its production.

The welding machine is designed for welding using the following methods:

• MIG/MAG
• FLUX - self-shielding wire welding without gas
• Soldering CuSi3 - galvanized sheets,
• MMA - welding with a wrapped electrode,
• TIG Lift - welding with a non-melting electrode in an Argon shield

The device is equipped with a color LCD display and an extremely easy-to-use user interface.

Magnum MIG 220 LCD Alu/Cu Synergy - full Synergy

MIG 220 ALU SYNERGIA welder by MAGNUM is a lightweight, portable semi-automatic welding machine made in inverter technology, powered from a single-phase 230V network with a maximum welding current of 200A. The device is equipped with a large numerical and graphic LCD screen with an intuitive, easy-to-use control panel. The synergy function used in the device allows you to quickly set welding parameters

Why choose this model?

• constructed on the basis of modern electronics,
• friendly user interface,
• color LCD display with excellent contrast,
• powered from a single-phase 230V network,
• 3in1 device - MIG/MAG, MMA and TIG welding,
• Magnum - a proven brand for years,
• Amazing price/quality ratio.

Full Synergy with Possibility

introducing manual correction

• has synergistic programs for welding: black steel, stainless steel, aluminum alloys, self-shielding wire and for soldering CuSi3,
• full synergy - selection of material thickness, all parameters are set automatically,
• the possibility of introducing manual correction into the programs,
• possibility of disabling synergy and welding in manual mode - parameter adjustment according to. own recognition and experience.

Regulation of inductance

MIG/MAG welding

• setting the characteristics of the welding arc - control of the face width, depth of melting and the number of welding chips.

Professional Wire Feeder

Stable feeding of welding wires of various types. Ability to work with longer MIG handles. Good welding parameters - better weld quality.

The device is equipped with a proven wire feeding mechanism that has been working in MIG/MAG devices for many years.

Possibility of connecting a SPOOLGUN holder

- Power supply: AC 230 [V], 50 [Hz],

- Security required: 20 [A]

- Power consumption max: 6,4 [kVA]

- Efficiency: 60 [%]

- Idle voltage: 60 [V]

- MIG/MAG welding current: 40 - 200 [A]

TIG LIFT welding current: 10 - 200 [A]

- MMA welding current: 10 - 170 [A]

- Maximum wire spool diameter: D200 [mm]

- Wire diameter: 0,6/0,8/0,9/1,0/1,2 [mm]

- Housing protection class: IP21S

- Weight: 10,4 [kg]

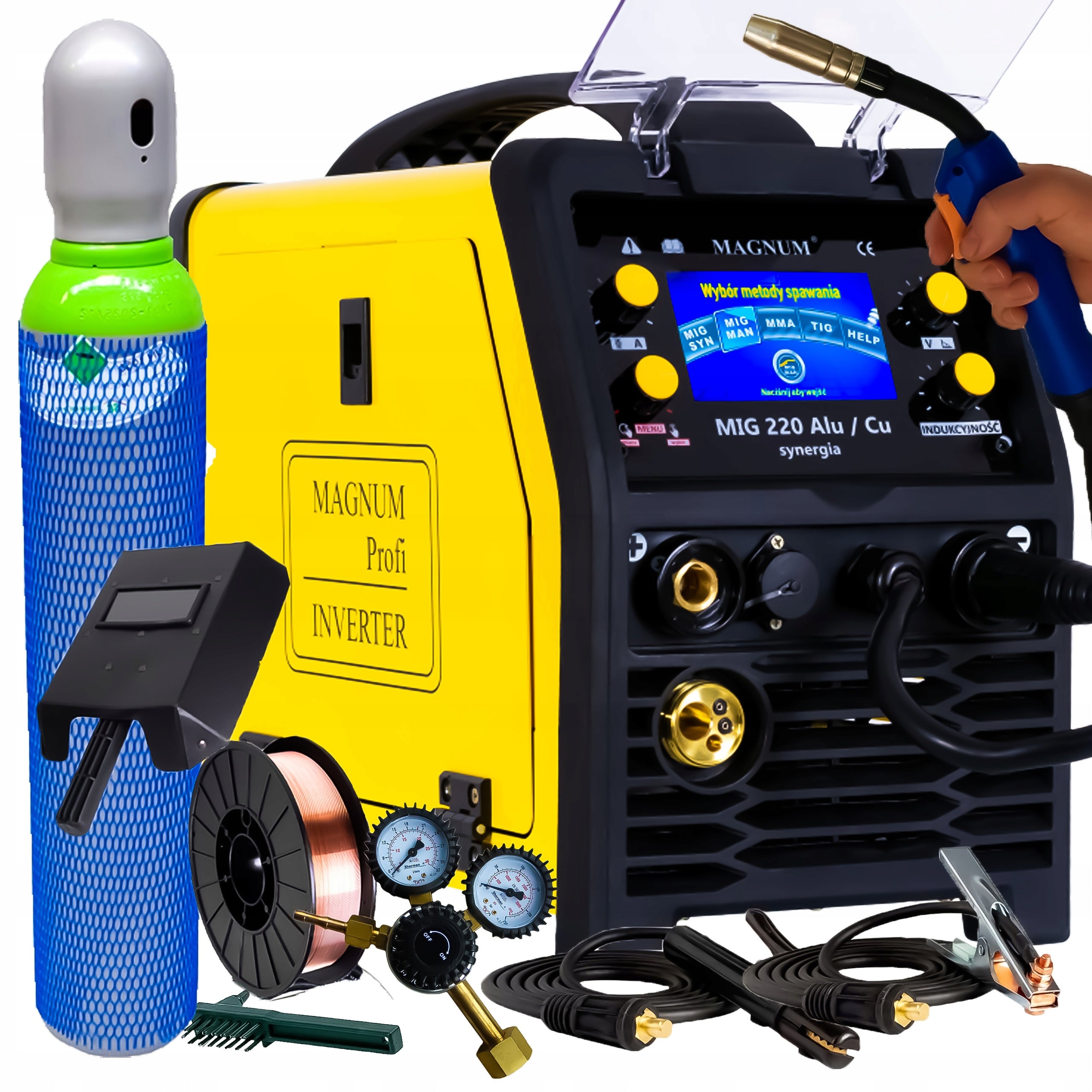

• Device Magnum MIG 220 ALU Synergy
• MIG EURO welding torch
• MMA electrode holder
• Mass cable
• Wire 0,8/5kg
• Bottle Co2/Argon
• Reducer
• Wire 0,8/5kg
• User manual PL

Specifications
