Suvirinimo aparatas Magnum MIG 220 Alu Cu Synergy 4x4, aliuminiui, MMA, TIG DC Lift

Trumpai apie prekę

Prekė: Suvirinimo aparatas Magnum MIG 220 Alu Cu Synergy 4x4, aliuminiui, MMA, TIG DC Lift. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: WELDEXPERT MIG 220 ALU 4X4

MIG/MAG, TIG DC Lift, MMA, FLUX| Power supply: 230V | LCD display, CuSi3 soldering | Manufacturer: Magnum

⏩Welder Magnum MIG 220 Alu Cu Synergy 4x4

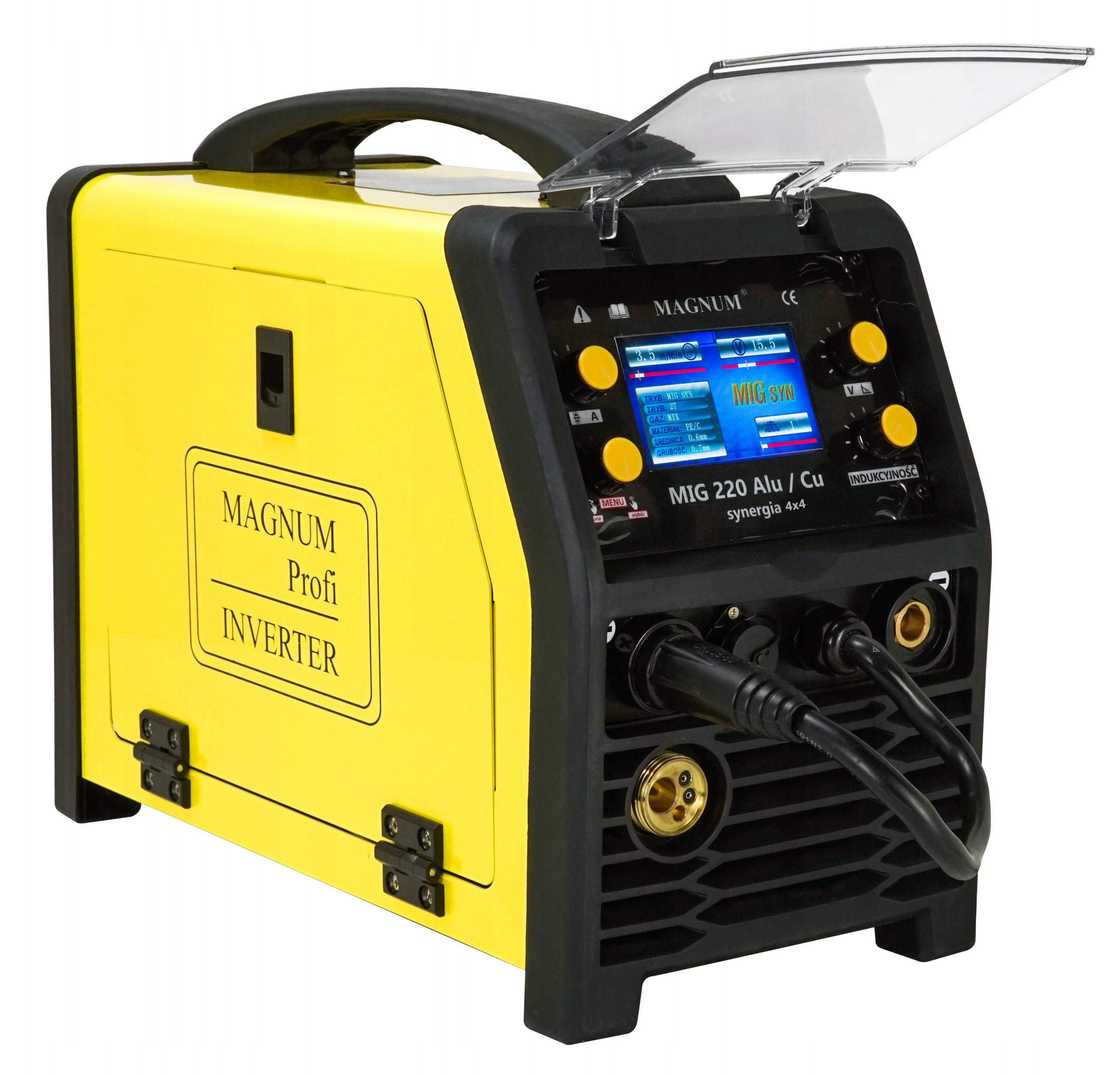

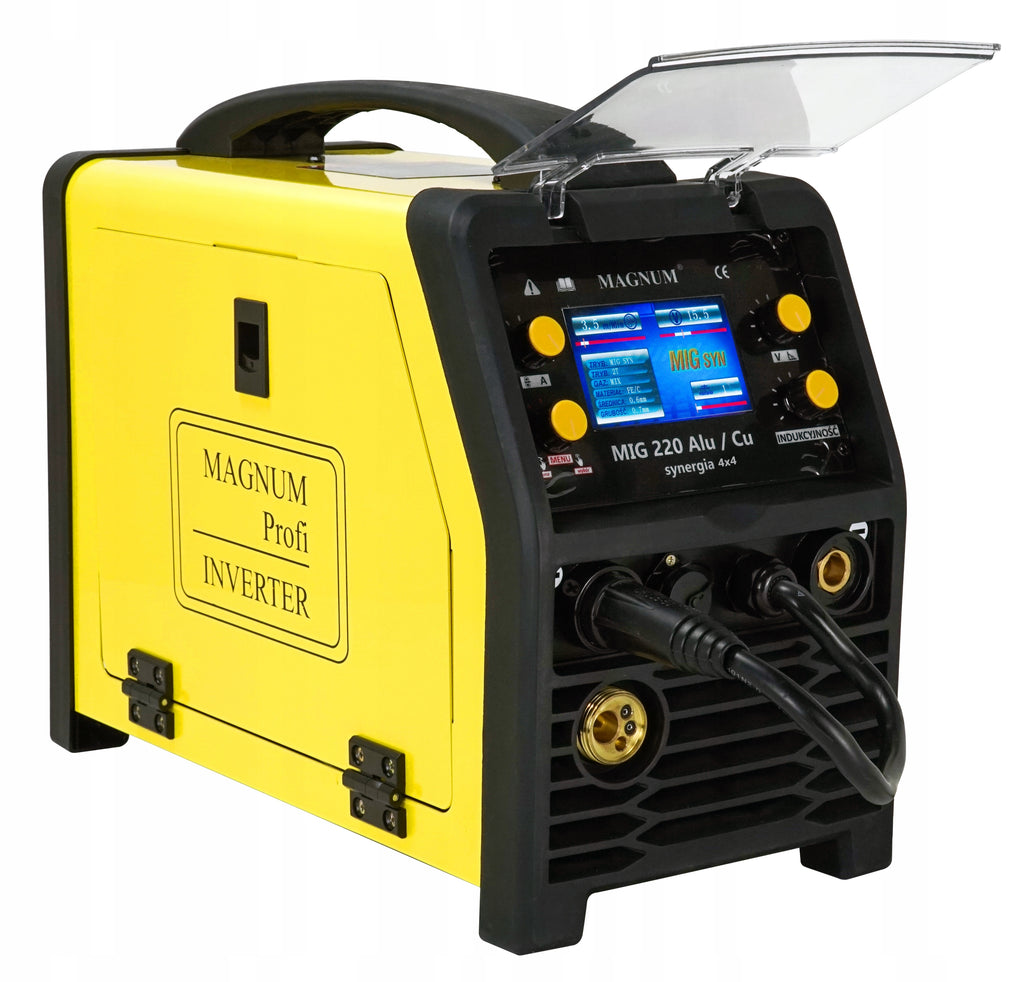

MAGNUM MIG 220 Alu / Cu Synergy 4x4 is a modern, inverter welding machine designed for users who expect one device for many applications. The model enables MIG/MAG, MMA, TIG Lift welding, soldering and aluminum work, making it suitable for both workshop, garage, locksmith and repair work, as well as light service applications. This equipment is designed for convenient operation, a wide range of possibilities and stable operating parameters.

The biggest advantage of this version is the combination of synergy function with 4x4 wire feeder, which provides more stable, smooth and reliable wire feeding. In practice, this translates into higher comfort of work, better control of the welding process and greater convenience especially for more demanding applications. An additional advantage is the possibility of manual adjustment of settings, thanks to which the user can not only quickly start work, but also fine-tune the parameters to a specific material, the thickness of the element and his own welding technique.

⏩THE MOST IMPORTANT ADVANTAGES

• MIG/MAG, MMA, TIG Lift and soldering in one device
• 4x4 wire feeder for more stable and reliable wire feeding
• synergistic programs for steel, stainless steel, aluminium, core wires and CuSi and CuAl soldering
• Easy-to-read LCD screen and intuitive menu for quick setup
• 230 V power supply
• Inductance adjustment, 2T/4T modes and Burn Back function
• Spool Gun support
• possibility of working without gas using self-shielding wire
• IGBT inverter technology for stable and efficient operation
• welding current range: MIG/MAG 40 – 200 A, TIG Lift 10 – 200 A, MMA 10 – 170 A

⏩WHY THIS MODEL IS WORTH BUYING

Choosing this welding machine, the customer does not only buy the device itself, but above all, the convenience of work, saving time and greater freedom of action. Synergistic mode allows you to quickly select parameters and start working more efficiently, and the wide range of available methods means that the equipment does not limit the user to one technology. This is a very good choice for people who are looking for a specific model of the Magnum brand and expect greater possibilities than in the case of basic migraines.

A big advantage of this version is also the use of wire feeder 4x4, which provides more stable and reliable wire feeding, and thus higher comfort of work and better control of the welding process. Combined with the ability to manually adjust parameters, adjust inductance, 2T/4T modes, Arc Force function in MMA, Burn Back and Spool Gun support, this device gives you a device that justifies its price with real capabilities and practical functions, not just the model name itself.

⏩APPLICATION

The welder will be a good choice for:

• locksmith and repair workshops,
• home users who want to enter the level higher than with a simple migraine,
• people working with steel, stainless steel and aluminum,
• customers who want to have MMA and TIG Lift in one device,
• Users expecting a clear control panel, a simple start and stable wire feeding thanks to the 4x4 feeder.

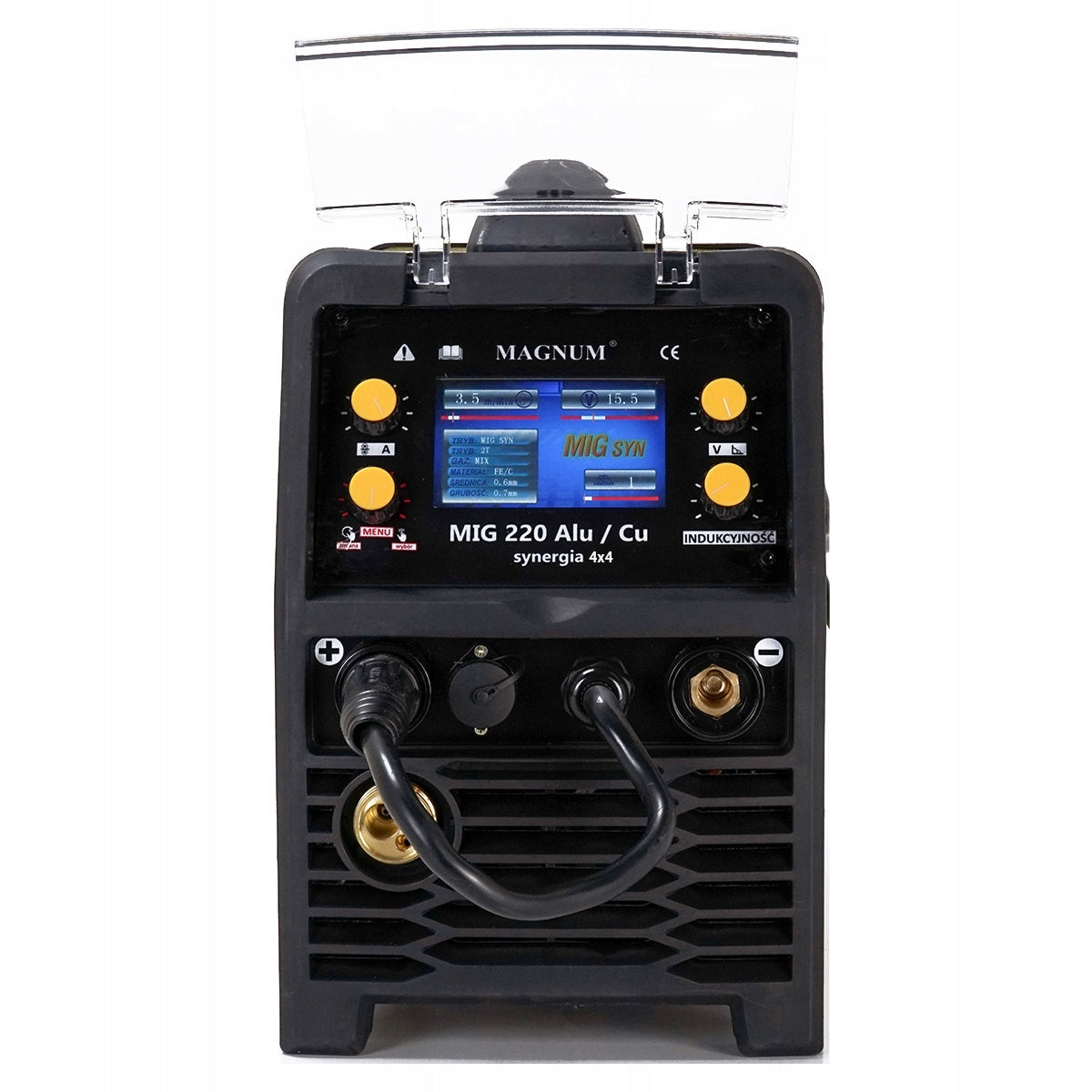

⏩LCD panel and intuitive menu

The device is equipped with a clear LCD display and a convenient control system based on three function knobs and one knob with a button function to operate the menu. This layout allows you to quickly and conveniently manage the most important settings without unnecessary searching for functions in the menu.

The user can easily adjust key operating parameters such as wire feed speed or current, welding voltage or Arc Force, as well as inductance. Thanks to this, the operation of the device is clear, intuitive and definitely more comfortable than in the case of models equipped with unreadable, limited or indescribable regulators.

⏩Hint system for the user

After selecting the synergistic mode, the device suggests how to properly connect the welding wires, which makes it easier to quickly prepare the equipment for work. The interface also displays suggested ranges of optimal voltage, wire feed and inductance values, making it easier for the user to set parameters and achieve a stable, repeatable welding effect faster.

⏩MIG SYN — synergistic programs - After selecting the material, wire diameter, gas and thickness of the element, the device selects the optimal operating parameters. This reduces preparation time and helps to achieve a repetitive effect even for less experienced users.

⏩MIG MAN - full manual settings - Manual mode is available for more demanding users. It allows you to set the wire feed speed, voltage and inductance yourself, without relying solely on synergy.

⏩Manual correction in synergistic mode - Synergy does not block the user. After automatic selection of parameters, they can still be manually refined to match the nature of the arch to the style of work and material.

⏩2T / 4T - For shorter jobs, 2T mode is convenient, and for longer welds 4T improves comfort and reduces hand fatigue.

⏩Inductance adjustment - Allows you to change the character of the arc – from softer, wider and calmer to more focused and dynamic. This is an important feature for weld quality and splash reduction.

⏩Voltage and speed adjustment of the wire - The user has control over the voltage and feeding of the wire, which allows you to tune the melt, arc length and behavior of the welding machine in different working positions.

⏩Burn Back - The wire burn adjustment function facilitates further glow and improves the work culture after the weld is completed.

⏩Spool Gun - The device supports the optional Spool Gun handle, which increases the convenience of working especially with aluminum.

⏩CuSi / CuAl welding - A useful feature for thinner components and applications where less material overheating is important.

⏩Core wire and gas-free operation - The welder works with self-shielding wire, which gives you more flexibility where you do not want to work with shielding gas.

⏩MMA with synergistic support - After selecting the electrode and material, the device helps to select operating parameters, but still leaves the user the possibility of manual correction.

⏩Arc Force in MMA - Improves arc stability when welding with a wrapped electrode and increases control over the operation of the device.

⏩TIG DC Lift - The device also allows TIG DC Lift operation using an optional TIG handle with a gas valve. This is a practical extension of functionality without buying a second welding machine.

The use of a high-quality, 4-roll wire feeder ensures even more reliable, smoother and stable wire routing to the welding torch. This solution improves control over the welding process, facilitates maintaining even feed and translates into higher comfort of work, especially for more demanding tasks and when working with more difficult materials.

The 4x4 feeder is a solution valued by users who expect greater precision, stable operating parameters and a more professional character of the device than in the case of basic structures with a simpler feeding system.

⏩WHAT THE BUYER GAINS

The buyer receives a new welding machine brand MAGNUM, which responds to the real needs of people looking for a modern semi-automatic for the workshop, garage or service. This is a purchase based not only on the name of the model, but on the specific capabilities of the device: MIG/MAG with synergy, MMA, TIG Lift, aluminum welding, soldering and core wire work. Thanks to this, one equipment gives a wide range of applications and greater flexibility in everyday work.

A big advantage of this model is also a clear LCD screen, intuitive menu and IGBT inverter technology, which translate into convenient operation, stable operation and easier parameter setting. In the version with a 4x4 feeder, the user gains an additional more reliable and smooth wire feeding, which improves the comfort of work and control over the welding process.

⏩Frequently Asked Questions

• Does this welding machine have synergy? Yes. In MIG SYN mode, the user selects the material, wire diameter, gas type, 2T or 4T mode and material thickness, and the device automatically selects the remaining operating parameters.
• Can everything be set manually? Yes. MIG MAN mode allows full, manual adjustment of wire feed speed, voltage and inductance, giving more control to more demanding users.
• Is it suitable for aluminum? Yes. The model has programs for working with aluminum AlMg and AlSi, works with 100% argon and supports wires with a diameter of 1,0 and 1,2 mm.
• Can it be soldered? Yes. The device offers CuSi and CuAl programs, thanks to which it also allows soldering.
• Does it work without gas? Yes. The welder supports FCAW-S core wires, and the manufacturer provides for the possibility of welding without the use of shielding gas.
• Do I need to change the polarity? Yes. Depending on the chosen method of operation and the type of wire used, the appropriate polarity should be set. With self-shielding wire, a proper change of setting is required.
• Does this model have TIG HF? No. This model supports TIG Lift, i.e. glow by rubbing, not non-contact HF ignition.
• Is the TIG handle included? This is not due to the basic set. To work with TIG Lift method, you need an optional TIG handle with gas valve.
• Can I connect Spool Gun? Yes. The model supports Spool Gun, however, the handle itself is not part of the basic set.
• Does the Spool Gun work with every handle? Not always. The manufacturer points out that in some cases you may need to check compliance and possible synchronization in an authorized service.
• Does the device have MMA and Arc Force? Yes. The welder also works using the MMA method and allows you to adjust the Arc Force function directly from the control panel.
• Is it suitable for beginners? Yes. Synergy and a clear LCD screen make it much easier to get started, and at the same time the device also offers manual settings for more advanced users.
• What power supply does it run on? The device operates on a 230 V / 50 Hz power supply. The manufacturer shall indicate the maximum power consumption of 6,4 kVA and the recommended protection of 20 A.
• What range of current does it offer? The current range is: MIG/MAG 40 – 200 A, TIG Lift 10 – 200 A, MMA 10 – 170 A.
• What wires and spools does it support? The model supports wires with diameters of 0,6 / 0,8 / 0,9 / 1,0 / 1,2 mm and spools weighing up to 5 kg.
• Does the display show the actual parameters during operation? Yes. During welding, the display shows the actual operating parameters, which facilitates ongoing control of settings.

⏩SUMMARY

MAGNUM MIG 220 Alu / Cu Synergy 4x4 is a modern welding machine for users who are looking for a functional and versatile semi-automatic with 230 V power supply, synergy and support for MIG/MAG, MMA and TIG Lift methods. It is a model created for people who want to work comfortably, set parameters faster and have greater freedom of action in everyday work.

The device will work well wherever the possibility of welding steel, stainless steel and aluminum, soldering and working without gas counts. Thanks to the combination of a wide range of functions, intuitive operation, stable 4x4 feeder and practical solutions, it is equipment that defends its value with real capabilities, not just the name of the model.

• Power Supply: 230V 1ph
• Welding methods: MIG, MAG, MMA, TIG Lift, FLUX
• Maximum welding current: 200A (MIG/MAG) 170A (MMA/TIG)
• Color LCD Display: YES
• Rated duty cycle: 60%
• Maximum power consumption: 6,4 kVA
• Network Security: 20A
• Degree of protection: IP21S
• Net weight: 10,4kg

MIG/MAG welding parameters

• Welding Current: 40-200A
• Welding voltage: smooth adjustment,
• Wire feed - smooth adjustment,
• Wire diameter: 0,6 / 0,8 / 1,0 mm
• Wire spool weight: max. 5kg D100, D200
• Wire feeder: profi 4R

Synergistic MIG/MAG programs:

• Full synergy: YES
• Available programs: Fe, Ss, Al/MG5 Al/Si, FCAW-S, CuSi CuAl
• Wire Diameter Selection: YES
• Selection of shielding gas: YES
• Choice of thickness of welded material: YES
• Correction to Synergistic Programs: YES

Additional MIG/MAG functions

• Welding inductance adjustment: YES, smooth
• Operating Modes: 2bar, 4bar - 2T/4T
• Burn Back - wire burn time adjustment: YES
• MIG/MAG polarity change: YES
• Working with SPOOL GUN handle - YES

TIG welding parameters*

• Welding Current: 10-200A
• Adjustment: smooth
• Arch Initiation: TIG Lift
• Output current DC

*requires purchase of handle with valve

MMA welding parameters

• Welding Current: 10-170A
• Adjustment: smooth
• MMA Synergy: YES

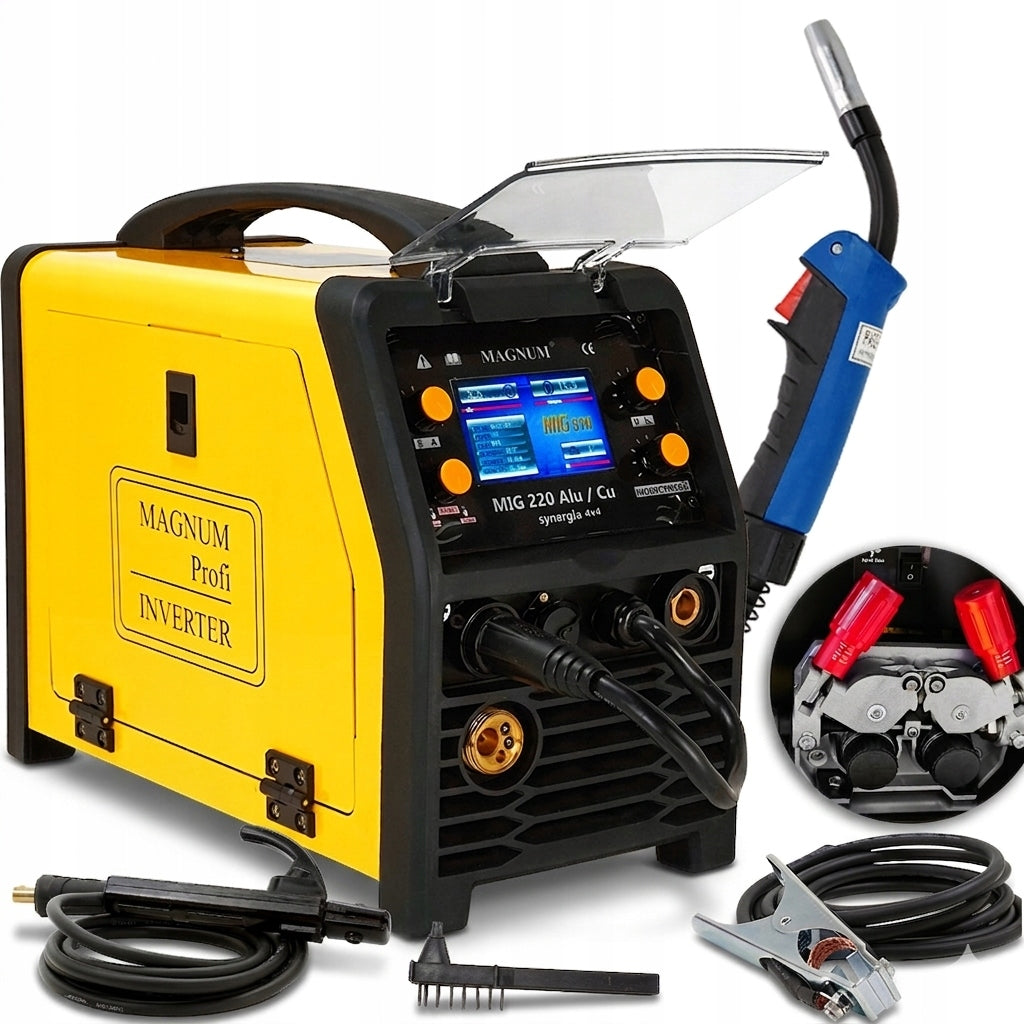

• Device Magnum MIG 220 Alu/Cu Synergy LCD 4x4
• Welding torch MIG MB 15 3m
• MMA electrode holder
• Mass cable
• User manual in Polish

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Power consumption	6.4 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,8-1,2
Parametry	Device weight	10.4 kg
Parametry	Product weight with unit packaging	15 kg
Parametry	Manufacturer code	WELDEXPERT MIG 220 ALU 4X4
Parametry	EAN (GTIN)	5905323125230
Parametry	Model	WELDEXPERT MIG 220 ALU 4X4
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO handle,LCD display
