Suvirinimo aparatas MAGNUM MIG 220 ALU Cu SYNERGY su skydeliu, balionu ir viela

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 220 ALU Cu SYNERGY su skydeliu, balionu ir viela. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: U MI 220AL CU

MIG/MAG, TIG DC Lift, MMA, FLUX| Power supply: 230V | LCD display, CuSi3 soldering | Manufacturer: Magnum

NOTE ⚠ When choosing this set, you bet on a set ready to work - FULL EQUIPMENT

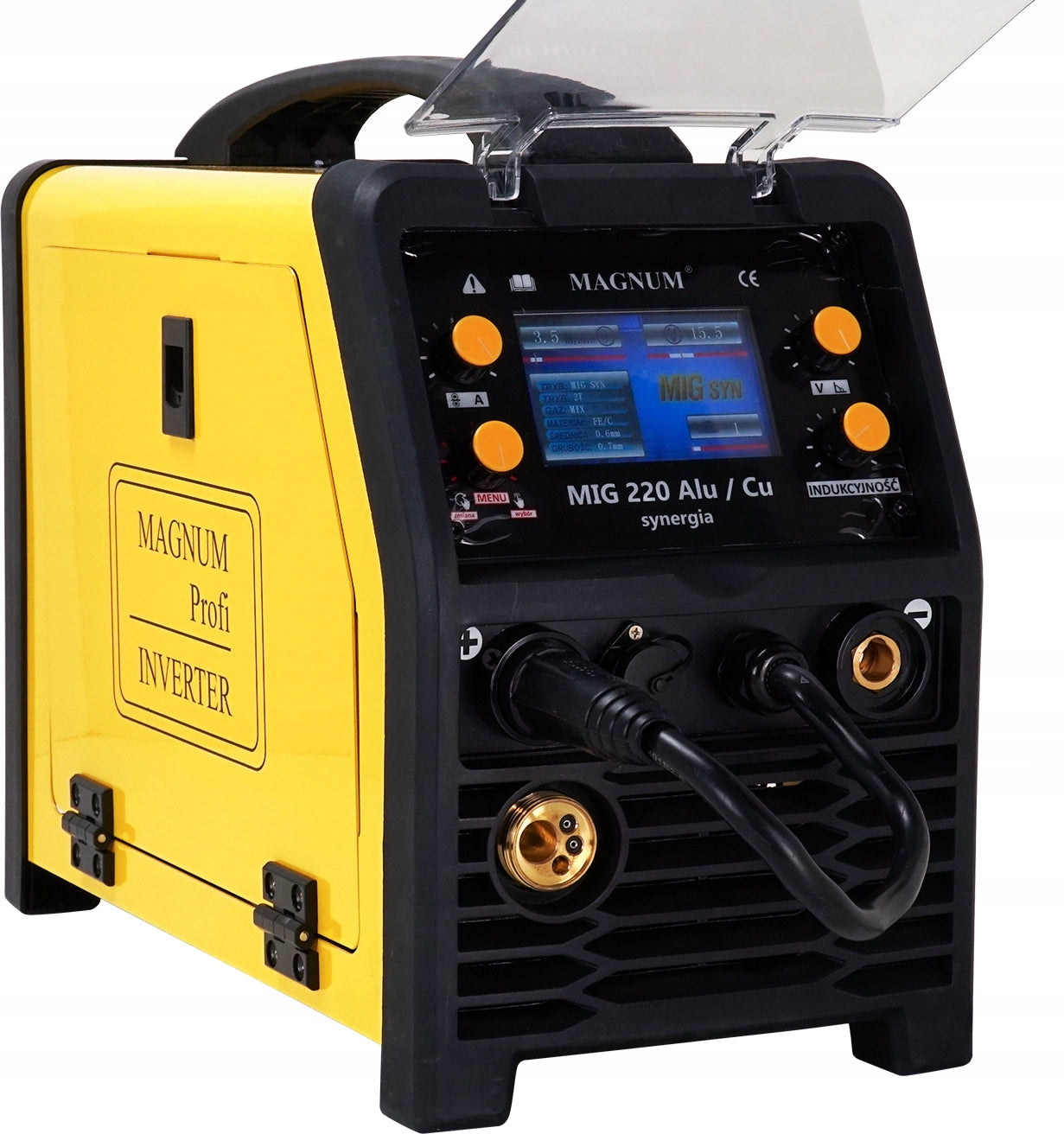

⏩Welder Magnum MIG 220 Alu Cu Synergy

MAGNUM MIG 220 Alu / Cu Synergy is a modern, inverter welding machine designed for users who expect one device for many applications. The model allows you to work with MIG/MAG, MMA, TIG Lift, soldering and welding aluminum, making it suitable for both workshop, garage, locksmith and repair work, as well as light service applications. This equipment is designed for people who value a wide range of possibilities, convenient operation and stable operating parameters.

One of the biggest advantages of this model is the combination of synergy functions with the ability to manually adjust settings. In practice, this means a faster start for less experienced users and more control for those who want to precisely match the nature of the arc to the type of material and their own welding technique.

⏩THE MOST IMPORTANT ADVANTAGES

• MIG/MAG, MMA, TIG Lift and soldering in one device
• synergistic programs for steel, stainless steel, aluminium, core wires, CuSi and CuAl
• easy-to-read LCD screen and intuitive menu
• 230 V power supply
• Inductance regulation, 2T/4T and Burn Back
• Spool Gun support
• the ability to work without gas
• IGBT inverter technology
• MIG/MAG current 40 – 200 A, TIG Lift 10 – 200 A, MMA 10 – 170 A

⏩WHY THIS MODEL IS WORTH BUYING

In the case of this welding machine, the customer does not only buy the device itself, but above all, the convenience of work and time saving. Synergistic mode speeds up parameter setting, and a wide range of methods means that the equipment is not limited to one technology. It is a good choice for people who want to buy a specific Magnum model and have more flexibility than in basic migomats.

In addition, the device offers features that really improve the comfort of use: manual parameter correction, inductance adjustment, 2T/4T, Arc Force in MMA, Burn Back and the ability to work with Spool Gun. This makes it a model that defends the price with a function, not the logo itself.

⏩APPLICATION

• Welding machine will be a good choice for: locksmith and repair workshops
• home users who want to enter a level higher than a simple migomat
• people working with steel, stainless steel and aluminium
• customers who also want MMA and TIG DC Lift in one device
• users expecting a clear panel and a simple start of work

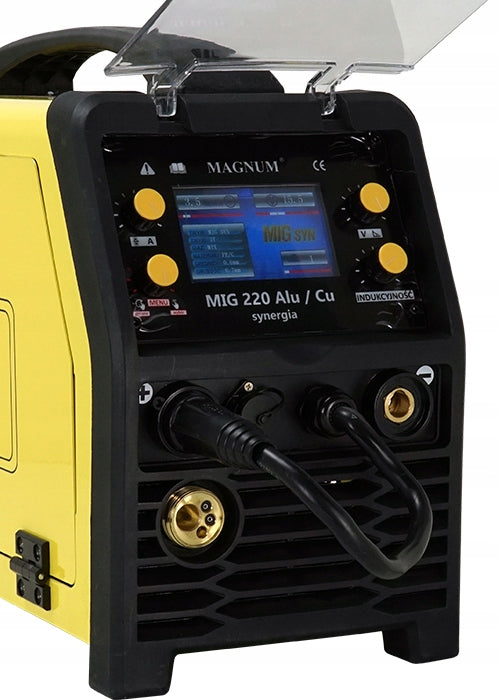

⏩LCD panel and intuitive menu

The device is equipped with a clear LCD display and an ergonomic control system based on three function knobs and one knob with a button function to operate the menu.

Individual components allow convenient adjustment of key parameters such as wire feed speed or current, welding voltage or Arc Force, as well as inductance.

This solution provides a clear and intuitive operation, definitely more comfortable compared to devices equipped with a limited number of undescribed regulators.

⏩Hint system for the user

• after selecting Synergy - the system suggests how to connect welding wires,
• The interface displays suggested ranges of optimal voltage values, wire feed and welding inductance.

⏩MIG SYN — synergistic programs - After selecting the material, wire diameter, gas and thickness of the element, the device selects the optimal operating parameters. This reduces preparation time and helps to achieve a repetitive effect even for less experienced users.

⏩MIG MAN - full manual settings - Manual mode is available for more demanding users. It allows you to set the wire feed speed, voltage and inductance yourself, without relying solely on synergy.

⏩Manual correction in synergistic mode - Synergy does not block the user. After automatic selection of parameters, they can still be manually refined to match the nature of the arch to the style of work and material.

⏩2T / 4T - For shorter jobs, 2T mode is convenient, and for longer welds 4T improves comfort and reduces hand fatigue.

⏩Inductance adjustment - Allows you to change the character of the arc – from softer, wider and calmer to more focused and dynamic. This is an important feature for weld quality and splash reduction.

⏩Voltage and speed adjustment of the wire - The user has control over the voltage and feeding of the wire, which allows you to tune the melt, arc length and behavior of the welding machine in different working positions.

⏩Burn Back - The wire burn adjustment function facilitates further glow and improves the work culture after the weld is completed.

⏩Spool Gun - The device supports the optional Spool Gun handle, which increases the convenience of working especially with aluminum.

⏩CuSi / CuAl welding - A useful feature for thinner components and applications where less material overheating is important.

⏩Core wire and gas-free operation - The welder works with self-shielding wire, which gives you more flexibility where you do not want to work with shielding gas.

⏩MMA with synergistic support - After selecting the electrode and material, the device helps to select operating parameters, but still leaves the user the possibility of manual correction.

⏩Arc Force in MMA - Improves arc stability when welding with a wrapped electrode and increases control over the operation of the device.

⏩TIG DC Lift - The device also allows TIG DC Lift operation using an optional TIG handle with a gas valve. This is a practical extension of functionality without buying a second welding machine.

⏩Professional wire feeder

The use of a high-quality, 2-roll wire feeder ensures smooth and stable feeding to the welding torch. This solution translates into precise control of the welding process and maintaining stable operating parameters.

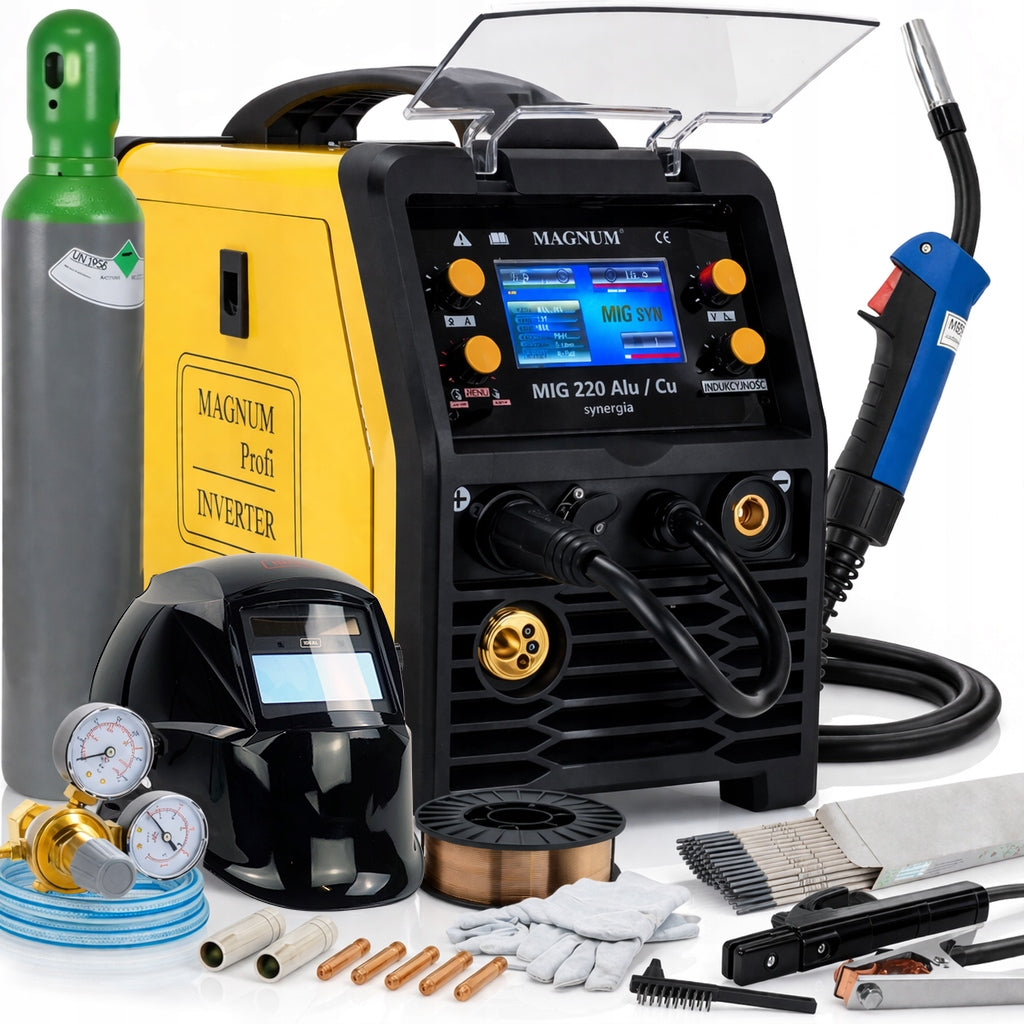

⏩INCLUDED:

• Device Magnum MIG 220 Alu/Cu Synergy LCD
• Welding torch MIG MB 15 3m
• MMA electrode holder
• Mass cable
• User manual in Polish

⏩MAG WELDING KIT WITH 8L CYLINDER

• Ar/CO2 8l cylinder - certified, has all the necessary approvals for the Ar/CO2 MIX mixture.
• Ar/CO2 reducer with two clocks + gas line,
• SG2 steel welding wire D200 0,8mm x 5kg,
• welding gloves,
• burner part starter kit.

PACK OF 1KG ELECTRODES FOR WELDING MMA

• Filter type: Automatic (self-tinting)
• Filter model: 510G
• Field of view: 96x39 mm
• Number of Sensors: 2
• Darkening: DIN 9-13
• Response time: 1/30 000s
• Optical class: 1/1/1/2
• Brightening time adjustment: 0,1 - 1,0 [s] smooth
• UV/IR protection: up to DIN 16
• Darkening in bright condition: DIN 4
• MIG/MAG/MMA welding: YES
• TIG welding: Yes, above 10A
• Photovoltaic cell + battery 1xCR2032
• Weight: 475g

⏩WHAT THE BUYER GAINS

The buyer gets a new MAGNUM welding machine with the features they are really looking for when choosing a modern semi-automatic for a workshop, garage or service. Here he pays not only for the name of the model, but for a wide range of work: MIG/MAG with synergy, MMA, TIG Lift, the possibility of welding aluminum, soldering and working with core wire. A big advantage of this model is also a clear LCD screen, intuitive menus and IGBT technology, thanks to which the device is convenient to use even for less experienced users.

⏩Frequently Asked Questions

• Does this welding machine have synergy? Yes. In MIG SYN mode, the user selects the material, wire diameter, gas, 2T/4T and material thickness, and the device selects the remaining operating parameters.
• Can everything be set manually? Yes. MIG MAN mode gives full manual adjustment of wire feed speed, voltage and inductance.
• Is it suitable for aluminium? Yes. The model has programs for AlMg and AlSi, works on 100% argon and supports 1,0 and 1,2 mm wires.
• Can it be soldered? Yes. CuSi and CuAl programs for soldering are available.
• Does it work without gas? Yes. It supports FCAW-S core wires, and the manufacturer gives the possibility of welding without gas.
• Do I need to change the polarity? Yes, depending on the method used and the type of wire. With self-shielding wire, you need to set the correct polarity.
• Does this model have TIG HF? No. This model supports TIG Lift, i.e. glow by rubbing, not non-contact HF.
• Is the TIG handle included? This is not due to the basic set. For TIG Lift you need an optional TIG handle with gas valve.
• Can I connect Spool Gun? Yes, the model supports Spool Gun, but the handle itself is not part of the kit.
• Does the Spool Gun work with every handle? Not always. The manufacturer points out that you may need to check and possibly synchronize in an authorized service center.
• Does the device have MMA and Arc Force? Yes. The welder works using the MMA method and allows you to adjust the Arc Force from the panel.
• Is it suitable for beginners? Yes. Synergy and LCD make it much easier to start, but the device also gives manual settings for more advanced.
• What power supply does it run on? 230 V / 50 Hz. The manufacturer indicates the maximum power consumption of 6,4 kVA and the required protection of 20 A.
• What range of current does it offer? MIG/MAG 40-200 A, TIG Lift 10-200 A, MMA 10-170 A.
• What wires and spools does it support? Wires 0,6 / 0,8 / 0,9 / 1,0 / 1,2 mm and spools up to 5 kg.
• Does the display show real parameters during operation? Yes. The instruction indicates that during welding the display shows the actual parameters.

⏩SUMMARY

MAGNUM MIG 220 Alu / Cu Synergy is a welding machine for users who are looking for a functional, modern semi-automatic with 230 V power supply, synergy, MIG/MAG, MMA and TIG Lift. This equipment is for people who want to work comfortably, quickly set parameters, have the ability to weld aluminum, solder and work without gas

• Power Supply: 230V 1ph
• Welding methods: MIG, MAG, MMA, TIG Lift, FLUX
• Maximum welding current: 200A (MIG/MAG) 170A (MMA/TIG)
• Color LCD Display: YES
• Rated duty cycle: 60%
• Maximum power consumption: 6,4 kVA
• Network Security: 20A
• Degree of protection: IP21S
• Net weight: 10,4kg

MIG/MAG welding parameters

• Welding Current: 40-200A
• Welding voltage: smooth adjustment,
• Wire feed - smooth adjustment,
• Wire diameter: 0,6 / 0,8 / 1,0 mm
• Wire spool weight: max. 5kg D100, D200
• Wire feeder: profi 2R

Synergistic MIG/MAG programs:

• Full synergy: YES
• Available programs: Fe, Ss, Al/MG5 Al/Si, FCAW-S, CuSi CuAl
• Wire Diameter Selection: YES
• Selection of shielding gas: YES
• Choice of thickness of welded material: YES
• Correction to Synergistic Programs: YES

Additional MIG/MAG functions

• Welding inductance adjustment: YES, smooth
• Operating Modes: 2bar, 4bar - 2T/4T
• Burn Back - wire burn time adjustment: YES
• MIG/MAG polarity change: YES
• Working with SPOOL GUN handle - YES

TIG welding parameters*

• Welding Current: 10-200A
• Adjustment: smooth
• Arch Initiation: TIG Lift
• Output current DC

*requires purchase of handle with valve

MMA welding parameters

• Welding Current: 10-170A
• Adjustment: smooth
• MMA Synergy: YES

Choose a brand whose history dates back to the beginning of the twenty-first century. Magnum is the leading brand of welding equipment in Poland.

A wide range of Magnum devices meets the needs of not only novice users, but also more advanced ones. Depending on the selected model, it can be dedicated to workshop applications as well as for heavy industry.

Customers choose the Magnum brand most often due to its high quality, affordable price and reliability.
