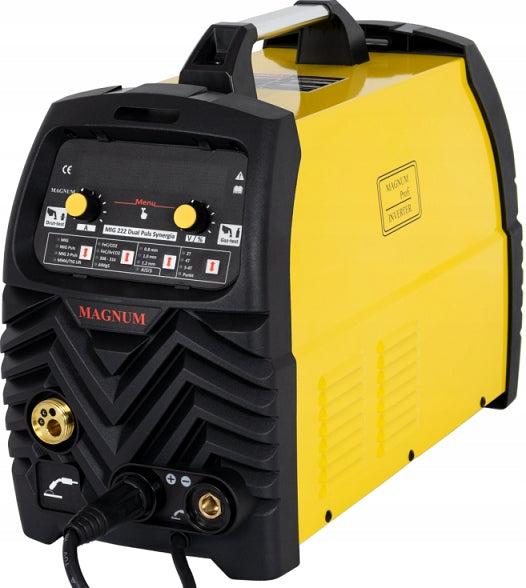

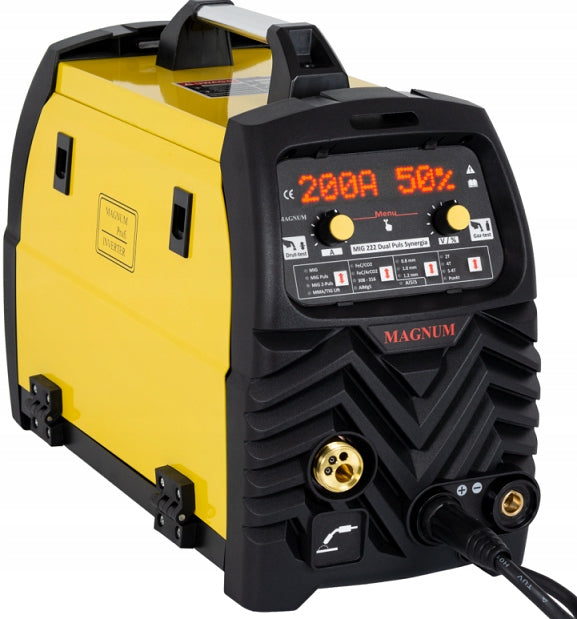

Suvirinimo aparatas MAGNUM MIG 222 Dual Pulse 3in1, MMA, TIG Lift

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 222 Dual Pulse 3in1, MMA, TIG Lift. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIG 222 DUAL PULS SYNERGIA
• Ilgis: 500 mm
• Plotis: 240 mm
• Aukštis: 400 mm

• full free post-purchase support
• You can call us at any time and we will help you set the parameters and operate the device

One of the best models available on the market for welding. Thousands of units sold, 0 complaints.

The company MAGNUM specializes in welding, which is why welding machines of this company are characterized by the highest quality that distinguishes them from the competition.

The MAGNUM MIG 222 DUAL PULS SYNERGIA is a lightweight portable semi-automatic welding machine powered from a single-phase 230 V network with a maximum welding current of 200 A. The welding machine is designed for welding materials made of stainless steel and aluminum as well as low-carbon steels, low-alloy steels and high-alloy steels. Perfect for welding aluminum, stainless steel and soldering CuSi3 and CuAl8!

The device was made in inverter technology with an MCU microcontroller (integrated microprocessor system). The welder is equipped with a large easy-to-read LED display and an intuitive, easy-to-use control panel, which allows you to quickly set all the most important welding parameters. Migomat has the function of single and double PULSE, synergistic control.

Functions and advantages:

• single and double PULS
• Soldering CuSi3 and CuAl8
• programs for black, stainless and acid-resistant steel
• 35 memory channels
• function SYNERGY
• self-shielding wire welding
• MMA welding + CELLULOSE function
• MMA functions: VRD, HOT START, ARC FORCE
• TIG LIFT welding
• Additional Features: 2T, 4T, S-4T, SPOT, CPOT
• wide range of parameter adjustment

Built-in two-roll feeder, ensures stable feeding of welding wire. Ease of use and advanced welding options make the MIG 200KN an ideal device for both industrial plants and workshops.

FUNCTIONS FOR EASY WELDING:

• - Inductance - optimizes arc characteristics depending on the thickness of the welded material. This function is useful when welding thin elements using the MIG/MAG method - it prevents them from burning out (the thinner the inductance element should be greater). Inductance affects the shape of the weld, its width, depth of melting and the number of splashes,
• - Two-bar 2t - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow
• - Four-point 4t - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow
• - S-4T - special four-bar with HOT Start and end current (crater filling),
• - Synergy - automatically selects welding parameters, when adjusting the voltage, the wire feed speed is selected automatically,
• - PULS/DUAL PULS - synergistic welding functions with single or double pulse, thanks to which it is possible to obtain high-quality welds similar to the TIG method (husk effect). The PULS function is helpful in welding any weldable materials, especially those made of stainless steel (PULS function) and aluminum (DUAL PULS function),
• - Memory -the user can save and recall any settings,
• - Point - spot welding (adjustable welding time),

WELDING METHODS AVAILABLE:

• - MIG - synergistic settings,
• - MIG PULS - synergistic settings with a single pulse,
• - MIG 2-PULS - dual pulse synergic settings,
• - TIG LIFT DC - TIG LIFT / TIG LIFT welding with pulse,
• - MMA - welding with wrapped electrodes (rutile, alkaline, acidic).

TECHNICAL DATA:

• - Power supply: AC 230 [V], 50 [Hz],
• - Protection required: 20 [A] class C
• - Efficiency: 60 [%]
• - MIG/MAG welding current: 50 - 200 [A]
• - MIG/MAG welding voltage: 16,5 - 24 [V]
• - MMA welding current: 20 - 200 [A]
• - Idle voltage: 64 [V]
• - Wire spool diameter: 200 [mm]
• - Wire spool weight: max: 5 [kg]
• - Wire diameter: 0,8/1,0/1,2 [mm]
• - Housing protection class: IP23S
• - Weight: 12 [kg]

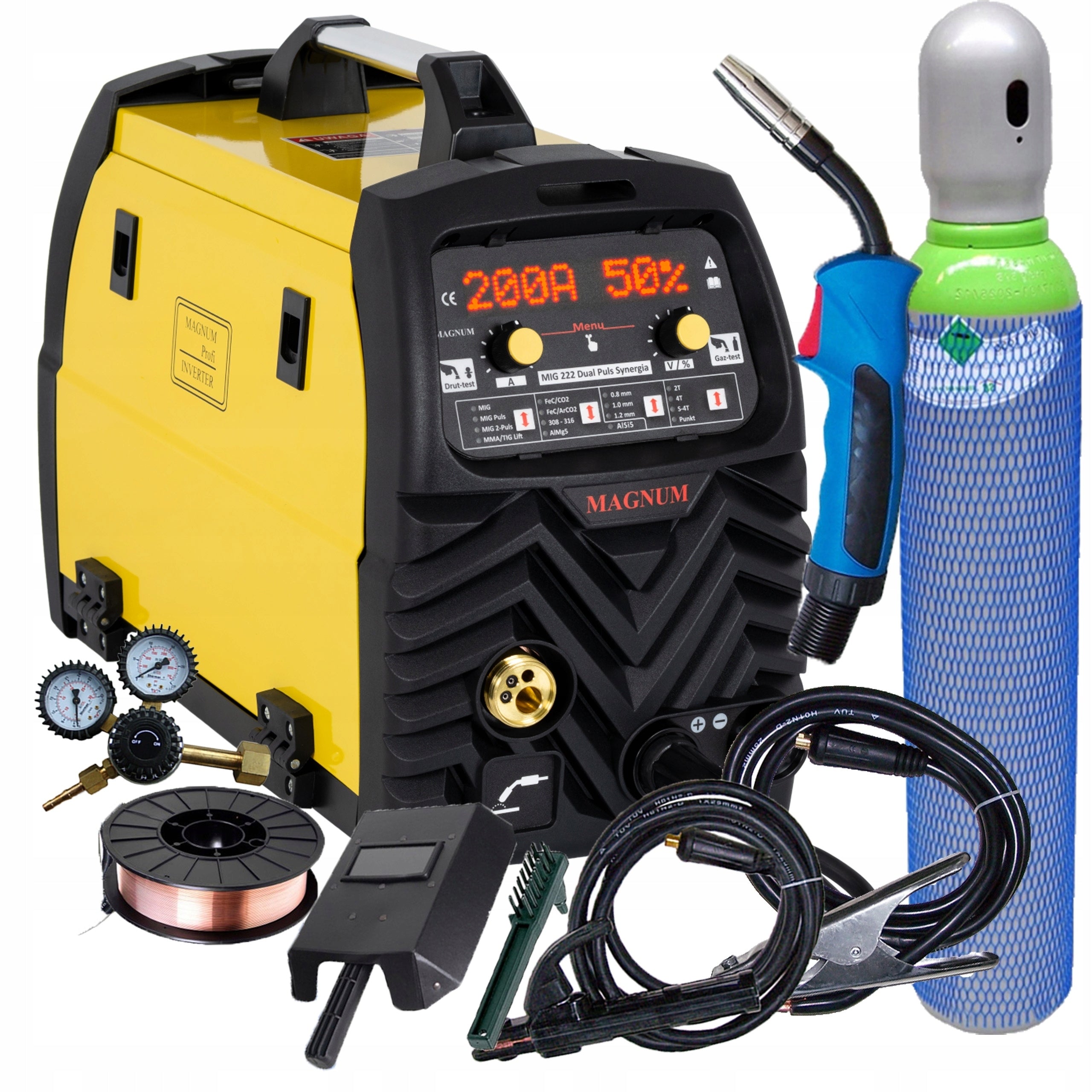

• MIG 222 DUAL PULS SYNERGY,
• MIG/MAG MB24 3m holder,
• Rollers steel 0.8/1.0 and 1.0/1.2
• Electrode holder,
• Bulk holder,
• Co2/Argon cylinder
• Co2/Argon reducer
• Welding wire 0.8/5kg
• Consumable parts for MIG holder
• Operating instructions.

Specifications
