Aprašymas
Trumpai apie prekę
Prekė: Suvirinimo aparatas Magnum MIG 222DP Synergy su LCD ekranu. Kategorija: Inverteriniai suvirinimo aparatai.
- Gamintojas: Magnum
- Modelis: U MI 222 DP LCD

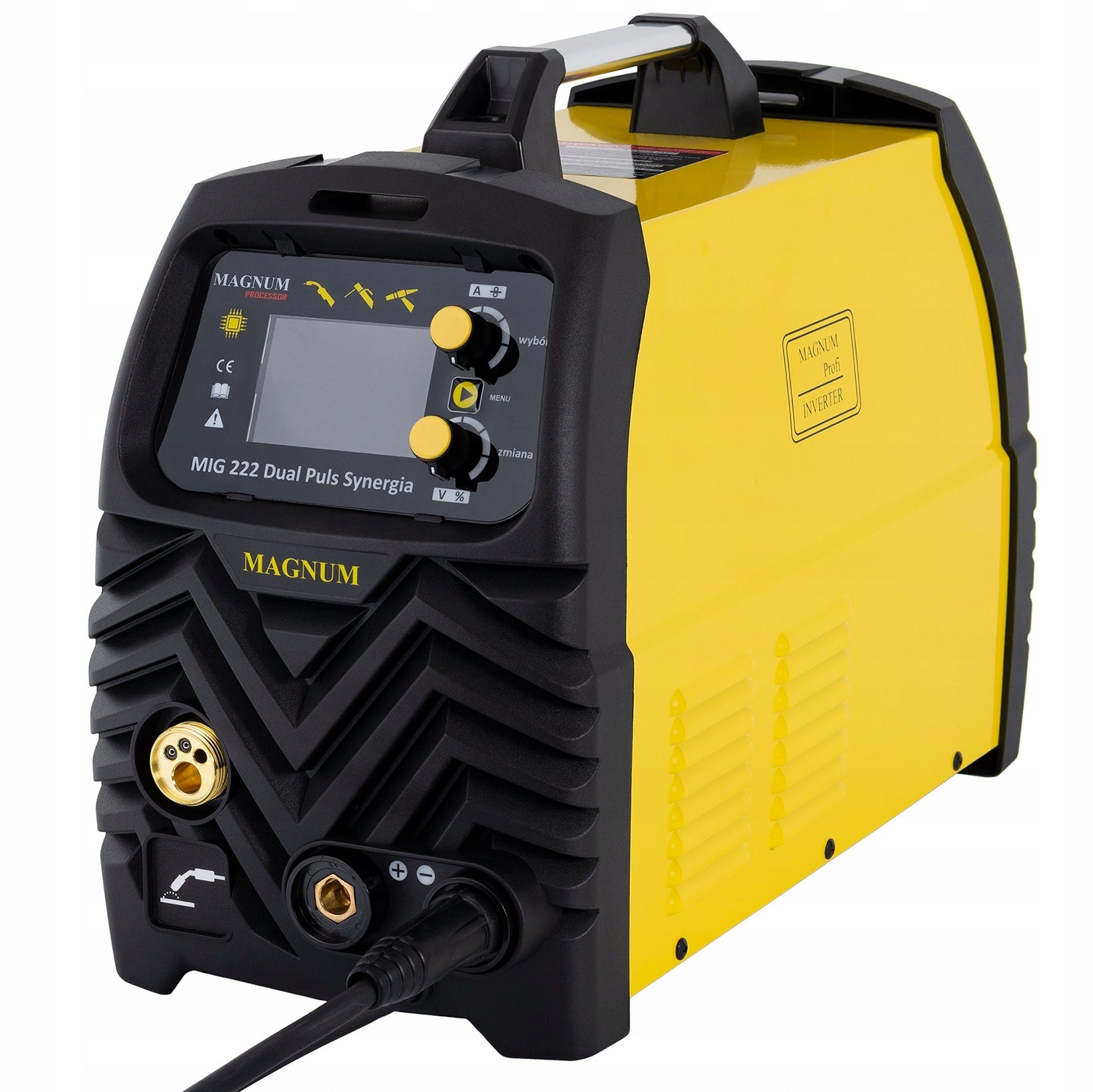

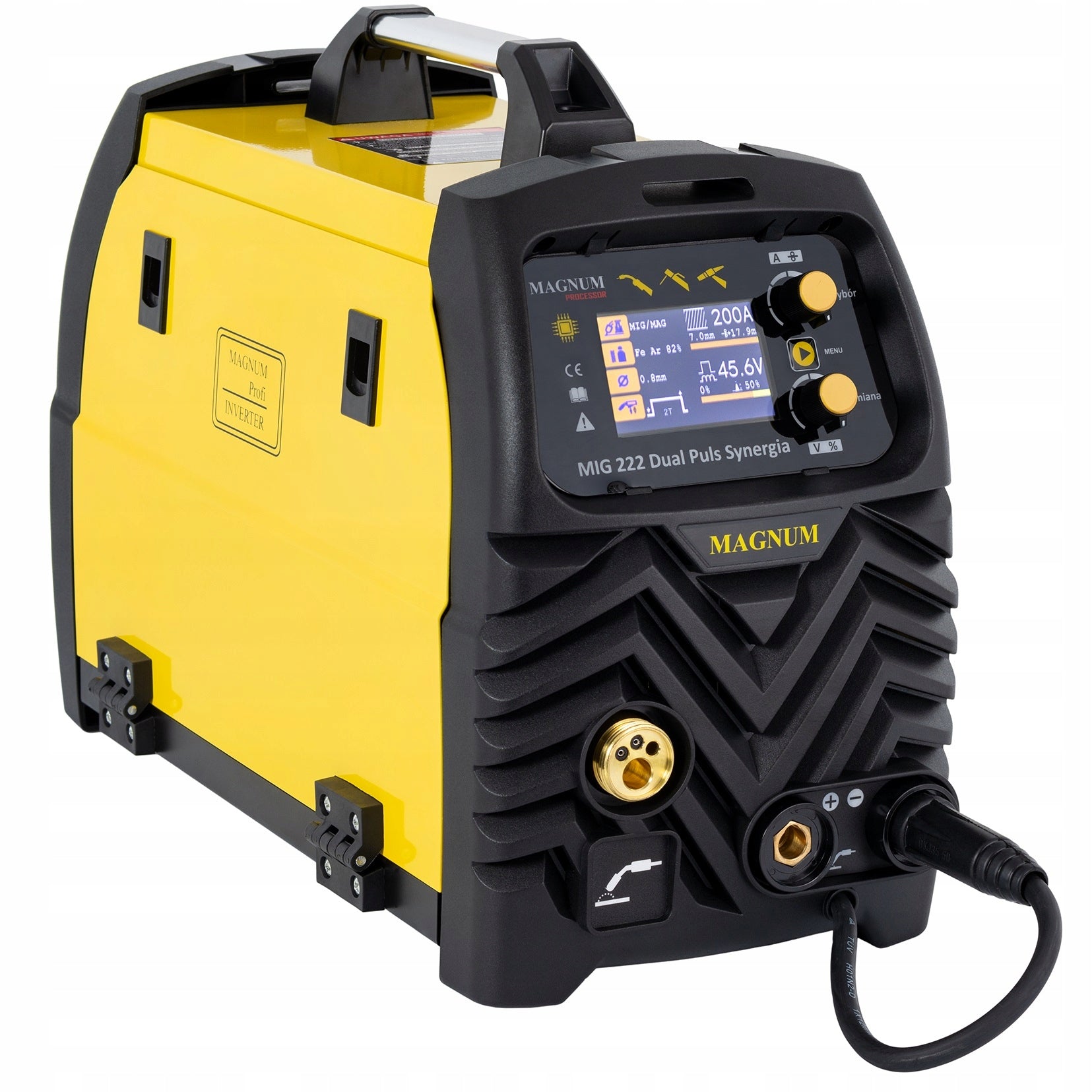

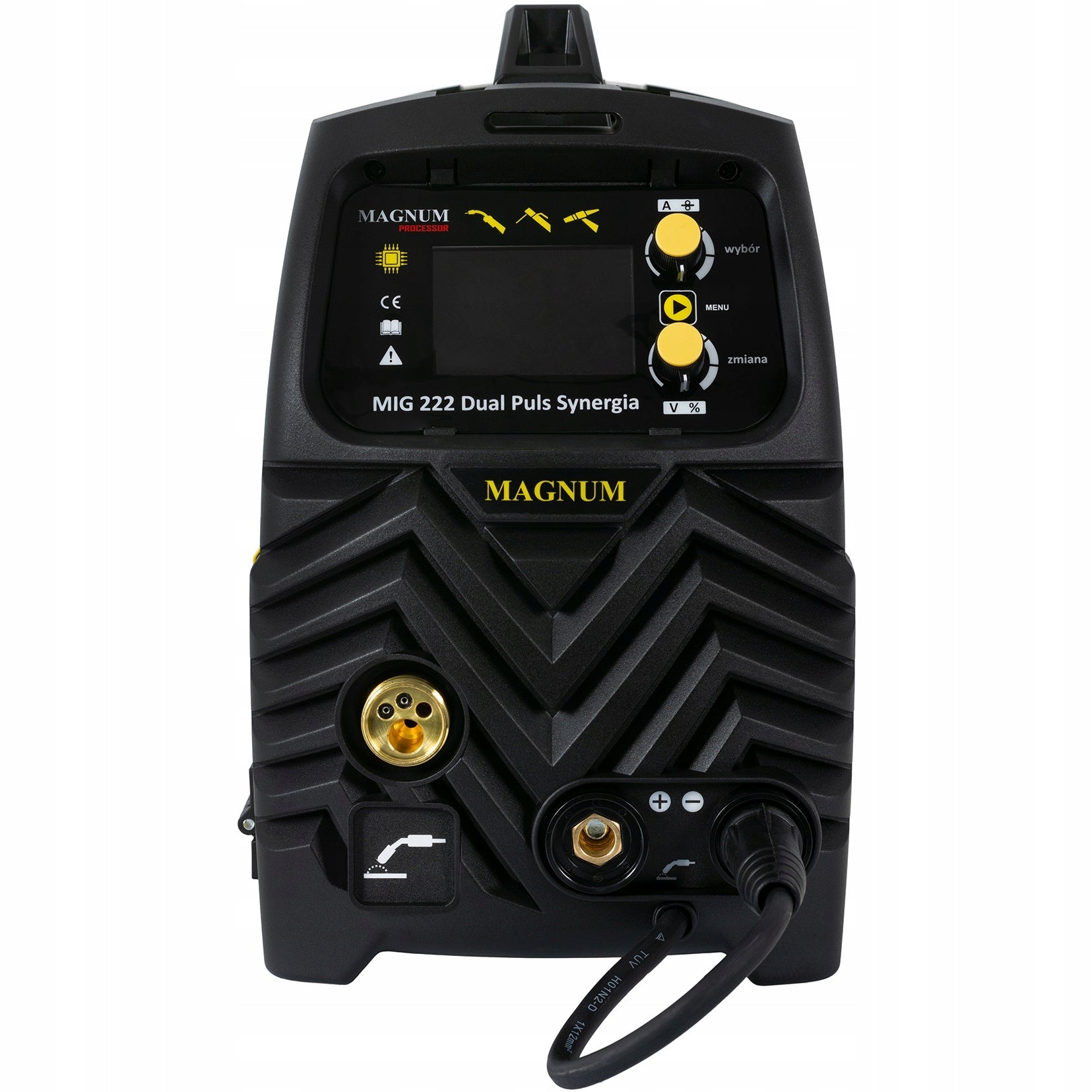

The device Magnum MIG 222 DUAL PULS SYNERGY LCD is a professional portable semi-automatic welding machine powered from a single-phase network 230 V with a maximum welding current of 200 A. The welding machine is designed for welding materials made of stainless steel and aluminum as well as low-carbon steels, low-alloy steels and high-alloy steels.
Perfect for welding aluminum and stainless steel!
Offered device made in inverter technology with microcontroller MCU (integrated microprocessor system). It features a large easy-to-read LCD display and an intuitive, easy-to-use control panel that allows you to quickly set all the most important welding parameters. The welder has a single and double PULSE function and synergistic control.
The power source was built on the basis of the latest technology using IGBT transistors, which translates into reduced electromagnetic interference, low power losses, increased efficiency and reliability of the power source and significantly reduced energy consumption.
The design and software combined with digital control, enables you to achieve excellent welding parameters and achieve high-quality welded joints. The device has smooth adjustments of welding parameters, is equipped with an overload thermal protection system, preventing excessive overheating. The welder is equipped with a 2-roll wire feeder with a socket "euro connector" allows you to connect different types of welding brackets.
The welding machine is characterized by a wide range of applications, it is dedicated to all kinds of welding work in households, locksmith workshops, repair workshops, etc.
Available welding methods:
- MIG - synergistic settings
- MIG PULS - synergistic settings with single pulse
- MIG TWIN-PULS - synergistic settings with double pulse
- TIG LIFT - TIG LIFT / TIG LIFT welding with pulse
- MMA - welding with wrapped electrodes (rutile, alkaline, acidic)
Functions and advantages:
✅lutowelding CuSi3 in single and double PULSE
✅single and double PULSE
✅ function SYNERGY
✅programs for aluminium, stainless steel, black steel
✅35 memory channels
✅welding MMA + CELLULOSE, TIG LIFT, TIG LIFT PULS, cyclic point, continuous point
✅additional functions VRD, HOT START, ARC FORCE, 2T, S2T, 4T, S4T
TECHNICAL DATA:
- Power supply: AC 230 [V] / 50/60 [Hz]
- MIG/MAG welding current: 45 - 200 [A]
- MIG/MAG welding voltage: 15,5 - 24 [V]
- MMA/TIG welding current: 20/10 - 180 [A]
- Idle voltage: 64 [V]
- Power protection: 20 [A], class C
- Efficiency: 60 [%]
- Wire diameters: 0.8/ 1.0/ 1.2 [mm]
- Cooling: fan
- Housing protection class: IP21S
- Weight: 12 [kg]
SET INCLUDES:
➡ Welding device MAGNUM MIG 222 Dual Pulse Synergy,
➡ MIG/MAG working cable MB24 3 m,
➡ MMA working cable,
➡ Cable with mass clamp,
➡ Operating instructions.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Magnum |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Device weight | 12 kg |
| Parametry | Welding range | 45–200 A |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 16 kg |
| Parametry | Manufacturer code | U MI 222 DP LCD |
| Parametry | EAN (GTIN) | 5905323100312 |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle,LCD display |
