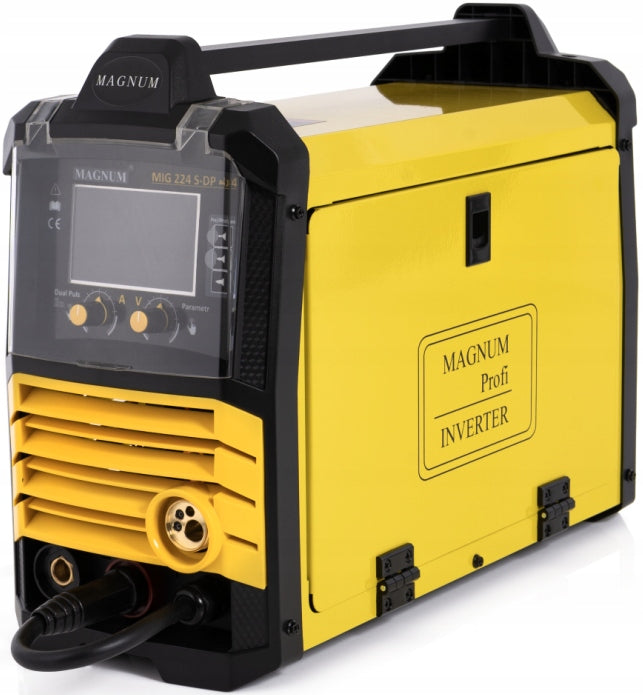

Suvirinimo aparatas MAGNUM MIG 224 S-DP, 200A, 230V, dvigubas pulsas, 4x4, sinerginis

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 224 S-DP, 200A, 230V, dvigubas pulsas, 4x4, sinerginis. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: 224 S-DP 4x4

➡ Compact semi-automatic pulse to aluminium version with 4-roll feeder ⬅ ⭐NEW 2026⭐

MAGNUM MIG 224 S-DP 4X4 is a professional, technologically advanced semi-automatic welding machine designed for welding by:

➡ MIG/MAG:

Arc welding in gas shields (CO2 or Argon+CO2) is one of the most commonly used processes for the production of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the welding material (welding wire on a roll) with an electric arc produced between the welding wire fed by the handle and the welded material.

Available Modes:

• MIG PULS - synergistic settings with single pulse,
• MIG 2-PULS - synergistic settings with double pulse,
• MIG SYN - MIG/MAG welding with synergistic settings,
• FLUX / FCAW - self-shielding wire welding. This is a similar welding process as MIG/MAG but does not require a gas cylinder. On the wire there is a thin layer of powder, which at the time of arc formation produces gas covering the working area.

➡ TIG LIFT DC - welding with a non-melting electrode (tungsten) in an inert gas shield (Argon) using an additional handle. In the TIG DC Lift mode, the arc glow occurs when the electrode with the welded element is contacted (the button in the handle does not arc, the gas is connected directly from the reducer to the handle). In TIG Lift DC mode, the current is constant.

➡ MMA - classic welding with wrapped electrodes (rutile, alkaline, acidic).

The MAGNUM MIG 224 S-DP 4X4 welding machine is used for welding:

✔ low alloy steels (MMA, MIG/MAG, TIG Lift DC),

✔ low carbon steel (MMA, MIG/MAG, TIG Lift DC),

✔ alloy steels (MMA, MIG/MAG, TIG Lift DC),

✔ acid-resistant steels (MMA, MIG/MAG, TIG Lift DC),

✔ aluminium and its alloys (MIG),

✔ other weldable metals and alloys.

The device has been designed for all kinds of welding work in automotive, locksmith, repair, industrial workshops etc.

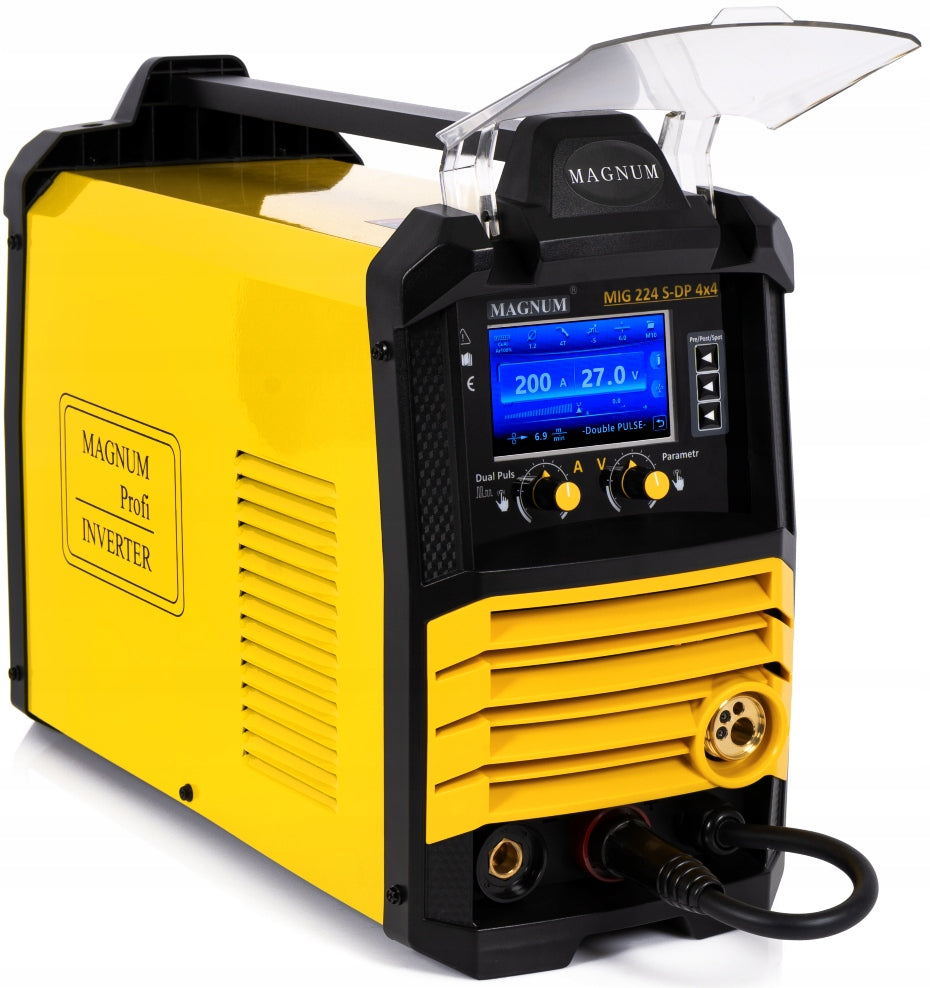

MAGNUM MIG 224 S-DP 4X4 has a readable and easy to use function panel, which has m.in.:

• Functional button, implementing different options depending on the welding method chosen,
• Test wire extension button for MIG/MAG method,
• Button return / input to the welding machine MENU,
• Welding current and wire feed speed adjustment knob,
• Voltage correction knob for MIG/MAG welding.

DISPLAY:

The display contains m.in.:

• Selection of synergistic program,
• Selection of welding wire diameter,
• Selection of 2T, 4T or SPOT (point welding),
• Selection of inductance regulation, scale: -5 0 +5,
• Indicator or selection of the approximate thickness of the welded material,
• Choosing a memory channel,
• Information about wire feed speed,
• Voltage correction value (arch length), scale -5 0 +5.

• ✔ REPAIR WORKSHOPS,
• ✔ AUTOMOTIVE INDUSTRY,
• ✔ LOCKSMITH WORKSHOPS,
• ✔ OF ALL BODYWORK REPAIRS,
• ✔ FACTORIES,
• ✔ FARMS,
• ✔ HOMEWORK,

AND WHEREVER RELIABILITY MATTERS!

✔ SYNERGY - is a very helpful feature available in professional welding equipment class PREMIUM. By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

✔ DUAL PULS - provides better transfer of the binder into the welded material, which fundamentally improves control over the welding process and the quality of the weld itself. It allows you to work in all positions and is especially useful for forced positions. It provides less heat impact, works well in the case of thinner materials or those with increased thermal conductivity, such as: aluminium alloys. Reduces the amount of chipping. The most advanced welding method, in which current pulses occur in two ranges, thanks to which we obtain the optimal aesthetics of the weld face, the so-called. husk effect.

✔ PULS - pulsed current welding, in which high and low current is alternately used. This reduces overall heat supply and splatter while providing greater resistance to non-melting. This method can be used to weld both metals with high thermal conductivity and thinner metals without burning them. Additionally, you can get narrower and more penetrating welds on thicker metals.

✔ SOLDERING - The device enables soldering, mainly used in the automotive industry to connect galvanized sheets together without burning the galvanized layer.

✔ WIRE TEST – a function that allows you to start the wire feeder itself without switching on the power source and solenoid valve (this function is used when introducing electrode wire into the welding torch).

✔ GAS TEST – a function that allows you to switch on the solenoid valve itself without switching on the power source and wire feeder (this function is used to determine the value of the shielding gas flow and check the patency of the gas circuit

✔ INDUCTANCE ADJUSTMENT - function is useful during welding using the MIG/MAG method of thin elements, preventing them from burning out and soldering galvanized elements. Changing the inductance value also reduces the amount of welding chips during CO2 shielded welding. Thanks to the inductance adjustment, the welding machine is suitable for lutowelding. Depending on the model of the welding machine, the adjustment is automatic or can be adjusted manually.

✔ SPOT WELDING - consists in making on a small area of joining materials of small thickness. Most often, spot welding of sheet metal is carried out. This procedure is also referred to as one-sided welding.

✔ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

✔ EUROCONNECTOR - allows you to quickly change the handle and allows you to change the polarity for welding with self-shielding wire.

✔ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow.

✔ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

✔ VRD - (Voltage Reduction Device) - reduces the resting voltage of the idle state on the electrode to a safe value. Provides shock safety when working in humid environments.

✔ ANTI-STICK - automatic shutdown of welding current in case of electrode sticking, which facilitates its removal.

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

The welder is equipped with a solid wire feeder, which guarantees stability and continuity of operation of the device.

The 4-roller feeder enables precise extension of the welding wire excluding its slippage.

The feeder has a quick wire change knob as well as a wire feed roller.

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

⏩ TECHNICAL DATA:

• Power supply network protection: 20A
• Rated supply voltage: 230 V 50/60 [Hz]

⏩ PARAMETERS OF THE DEVICE:

• Idle voltage: 60 V
• MIG/MAG welding current: 30 - 200 [A]
• Welding current MMA: 20 - 180 [A]
• MIG/MAG welding voltage: 14 - 25 [V]
• Maximum current: 200 A
• Efficiency: 60%
• Wire feeder: 4-ROLL
• Wire spool size: 0,45 - 5 kg
• Wire diameter: 0.6 / 0.8 / 0.9 / 1.0 / 1.2 mm

⏩ OTHER:

• Degree of protection: IP21S
• Weight of the device : 12 kg
• PULSE - YES
• DUAL PULSE - YES
• SYNERGY: YES
• LUTOWELDING: YES
• 2T/4T FUNCTION: YES
• INDUCTANCE: YES
• FLUX: YES
• TIG Lift: YES
• 2T/4T/SPOT: YES

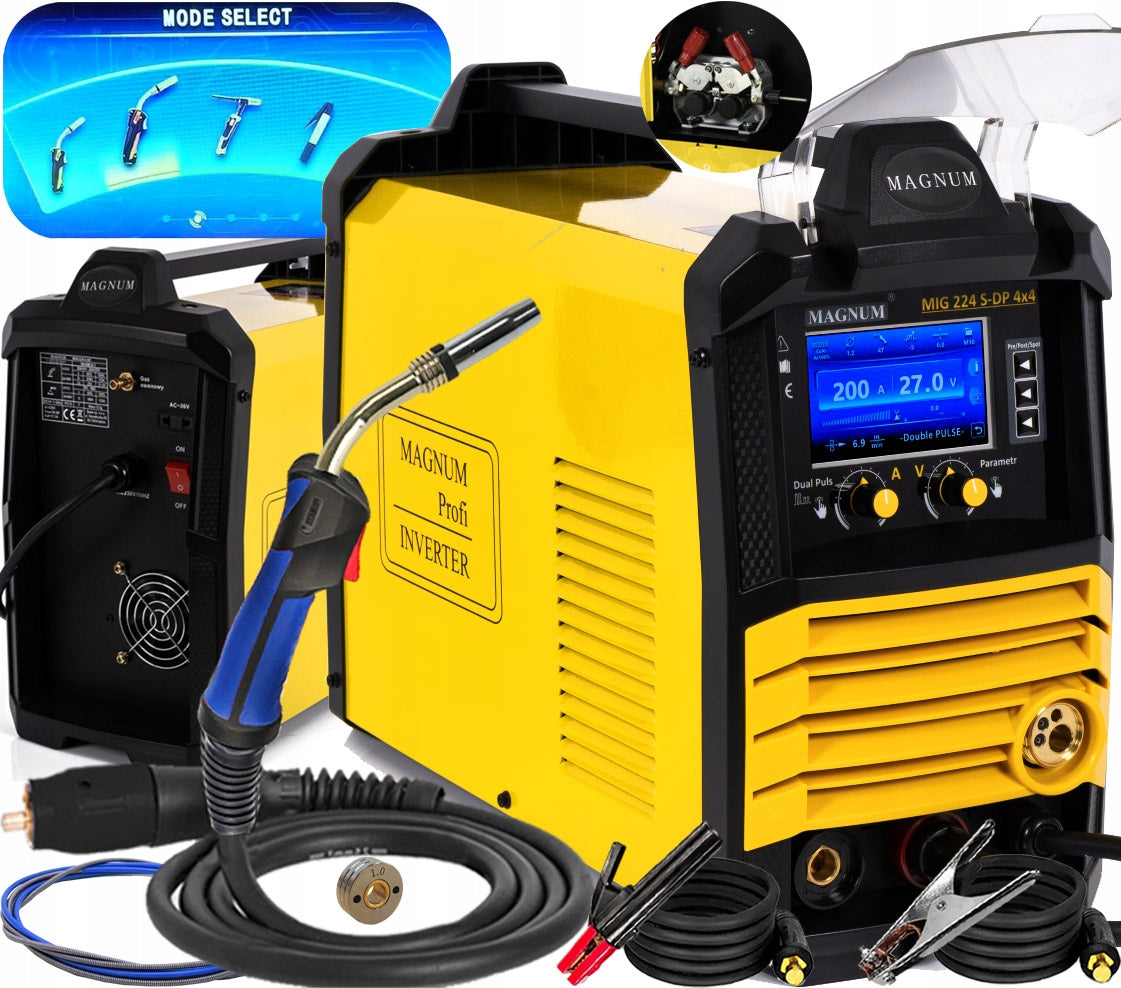

WHEN YOU BUY FROM US, YOU GET:

• INVERTER WELDING MACHINE MAGNUM MIG 224 S-DP 4x4 - 1 pc.
• WELDING CABLE MIG EURO MB24 WITH RED TEFLON GUIDE - 3 m - 1 pc.
• MMA ELECTRODE CABLE - 2 m - 1 pc.
• MASS CABLE - 2m - 1 pc.
• SET OF ROLLERS FOR STEEL AND ALUMINIUM - 1 set
• STEEL CHAIN, BLUE
• INSTRUCTION FOR USE
• WARRANTY CARD

SET OF 1 MIG INDUCTANCE MB24.

M.
