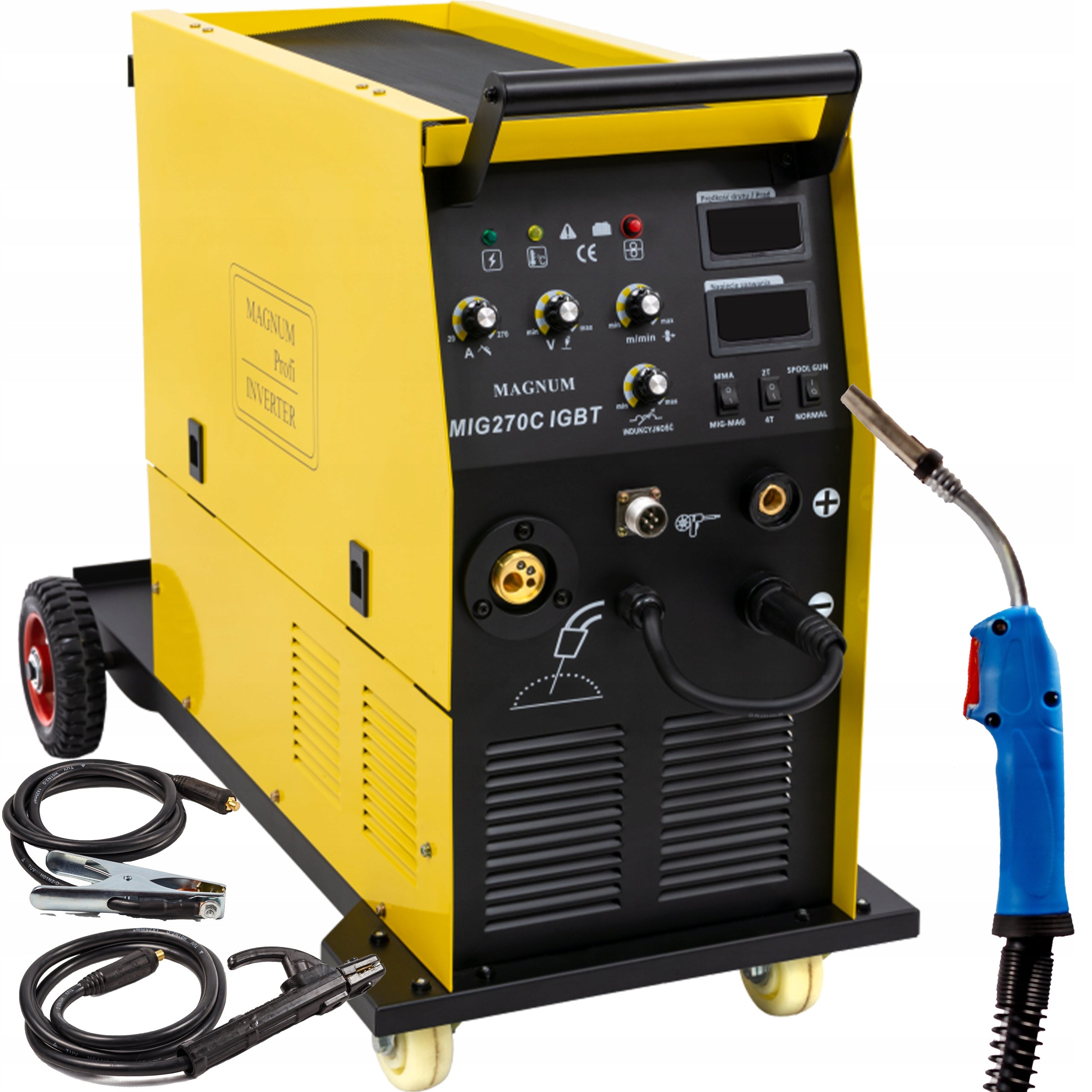

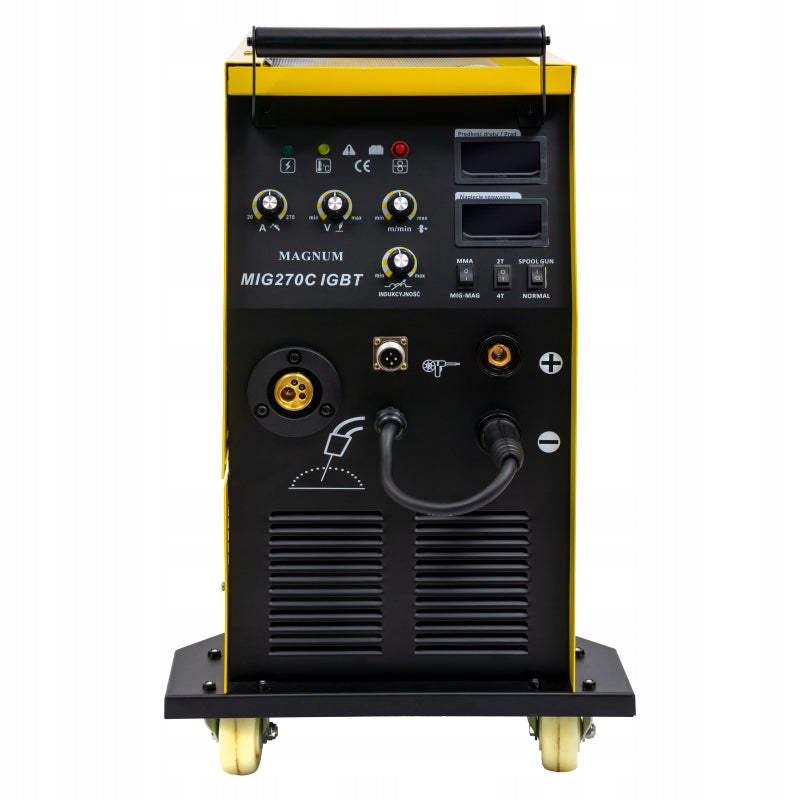

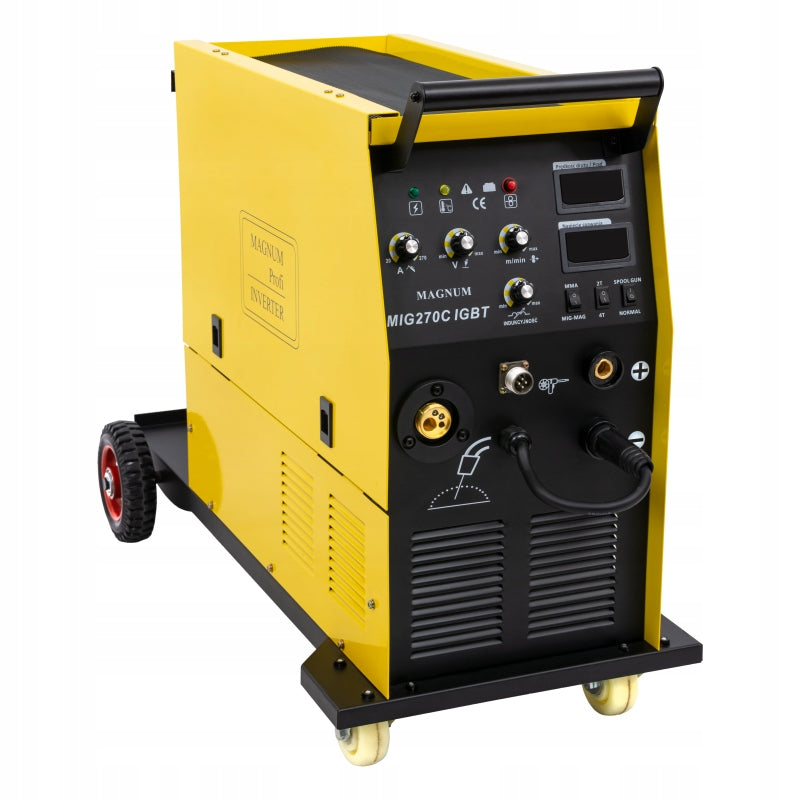

Suvirinimo aparatas MAGNUM MIG 270C IGBT, 270A, 400V, MIG/MAG, MMA, TIG, FCAW

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 270C IGBT, 270A, 400V, MIG/MAG, MMA, TIG, FCAW. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIG 270C

⚡ Welding current up to 270A

🔧 MIG/MAG + MMA + TIG LIFT + FCAW

🏭 400V power supply – industrial equipment

⚙ 4-roll wire feeder

MAGNUM MIG 270C IGBT is a professional semi-automatic welding machine designed for workshops and industrial plants. The device is powered from a three-phase 400V network and offers a maximum welding current of 270A, making it perfect for intensive production and construction work. 🔧

The welding machine allows welding by the following methods:

✔ MIG/MAG – electrode wire welding

✔ FCAW – self-shielding wire welding

✔ MMA – welding with wrapped electrode

✔ TIG LIFT – TIG welding after connecting TIG handle

The device allows you to weld various materials:

✔ carbon steel

✔ low alloy steel

✔ alloy steel

✔ aluminium and its alloys

The power source is based on modern IGBT transistors, which provide:

✔ stable welding arc

✔ less power loss

✔ greater efficiency of the device

✔ lower energy consumption

The high quality of the components used guarantees long and trouble-free operation of the device, even under intensive use in industry.

✔ welding current up to 270A

✔ MIG/MAG, MMA, TIG LIFT and FCAW welding

✔ professional 4-roll wire feeder

✔ support for wire spool up to 15 kg

✔ adjustment of arc inductance

✔ digital display of voltage and current

The welder has a smooth adjustment of welding parameters and a clear control panel.

Key features:

✔ adjustment of arc inductance

✔ function 2T / 4T

✔ possibility of welding without FCAW gas

✔ SPOOL GUN output

✔ professional wire feeder 4x4

Inductance adjustment allows you to control the characteristics of the arc and affects:

✔ weld width

✔ depth of melting

✔ number of splashes

The welder is designed to work in:

✔ locksmith workshops

✔ repair workshops

✔ production facilities

✔ factories

✔ construction companies

⭐ industrial migomat 270A

⭐ wire spool support 15 kg

⭐ 4-roller wire feeder

⭐ MIG/MAG, MMA and TIG LIFT welding capability

⭐ stable operation thanks to IGBT technology

• Power supply: AC 400 V / 50 Hz
• Protection Required: 25 A
• Max power consumption: 15 kVA
• Efficiency: 60 %
• MIG/MAG welding current: 50 – 270 A
• MIG/MAG welding voltage: 15 – 38 V
• MMA welding current: 20 – 270 A
• Idle Voltage: 59 V
• Wire spool diameter: 300 mm
• Wire spool weight: max 15 kg
• Wire diameter: 0,8 / 0,9 / 1,0 / 1,2 mm
• Housing Protection Class: IP21S
• Weight: 44 kg

✔ MIG 270C IGBT

✔ MIG/MAG MB24 handle – 5 m

✔ electrode holder

✔ mass cable with clamp

✔ instruction manual

✔ Peace of work – stable arc and protection against overheating.

✔ Time saving – smooth adjustment of parameters allows you to quickly adjust welding settings.

✔ Versatility – one device supports MIG/MAG, MMA, TIG LIFT and FCAW.

✔ Professional effect – regulation of inductance allows to obtain aesthetic and durable welds.

Does the welding machine allow welding without gas?

Yes – it supports FCAW self-shielding wire after polarity change.

What wire spool does the device support?

Up to 15 kg (300 mm spool).

Can TIG welding be done?

Yes – after connecting the TIG handle in TIG LIFT mode.

Is the welding machine suitable for industrial work?

Yes – 400V power supply and 270A current make it a device for intensive work.
