Suvirinimo aparatas Magnum MIG 278W MMA, 280A, aliuminiui, 4R 4x4

Trumpai apie prekę

Prekė: Suvirinimo aparatas Magnum MIG 278W MMA, 280A, aliuminiui, 4R 4x4. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: SPAWARKA INWERTOROWA MAGNUM MIG MAG MMA 400V 4X4
• Ilgis: 800 mm
• Plotis: 300 mm
• Aukštis: 620 mm

✅ Adjustable inductance

✅ Smooth adjustment of welding parameters

✅ Large 4x4 feeder

✅ Robust chassis with space for cylinders

✅ 2T/4T

✅ MMA welding

✅ Efficient fan

⏭⏭5 METER WELDING TORCH⏮⏮

⏭WHAT WILL YOU FIND IN THE PACKAGE?

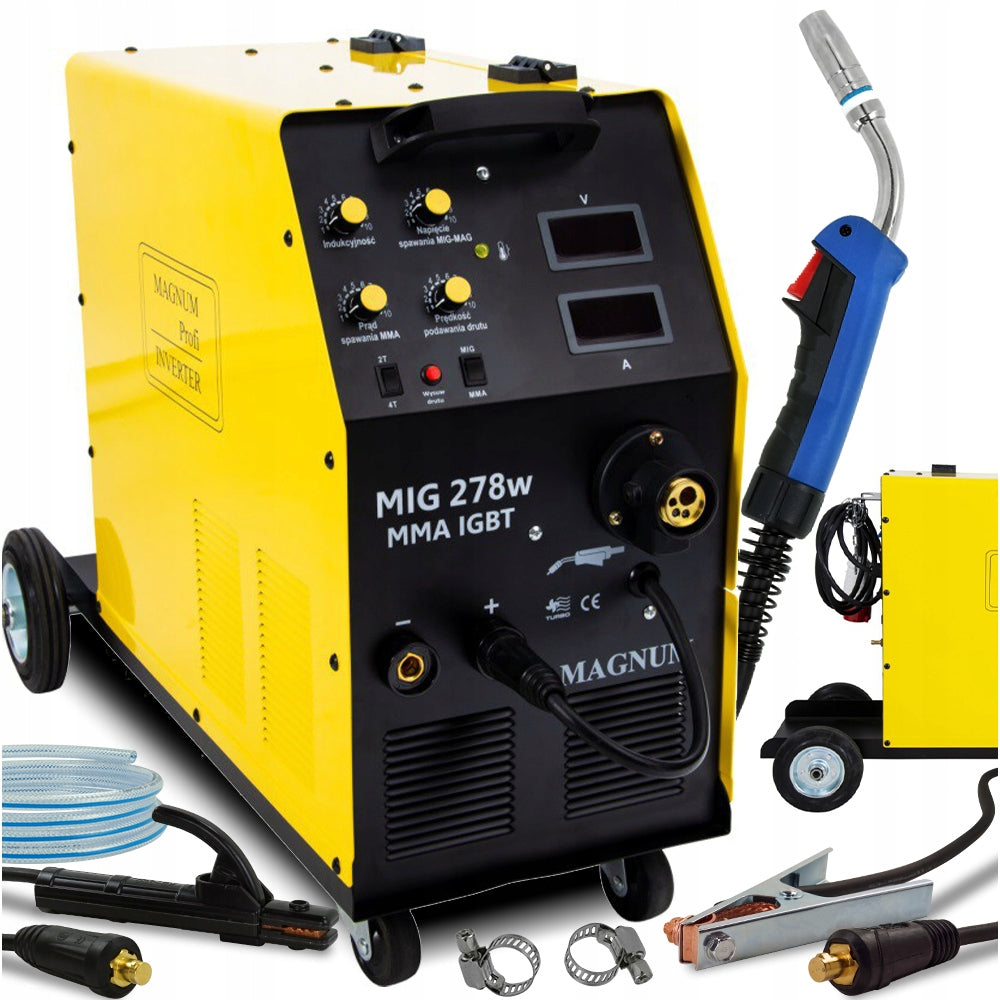

✔ Welding machine MAGNUM MIG 278W MMA

✔ MIG MB welding torch 25 - 5m

✔ Bulk cable

✔ User Manual PL

⏭WELDING ACCESSORIES FREE OF CHARGE

➡ clamps

➡ Hose for connecting cylinders

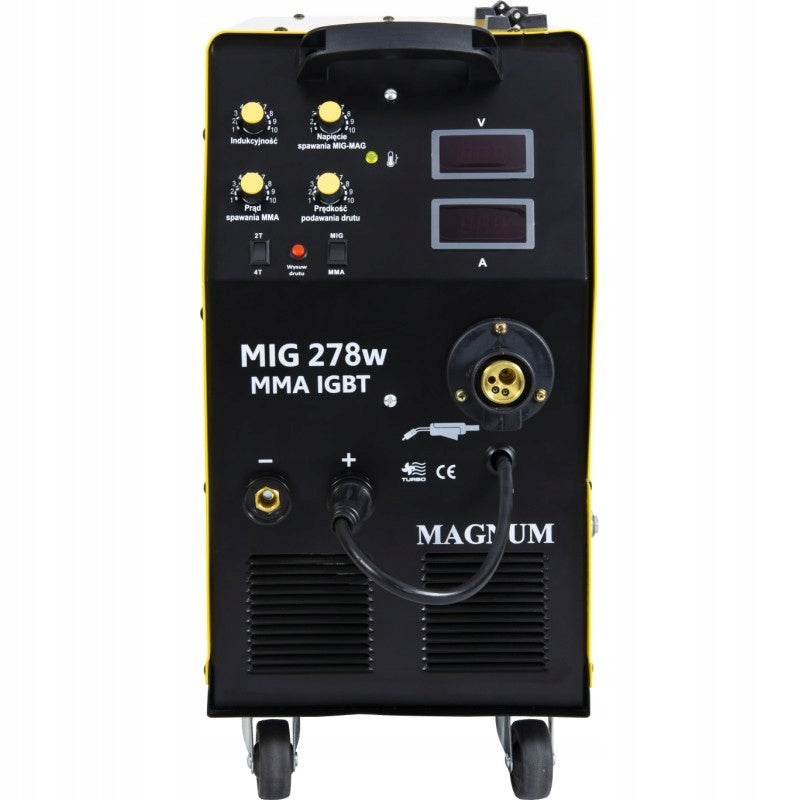

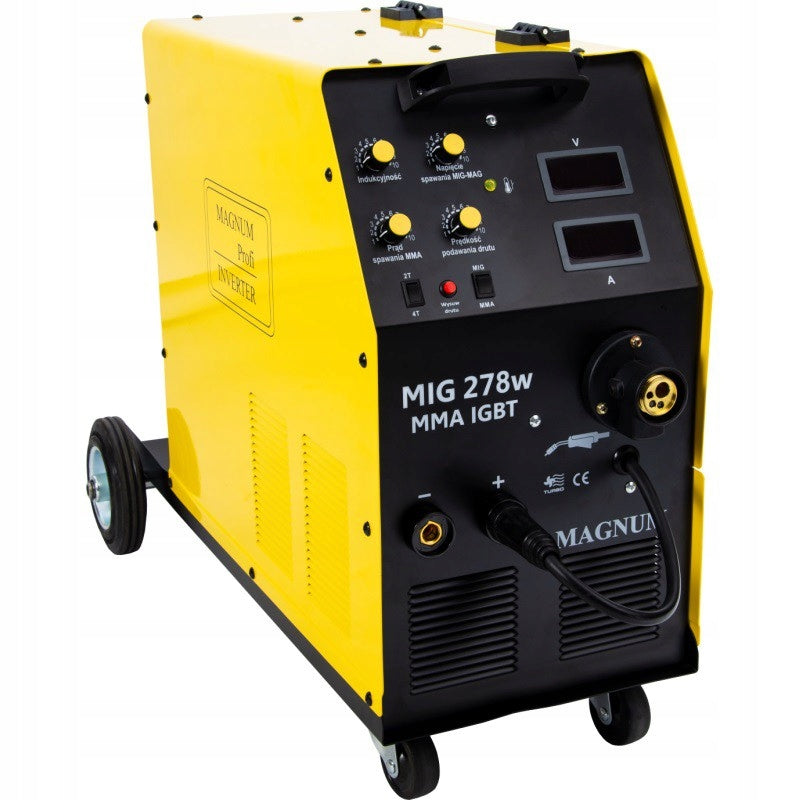

Magnum MIG 278W MMA IGBT is a semi-automatic welding machine. It is powered from a three-phase 400V network and allows welding with current up to 280 amps. The welding machine enables welding using the following methods: MIG/MAG in gas shielding, FCAW self-shielding wire and MMA method using wrapped electrodes of various types. The device has smooth adjustments of welding parameters, so you can set it precisely to the needs of the welder. The two operating modes 2T and 4T are a nod to users who have a large number of long welds to make.

⏭PROFESSIONAL 4R WIRE FEEDER

Professional 4R wire feeder (4x4) - this is a reliable wire feeding regardless of the weight of the spool and the type of welding wire. The proven feeder mechanism has a big impact on the smoothness of wire feeding, and this already translates directly into the welding parameters of the device.

⏭CHASSIS FOR GAS CYLINDER

Place the gas cylinder on the chassis and enjoy the mobility of this flashing. No more tangled gas lines between the wheels. The gas cylinder is now where the machine is with you.

With the chain included in the set, you can secure the cylinder.

⏩POWER SUPPLY PARAMETERS

• Power Supply: 400V 3ph
• Technology: INVERTER IGBT
• Welding methods: MIG, MAG, MMA, FLUX
• Maximum welding current: 280A (MIG/MAG)
• Working cycle: 60% 280A
• Protection Required: 16A Class C
• Degree of protection: IP21S
• Net weight: 43kg

⏩ MIG/MAG welding parameters:

• Welding Current: 50 - 280A
• Welding voltage: 16,5 - 26,5V - smooth adjustment,
• Idle Voltage: 56V
• Wire diameter: 0,8/1,0/1,2mm
• Wire spool weight: max 15kg
• 2T/4T welding mode: YES
• Wire Feeder: Professional 4R
• Wire Retract: YES
• MIG/MAG welding polarity change: YES

⏩ MMA welding parameters:

• Maximum welding current: 200A
• Welding Current Adjustment: Smooth
• Idle Voltage: 56V

• MIG/MAG is a popular process both in hobby applications and in industry. It consists in welding with a hot melt electrode (in the form of wire wound on a spool) in a gas shield. The advantages of semi-automatic MIG/MAG welding include: ease of mastering the method at the basic level, high welding efficiency, high quality of the resulting weld.

• MMA - this is probably the best known and widespread welding method. The type and diameter of the wrapped electrode is selected depending on the type of material being welded. The MMA method does not require shielding gases. Welding is carried out using an electrode in a special sheath, which under the influence of the heat of the welding arc melts to form a weld. Melting sheath provides protection for the welding lake.

• IGBT - welding machine is made in modern inverter technology using IGBT transistors. Thanks to this, it has stable welding parameters, enjoys high efficiency and, above all, ensures good welding quality.

• INDUCTANCE - weld face width control and reduction of welding chipping,

• 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow

• 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow,

Choose a brand whose history dates back to the beginning of the twenty-first century. Magnum is the leading brand of welding equipment in Poland.

A wide range of Magnum devices meets the needs of not only novice users, but also more advanced ones. Depending on the selected model, it can be dedicated to workshop applications as well as for heavy industry.

Customers choose the Magnum brand most often due to its high quality, affordable price and reliability.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Power consumption	8.4 kVA
Parametry	Supply voltage (V)	400
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,8-1,0
Parametry	Device weight	42 kg
Parametry	Welding range	50–280 A
Parametry	Height	620 mm
Parametry	Length	800 mm
Parametry	Width	300 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	500 cm
Parametry	Product weight with unit packaging	48 kg
Parametry	Manufacturer code	SPAWARKA 278W UCHWYT MB25
Parametry	EAN (GTIN)	5904624050265
Parametry	Packaging status	original
Parametry	Model	SPAWARKA INWERTOROWA MAGNUM MIG MAG MMA 400V 4X4
Parametry	Welding methods	MIG/MAG,MMA
Parametry	Additional features	transport wheels,infinitely adjustable welding current,EURO handle,EURO holders
