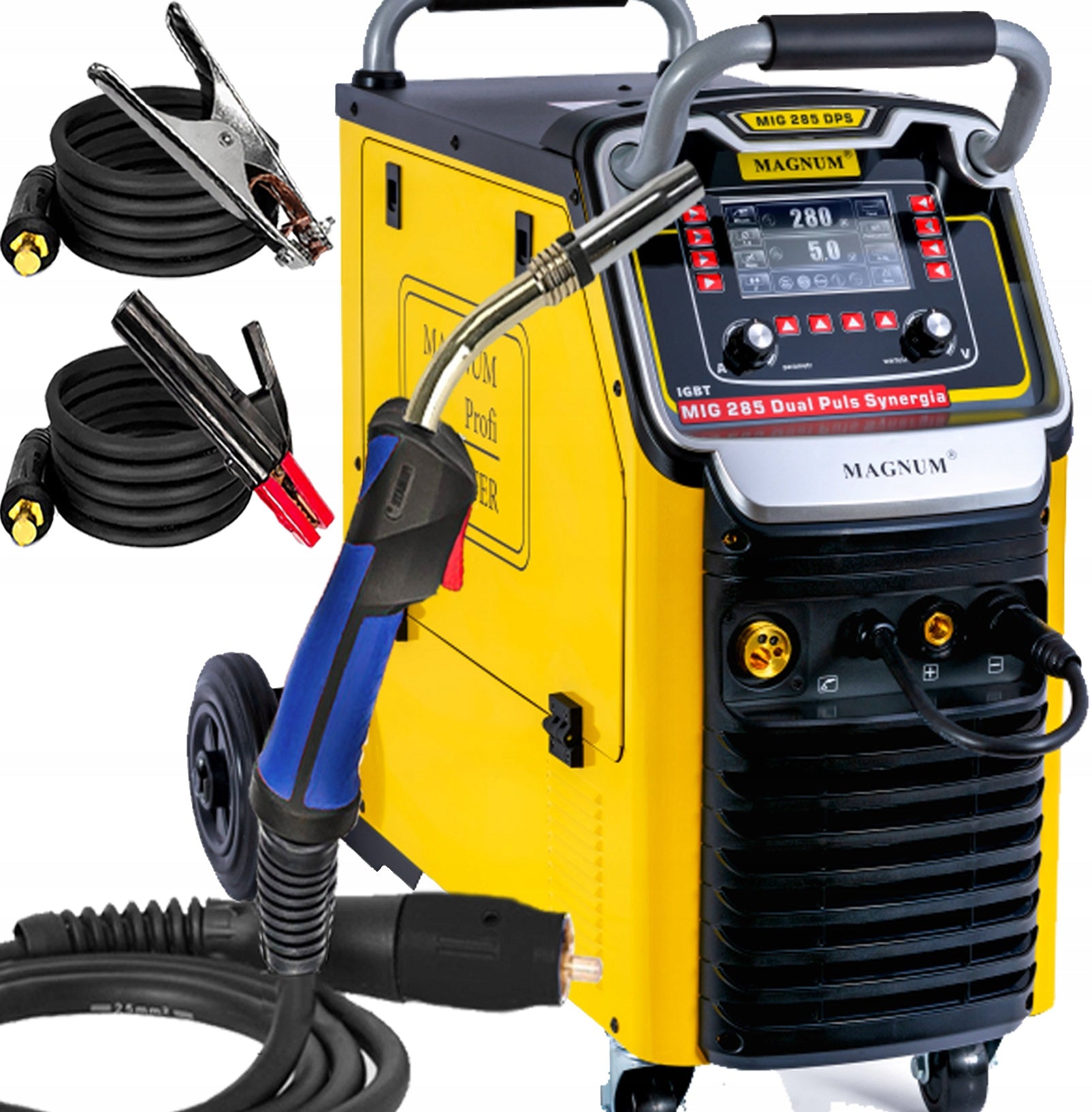

Suvirinimo aparatas MAGNUM MIG 285 Dual Pulse, pusiau automatinis inverteris

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 285 Dual Pulse, pusiau automatinis inverteris. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: U MI 285 PULS LCD

MAGNUM MIG 285 DUAL PULS SYNERGY WELDING MACHINE

It is a professional, technologically advanced semi-automatic welding machine designed for welding using the following methods:

➡ MIG/MAG:

Gas-shielded arc welding ( CO2 or Argon+CO2 ) is one of the most commonly used processes for manufacturing welded structures. The semi-automatic welding process involves fusing the edges of the workpiece being welded and the welding material (welding wire on a roll) with an electric arc generated between the welding wire fed through the handle and the material being welded.

Available modes:

• MIG SYN - MIG/MAG welding with synergistic settings,
• MIG MAN - MIG-MAG welding in manual (traditional) mode,
• FLUX / FCAW - welding with self-shielded wire. This is a similar welding process to MIG/MAG , but does not require a gas cylinder. There is a thin layer of powder on the wire which, when the arc is formed, produces a gas that shields the working area.

➡ TIG LIFT DC - welding with a non-consumable electrode ( tungsten ) in an inert gas shield ( Argon ) using an additional holder. In TIG DC Lift mode, the arc is ignited when the electrode touches the welded element (the button in the handle does not ignite the arc, the gas is connected directly from the reducer to the handle). In TIG Lift DC mode, the current is constant.

➡ MMA - classic welding with coated electrodes (rutile, basic, acid).

ATTENTION! New model on the market. The name at the very top of the auction is the name from the Allegro catalog, which should not be used as a guide. The offered welding machine is MAGNUM MIG 285 DUAL PULS SUNERGIA! .

The MAGNUM MIG 285 DUAL PULS SYNERGY welding machine is used for welding:

✔ low alloy steels

✔ low carbon steel

✔ alloy steel

✔ other weldable metals and alloys

✔ aluminium and its alloys

The device has been designed for all kinds of welding work in automotive, locksmith, repair, industrial workshops etc.

MAGNUM MIG 285 DUAL PULS SYNERGIA has a readable and easy to use control panel, which has m.in.:

6. Selection button:

• Panel - control via the control panel of the welding machine.
• Remote (development option) - external control, welding machine knobs do not work.

7. Button select memory channel. The settings are saved spontaneously (automatically) after selecting a given channel from M1 to M9.

8. Button for selecting the type of welded material.

9. Entry button to the advanced menu.

10. Main knob for value settings or welding current voltage corrections / value setting knob or correction of available parameters.

11. Test wire extension button.

12. Test gas outflow button.

13. The button to select the Hot Start function, Crater or return to the main parameters.

14. Inactive button (without any function).

15. Welding current setting knob / selector knob for available parameters.

16. Selection button:

• Two-tact,
• Four-Act,
• Special four-bar with the possibility of setting the initial current Hot Start and the final current Kater,
• Special two-bar with the possibility of setting the initial current Hot Start, final current Crater,
• Point welding.

17. Inductance settings selection button.

18. Selection of wire diameter for MIG-MAG welding.

19. Selection of welding method.

MAGNUM MIG 285 DUAL PULS SYNERGIA has synergic programs, thanks to which you can adjust welding parameters to the selected material.

MIG PROGRAMS:

• Al-Mg - aluminium alloys with magnesium
• Al-Si - aluminium alloys with silicon
• Cu - copper, copper alloys and soldering
• Black steel - ordinary carbon steels
• Stainless steel - stainless and acid-resistant steels

✔ REPAIR WORKSHOP

✔ LOCKSMITH WORKSHOP

✔ FARMS

✔ HOMEWORK

AND WHEREVER RELIABILITY MATTERS!

✔ PULS - pulsed current welding, in which high and low current are alternately used. This reduces overall heat supply and splatter while providing greater resistance to non-melting. This method can be used to weld both metals with high thermal conductivity and thinner metals without burning them. Additionally, you can get narrower and more penetrating welds on thicker metals.

✔ DUAL PULS - provides better transfer of the binder into the welded material, which fundamentally improves control over the welding process and the quality of the weld itself. It allows you to work in all positions and is especially useful for forced positions. It provides less heat impact, works well in the case of thinner materials or those with increased thermal conductivity, such as: aluminium alloys. Reduces the amount of chipping. The most advanced welding method, in which current pulses occur in two ranges, thanks to which we obtain the optimal aesthetics of the weld face, the so-called. husk effect.

✔ MEMORY CHANNELS - welding machine allows you to save the currently set welding parameters. It is possible to save 9 sets of parameters.

✔ INDUCTANCE ADJUSTMENT - function is useful during welding using the MIG/MAG method of thin elements, preventing them from burning out and soldering galvanized elements. Changing the inductance value also reduces the amount of welding chips during CO2 shielded welding. Thanks to the inductance adjustment, the welding machine is suitable for lutowelding. Depending on the model of the welding machine, the adjustment is automatic or can be adjusted manually.

✔ SPOT WELDING SPOT - with the possibility of setting the welding time at the point. A function that allows you to perform even, spot welds or spot welding of thin plates with other elements. This method is used, for example. in the production of chassis and car bodies, but also in the home workshop.

✔ SYNERGY - is a very helpful feature available in professional welding equipment class PREMIUM. By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

✔ SOLDERING - is a method that is quite similar to MIG/MAG welding, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material we work with.

✔ HOT START - facilitates the ignition of the electrode by providing more welding current with each arc.

✔ KRATER+ - is a function that involves a controlled arc end and supplementing the crater with additional material, also called crater filler. This technique is designed to increase the durability of the weld and avoid potential welding defects. Thanks to this function, we minimize the need for further processing of the material after welding -⌚DO NOT WASTE TIME GRINDING⌚

✔ WORK IN INDUSTRY - thanks to its high quality and multifunctionality, the device can be used in professional and hobby work

✔ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

✔ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow.

✔ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

✔ SPECIAL TWO-BAR 2T - special two-bar with the possibility of setting the initial current Hot Start, the final current Krater (crater filling current) and their duration.

✔ SPECIAL FOUR-BAR 4T - special four-bar with the possibility of setting the initial current Hot Start and the final current Krater (crater filling current). The duration of these values depends on how long the trigger is pressed on the working handle.

✔ EUROCONNECTOR - allows you to quickly change the handle and allows you to change the polarity for welding with self-shielding wire

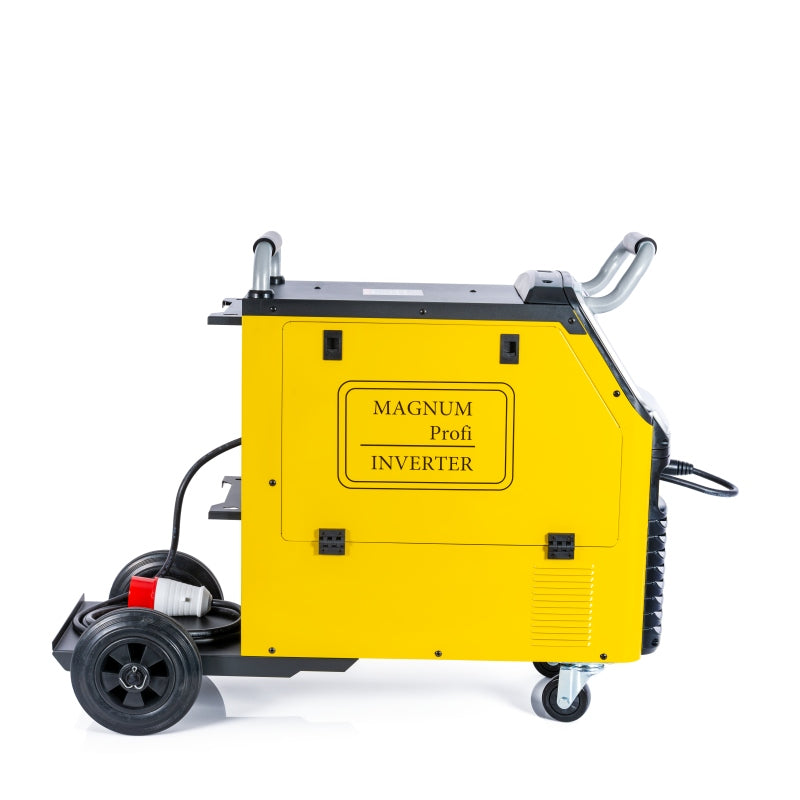

✔ CHASSIS - The semi-automatic machine is also equipped with a solid chassis, equipped with durable bearing wheels that guarantee high mobility and give the possibility of moving the welding machine on uneven ground.

✔ CONTROL PANEL - The welding machine is equipped with an easy-to-use control panel and display, so it can be used even by amateurs.

✔ EASY TO USE - The welding machine is equipped with an easy-to-use control panel, so it can be used even by amateurs.

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

The welder is equipped with a professional wire feeder, which guarantees stability and continuity of operation of the device.

The 4-roll feeder allows precise extension of the welding wire excluding its slippage.

The feeder has a quick wire change knob as well as a wire feed roller.

The welder supports D200/D300 wire spools.

The set includes rollers:

✔ For steel wire 1,0 - 1,2 mm V

✔ For aluminium wire 1.0 - 1.2 mm U

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

⏩ TECHNICAL DATA:

• Power supply: AC 400 V, 50/60 Hz
• Output voltage : 14 - 30 V
• Efficiency η [%] : 60

⏩ MIG PARAMETERS:

• Welding current MIG [A]: 40 – 280
• Type of feeder: built-in, 4 - roller
• Wire diameter : 0.6 / 0.8 / 1.0 / 1.2 mm
• Wire spool: max 15kg / ∅200mm / ∅300mm
• Working cycle [%]: 60

⏩ TIG PARAMETERS:

• TIG welding current [A]: 20 – 200
• Welding TIG: Tig DC Lift
• Working cycle [%]: 60

⏩ MMA PARAMETERS:

• MMA welding current [A]: 10 – 280
• Working cycle [%]: 60

⏩ OTHER:

• Weight: 38 kg
• Degree of protection: IP21S
• Idle voltage: 64 V
• Security required: 25 A, type C

WHEN YOU BUY FROM US, YOU WILL RECEIVE:

• WELDING MACHINE MAGNUM MIG 285 DUAL PULSE SYNERGY - 1 pcs.
• Welding torch - MAGNUM MIG MB 24/3m - 1 pc.
• Electrode holder - 2/m - 1pc.
• Mass cable - 1.5/m - 1pc.
• Gas hose - 1pc.
• Clippers - 2pcs
• Instruction service in Polish
• Warranty card

SET 1 LARGE MIG INDUCTANCE MB24
