Suvirinimo aparatas Magnum MIG 351 Dual Pulse Synergy

Trumpai apie prekę

Prekė: Suvirinimo aparatas Magnum MIG 351 Dual Pulse Synergy. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: U MI 351 PULS
• Ilgis: 800 mm
• Plotis: 440 mm
• Aukštis: 650 mm

MANUFACTURER: MAGNUM || WELDING METHODS: MIG/MAG, MMA, TIG Lift || SELECTED ADVANTAGES: Pulse, Dual Pulse, Synergy, Soldering || POWER SUPPLY: 400V 3ph

Power supply parameters:

• Power Supply: 400V 3ph
• Technology: INVERTER IGBT
• Welding methods: MIG, MAG, MMA, FLUX
• Maximum welding current: 350A (MIG/MAG)
• Working cycle: 60%
• Network Security: 25C
• Net weight: 35kg

MIG/MAG welding parameters:

• Welding Current: 50 - 350A
• Welding voltage: 16,5 - 31,5 - smooth adjustment,
• Wire diameter: 0,8/1,0/1,2mm
• Wire spool weight: max 15kg
• 2T/4T welding mode: YES
• Wire Feeder: Professional 4R
• Gas test: YES
• Wire extension test: YES
• MIG/MAG welding polarity change: YES

MMA welding parameters:

• Welding Current: 20-320A Liquid Adjustment
• Idle Voltage: 74V

▶ High-tech semi-automatic welding machine

The Magnum MIG 351 Dual Pulse Synergy device is a professional, synergistic semi-automatic welding machine with single and double pulsation welding current function.

Designed for manual, electric welding of low carbon steels, low alloy steels, low and high alloy steels, aluminum and its alloys, copper and its alloys, soldering, etc.

Magnum MIG 351 Dual Pulse Synergy is designed for all kinds of welding work in factories, industrial plants, locksmith workshops, repair workshops, etc. The device is dedicated to professionals who require meeting the highest standards for welding equipment.

ADVANTAGES OF THE DEVICE:

• Synergic welding of steel, stainless steel, aluminium, soldering
• Manual welding
• Spot welding, cyclic spot welding
• Control handle 2T/4T
• Controls with handle S2T/ S4T - with adjustment of the initial current, and the value and duration of the final current
• 36V Heater Socket
• 35 channels of memory
• Adjustable inductance
• SLOP CC/CP function
• CRATER+ function
• HOT START+ function
• Adjustable welding current pulsation frequency
• Adjustable welding current pulsation balance
• Adjustable gas outflow time

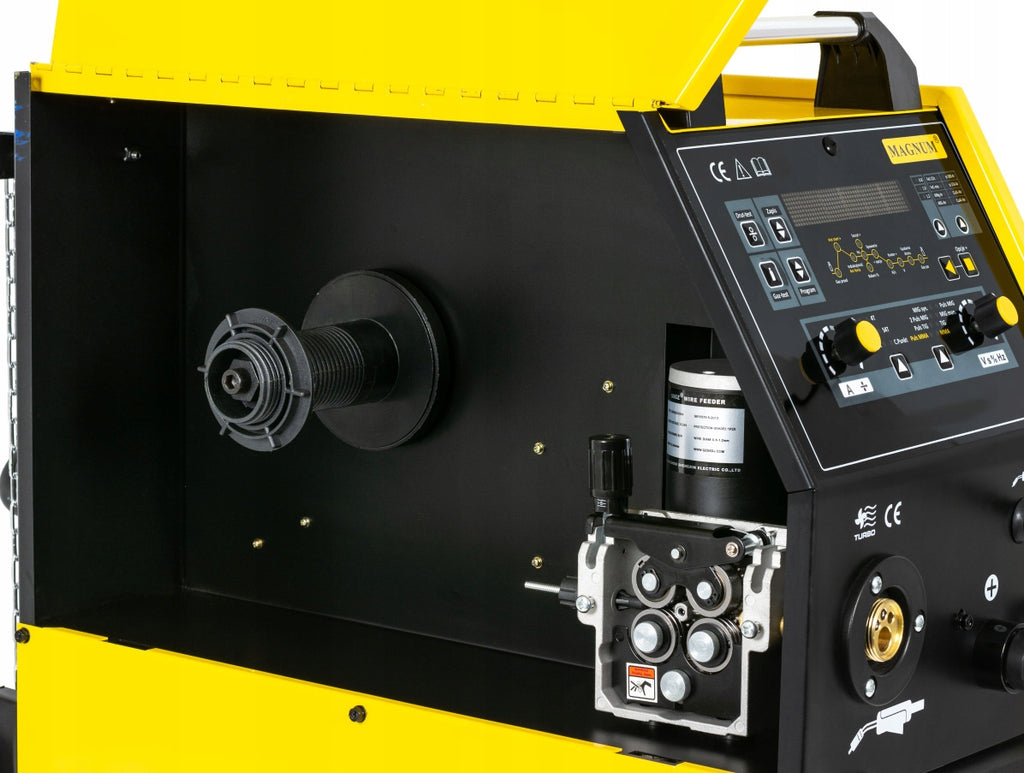

Professional 4R Wire Feeder

Professional wire feeder 4R (4x4) - is a reliable wire feeding regardless of the weight of the spool and the type of welding wire. The proven feeder mechanism has a big impact on the smoothness of wire feeding, and this already translates directly into the welding parameters of the device.

Chassis for gas cylinder

Place the gas cylinder on the chassis and enjoy the mobility of this flashing. No more tangled gas lines between the wheels. The gas cylinder is now where the machine is with you.

With the chain included in the set, you can secure the cylinder.

Description of the welding machine function:

Synergy - By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

Spot welding spot - with the possibility of setting the welding time at the point. A function that allows you to perform even, spot welds or spot welding of thin plates with other elements.

Krater+ - is a function that involves a controlled arc end and supplementing the crater with additional material, also called crater filler. This technique is designed to increase the durability of the weld and avoid potential welding defects. Thanks to the use of this function we minimize the need for further processing of the material after welding.

Pulse - pulse current welding, in which high and low current are alternately used. This reduces overall heat supply and splatter while providing greater resistance to non-melting.

Double pulse - provides better transfer of the binder into the welded material, which improves control over the welding process and the quality of the weld itself. It allows you to work in all positions and is especially useful for forced positions. It provides less heat impact, works well in the case of thinner materials or those with increased thermal conductivity, such as: aluminium alloys. Reduces the amount of chipping.

S2T - a special double bar with hot start and end current filling the crater.

S4T - special four-bar with hot start and final current.

Two-bar 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow.

Four-point 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

SLOP - choice of electrode type for MMA welding.

Slop CC - electrodes "easily weldable" e.g. in rutile, rutile-cellulose sheathing, etc.

Slop CP - electrodes "hardly weldable" e.g. in cellulose, alkaline, acidic coating, etc.

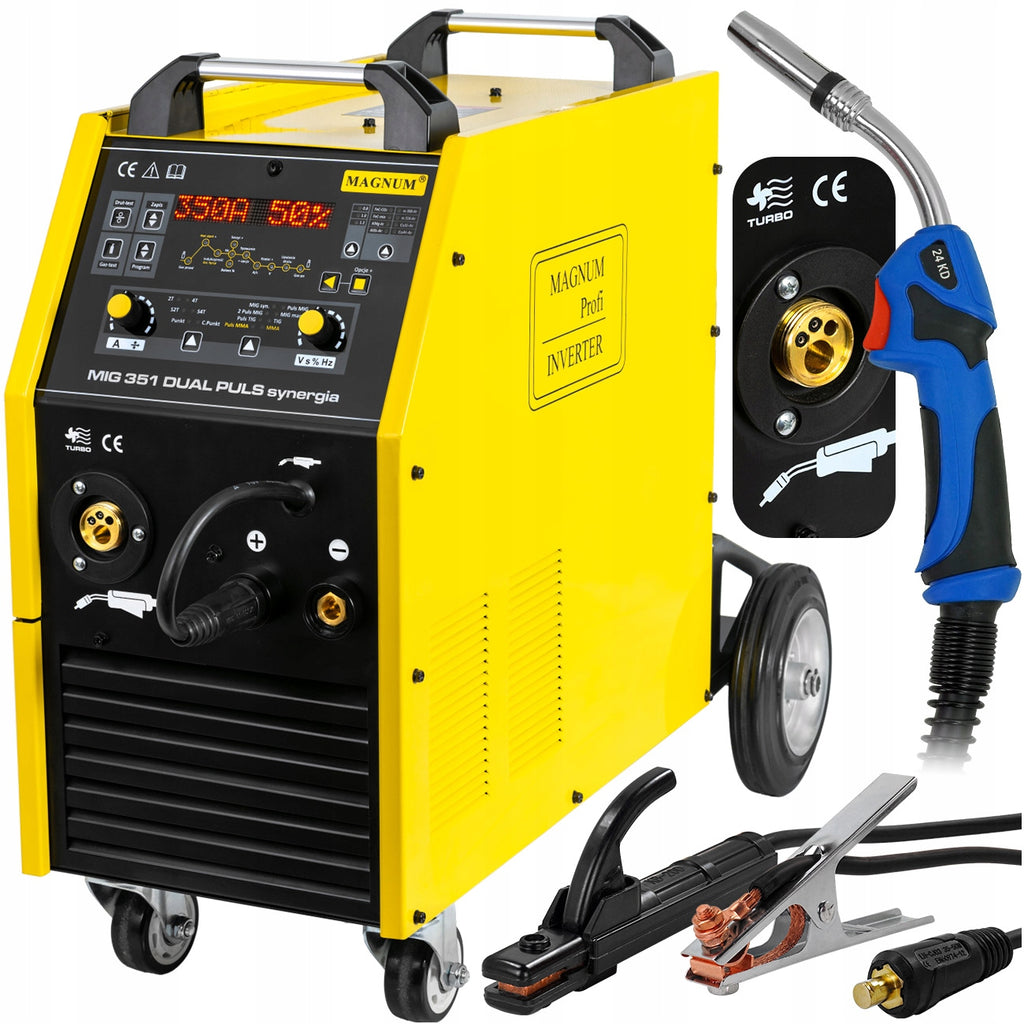

• Device Magnum MIG 351 DP Synergy
• Welding torch MIG MB 24/3m
• MMA electrode holder
• Mass cable
• User manual in Polish

SET EQUIPPED WITH WELDING WIRES

• electrode holder with cable and current plug
• mass cable with tick clamp

Photo gallery:

Specifications
