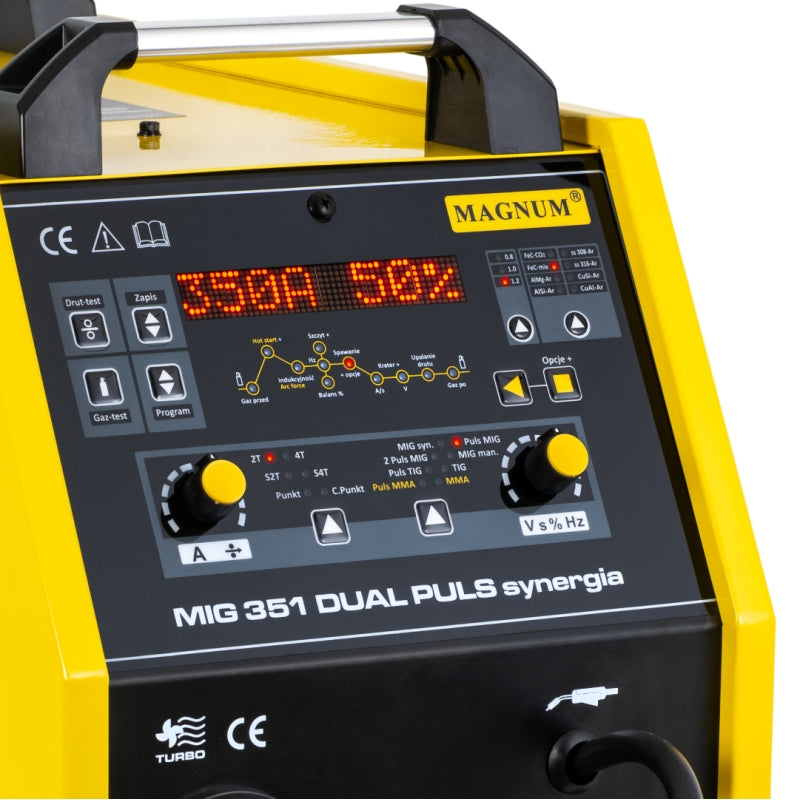

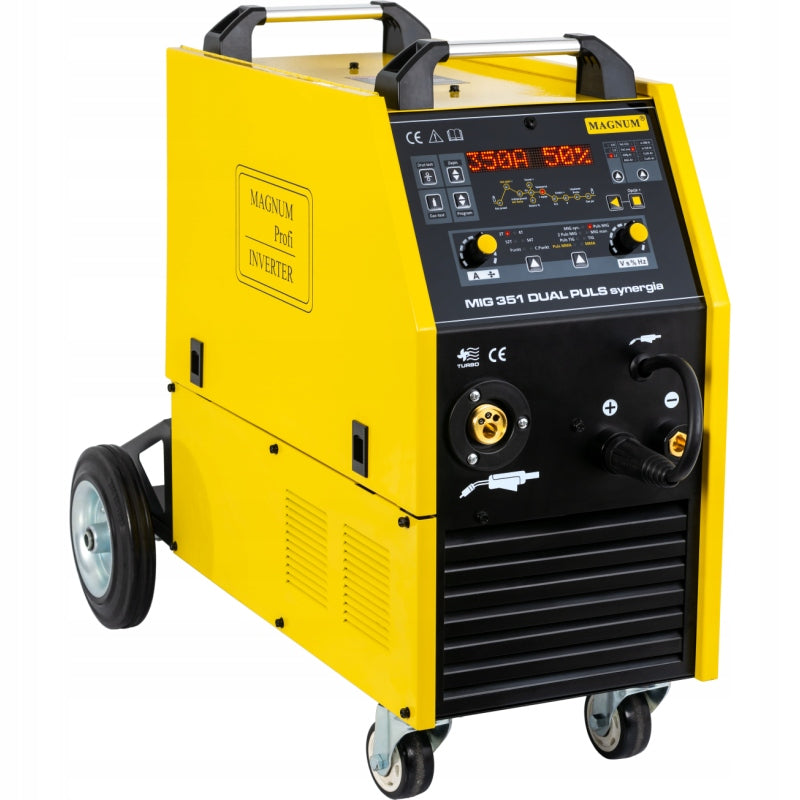

Suvirinimo aparatas Magnum MIG/MAG 351, 350A, dvigubas impulsas, 400V

Trumpai apie prekę

Prekė: Suvirinimo aparatas Magnum MIG/MAG 351, 350A, dvigubas impulsas, 400V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: U MI 351 PULS
• Ilgis: 800 mm
• Plotis: 440 mm
• Aukštis: 650 mm

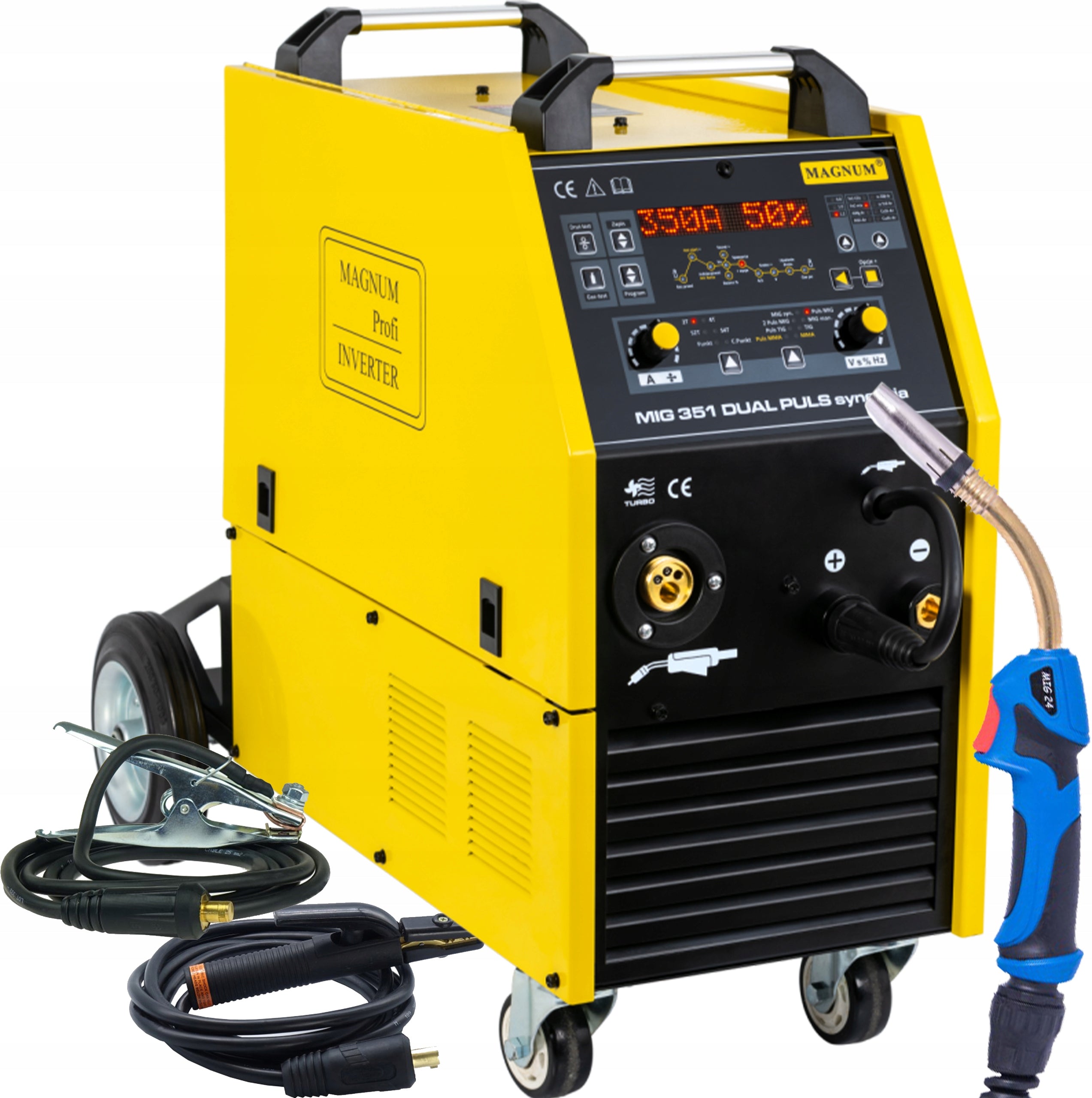

✅ MIG MB 24/3m welding torch

✅ MMA Electrode Holder

✅Mass cable

✅Instruction manual in Polish

⚡Power supply parameters:

✅ Power Supply: 400V 3ph

✅Execution technology: INVERTOR IGBT

✅Welding methods: MIG, MAG, MMA, FLUX

✅Maximum welding current: 350A (MIG/MAG)

✅Working cycle: 60%

✅Network security: 25C

✅Net weight: 35kg

⚡ MIG/MAG welding parameters:

✅Welding current: 50 - 350A

✅Welding voltage: 16,5 - 31,5 - smooth adjustment,

✅Wire diameter: 0,8/1,0/1,2mm

✅Wire spool weight: max 15kg

✅Welding mode 2T/4T: YES

✅Wire feeder: professional 4R

✅Gas test: YES

✅Wire extension test: YES

✅ MIG/MAG welding polarity change: YES

⚡ MMA welding parameters:

✅Welding current: fluid regulation 20-320A

✅Idle voltage: 74V

✅Synergic welding of steel, stainless steel, aluminium, soldering

✅Manual welding

✅Point welding, cyclic point welding

✅2T/4T handle control

✅S2T/ S4T handle control - with adjustment of the initial current, and the value and duration of the final current

✅36V Heater Socket

✅35 channels of memory

✅Adjustable inductance

✅SLOP CC/CP

✅KRATER+ function

✅HOT START+ function

✅Adjustable welding current pulsation frequency

✅Adjustable welding current pulsation balance

✅Adjustable gas outflow time

✅Synergy - By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

✅ Spot welding spot - with the possibility of setting the welding time at the point. A function that allows you to perform even, spot welds or spot welding of thin plates with other elements.

✅Krater+ - is a function that involves a controlled arc end and supplementing the crater with additional material, also called crater filler. This technique is designed to increase the durability of the weld and avoid potential welding defects. Thanks to the use of this function we minimize the need for further processing of the material after welding.

✅Pulse - pulsed current welding, in which high and low current are alternately used. This reduces overall heat supply and splatter while providing greater resistance to non-melting.

✅Double pulse - ensures better transfer of the binder into the welded material, which improves control over the welding process and the quality of the weld itself. It allows you to work in all positions and is especially useful for forced positions. It provides less heat impact, works well in the case of thinner materials or those with increased thermal conductivity, such as: aluminium alloys. Reduces the amount of chipping.

✅S2T - special double bar with hot start and final current filling the crater.

✅S4T - special four-bar with hot start and final current.

✅Two-bar 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow.

✅Four-point 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

✅SLOP - choice of electrode type for MMA welding.

✅Slop CC - electrodes "easily weldable" e.g. in rutile, rutile-cellulose sheathing, etc.

✅Slop CP - "hardly weldable" electrodes, e.g. in cellulose, alkaline, acidic coating, etc.

The double pulse function allows you to achieve the effect of "husk" and reduce the amount of chipping and overheating of the material. This solution is particularly valued for:

✅Aluminum welding

✅Stainless steel constructions

✅visible elements (balustrades, frames, decorative structures)

Migomat Magnum 351 Dual Pulse Synergy is perfect for:

✅production facilities

✅locksmith workshops

✅ assembly companies

✅automotive industry

✅manufacture of aluminium structures

⭐⭐⭐⭐⭐

🛠 Chassis for gas cylinder

Place the gas cylinder on the chassis and enjoy the mobility of this flashing. No more tangled gas lines between the wheels. The gas cylinder is now where the machine is with you.

With the chain included in the set, you can secure the cylinder.

Specifications
