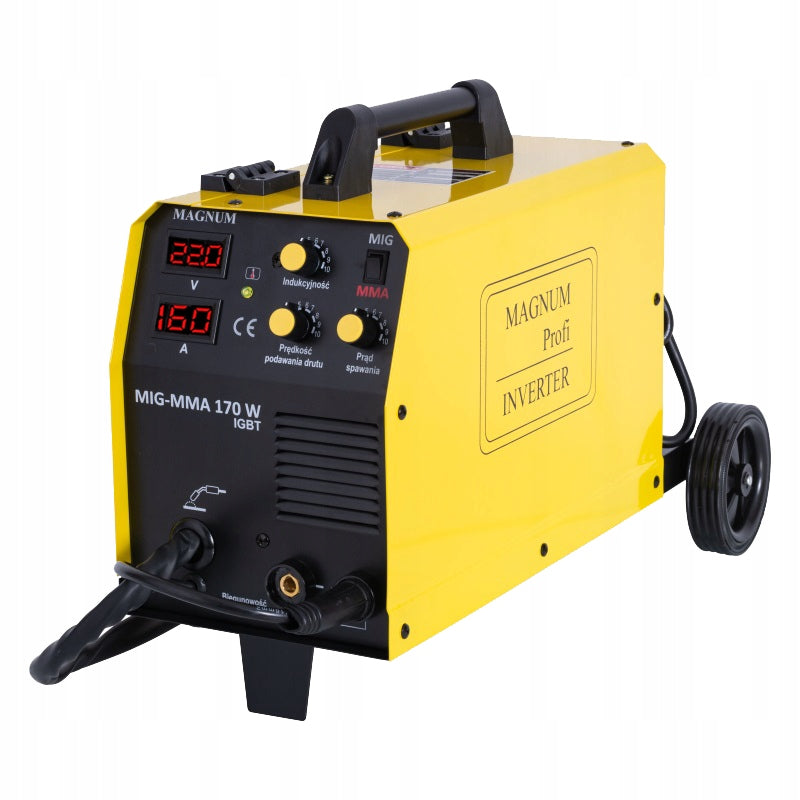

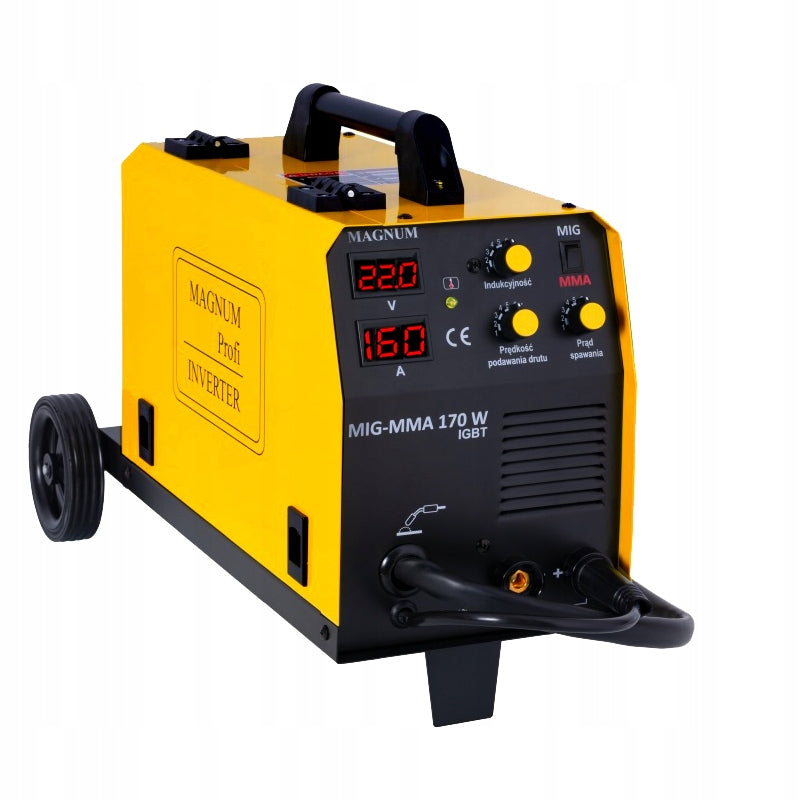

Suvirinimo aparatas MAGNUM MIG/MAG/MMA 170W IGBT 230V

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG/MAG/MMA 170W IGBT 230V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: U MI 170W MMA
• Ilgis: 620 mm
• Plotis: 205 mm
• Aukštis: 330 mm

+MIG/MAG MMA WELDING KIT, WHICH INCLUDES:

✅ WELDING ACCESSORIES

is an inverter semi-automatic welding machine designed for arc welding by the following method:

➡ MIG MAG in mode:

• MIG - arc welding with a hot melt electrode in an inert gas shield (argon, helium).
• MAG - arc welding with a hot melt electrode in the active gas shield (CO2, MIX).
• FLUX / FCAW - self-shielding wire welding.

➡ TIG

• TIG LIFT DC - welding with a non-melting electrode in an inert gas shield.

➡ MMA

• MMA - welding with wrapped electrodes (rutile, alkaline, acidic).

MIG/MAG-MMA 170W IGBT welding machine is used for welding:

✔ low alloy steels,

✔ low carbon steel,

✔ high alloy steels,

✔ stainless,

✔ acid-resistant,

✔ aluminium and its alloys,

✔ copper.

The device is perfect forand works well in the home workshop, during assembly work and during hobby work.

⭐ SOLDERING - is a method that is quite similar to MIG/MAG welding, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material with which we work.

⭐ STRONG METAL HOUSING - reduces the risk of damage to the welding machine.

⭐ MOBILITY AND CONVENIENCE - CHASSIS WITH SPACE FOR CYLINDER The welding machine has a chassis. On the back of the device there is a place for a cylinder with shielding gas and a handle to protect the cylinder from movement.

⭐ CONTROL PANEL - The welding machine is equipped with an easy-to-read control panel in Polish and two displays, so it can be used even by amateurs.

⭐ PROFESSIONAL WIRE FEEDER - enables precise extension of the welding wire excluding its slippage, guarantees stability and continuity of operation of the device.

⭐ GOOD VALUE FOR MONEY

IN ADDITION, THE DEVICE HAS THE FOLLOWING FUNCTIONS TO SUPPORT WELDING:

✅ ARC FORCE - "arch dynamics" - shortening the arc length is accompanied by an increase in welding current, which stabilizes the arc, regardless of its length. Reducing the value of the function gives a soft arc and a smaller depth of melt, while increasing the value of the function causes deeper melting and the possibility of welding with a short arc.

✅ ANTI STICK - short-circuit function - reduces the welding current to a minimum value when the welder makes a mistake and the electrode is glued to the welded material. This makes it easier to detach the electrode from the welded material and protects the electrode holder from damage.

✅ HOT START - facilitates the ignition of the electrode by providing more welding current with each arc.

The welding machine has a simple and user-friendly control panel.

Setting parameters is carried out using a panel on which two displays and control knobs are placed, among others:

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

• Display of welding current voltage.
• Display of welding current.
• Diodes indicating power and protection.
• Switch for selecting the welding method MIG-MAG/MMA.
• Knob of Inductance Regulation.
• Knob for welding voltage regulation MIG-MAG/MMA.
• Knob for adjusting the feed speed of MIG-MAG wire.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

✔ REPAIR WORKSHOP

✔ LOCKSMITH WORKSHOP

✔ OF ALL BODYWORK REPAIRS

✔ ASSEMBLY SERVICES

✔ FARMS

✔ HOMEWORK

AND WHEREVER RELIABILITY MATTERS!

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

The welder is equipped with a professional wire feeder, which guarantees stability and continuity of operation of the device.

The 2-roll feeder allows precise extension of the welding wire excluding its slippage.

The feeder has a knob for quick wire changes as well as a wire feed roller.

There is a wire extension button in the housing to insert the wire into the holder.

Feeder equipped with wire roller 0,6/0,8.

Inductance adjustment allows optimization of arc characteristics depending on the thickness of the welded element and the welding method and conditions.

The function is useful during MIG/MAG welding of thin elements, preventing them from burning out and soldering galvanized elements.

The thinner the MIG/MAG welded element, the higher the inductance (soft arc - less melting), for thick elements vice versa (hard arch - greater melting).

The standard neutral inductance setting is in the middle of the scale.

Changing the inductance value also reduces the amount of welding chips during CO2 shielded welding.

The optimal setting of the inductance value depends on several factors and may differ from the standard recommendations, it should be selected during welding tests by manipulating the potentiometer knob.

THANKS TO THE INDUCTANCE ADJUSTMENT, THE WELDING MACHINE IS SUITABLE FOR SOLDERING

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

TO MEET CUSTOMERS, BASED ON OUR MANY YEARS OF EXPERIENCE, WE HAVE CREATED PROFESSIONAL SETS FOR YOU, THANKS TO WHICH WE PROVIDE YOU WITH EQUIPMENT READY FOR USE IMMEDIATELY AFTER CONNECTING TO ELECTRICITY.

⌚ SAVE YOUR TIME ⌚

BUY INCLUDED AND WE'LL TAKE CARE OF THE REST!

JOIN THE BEST - START YOUR WELDING ADVENTURE WITH US!

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

• Professional gloves - 1 pair
• Spray anti-chipping - 1 pc.
• Angle magnetic - 11 kg - 1 pc.
• Welding wire 5 kg 0,8 mm- 1 pc.
• Tip current 0,8 mm - 5 pcs.
• Gas nozzle for handle - 2 pcs.
• Socket current - 2 pcs.
• Insulator - 2 pcs.
• Electrode pack - 1kg

☀ VERSATILITY OF THE DEVICE ☀

Migomat company MAGNUM, is a device with a wide range of applications, designed as an inverter power source enabling welding with hot melt wire in gas shield MIG/MAG or FCAW self-shielding wire (after changing polarity), welding with buffer electrode MMA, as well as the TIG Lift method.

✔ MIG/MAG welding

Arc welding in gas shields is one of the most commonly used processes for the manufacture of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the material of the hot melt electrode with the heat of an electric arc glowing between the electrode in the form of a solid wire and the welded detail, in an inert or active gas shield.

✔ Welding MMA

In the MMA method, a wrapped electrode is used, consisting of a metal core covered with a sheath. An electric arc is produced between the end of the electrode and the welded material. Arching is created by touching the end of the electrode to the welded material.

✔ Welding TIG LIFT DC

In the TIG (Tungsten Inert Gas) method, the electric arc is ignitioned in an inert gas (argon) shield between the welded element and the non-melting electrode, made of pure tungsten or tungsten with additives. In TIG DC Lift mode, the arc glow occurs when the electrode comes into contact with the welded element. In TIG DC mode, the current is constant.

❗❗ TIG method can be welded after connecting an additional handle, available at our auctions ❗❗

✔ Self-shielding wire welding FCAW

Thanks to the polarity change function, it is possible to weld without shielding gas, with FCAW self-shielding wire. The wire is designed for general production work, also in field conditions, and for welding structures that are not subject to impact requirements. Welding current DC(-).

Self-shielding powder wire fi 0,8mm/1kg E71T-GS is designed for welding ordinary carbon steels and increased strength not exceeding 510 MPa.

It is used in prefabrication, construction, tank production, agricultural equipment, etc. Used in both production and repair of equipment.

⚡SELF-SHIELDED WIRE IS AVAILABLE SEPARATELY AT OUR AUCTIONS AND IN OTHER SETS⚡

⭐ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

TECHNICAL DATA:

MIG/MAG WELDING PARAMETERS:

• MIG/MAG welding current/: 30 - 160 [A]
• MIG/MAG welding voltage: 16,5 - 23 [V]

WELDING PARAMETERS MMA:

• MMA welding current: 30 - 160 [A]

TECHNICAL DATA:

• Power supply: AC 230 [V], 50 [Hz]
• Idle voltage [V]: 56
• Security required: 16 [A] Class C
• Power consumption max.: 5,8 [kVA]
• Efficiency: 60 [%]
• Wire spool weight: max: 5 [kg]
• Wire diameter:/0,6/0,8/0,9/ [mm]
• Welding "without gas": YES
• Housing protection class: IP21S
• Weight: 12 [kg]

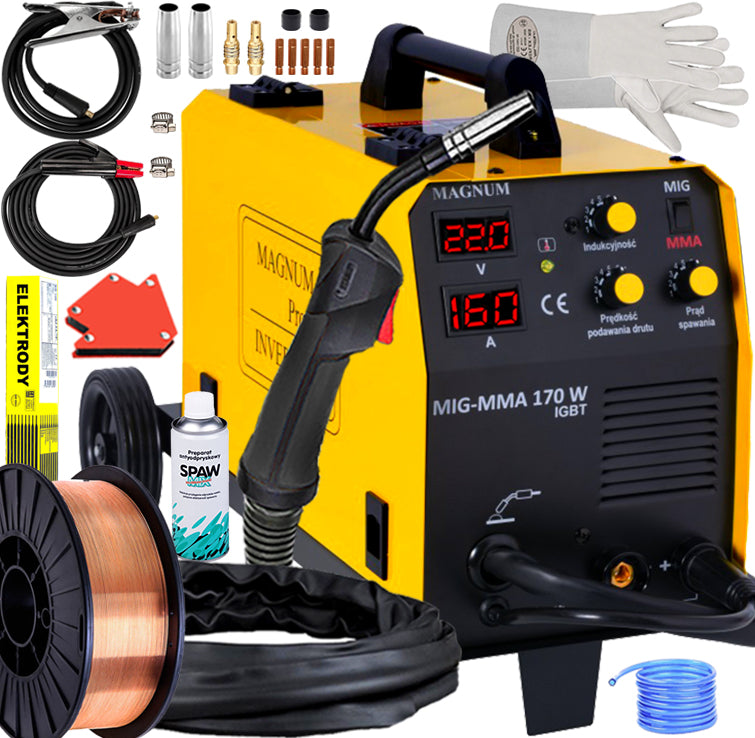

WHEN YOU BUY FROM US, YOU WILL RECEIVE:

• Welding machine MAGNUM MIG/MAG-MMA 170W IGBT
• Welding torch MIG/MAG MB 14 fixed - 2,2m
• mass cable - 2m,
• MMA electrode cable - 2m,
• Gas hose,
• Handbands for hose - 2 pcs. ,
• User manual,
• Guarantee card.

+ MIG/MAG + MMA WELDING KIT:

• Professional gloves welding - 1 pair
• Welding wire 5 kg 0,8 mm- 1 pc.
• Spray anti-chipping - 1 pc.
• Angle magnetic - 11 kg - 1pc.
• Tip current - 5 pcs.
• Gas nozzle for handle - 2 pcs.
• Socket current - 2 pcs.
• Insulator - 2 pcs.
• Electrode pack - 1kg (2.5 or 3.2mm to choose from)

(Set of 2 ) D.
