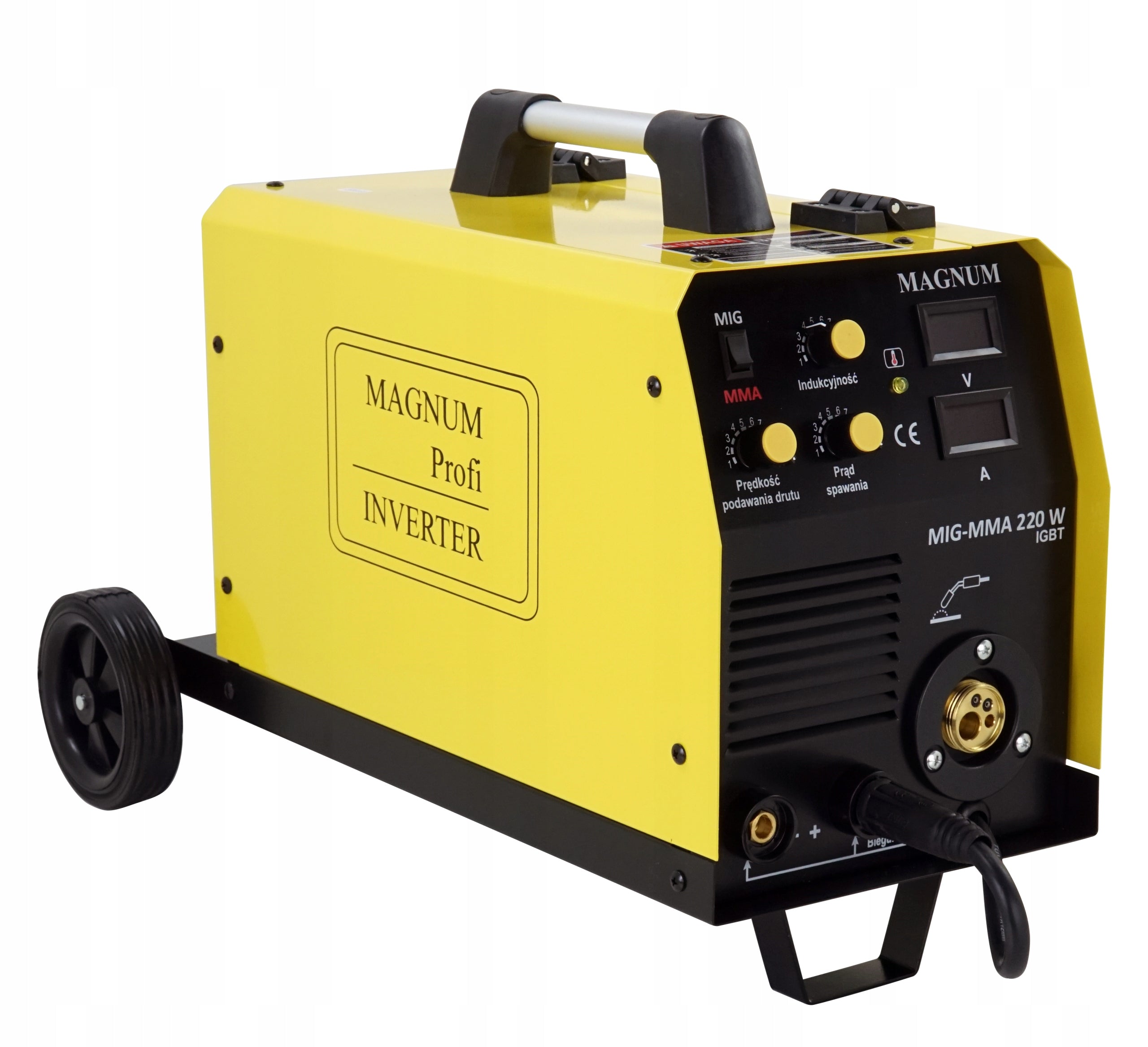

Suvirinimo aparatas MAGNUM MIG/MAG/MMA, 220W, 230V, 60% IGBT

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG/MAG/MMA, 220W, 230V, 60% IGBT. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: U MI 220W MMA MAPL-15
• Ilgis: 665 mm
• Plotis: 325 mm
• Aukštis: 405 mm

⏩⏩⏩ EURO socket - work with any MIG handle equipped with a EURO plug. ⏪⏪⏪

✅ welding methods: MIG, MAG, MMA, FLUX,

✅power supply at 230V,

✅regulation of MIG/MAG welding inductance,

✅chassis with space for a gas cylinder,

✅ welding current up to 200A in the cycle 60%,

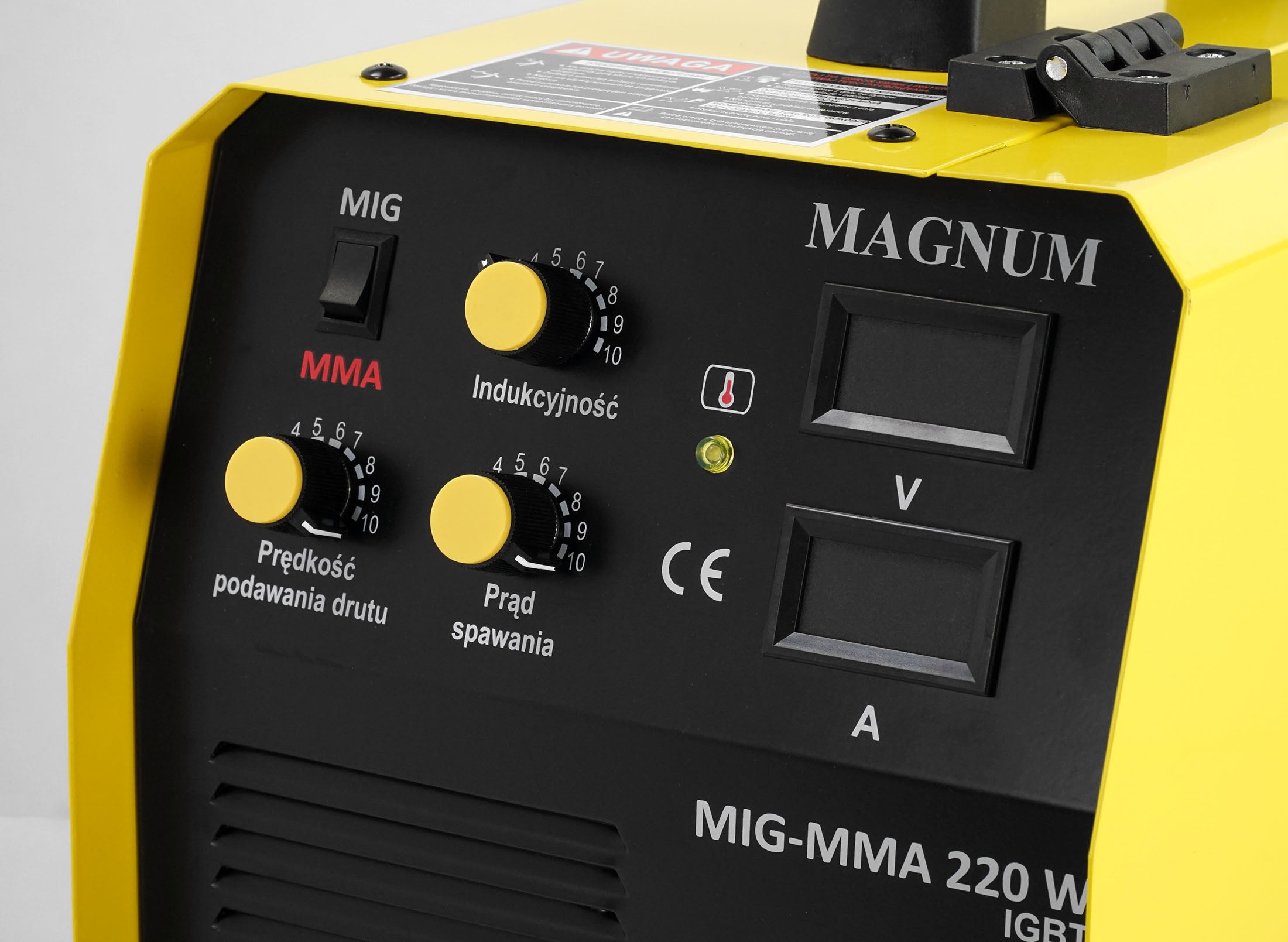

✅displays showing welding voltage and current,

✅simple operation with 3 knobs,

✅efficient cooling fan equipment.

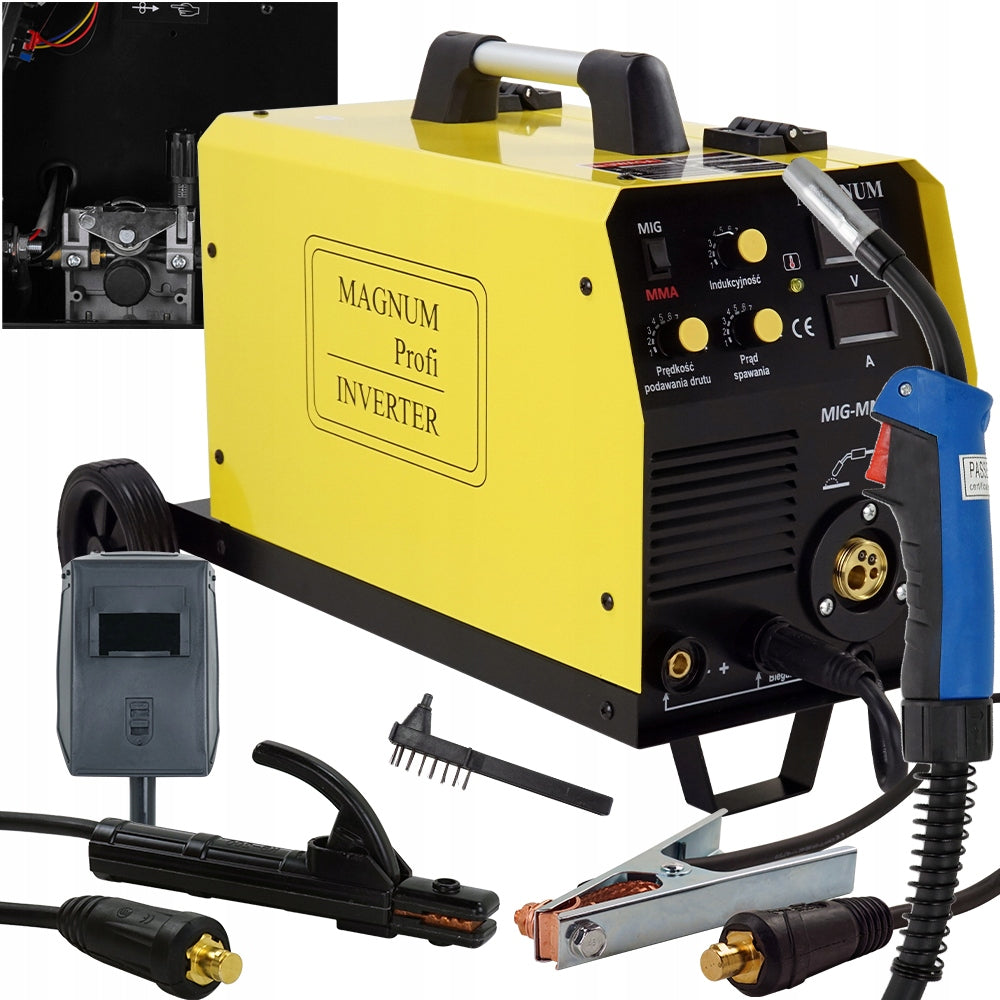

WHAT WILL YOU FIND IN THE PACKAGE?

✔ MAGNUM MIG-MMA 220W welding machine

✔ MIG MB-15/3m welding torch

✔ MMA electrode cable

✔ Bulk cable

✔ User Manual PL

WELDING ACCESSORIES FOR FREE

➡ welding disc,

➡ brush-hammer.

⏩Power supply parameters

• Power Supply: 230V
• Welding Methods: MIG, MAG, MMA
• Maximum welding current: 200A MIG/MAG (180A MMA)
• Working cycle: 60%
• Max. power consumption: 6,2kW
• Network Security: 20A
• Displays of welding parameters
• Net weight: 13,5kg

⏩ MIG/MAG welding parameters:

• Welding Current: 30 - 200A
• Welding Voltage: 16,5 - 23V
• Wire diameter: 0,6 / 0,8 / 1,0 mm
• Wire spool weight: max. 5kg
• Inductance: 0-10
• Polarity change: YES

⏩ MMA welding parameters:

• Welding Current: 30-180A
• Idle Voltage: 56V

• MIG/MAG - welding with a hot melt electrode (in the form of wire wound on a spool) in a gas shield. It is a popular welding process that is characterized by high efficiency and good quality of the welded joint. Semi-automatic MIG/MAG welding is one of the most popular methods both in workshop conditions as well as in high-performance production. This method is also relatively easy to learn by novice users.

• FCAW (FLUX) - a popular variant of the MAG method - semi-automatic welding with a hot melt electrode (welding wire on a spool). The main difference is that it is welded with a special self-shielding wire, which does not require the use of shielding gas. Simplifying, we can say that this method combines two processes: MAG welding and MMA electrode welding.

• MMA - the oldest variety of arc welding - the so-called. welding with a wrapped electrode. This is probably the best known and widespread welding method. The type and diameter of the wrapped electrode is selected depending on the type of material being welded.

• Inductance - optimizes arc characteristics depending on the thickness of the welded material. This function is useful when welding thin elements using the MIG/MAG method - it prevents them from burning out (the thinner the inductance element should be greater). Inductance affects the shape of the weld, its width, depth of melting and the number of splashes,

Choose a brand whose history dates back to the beginning of the twenty-first century. Magnum is the leading brand of welding equipment in Poland.

A wide range of Magnum devices meets the needs of not only novice users, but also more advanced ones. Depending on the selected model, it can be dedicated to workshop applications as well as for heavy industry.

Customers choose the Magnum brand most often due to its high quality, affordable price and reliability.
