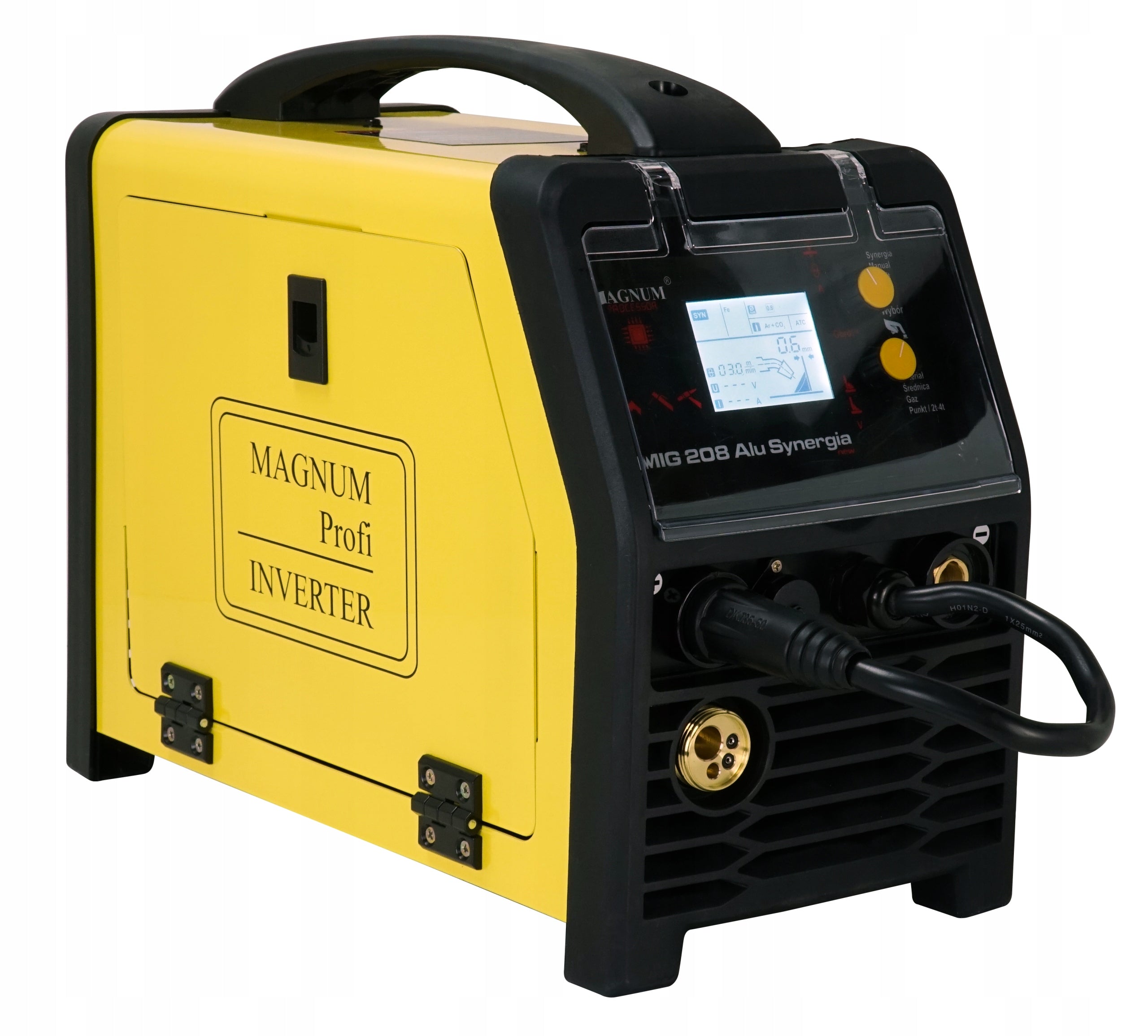

Suvirinimo aparatas MAGNUM MIG/MAG/MMA/TIG 3in1 208 Alu inverteris

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG/MAG/MMA/TIG 3in1 208 Alu inverteris. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIG 208 ALU

✅ Power supply 230V 1ph

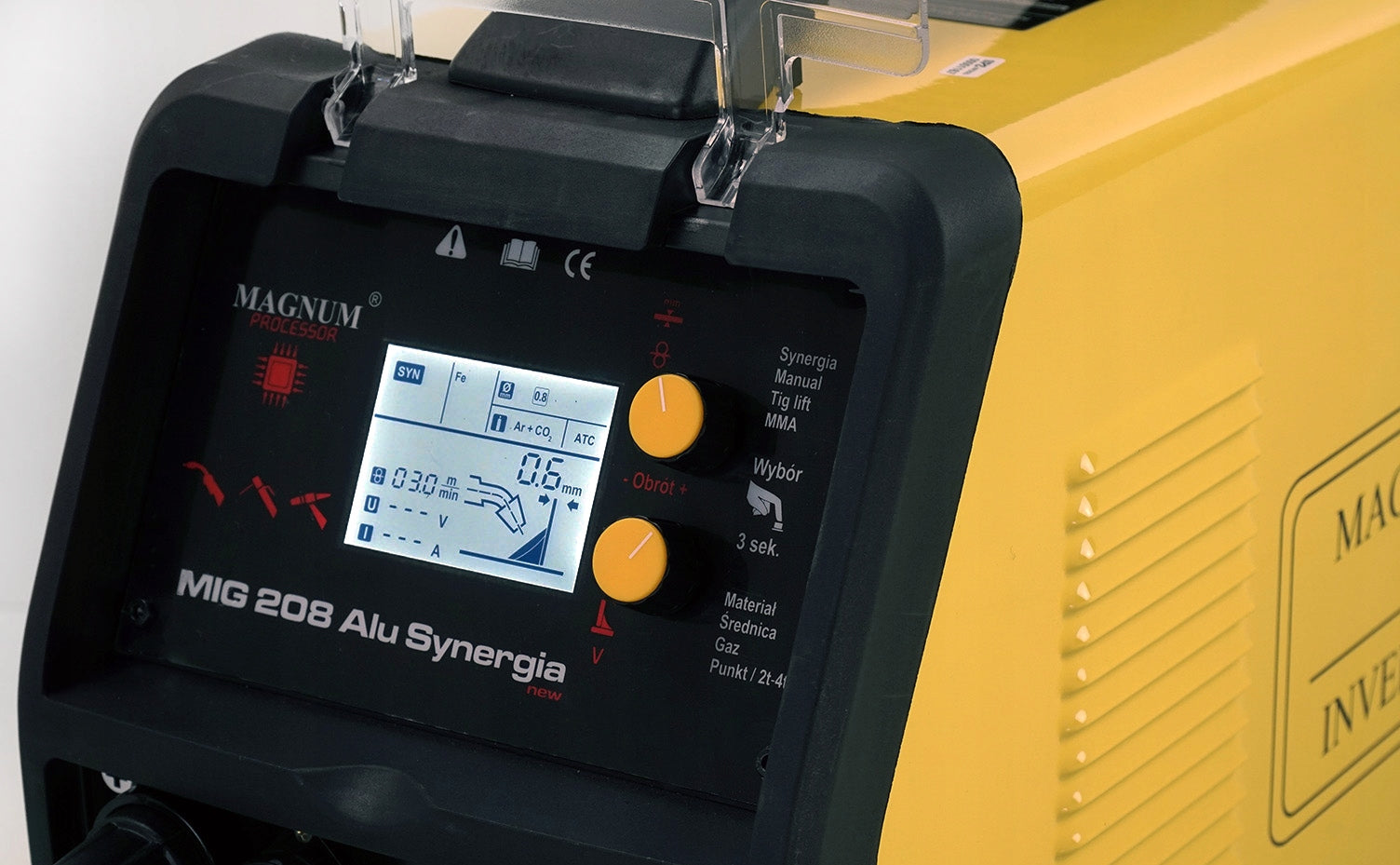

✅ LCD display with excellent contrast

✅ MIG/MAG welding with parameter setting: manual and synergistic

✅ Synergistic MIG/MAG programs: Fe - steel welding, Ss - stainless steel welding, Al - aluminum welding, CuSi, CuAl - solder welding, Flux - self-shielding wire welding,

✅ ATC function - support for MIG/MAG welding of materials less than 1,5mm thick

✅ Spot welding MIG/MAG

✅ MIG/MAG welding 2T/4T

✅ MIG EURO handle socket

✅ TIG DC Lift welding (optional), MMA (MMA cables included).

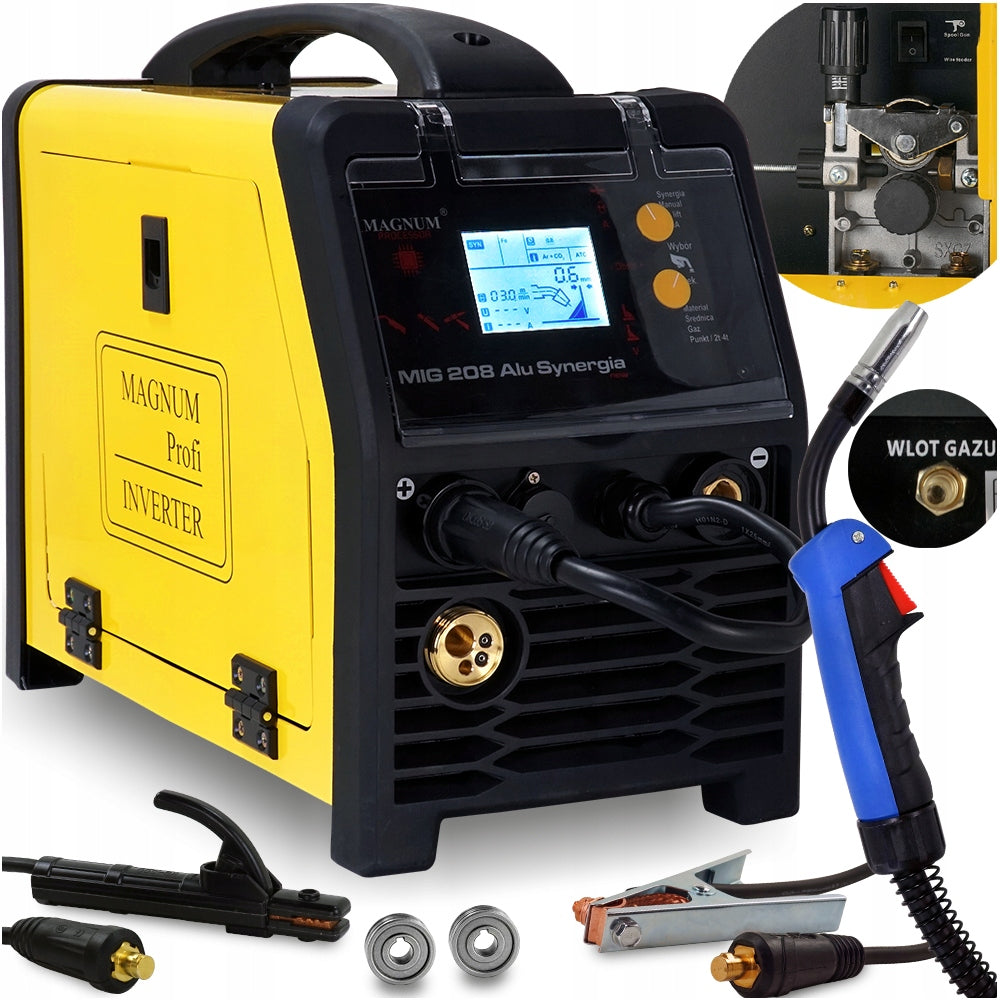

WHAT WILL YOU FIND IN THE PACKAGE?

✔ Welding machine MAGNUM MIG 208 Alu Synergy

✔ MIG holder MB15 3m

✔ MMA electrode cable

✔ Bulk cable

✔ User Manual

WELDING ACCESSORIES FOR FREE

➡ welding disc,

➡ brush-hammer.

⏩Power supply parameters

• Power Supply: 230V
• Welding methods: MIG, MAG, MMA, TIG Lift, FLUX
• Maximum welding current: 200A (MIG/MAG)
• Working cycle: 40%
• Network Security: 20A
• LCD display
• Net weight: 10,7kg

⏩ MIG/MAG welding parameters:

• Welding Current: 40 - 200A
• Welding Voltage: 16 - 23V
• Wire diameter: 0,6 / 0,8 / 0,9 / 1,0 mm
• Wire spool weight: max. 5kg (max.D200)
• Synergistic programmes
• MIG/MAG spot welding
• Function of ATC
• Other additional features listed in the description

⏩ MMA welding parameters:

• Welding Current: 40-150A
• Idle Voltage: 78V

⏩ TIG welding parameters (optional):

• Welding Current: 40-150A
• Output Current: DC Constant
• Arch ignition: rubbing - TIG Lift

⏩Synergic MIG/MAG programs:

• Fe - plain steel | Gas: CO2 or Ar/CO2
• SS - stainless steel | Gas: Ar+O2 or Ar+CO2 (1-2%)
• Al - welding aluminium | Gas: Ar
• CuSi, CuAl -lutowelding | Gas: Ar
• Flux - self-shielding wire welding

Synergic programs - automatically selects welding parameters,

2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow

4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow,

Weldable with SPOOLGUN handle - The SPOOLGUN handle has a built-in wire feeder and is adapted to use wires on the D100 spool (diameter 100mm). This is a great solution e.g. when it is necessary to increase the working range of the device - SPOOLGUN handles are generally available in versions 3m, 5m and even 8m.

ATC function - support for MIG/MAG welding of materials with a thickness of less than 1,5mm,

Choose a brand whose history dates back to the beginning of the twenty-first century. Magnum is the leading brand of welding equipment in Poland.

A wide range of Magnum devices meets the needs of not only novice users, but also more advanced ones. Depending on the selected model, it can be dedicated to workshop applications as well as for heavy industry.

Customers choose the Magnum brand most often due to its high quality, affordable price and reliability.
