Aprašymas
Trumpai apie prekę

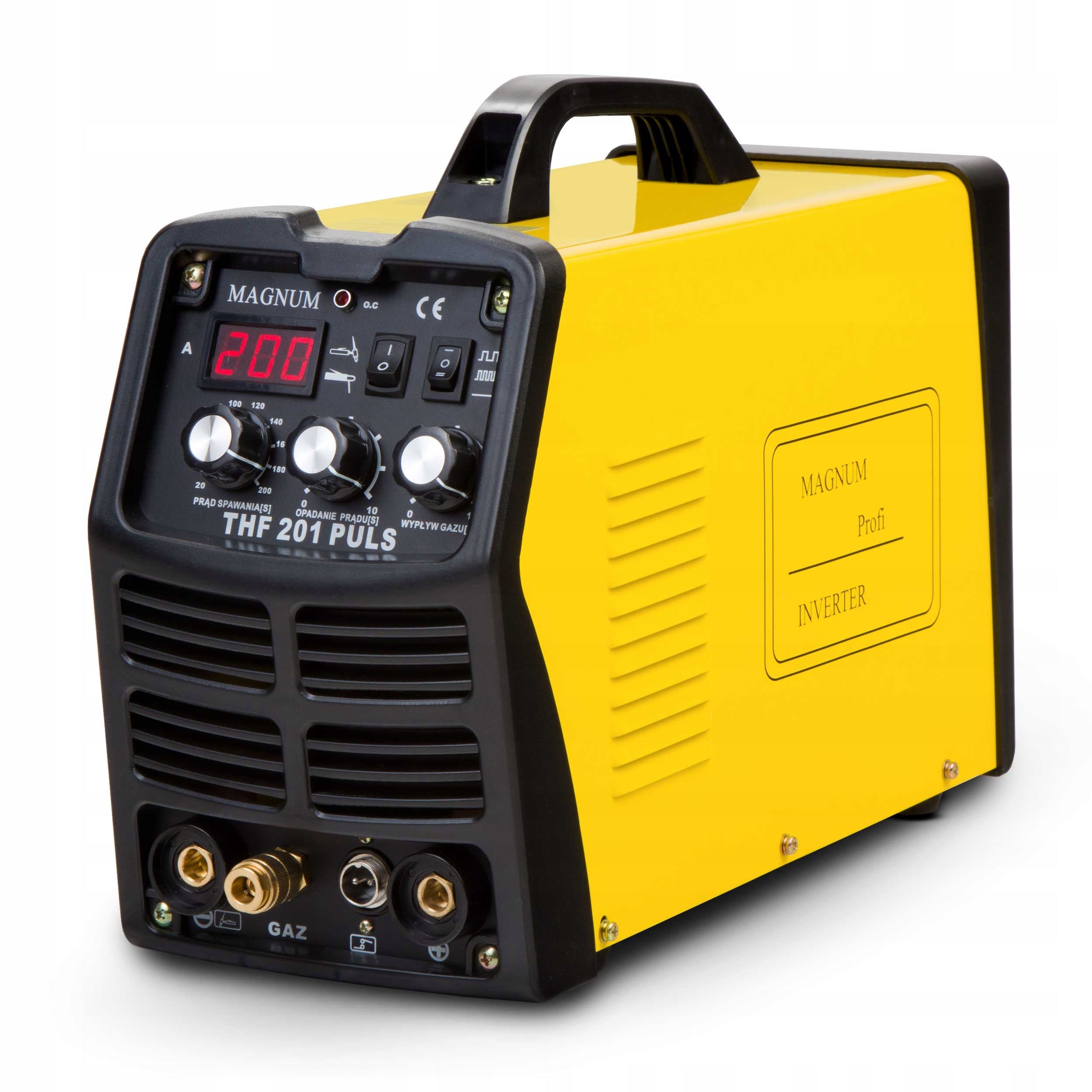

Prekė: Suvirinimo aparatas MAGNUM THF 201P, 230V, 200A, TIG DC, HF, pulsinis, MMA. Kategorija: Invertoriniai suvirinimo aparatai.
- Gamintojas: Magnum
- Modelis: THF 201 PULS
- Welding methods: TIG DC, PULS, MMA
- Power supply: 230V
- Operating cycle 60% at maximum welding current 200A
- For welding: black steel, stainless steel, acid-resistant
- Contactless glow - HF

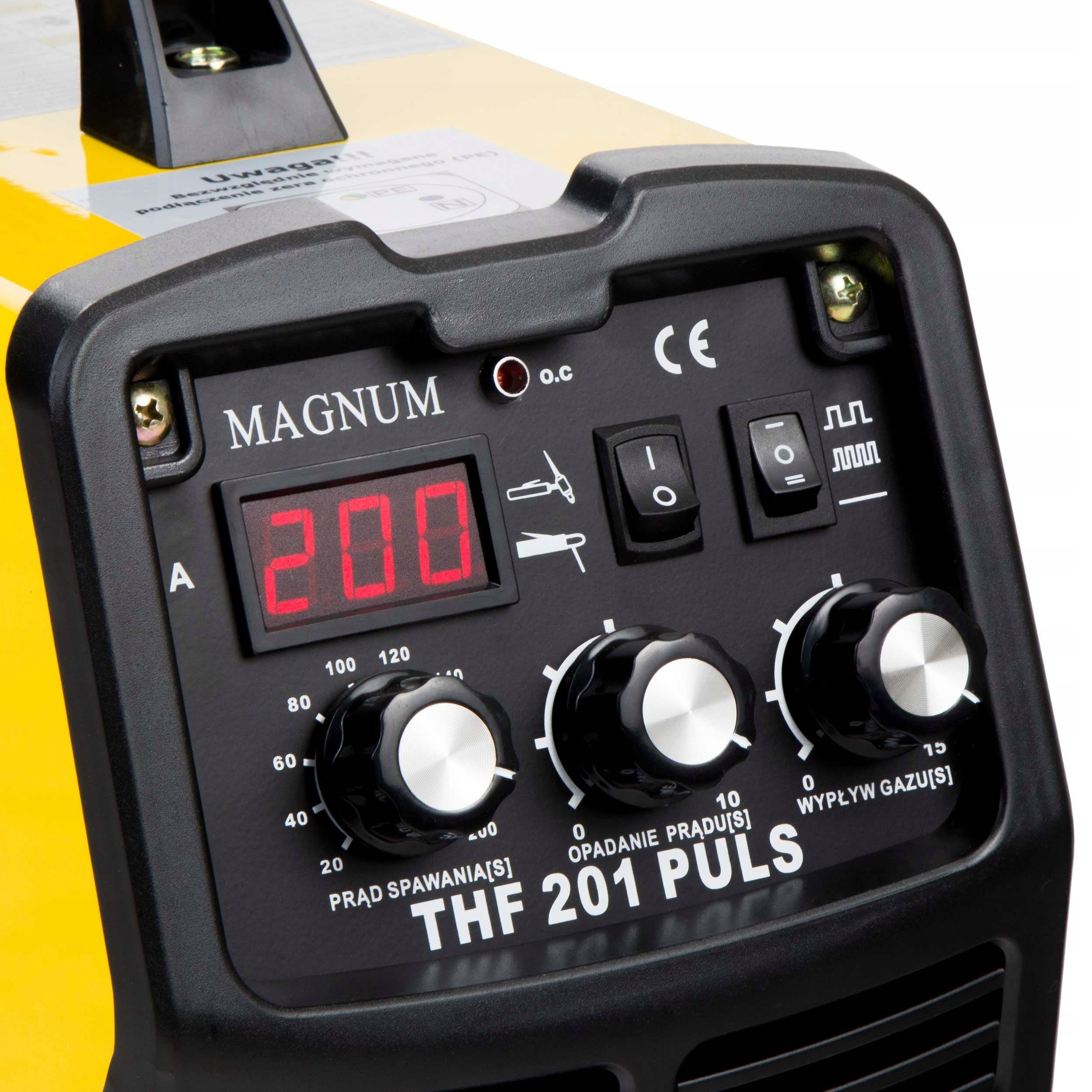

- Smooth adjustment: welding current/current drop/gas outflow after welding
- Max. thickness of welded material: 10mm
- Handle welding length 4m

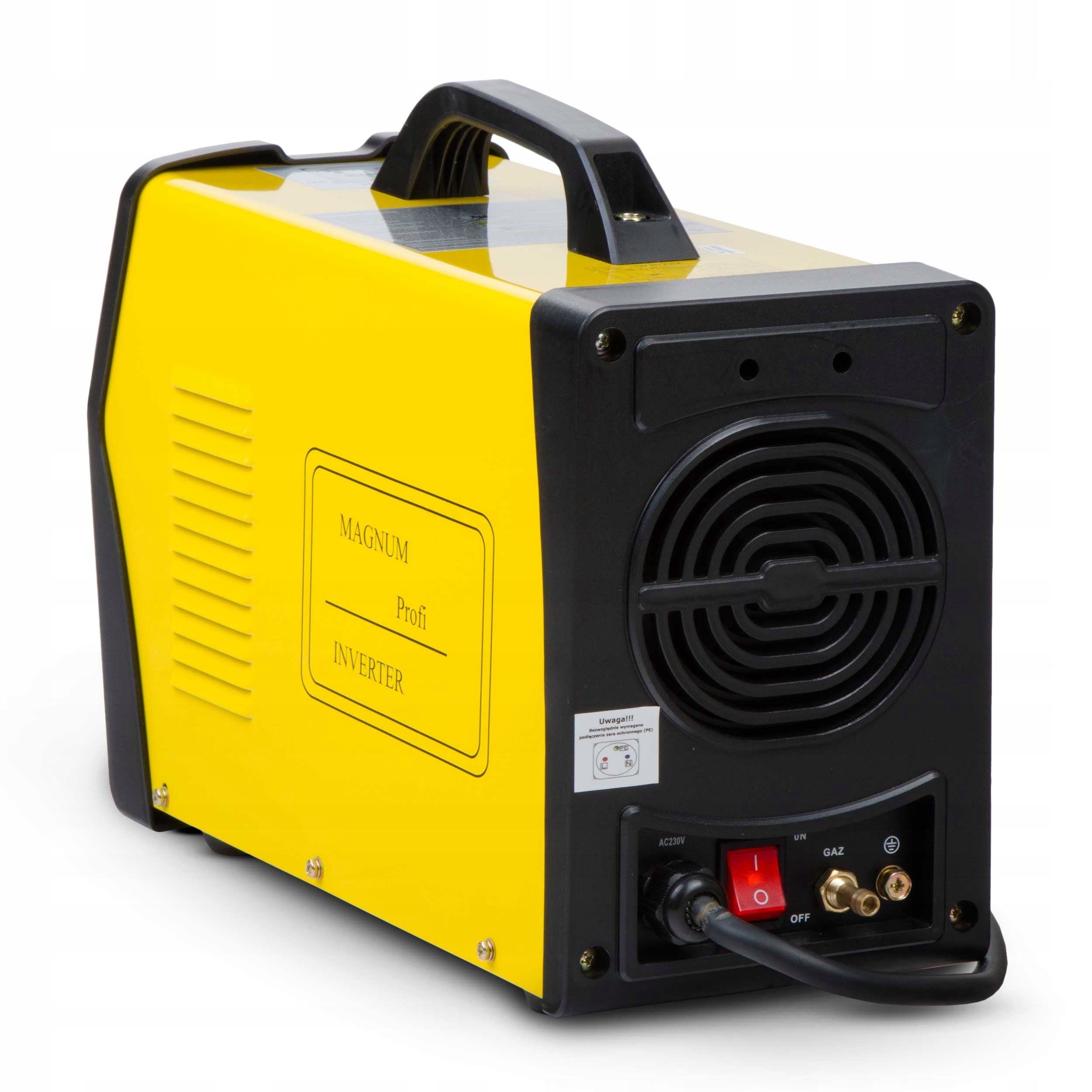

- Cooling with fan
- Clean, aesthetic welds
- Made in IGBT technology
PARAMETERS TAILORED TO THE NEEDS
The welding machine supports the TIG welding method with direct current (DC) and with the possibility of contactless arc ignition (HF), as well as welding with a wrapped electrode (MMA). The HF system allows you to immediately adjust the current to changing parameters. In addition, control via the intuitive panel facilitates the preparation of the welding machine for work.
PRECISE WELDING WITHOUT THE RISK OF OVERHEATING
Obtaining melt to a depth of 5 mm allows for effective welding of materials with a thickness of up to 10 mm. Thanks to the PULS function, the device minimizes the risk of overheating or burning out materials, which is crucial for achieving durable and aesthetic connections.
✔ FEATURES AND ADVANTAGES:
- HF - contactless arc glow through built-in ionizer; uses high frequency current; the weld is free from tungsten contamination,
- PULS - welding of very thin elements, reducing the linear energy of the arc and the risk of overheating or burning materials; welds are better quality,
- IGBT- bipolar transistors increase the efficiency and reliability of the device, ensure lower power consumption.

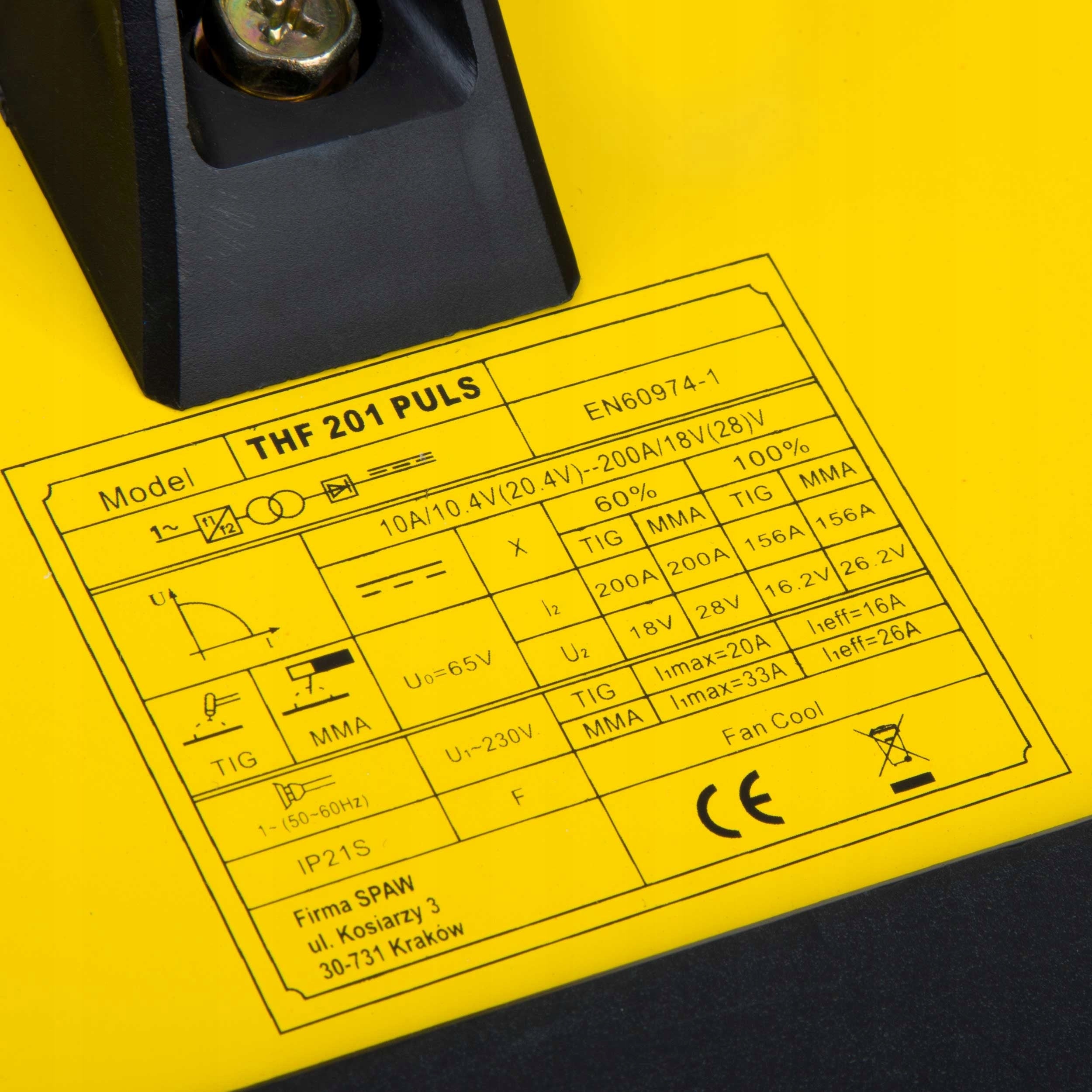

⚙ TECHNICAL SPECIFICATION:
- Power Supply: 230V 50Hz (1ph)
- Network security: 25A "C"
- Max. power consumption: 5.6kW
- TIG DC welding current: 10 - 200A
- Idle voltage: 65V
- Degree of protection: IP21S
- Dimensions: 39 x 15.5 x 24 cm
- Weight: 8.5kg

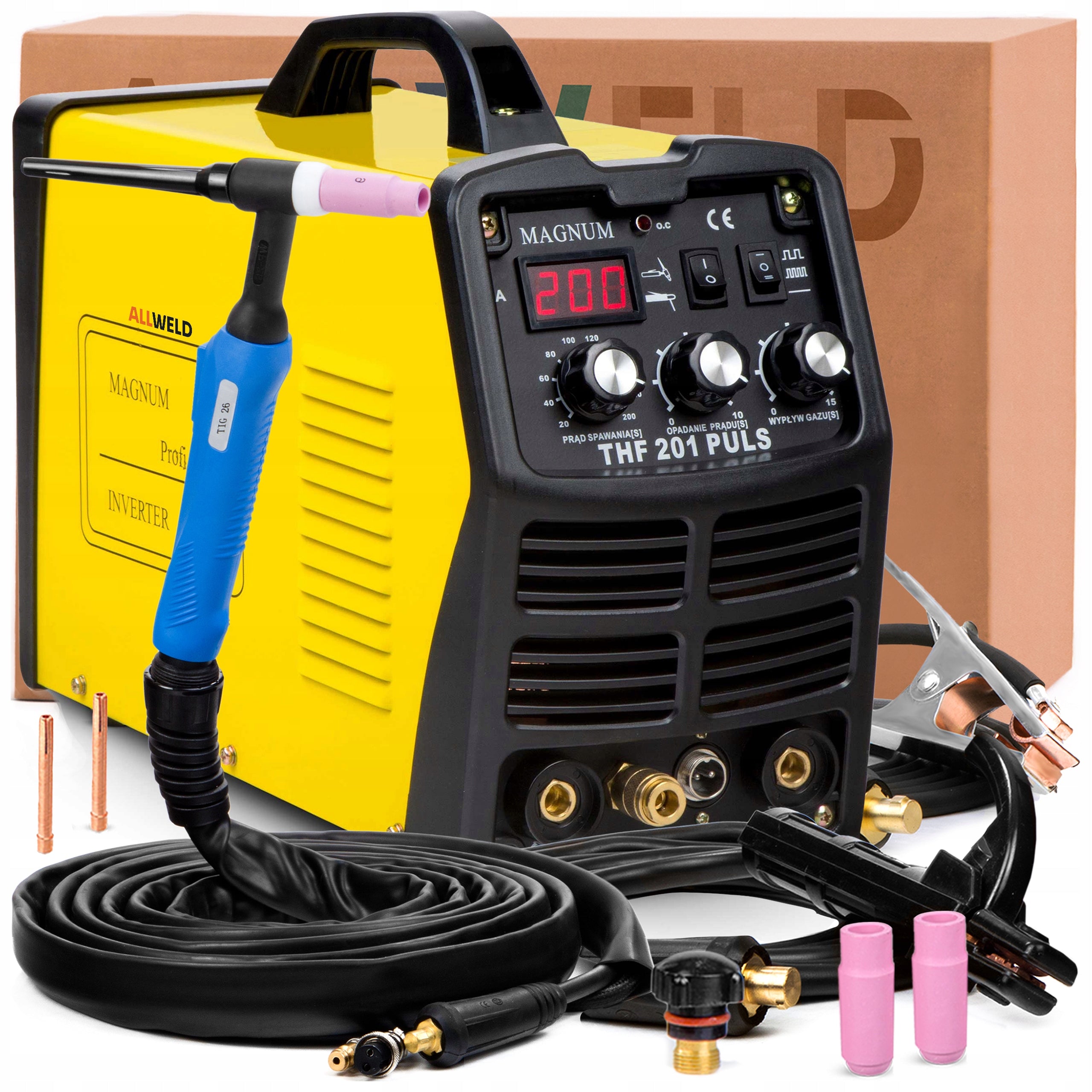

THE SET INCLUDES:
- Magnum THF 201 PULS welding machine,

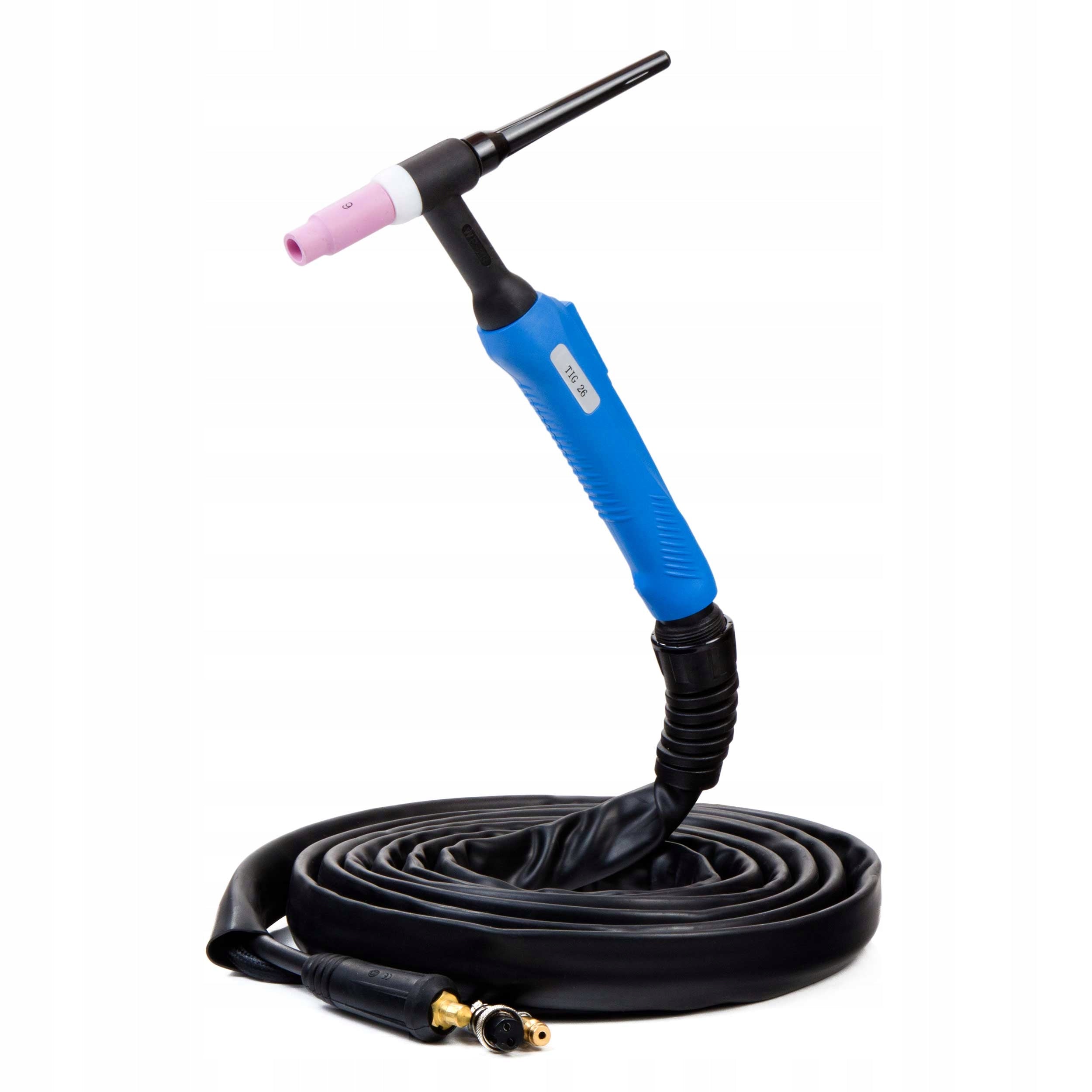

- Welding torch TIG type SR-26 - 4m,
- mass handle,
- electrode handle,
- User manual in Polish.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Magnum |
| Parametry | Power consumption | 6.9 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Device weight | 8.25 kg |
| Parametry | Welding range | 20–200 A |
| Parametry | Length of ground cable | 300 cm |
| Parametry | Welding cable length | 400 cm |
| Parametry | Manufacturer code | U I THF201P D |
| Parametry | EAN (GTIN) | 5905323107434 |
| Parametry | Packaging status | original |
| Parametry | Model | THF 201 PULS |
| Parametry | Welding methods | MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle,LCD display |
