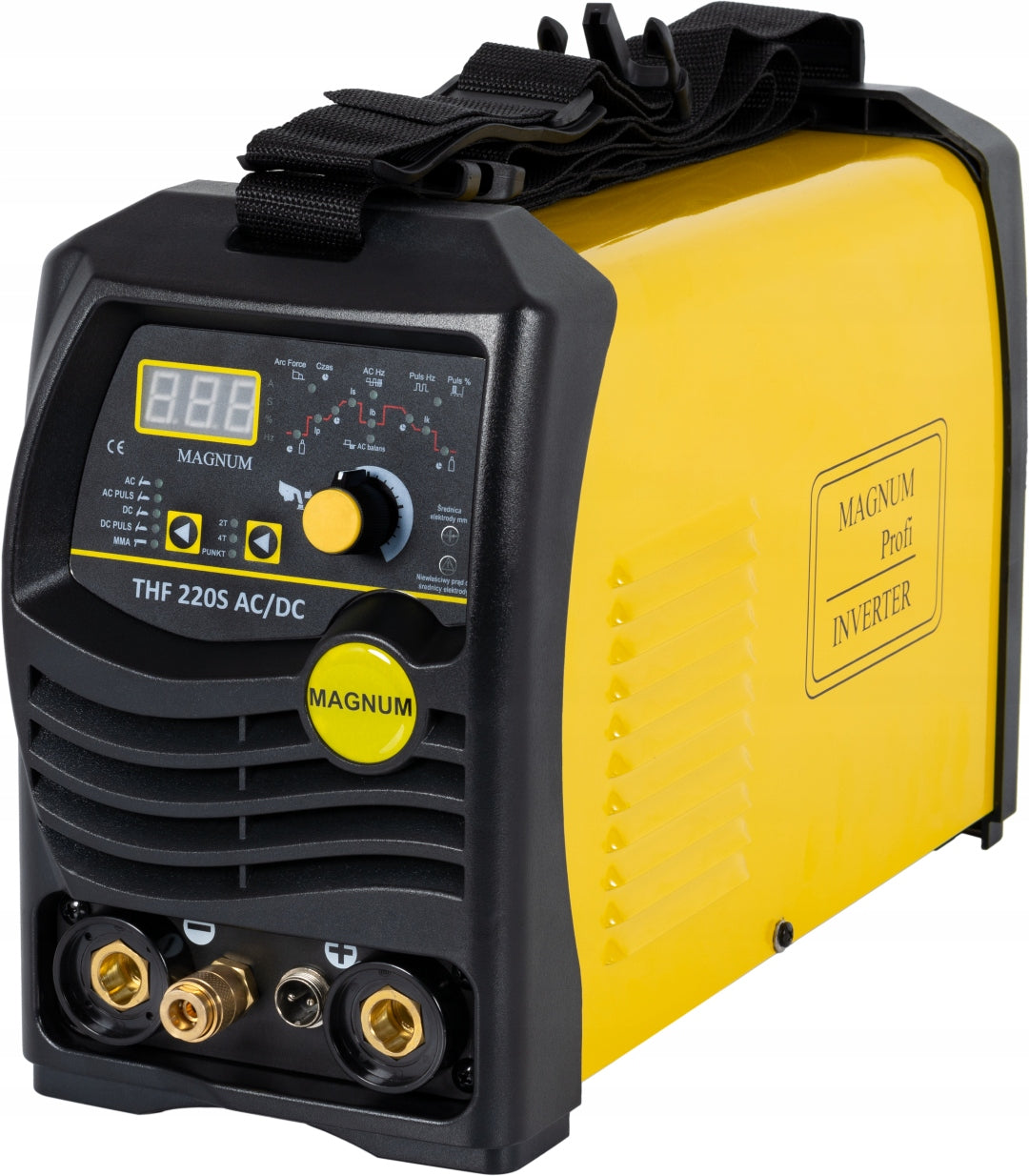

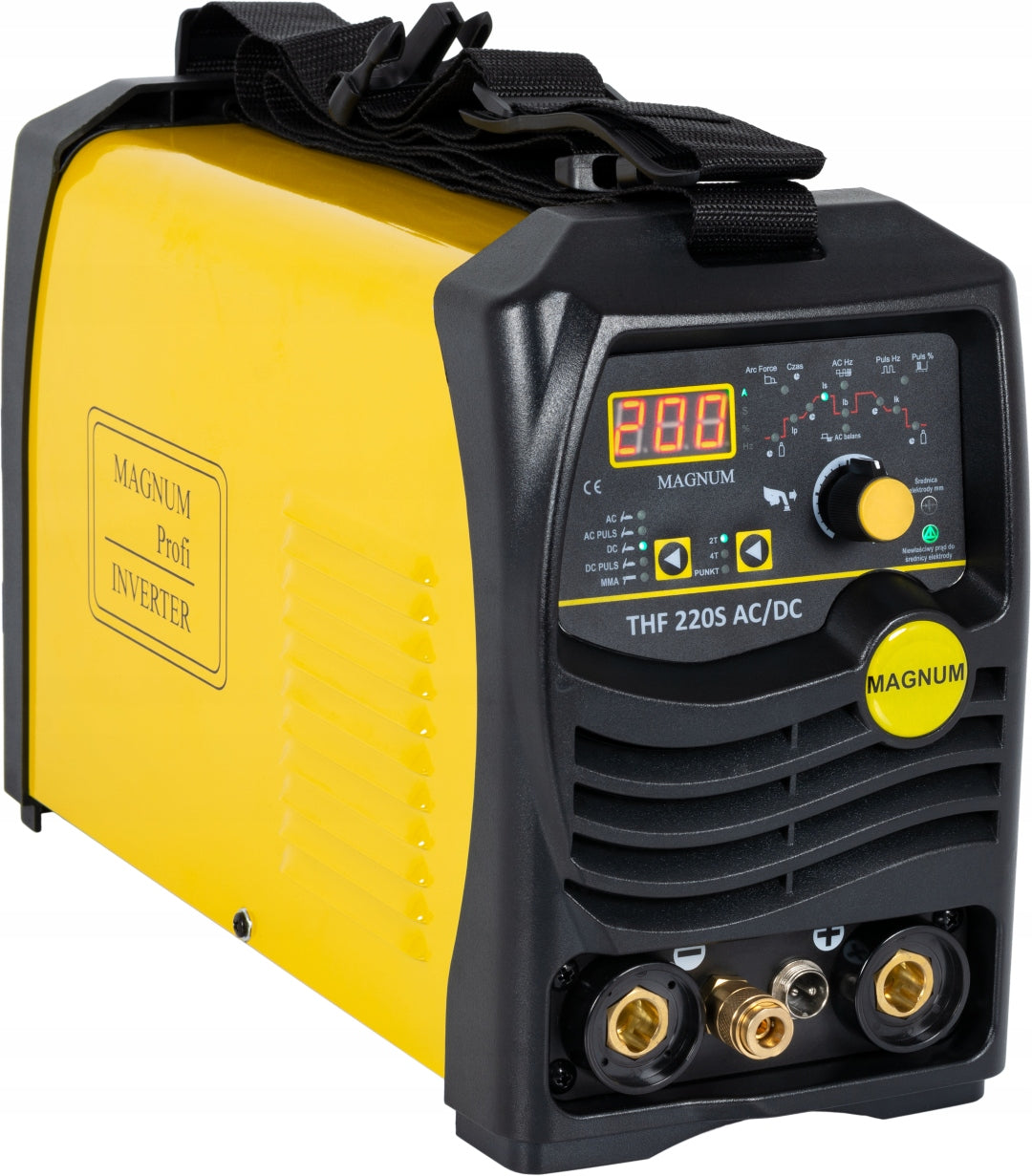

Suvirinimo aparatas MAGNUM THF 220S AC/DC TIG MMA, 230V, impulsinis, su HF, aliuminiui

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM THF 220S AC/DC TIG MMA, 230V, impulsinis, su HF, aliuminiui. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MAGNUM TIG AC/DC MAGNUM THF 220S

⏩MAGNUM THF 220S AC/DC TIG MMA welding machine 230V Pulse HF

MAGNUM THF 220S AC/DC is an inverter welding machine for people who are looking for a specific device for TIG AC/DC and MMA with 230 V power supply. It is a model for a user who wants to have real control over welding parameters, not just basic settings.

The device will work well in the workshop, service, locksmith, repair and applications where both versatility and convenience of adjustment count. It is a reasonable choice for people who want to buy a specific welding machine with advanced features, without adding to the additives that they do not need to start.

⏩THE MOST IMPORTANT ADVANTAGES

• TIG AC/DC and MMA in one device
• 230 V power supply
• pulse, contactless HF, 2T/4T mode and spot welding
• AC Hz and AC balance adjustment
• IGBT inverter technology
• range TIG 5 to 200 A
• range MMA 10 – 160 A
• compact design and easy-to-read control panel

⏩WHY THIS MODEL IS WORTH BUYING

In the case of this type of welding machine, the customer does not buy only the housing and model name. It primarily buys work opportunities, stability of parameters and convenience of use. THF 220S AC/DC gives you access to the features that a more informed user is looking for: TIG AC/DC, MMA, pulse, HF, 2T/4T, point, AC Hz and AC balance adjustment.

This means more control over the welding process and more flexible use of the device in practice. For many users, this is more important than the fact of buying a ready-made package of accessories, because the workshop often already has accessories.

⏩Welder will be a good choice for:

• locksmith workshops
• repair services
• small service establishments
• users working on aluminum, stainless steel and black steel people who want to have one device for TIG and MMA

⏩THE MOST IMPORTANT FUNCTIONS

• TIG AC/DC - The ability to operate with alternating and direct current increases the range of applications of the device and gives greater flexibility of settings.
• MMA - Additional welding method increases the practicality of the device. The equipment is not limited to just one working technique.
• Puls - The pulse function helps to better control the amount of heat entering the material and gives you more control over the weld.
• HF - Non-contact arc glow improves the comfort of work and makes it easier to start TIG welding.
• 2T/4T - For shorter jobs, 2T mode is convenient, and with longer 4T welds, it improves work comfort and reduces operator fatigue.
• Point welding - Useful function for people performing repetitive point joints.
• AC Hz and AC balance - These are the features that a more technically aware customer is looking for. They allow more accurate adjustment of the operating characteristics of the device.

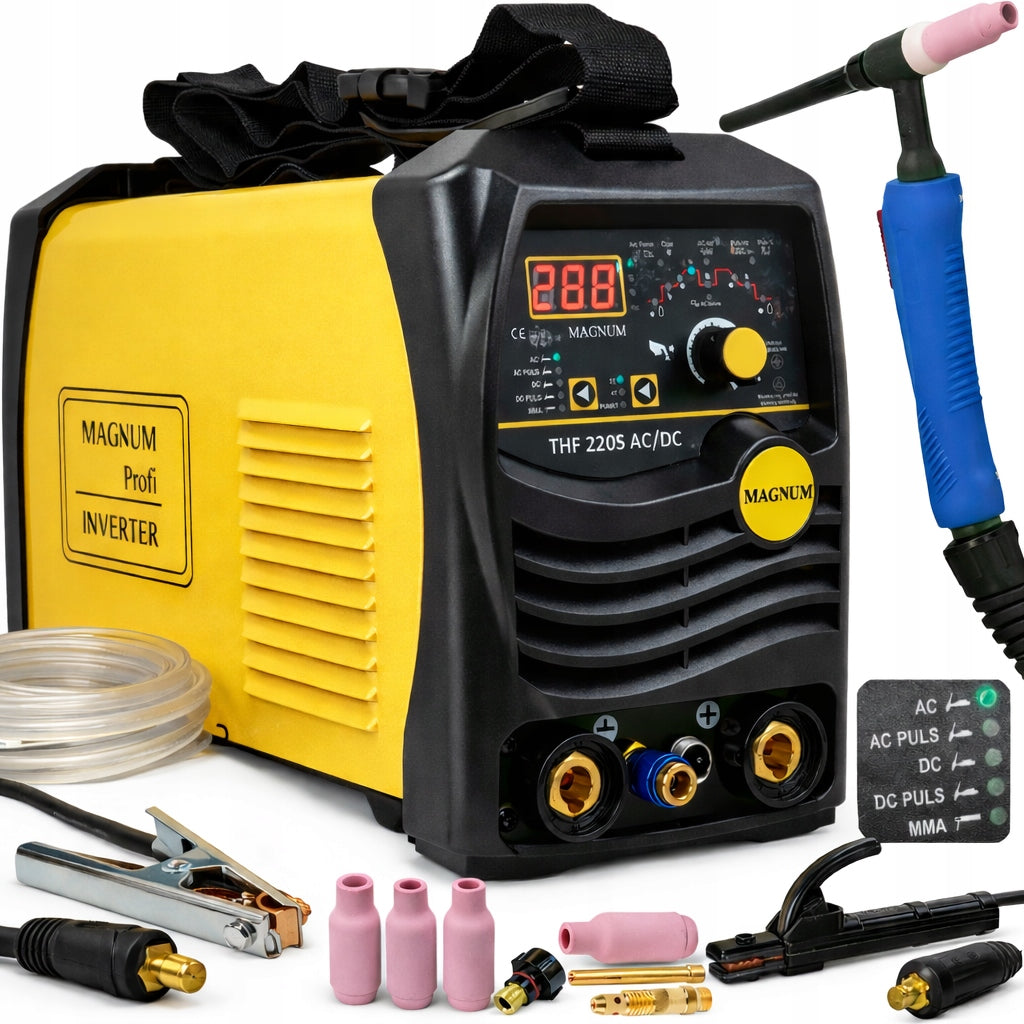

⏩INCLUDED

• Magnum THF 220S AC/DC welding machine
• Welding torch TIG T-26/4m
• MMA Electrode Holder
• Bulk cable
• User manual

The buyer gets a new MAGNUM welding machine with the features they are really looking for when choosing a TIG AC/DC device. Here he does not pay only for the name of the model, but for the scope of work, convenience of settings, additional MMA method and extensive configuration options.

It will also be important for some customers that they can buy the basic version and choose accessories for their own needs, instead of immediately investing in an extensive set that is not always needed.

• Is this TIG AC/DC? : Yes. The THF 220S supports TIG AC/DC.
• Does the device have MMA? : Yes. The model also allows MMA welding.
• Does he have a pulse? : Yes. The device has a pulse function.
• Does it have HF? : Yes. The model has a non-contact HF glow.
• Does it run on 230 V? : Yes. The power supply is 230 V / 50 Hz.
• What exactly is included? : Welding machine, TIG T-26/4 m handle, MMA handle, mass cable and manual.
• Is there a cylinder or reducer included? : Not unless explicitly listed in the 'Included' section.

MAGNUM THF 220S AC/DC is a welding machine for users who are looking for a functional TIG AC/DC and MMA device with 230 V power supply, pulse, HF and a wide range of adjustment. It is equipment for people who want to work comfortably and consciously choose parameters.

⏩POWER SUPPLY PARAMETERS

• Power supply: ~1x230V ±10% 50Hz
• Welding methods: TIG AC, TIG DC, TIG AC Pulse, TIG DC Pulse, TIG Point, MMA
• Maximum welding current: 200A TIG (160A MMA)
• Rated duty cycle: 60%
• Net weight: 9kg

⏩WELDING PARAMETERS TIG

• Gas Outflow: 0,1-10s | Initial Current: 5-160A | Current Rise: 0-10s
• TIG welding current / TIG pulse peak current: 5-200A
• Current drop: 0 - 15s | Crater current (final): 5-200A | Gas flow: 0-15s |
• Pulse base current: 5-200A | Pulse frequency: 0,2-20Hz / 21-200Hz |
• Pulse width: for 0,2 - 10 Hz > 1-99% | for 11Hz - 200Hz > 10-90%
• AC Balance: 15-65% | AC Frequency: 20-250Hz
• Spot welding time: 0,5-10 seconds
• Arch Initiation: Contactless HF

⏩WELDING PARAMETERS MMA:

• Welding Current: 10 - 160A
• Arc Force: 0-40
• Idle Voltage: 67[V]

Choose a brand whose history dates back to the beginning of the twenty-first century. Magnum is the leading brand of welding equipment in Poland.

A wide range of Magnum devices meets the needs of not only novice users, but also more advanced ones. Depending on the selected model, it can be dedicated to workshop applications as well as for heavy industry.

Customers choose the Magnum brand most often due to its high quality, affordable price and reliability.
