Aprašymas
Trumpai apie prekę

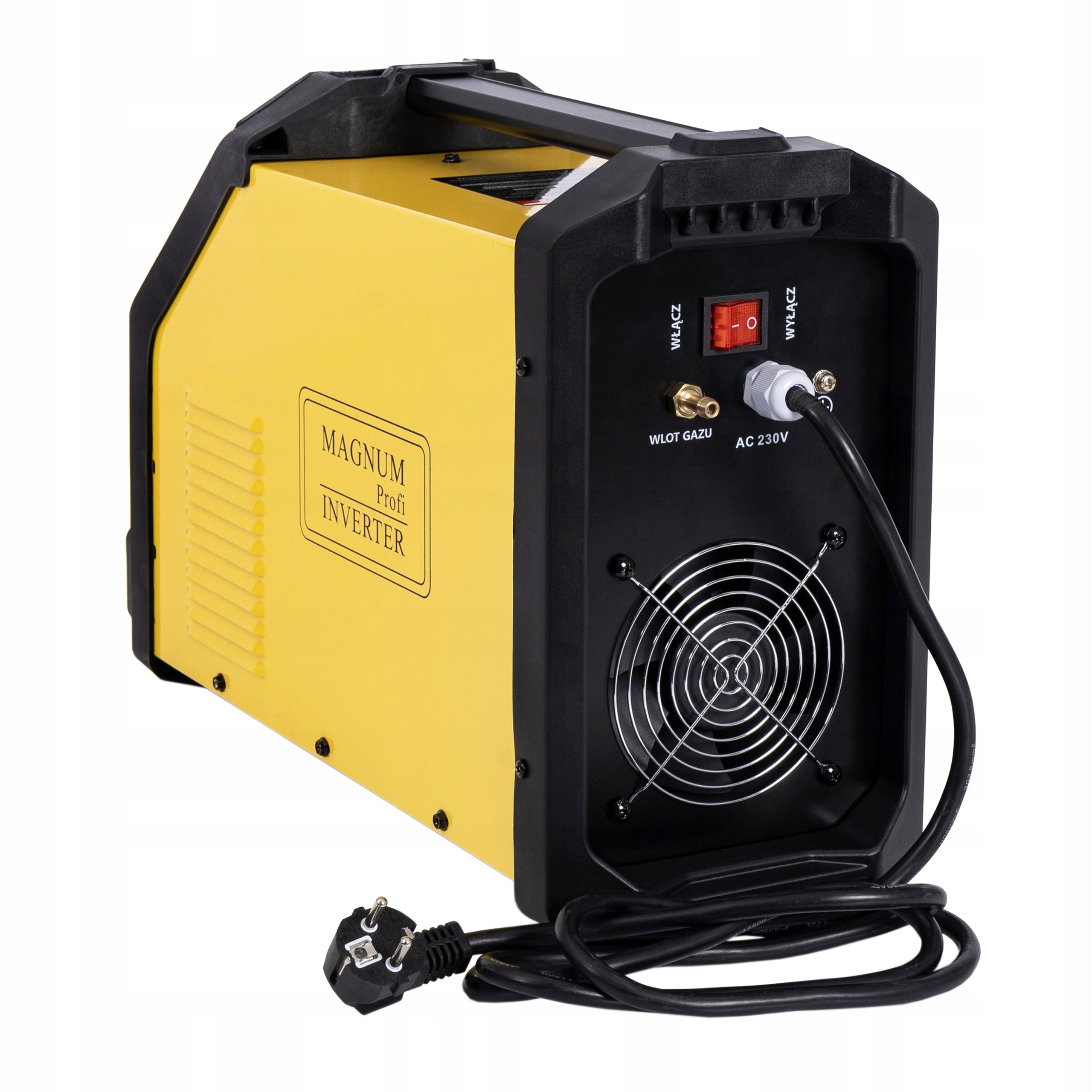

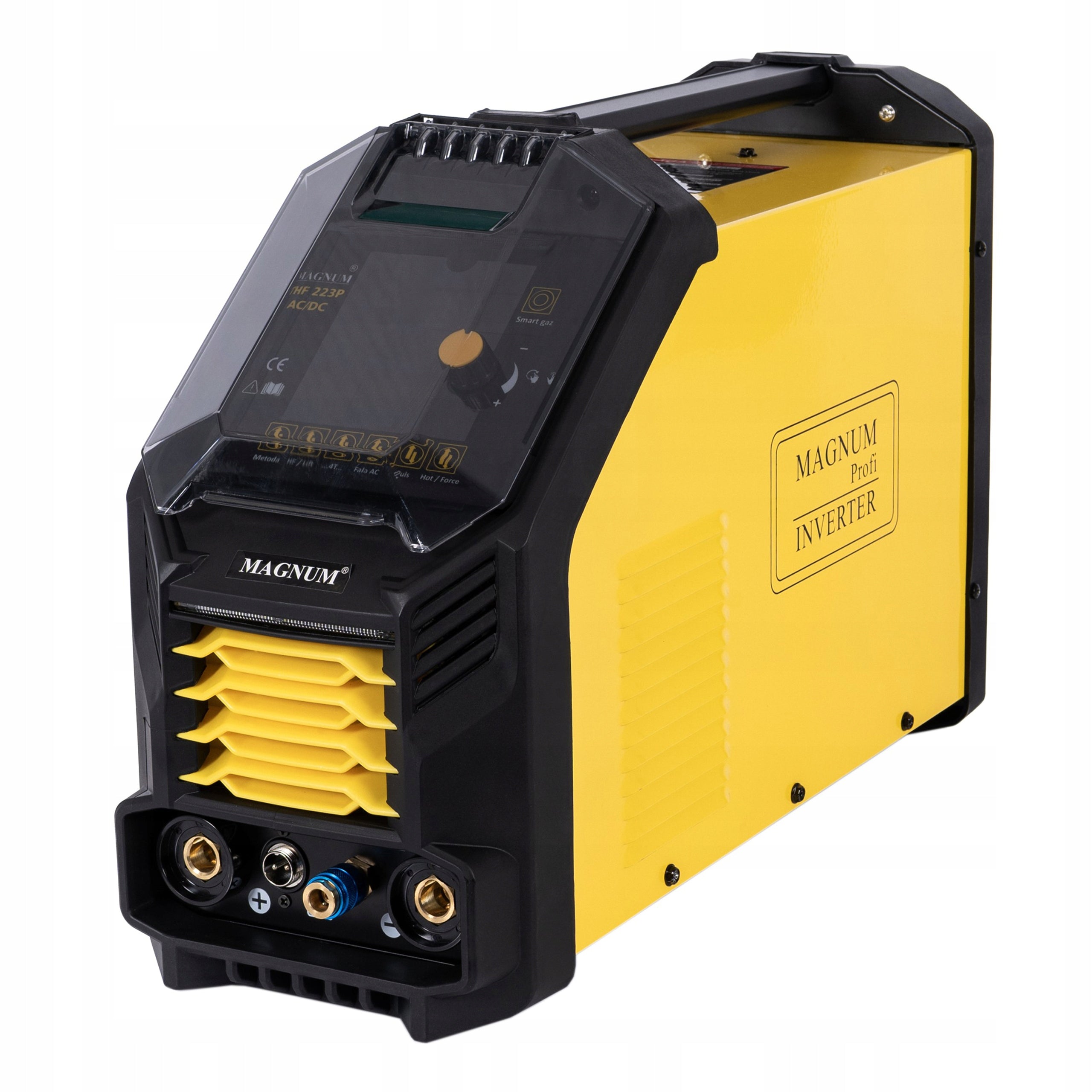

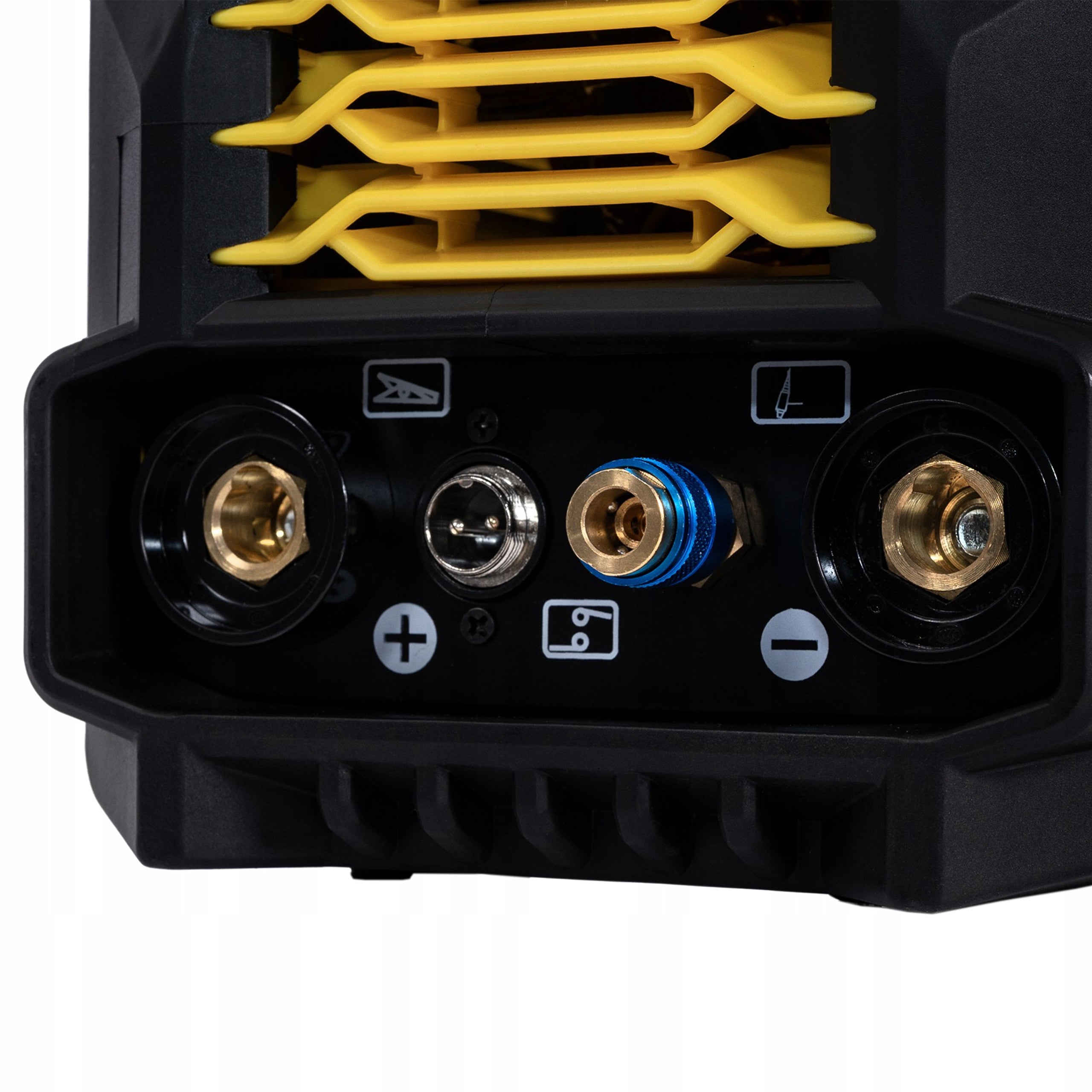

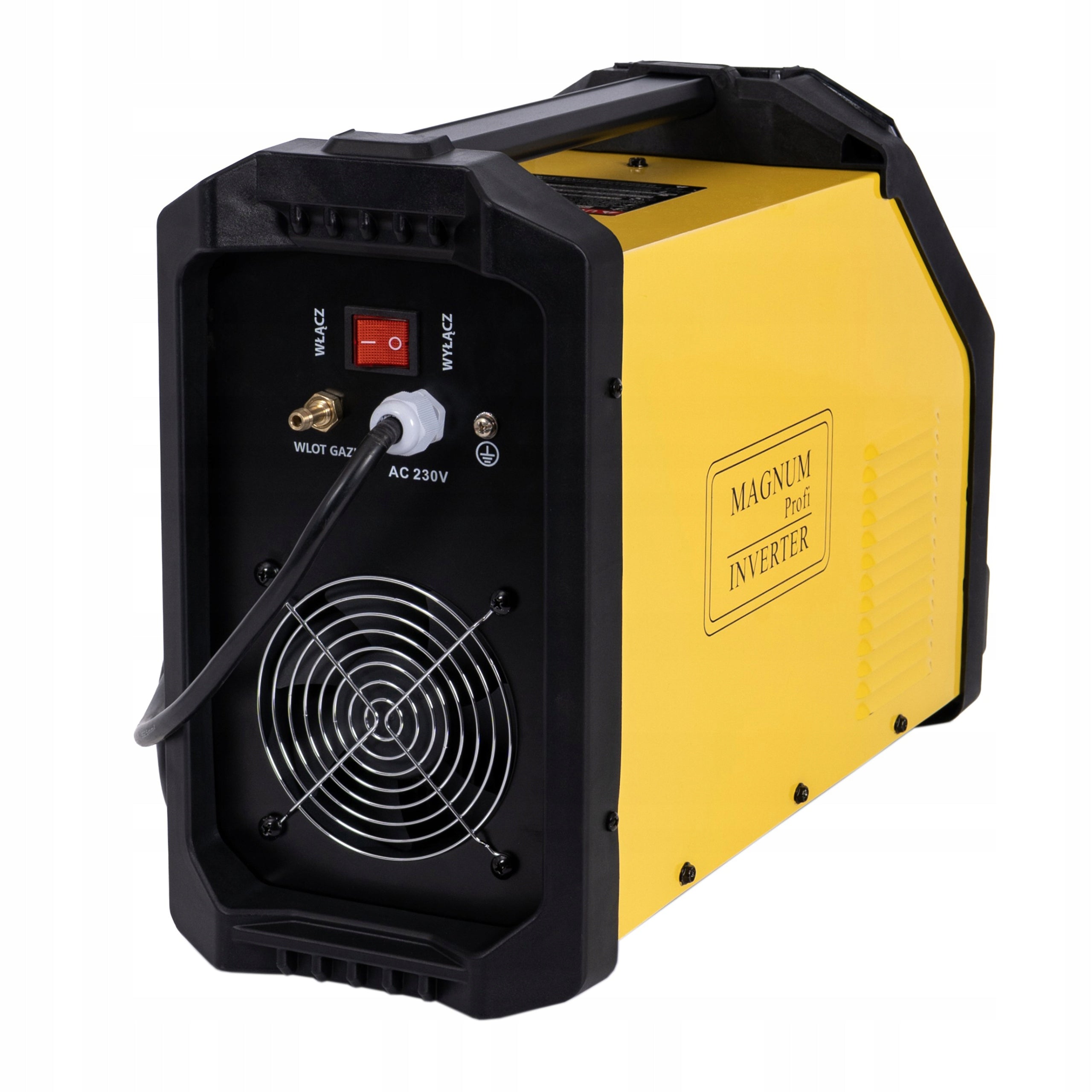

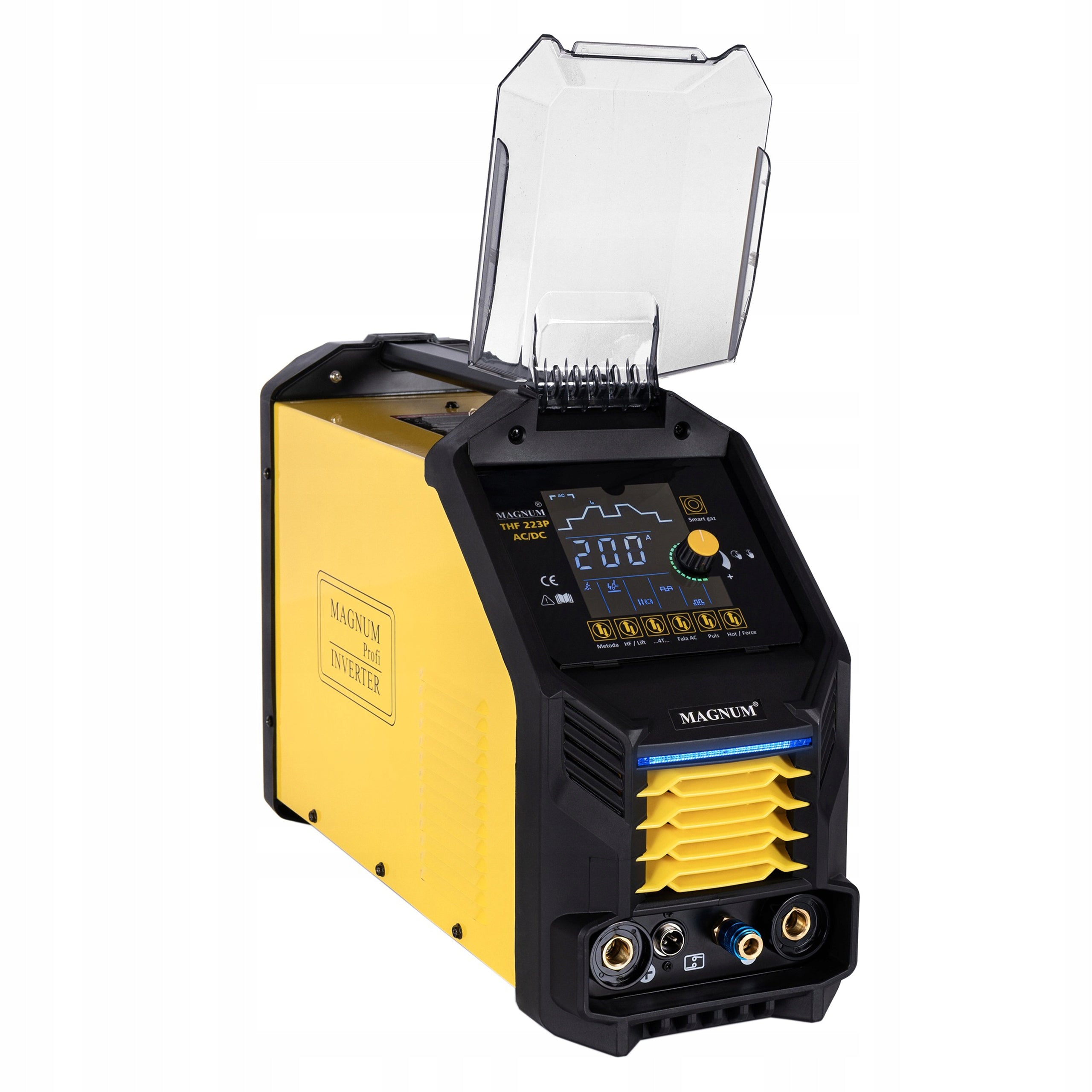

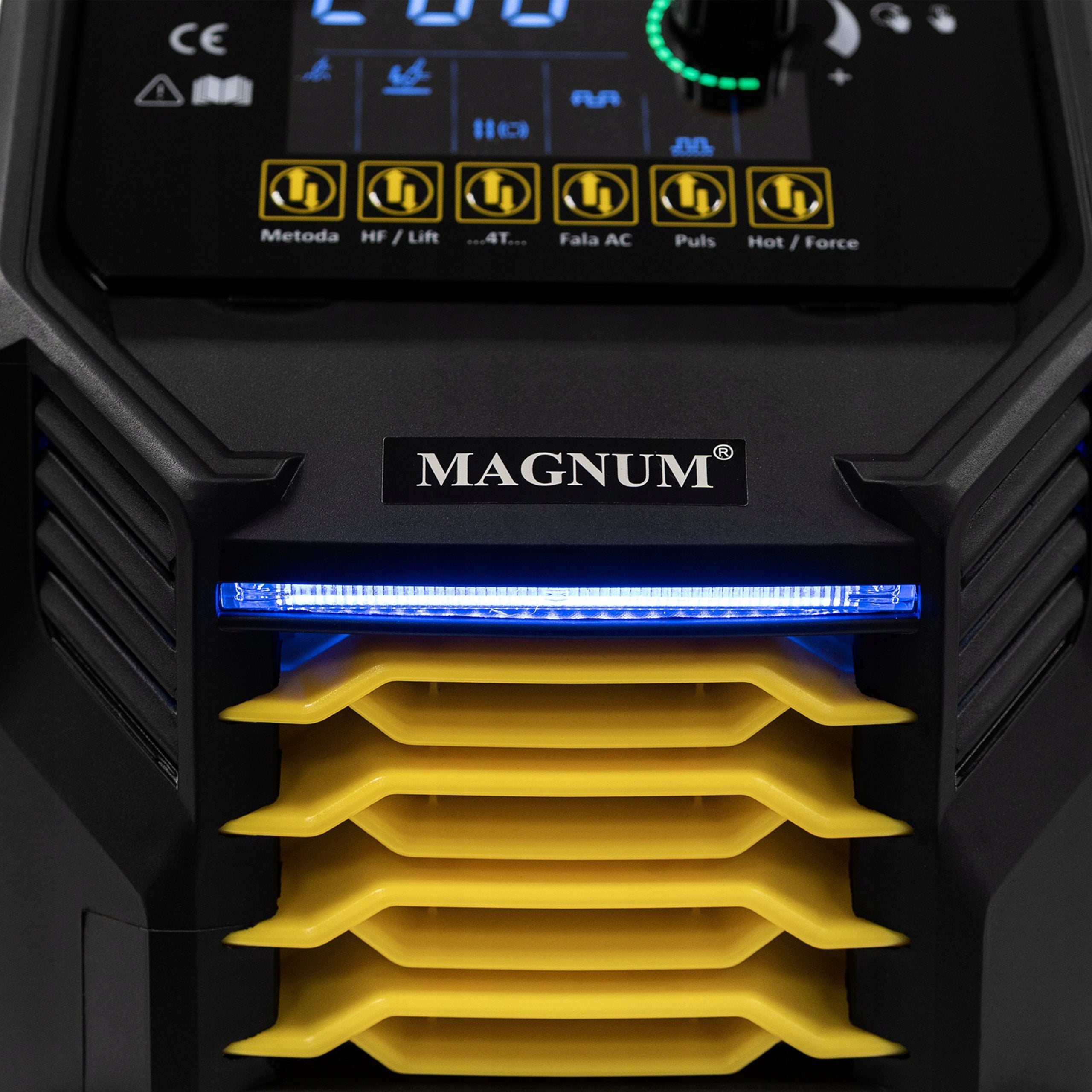

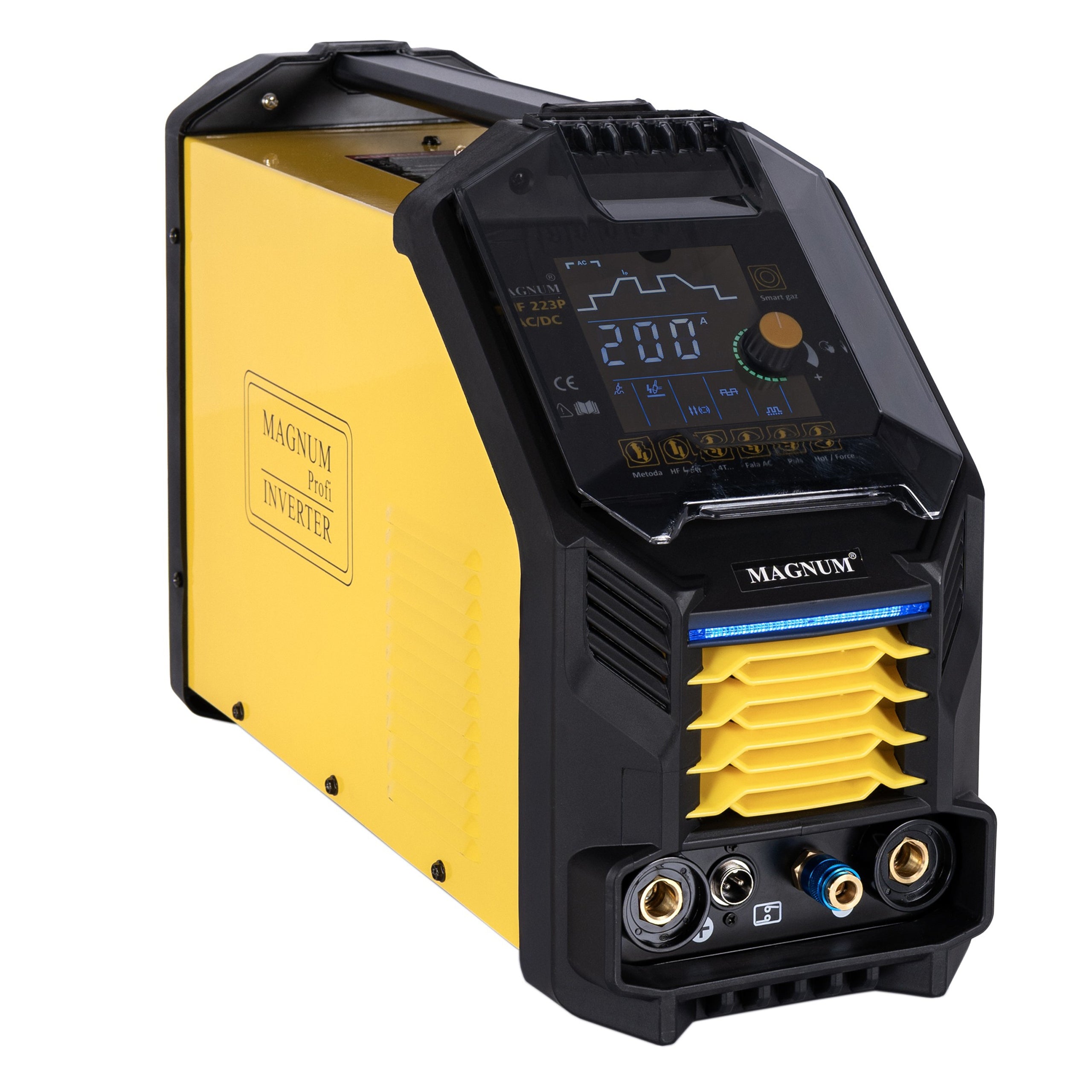

Prekė: Suvirinimo aparatas MAGNUM TIG AC/DC THF 223P, 230V, 200A, impulsinis, MMA, LIFT, HF, taškinis. Kategorija: Invertoriniai suvirinimo aparatai.
- Gamintojas: Magnum
- Modelis: U I THF223P ACDC
- Welding methods: TIG AC/DC, TIG MIX, MMA, PULSE, SPOT WELDING
- Power supply: 230V
- Operating cycle 60% at maximum welding current 200A
- For welding: any alloy aluminium, black steel, stainless steel, copper and other weldable materials
- Smart Gas - automatic selection of gas outflow time after welding
- Smooth adjustment of welding parameters
- Selection of AC waveform (rectangular, sinusoidal, triangular)
- Contactless arc glow - HF and tactile LIFT
- Professional, 2-roll wire feeder
- Settings memory
- Handle welding length 4m
- Modes and functions: 2T/4T, HOT START, ARC FORCE, BI-LEVEL, PRE-GAS/POST-GAS
- Clean, aesthetic welds
- Fan cooling
- Made in IGBT technology
✔ FEATURES AND ADVANTAGES:
- 2 TAKT - welding begins after pressing and ends after releasing the button,
- 4 TAKT - welding begins after the first press and release of the button, and ends after pressing again; more convenient with longer welds,
- TIG LIFT - arc glow by rubbing the electrode against the material; used in places where there is a risk of interference of electronics by high frequency current; welds are of high quality,
- HF - contactless arc glow through a built-in ionizer; uses high-frequency current; the weld is free from tungsten contamination,
- TIG MIX - advantages of AC welding (obtaining a very clean weld) with deep penetration obtained during DC welding; obtaining a very good quality weld on thin and thick materials,
- SPOT WELDING - point joining of elements; allows for fast, precise, durable connections, minimizing deformation and wear of materials,
- PULS - welding of very thin elements, reducing the linear energy of the arc and the risk of overheating / burning materials; welds are better quality,
- HOT START - a temporary increase in welding current during arcing; prevents "sticking of the electrode", facilitates the start of welding,
- ARC FORCE - adjustment of welding arc dynamics, allowing to adjust the depth of melting,
- PRE-GAS/POST-GAS - protects the welding lake from the harmful effects of atmospheric air,
- BI-LEVEL - allows you to switch between two welding current values, without interrupting operation; used for aluminum, for greater temperature control of the material,
- IGBT - bipolar transistors increase the efficiency and reliability of the device, ensure lower power consumption.
⚙ TECHNICAL SPECIFICATION:
- Power supply: 230V 50/60Hz (1ph)
- Network security: 25A “C”
- TIG AC/DC welding current: 20 - 200A
- MMA welding current: 20 - 160A
- Idle voltage: 70V
- Max. power consumption: 5kW
- Protection rating: IP21S
- Weight: 11.5kg

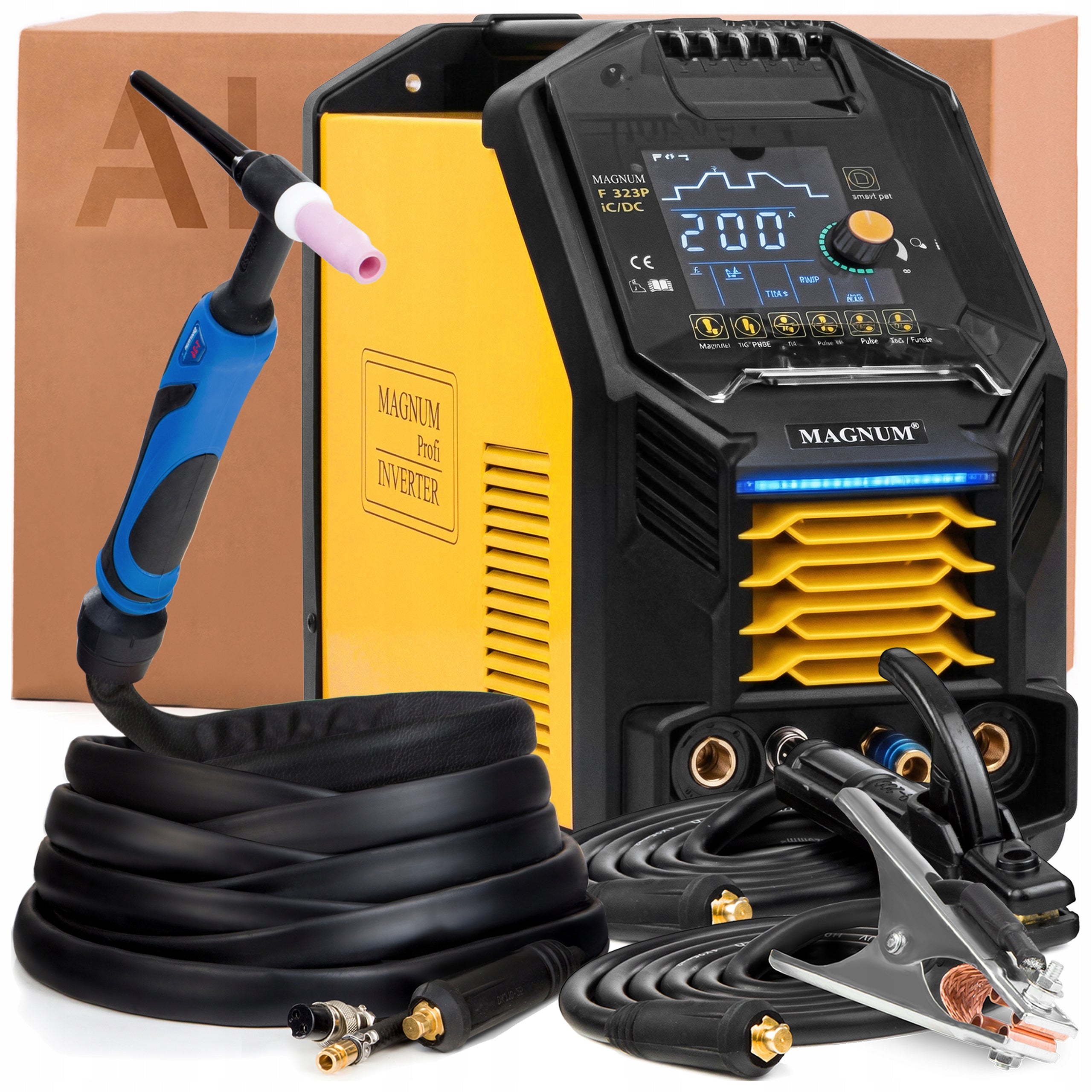

THE SET INCLUDES:
- Welding machine MAGNUM THF 223P,
- Welding torch TIG type WP-26 - 4m,
- mass handle - 2m,
- electrode handle - 2m,
- Hose for connecting shielding gas - 1 pcs. ,
- User manual in Polish.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Magnum |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Device weight | 11.5 kg |
| Parametry | Welding range | 20–200 A |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 400 cm |
| Parametry | Additional features | infinitely adjustable welding current |
| Parametry | Manufacturer code | U I THF223P ACDC |
| Parametry | EAN (GTIN) | 5905323123533 |
| Parametry | Packaging status | original |
| Parametry | Model | U I THF223P ACDC |
| Parametry | Welding methods | MMA,TIG |
