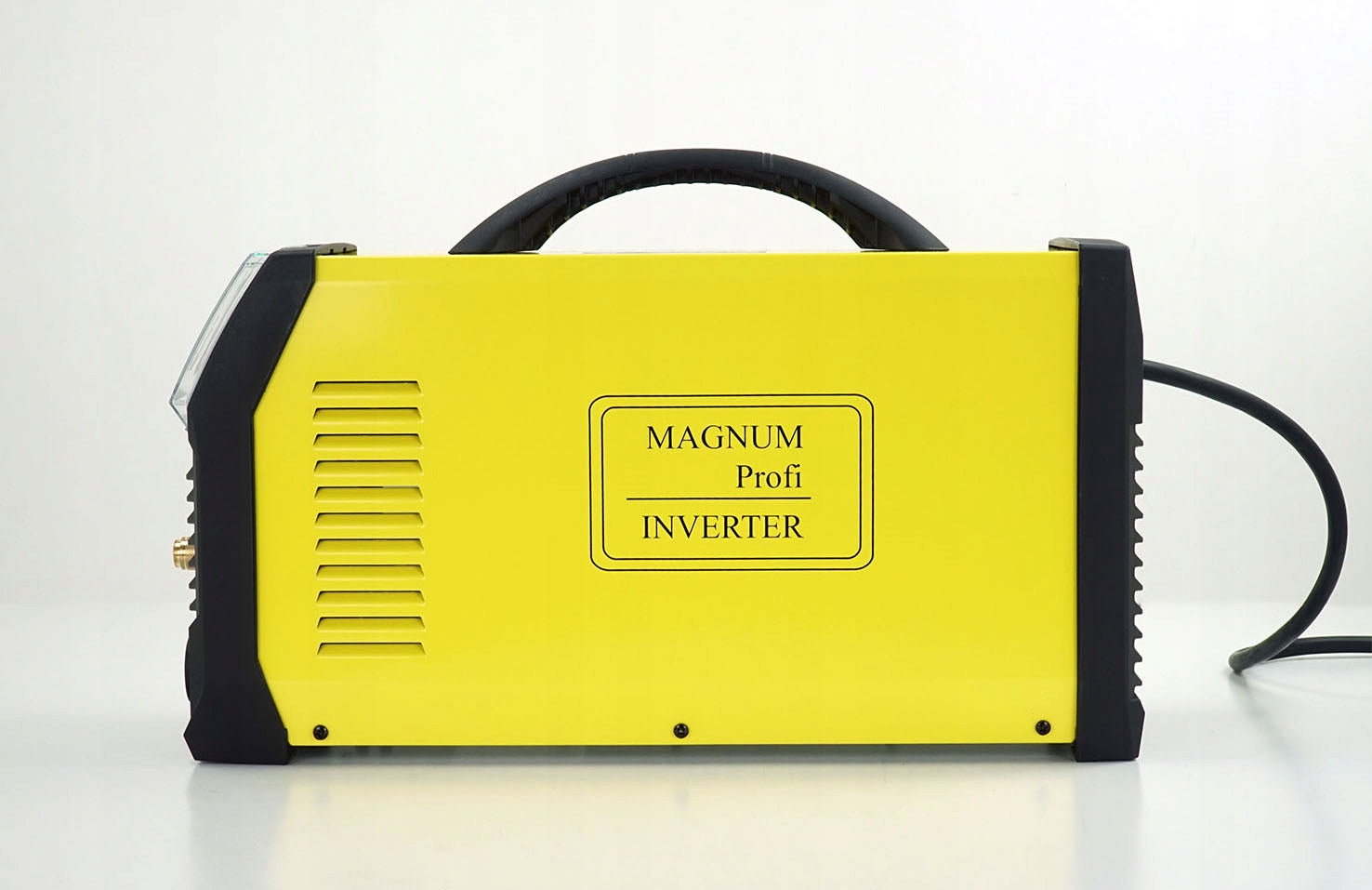

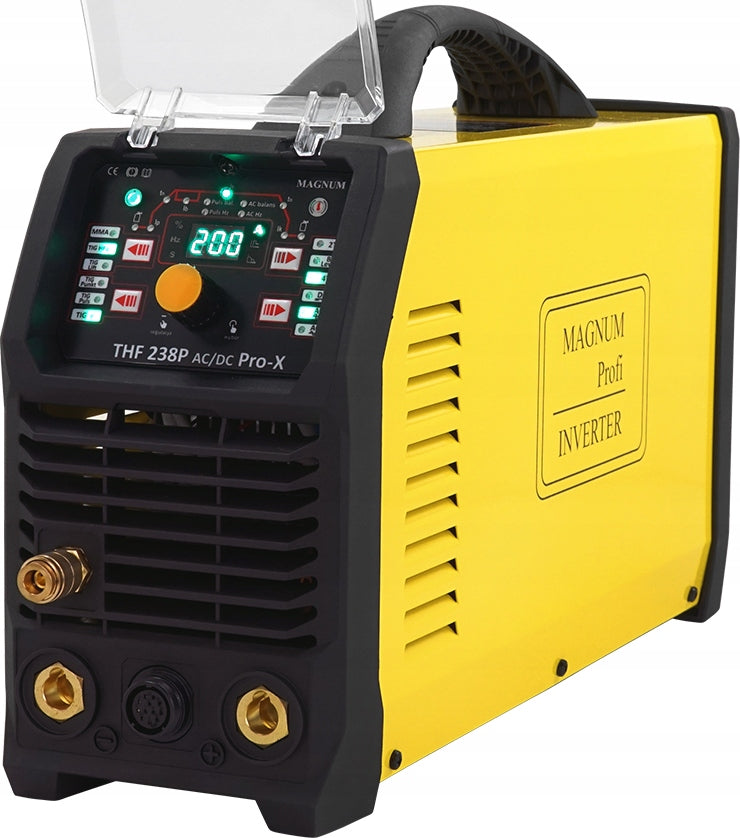

Suvirinimo aparatas Magnum TIG AC/DC THF 238 Pro X, 200 A, aliuminiui, su IGBT ir PULSE

Trumpai apie prekę

Prekė: Suvirinimo aparatas Magnum TIG AC/DC THF 238 Pro X, 200 A, aliuminiui, su IGBT ir PULSE. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: Magnum TIG AC DC THF 238P RSH2

Manufacturer:MAGNUM || Welding methods: TIG AC/DC, TIG A/DC Pulse, TIG Point || Power supply: 230V || Maximum welding current: 200A || Operating cycle: 60% ||

✅Power 200A in the work cycle 60%

✅Welding method: TIG AC DC, MMA

✅HF contactless welding arc

✅Increase and fall of current with the possibility of regulation

✅PULS frequency control

✅Made in INVERTER technology

✅IGBT transistors

✅Good value for money

✅Welding with PULSEM

✅2-step/ 4-step function

✅Spot welding TIG POINT

✅Bi-LEVEL

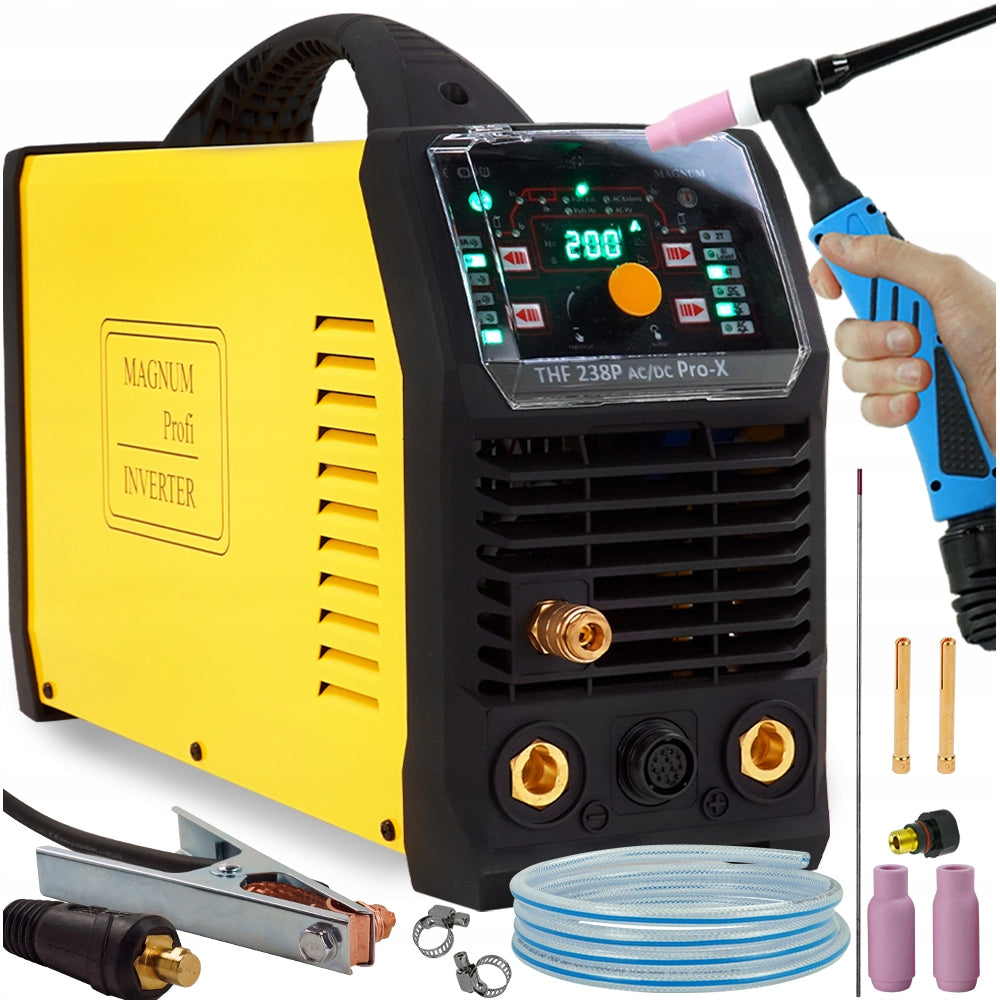

⏩WHAT WILL YOU FIND IN THE PACKAGE?

✔ Welding machine MAGNUM THF 238 PRO X

✔ TIG SR 26/4m working cable

✔ Mass cable with clamp,

✔ User Manual.

✔ clamps

✔ Hose for connecting cylinders

⏭⏭Spare parts of the burner⏪⏪

• Power supply: ~1x230V 50Hz
• Welding methods: TIG AC, TIG DC, TIG AC Pulse, TIG DC Pulse, TIG Point, MMA
• Maximum welding current: 200A (TIG)
• Rated duty cycle: 60%
• Power Consumption: 7kW
• Protection Required: 25A C
• Degree of protection of the housing: IP23
• Net weight: 10kg

⏩WELDING PARAMETERS TIG

• Gas preflow: 0-2s
• Initial Current: 10-200A
• Rise of current: 0-10s
• TIG welding current: 10-200A
• Power drop time: 0-10s
• Final Current (Crater Current): 10-200A

⏩Pulse parameters in TIG method:

• Base Current (Pulse Base): 10-200A
• Peak Current: 10-200A
• Pulse Width: 5-95%
• Pulse Frequency: 0,5-999 Hz

⏩AC current parameters:

• Welding Current Range: 10-200A
• AC Frequency: 50-250 Hz
• AC Balance: -5 to +5
• Tungsten electrode wear optimization function

⏩Additional TIG functions:

• Welding TIG point: Yes with parameter adjustment
• Welding TIG Bi-Level: Yes in AC and DC. Adjusting the parameters of the Bi-Level function,
• Up&Down remote control: the ability to connect and work with TIG handle with remote current control in the handle.

⏩WELDING PARAMETERS MMA:

• Welding Current: 10-200A
• Arc Force: Yes with regulation,
• Hot Start: Yes with regulation
• Idle Voltage: 70V

TIG AC/DC welder Magnum THF 238 PRO-X AC/DC is a professional source that has numerous functions for high-quality welding. It is made in IGBT inverter technology using modern design solutions. It enables TIG DC, TIG AC, TIG welding with pulse, TIG point and TIG in Bi-Level mode. It can also be used for welding with MMA wrapped electrode. More information about this amazing model later in the description.

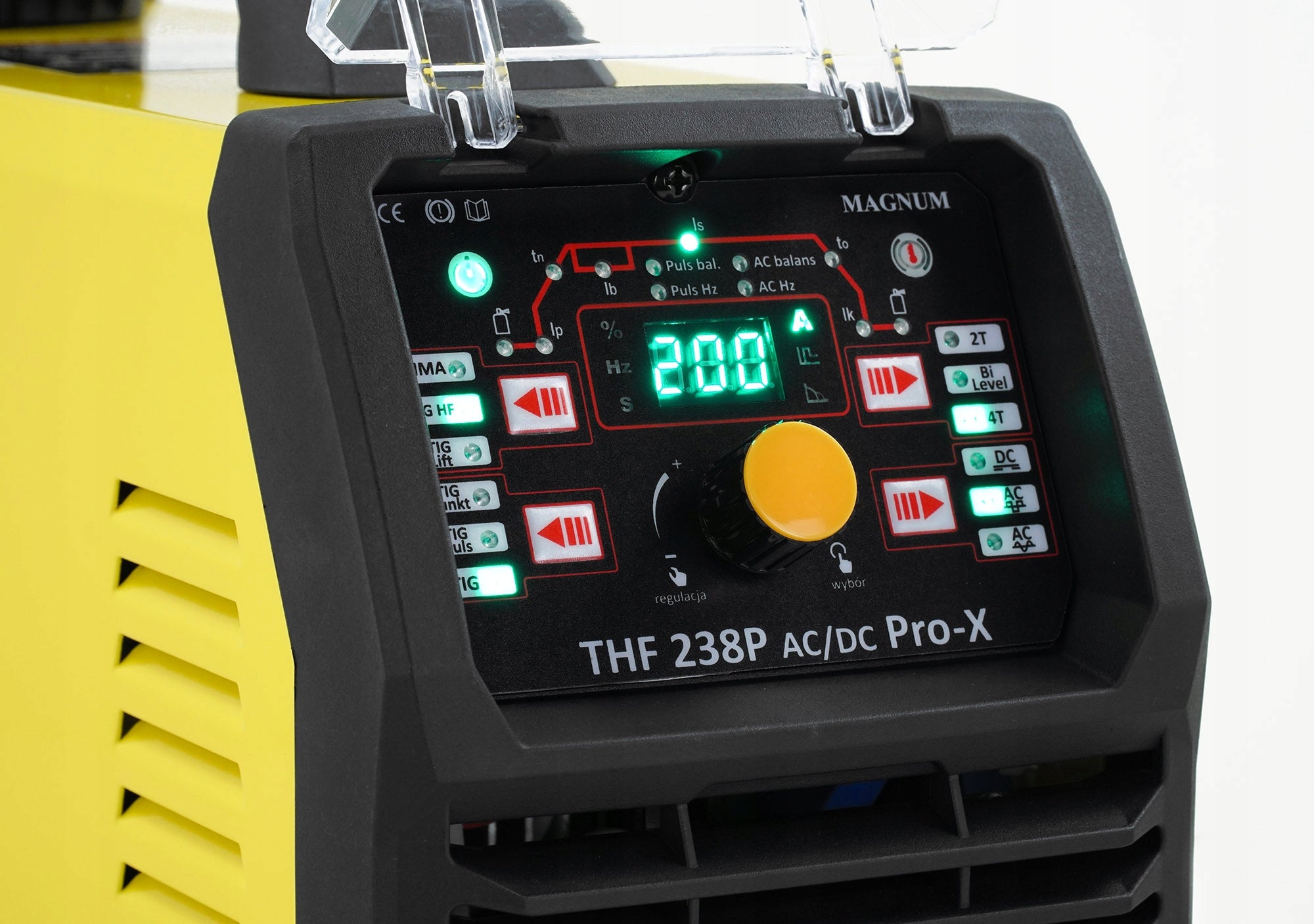

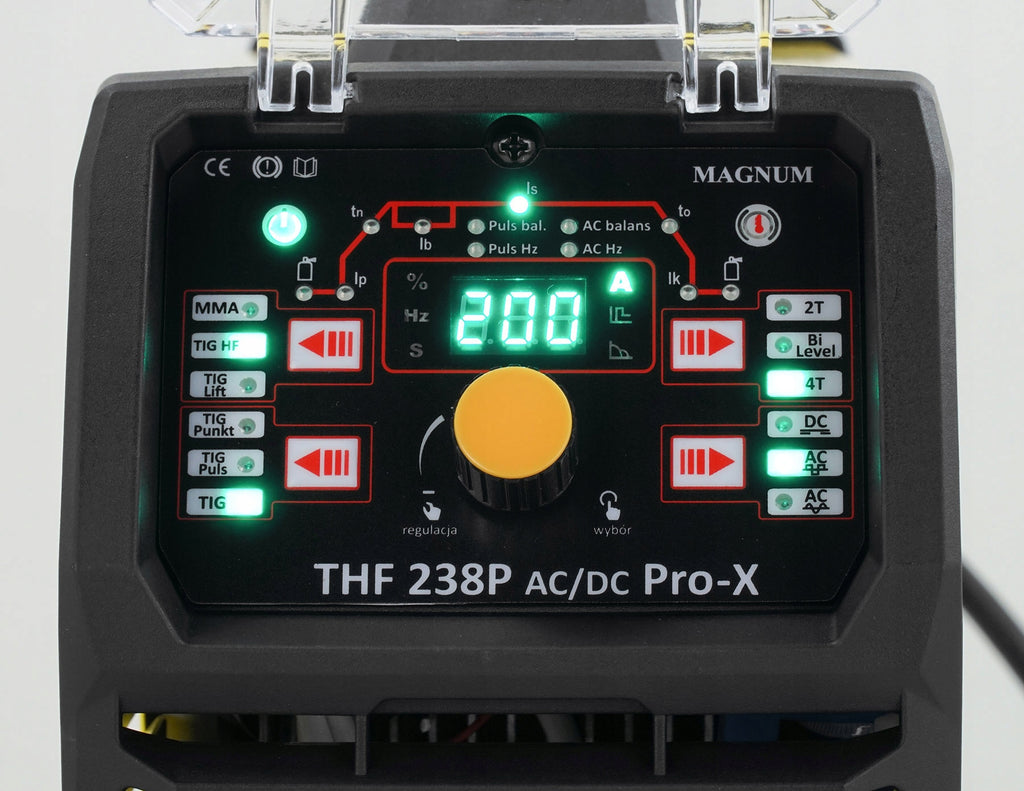

Magnum is a manufacturer that makes sure that the potential of its devices is used 100%. The functions presented in Polish on the panel are an additional advantage of the machine. All key parameters for high-quality welding are presented in a clear and accessible way for each user. It is a good machine for professionals with long work experience, but also a novice welding adept after some time will use the full potential of this welding machine.

If you are looking for a TIG AC/DC welding machine with above-average capabilities, this will be a good choice for you.

✅IGBT power transistors - (Insulated Gate Bipolar Transistor), provide a minimum of electromagnetic interference, small power losses in basic systems, allowing to increase the efficiency and reliability of the power source. Very high efficiency, which translates directly into lower energy consumption, and high switching frequency, ensure rapid adjustment of the current to changes in parameters during welding.

✅Bi-LEVEL - function available only in advanced welding sources. Full control of the heat introduced into the material - switching between two set values of welding current, without the need to extinguish the arc.

✅ TIG POINT - function allows you to attach thin materials.

Choose a brand whose history dates back to the early twenty-first century. Magnum is the leading brand of welding equipment in Poland.

A wide range of Magnum devices meets the needs of not only novice users, but also more advanced ones. Depending on the selected model, it can be dedicated to workshop applications as well as for heavy industry.

Customers choose the Magnum brand most often due to its high quality, affordable price and reliability.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Device weight	10 kg
Parametry	Welding range	5–200 A
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	400 cm
Parametry	Product weight with unit packaging	20 kg
Parametry	Manufacturer code	Magnum TIG AC DC THF 238P RSH2
Parametry	EAN (GTIN)	5904624035927
Parametry	Welding methods	MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,LCD display
