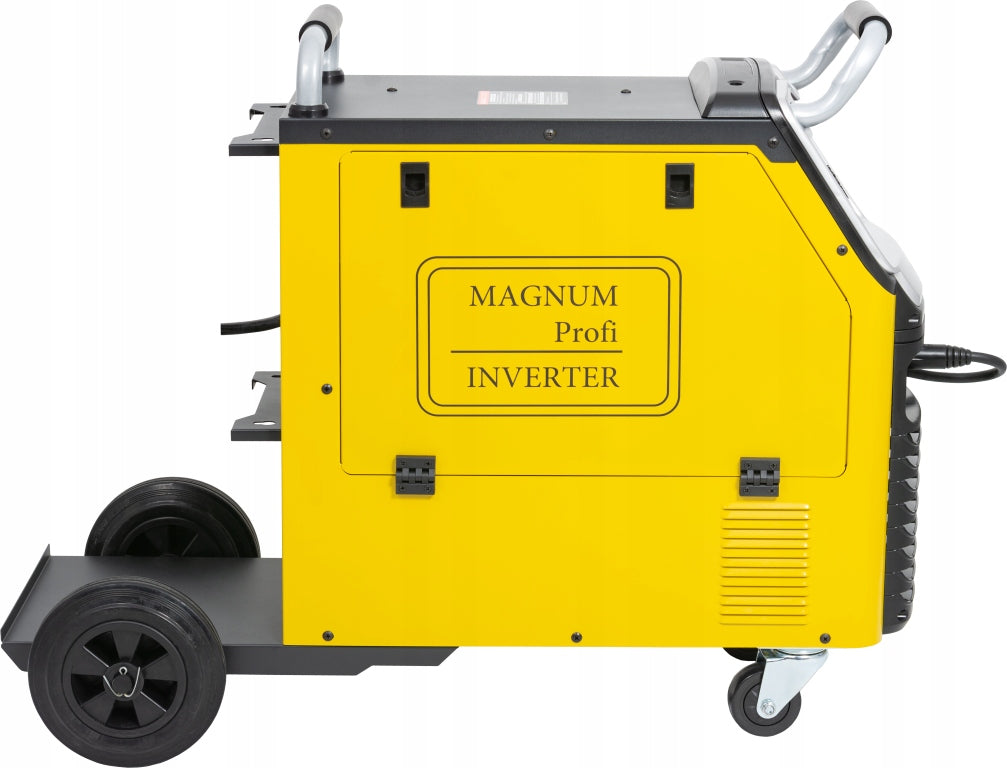

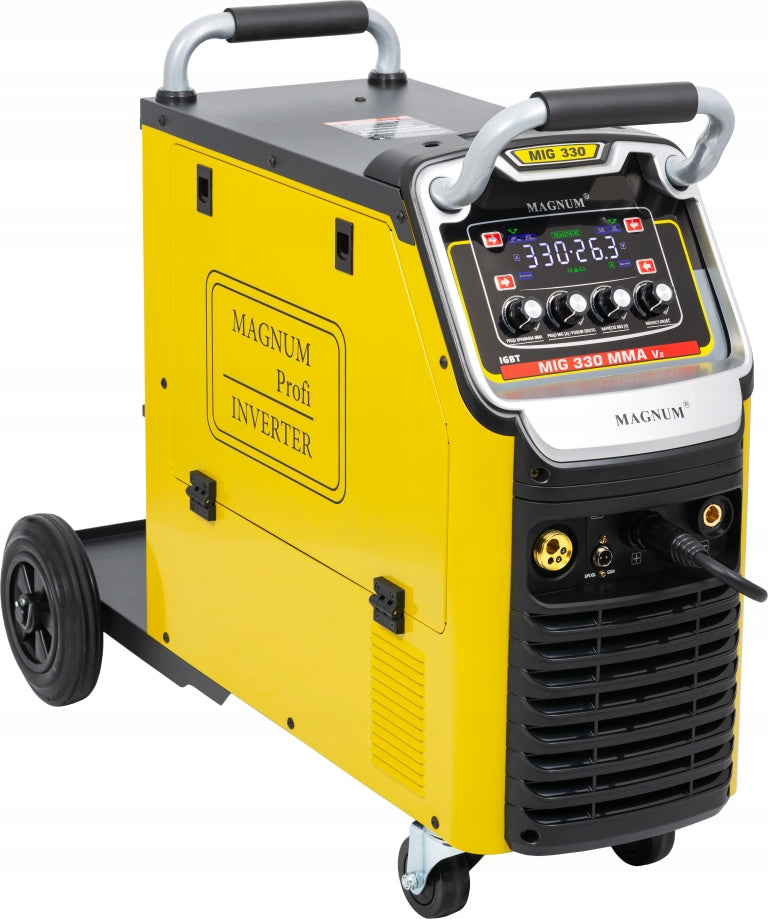

Suvirinimo aparatas MIG/MAG/MMA 330A, Magnum INVERTER IGBT, 400V, 4 ritinėliai

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIG/MAG/MMA 330A, Magnum INVERTER IGBT, 400V, 4 ritinėliai. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MAGNUM MIG 330 MMA V2 PÓŁAUTOMAT SPAWALNICZY 400V

✅ Adjustable inductance

✅ Smooth adjustment of welding parameters

✅ Large 4x4 feeder

✅ Full Color LED Display

✅ Robust chassis with space for cylinders

✅ Control handle 2T/4T

✅ MMA welding

✅ Heater socket 36V

✅ Efficient fan

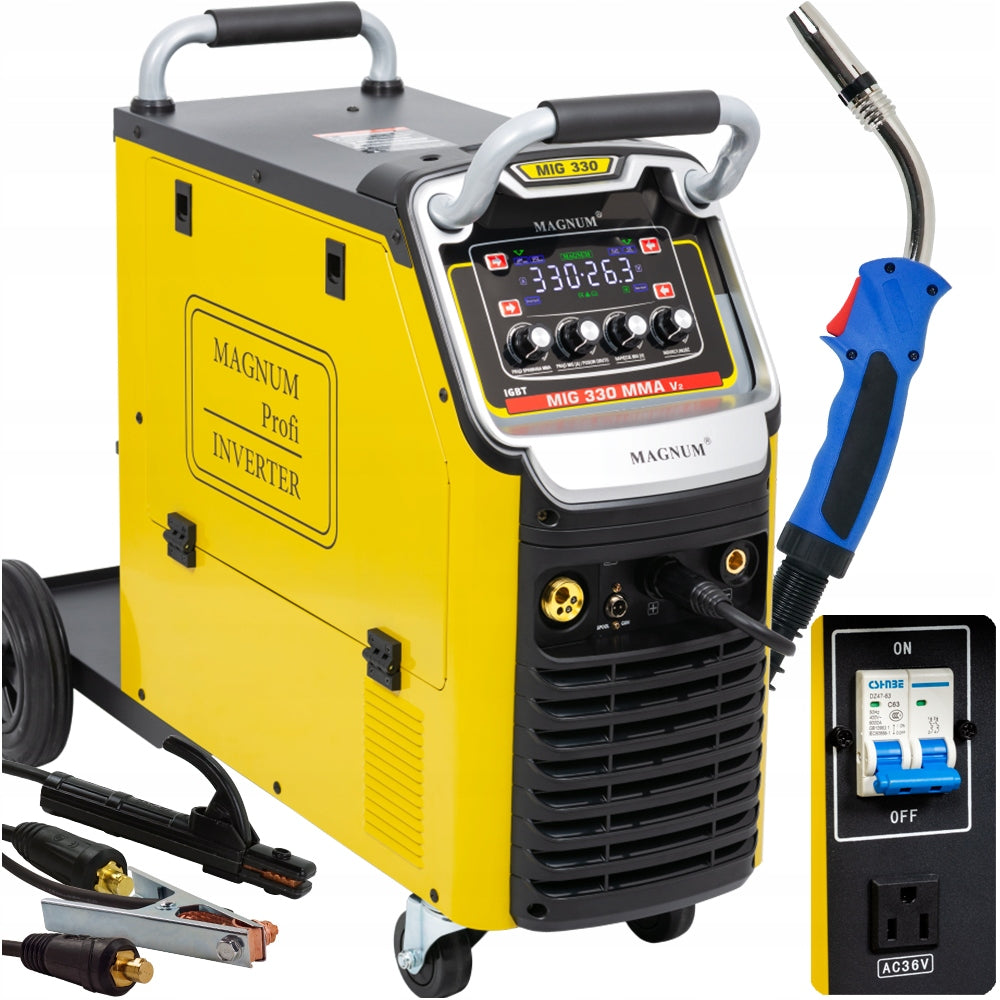

⏩WHAT WILL YOU FIND IN THE PACKAGE?

✔ MAGNUM MIG 330 MMA V2

✔ MIG MB welding torch 24 - 5m

✔ Bulk cable

✔ User Manual PL

WELDING ACCESSORIES FOR FREE

➡ clamps

➡ Hose for connecting cylinders

⏩POWER SUPPLY PARAMETERS

• Power Supply: 400V 3ph
• Technology: IGBT INVERTER
• Welding methods: MIG, MAG, MMA, FLUX
• Maximum welding current: 330A (MIG/MAG)
• Working cycle: 60%
• Network Security: 20C
• Net weight: 39kg

⏩ MIG/MAG welding parameters:

• Welding Current: 50 - 330A
• Welding voltage: 15 - 30.5V - smooth adjustment,
• Wire diameter: 0,6/0,8/0,9/1,0/1,2mm
• Wire spool weight: max 15kg
• 2T/4T welding mode: YES
• Wire Feeder: Professional 4R
• Gas test: YES
• Wire extension test: YES
• MIG/MAG welding polarity change: YES

⏩MMA welding parameters:

• Welding Current: 50-270A Liquid Adjustment
• Idle Voltage: 68V

• MIG/MAG is a popular process both in hobby applications and in industry. It consists in welding with a hot melt electrode (in the form of wire wound on a spool) in a gas shield. The advantages of semi-automatic MIG/MAG welding include: ease of mastering the method at the basic level, high welding efficiency, high quality of the resulting weld.

• MMA - this is probably the best known and widespread welding method. The type and diameter of the wrapped electrode is selected depending on the type of material being welded. The MMA method does not require shielding gases. Welding is carried out using an electrode in a special sheath, which under the influence of the heat of the welding arc melts to form a weld. Melting sheath provides protection for the welding lake.

• IGBT - welding machine is made in modern inverter technology using IGBT transistors. Thanks to this, it has stable welding parameters, enjoys high efficiency and, above all, ensures good welding quality.

• INDUCTANCE - weld face width control and reduction of welding chipping,

• 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow

• 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow,

Choose a brand whose history dates back to the beginning of the twenty-first century. Magnum is the leading brand of welding equipment in Poland.

A wide range of Magnum devices meets the needs of not only novice users, but also more advanced ones. Depending on the selected model, it can be dedicated to workshop applications as well as for heavy industry.

Customers choose the Magnum brand most often due to its high quality, affordable price and reliability.
