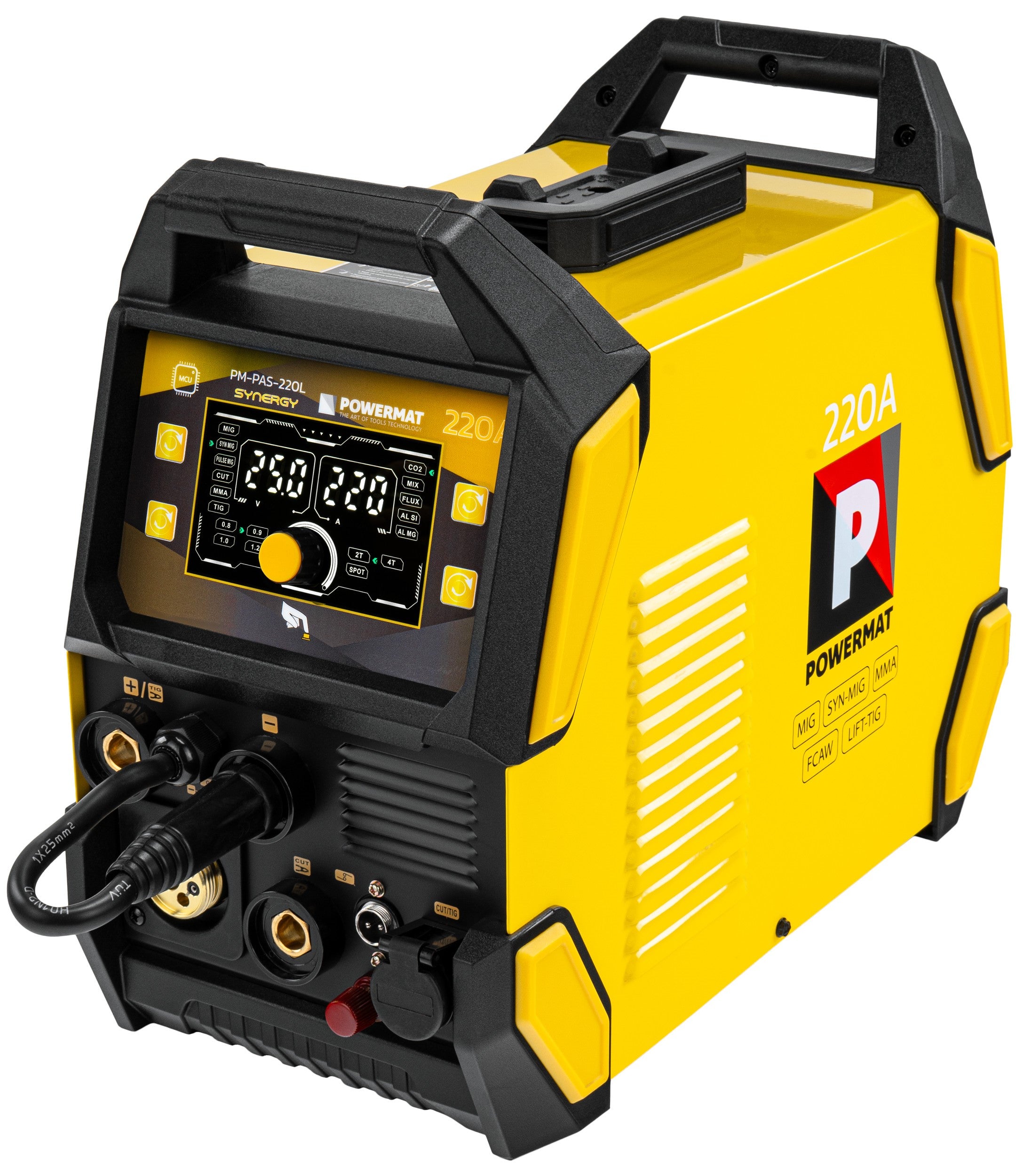

Suvirinimo aparatas MIG/MAG/MMA/TIG LIFT/Plazminis, 220A, 5in1

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIG/MAG/MMA/TIG LIFT/Plazminis, 220A, 5in1. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Powermat
• Modelis: PM-PAS-220L
• Ilgis: 530 mm
• Plotis: 400 mm
• Aukštis: 450 mm

220A | MIG/MAG | SON MIG | PULSE | MMA | TIG LIFT | CUT | IGBT TECHNOLOGY | VRD | HOT START | ARC FORCE | EURO CONNECTORS | LCD DISPLAY

You get a multifunctional 5in1 welding machine that combines MIG/MAG, MIG Synergy, MIG Pulse, MMA, TIG welding and CUT plasma cutting in one compact design. IGBT technology, automatic parameter selection, Pulse and Double Pulse functions, easy-to-read LCD display and the ability to manually adjust settings make it easier to work with steel, stainless steel, aluminum, aluminum alloys and copper both in the workshop and during field work.

🟠 TECHNICAL DATA

• Technology: IGBT
• Power supply: 230 V / 50 Hz
• Working methods: MIG/MAG Manual, MIG/MAG Synergistic (SYN MIG), MIG Pulse, MMA, TIG, CUT
• Welding Current Range (MIG/MAG): 30 – 220 A
• Welding Current Range (MMA): 25 – 200 A
• Welding Current Range (TIG): 15 – 220 A
• Cutting Current Range (CUT): 25 – 50 A
• Welding voltage (MIG/MAG): 15,5 – 25 V
• Welding Voltage (MMA): 21 – 28 V
• Welding Voltage (TIG): 10,6 – 18,8 V
• Cutting voltage (CUT): 90 – 100 V
• Operating cycle current 60% (MIG/MAG): 220 A
• Operating cycle current 100% (MIG/MAG): 169,4 A
• Operating cycle current 60% (MMA): 200 A
• Operating Cycle Current 100% (MMA): 154 A
• Operating Cycle Current 60% (TIG): 220 A
• Operating Cycle Current 100% (TIG): 169,4 A
• Operating Cycle Current 60% (CUT): 50 A
• Operating cycle current 100% (CUT): 40 A
• Idle voltage (MIG/MAG / MMA / TIG): 62 V
• Idle Voltage (CUT): 290 V
• Power consumption (MIG/MAG): 8,9 kVA
• Power Consumption (MMA): 9 kVA
• Power Consumption (TIG): 6,7 kVA
• Power Consumption (CUT): 8,1 kVA
• Recommended protection (MIG/MAG): 38,5 A
• Recommended Protection (MMA): 39,2 A
• Recommended protection (TIG): 29 A
• Recommended protection (CUT): 35 A
• MIG/MAG operating mode: manual and synergistic
• Supported materials: low carbon steels, low alloy steels, high alloy steels, stainless steel, aluminum, aluminum alloys, copper, copper alloys, soldering
• Wire diameter (MIG/MAG): 0,6 / 0,8 / 0,9 / 1,0 mm
• Wire diameter selection: 0,8 / 0,9 / 1,0 / 1,2 mm
• Diameter of MMA electrodes: 1,6 – 5 mm
• Handle operating modes: 2T / 4T / SPOT
• Selection of shielding gas: CO₂ / MIX / FLUX / ALMg / AlSi
• Supporting functions: Pulse, Double Pulse, HOT START, ARC FORCE, VRD, Burn Back, inductance adjustment
• Operation: with and without gas (FLUX)
• Polarity change: yes
• Handle connector: EURO
• Degree of protection: IP21S
• Plug diameter: 35/50 17V-35 (13mm)

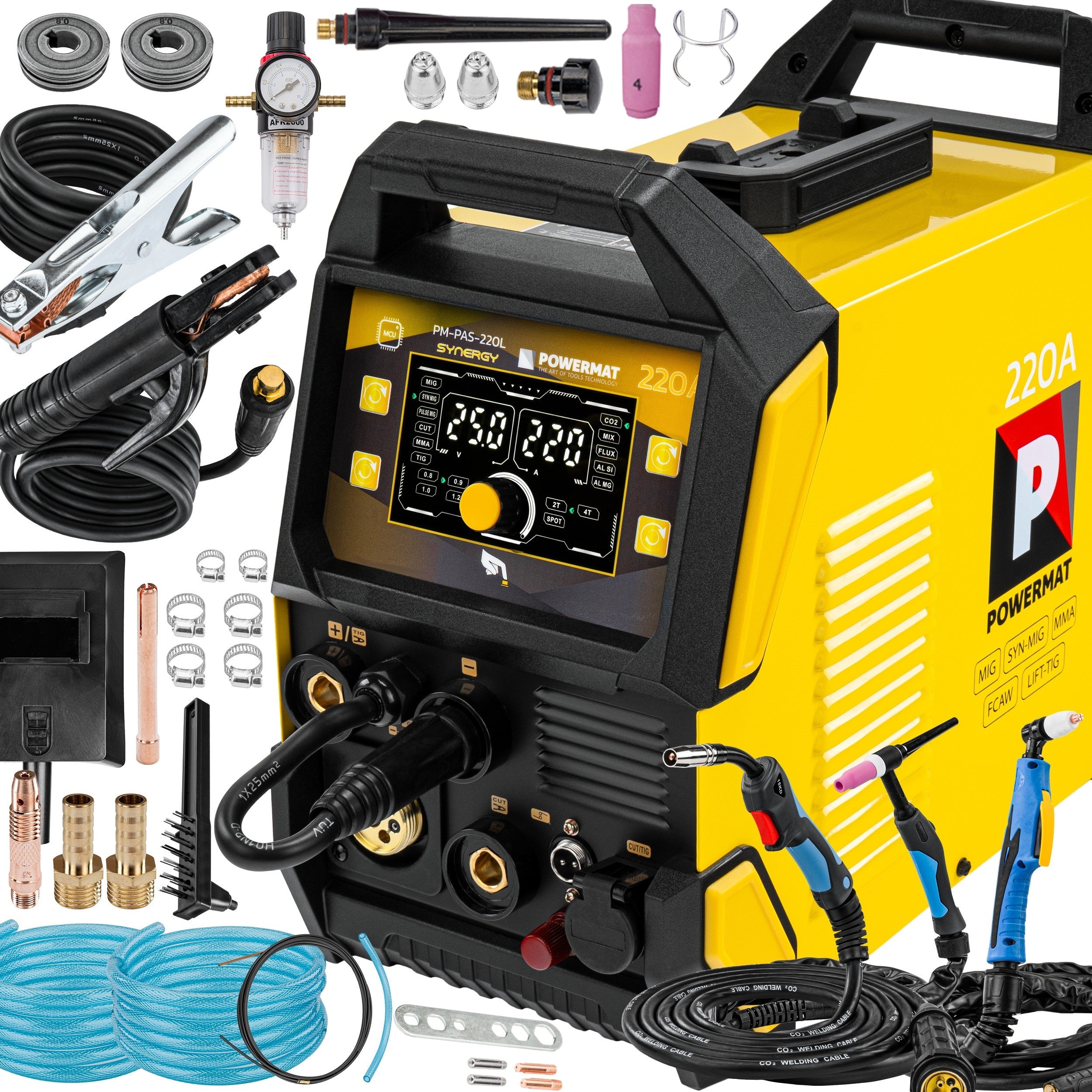

🟠 CONTENTS OF THE SET

• Bulk holder (-) – 215 cm
• MMA electrode holder (+) – 205 cm
• EURO MIG/MAG holder – 400 cm
• TIG handle – 300 cm
• Plasma holder – 400 cm
• Current terminal – 0,8 mm
• Current terminal – 1,0 mm
• Double-sided roller type U for wire 0,8 / 1,0 mm
• Double-sided perforated roller type K for wire 0,8 / 1,0 mm
• Teflon cable for aluminium wire – 410 cm
• Gas hose – 2 pcs. (300 cm)
• Compressor reducer hose – 28 cm
• TIG handle valve – long
• TIG handle valve – short
• TIG ceramic nozzle – size 4
• TIG copper bushing – size 1,6
• TIG Threaded Nozzle
• Plasma nozzle of the burner – 2 pcs.
• Burner electrode – 2 pcs.
• Hose connector – 2 pcs.
• Welding mask
• Brush with hammer
• Mounting Wrench
• Gas/Air Hose Band – 6 pcs.
• User manual
• Original packaging

⚫ LESS SETTING, MORE WELDING

▪ You don’t have to look for the right parameters every time. Synergic mode automatically selects settings, and you can adjust them if necessary.

▪ MIG/MAG, MMA, TIG and CUT make one device support many daily workshop work.

🟠 WHY CHOOSE OUR PRODUCT?

🔸 ONE DEVICE FOR MANY TASKS

You do not have to choose between different welding and cutting equipment. The PM-PAS-220L supports MIG/MAG, MIG Synergy, MIG Pulse, MMA, TIG and CUT methods, making it suitable for workshop, assembly, service and industrial work.

🔸 EASIER TO SET PARAMETERS

The synergistic welding mode automatically selects the basic operating parameters, reducing the preparation time of the device. If you need full control, you can adjust the settings yourself and adjust them to the material and method of welding.

🔸 WIDE POSSIBILITIES OF MATERIAL PROCESSING

The device allows welding of low-carbon steel, low-alloy steel, high-alloy steel, stainless steel, aluminum, aluminum alloys, copper and copper alloys. In addition, it allows for soldering and plasma cutting of conductive materials.

🟠 WHAT SETS OUR WELDING MACHINE APART?

🔸 PULSE AND DOUBLE PULSE FUNCTIONS

Pulse welding and double pulse improve control over the welding lake and help to achieve more aesthetic welds. The solution works particularly well when working with aluminum and stainless steel.

🔸 EXTENSIVE PARAMETER ADJUSTMENT

The ability to adjust the inductance in the range from -10 to +10, Burn Back function, choice of shielding gas, 2T, 4T and SPOT modes allow you to precisely adjust the device to the work performed and the type of material.

🔸 MODERN DESIGN AND CONVENIENT OPERATION

The IGBT technology ensures stable operation of the device, while the easy-to-read LCD display allows for ongoing control of parameters. The standard EURO connector, 2-roll wire feeder and active cooling system increase the convenience of everyday use.

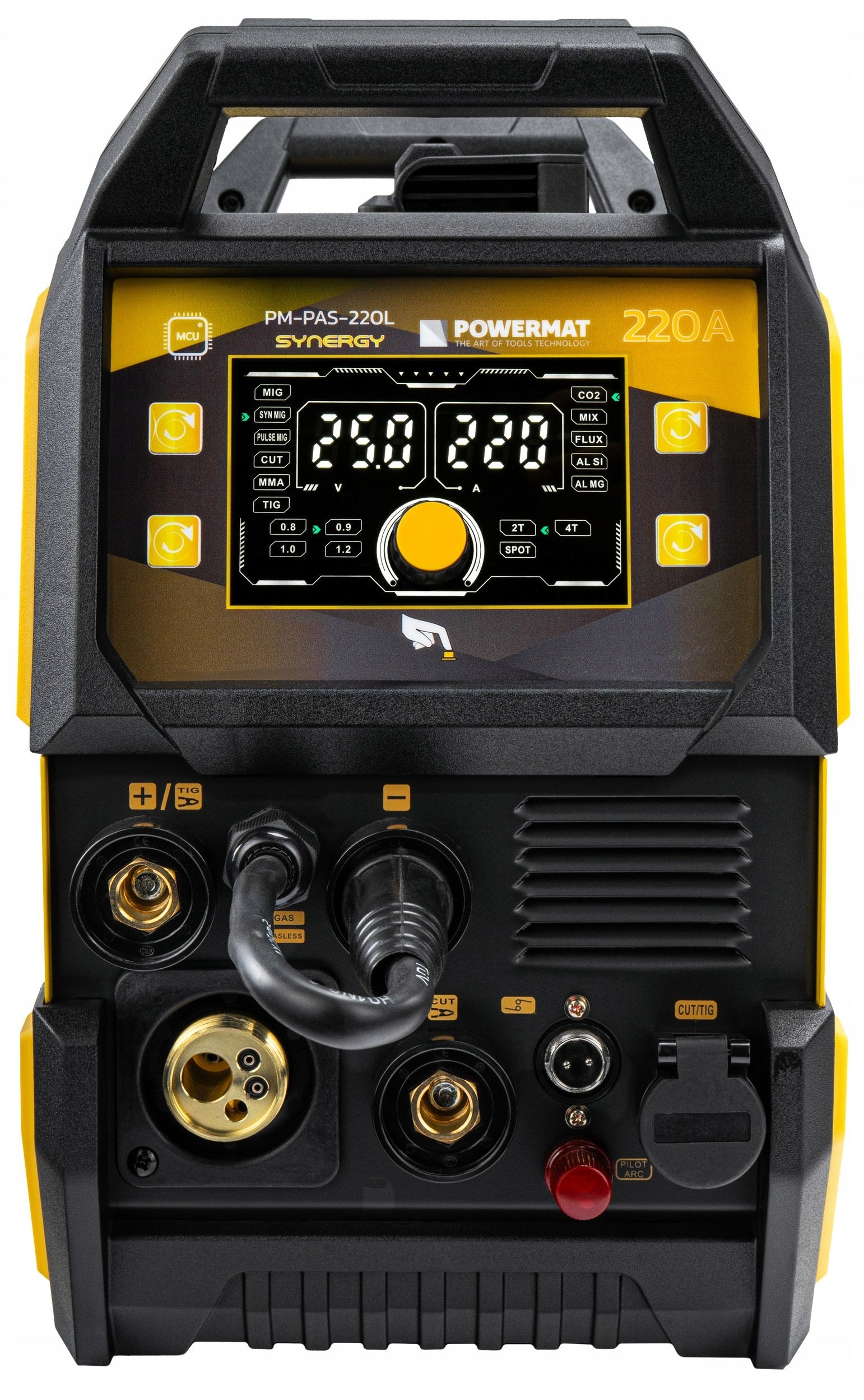

🟠 EASY TO READ LCD PANEL AND INTUITIVE OPERATION

All settings are changed using the knob with the function of approving the selected parameter.

The easy-to-read LCD display presents current values, so you can keep track of your device settings.

The welder also enables choice of shielding gas, wire diameter and operating modes of the 2T, 4T and SPOT handle. This solution allows you to quickly prepare the device for various welding methods.

🟠 HIGH WELDING POWER FOR VARIOUS TASKS

The MIG/MAG welding current range from 30 to 220 A allows the device to be adapted to both lighter work and more demanding connections.

In the MMA method, the range 25 – 200 A is available, and in TIG from 15 to 220 A, which increases the versatility of use.

With a duty cycle of 60%, the welding machine reaches 220 A in MIG/MAG and TIG and 200 A in MMA.

With continuous operation, 169,4 A for MIG/MAG and TIG and 154 A for MMA are available, which allows to maintain stable parameters during longer tasks.

🟠 MIG/MAG WELDING

The MIG/MAG method enables efficient welding of elements made of low carbon steel, low alloy, high alloy, stainless steel and many non-ferrous metals.

The device works in manual or synergic mode, so you can set the parameters yourself or use their automatic selection.

The welding current range from 30 to 220 A allows you to adjust the power to both thin sheets and thicker structural elements.

Support for wires with a diameter of 0,6, 0,8, 0,9 and 1,0 mm increases the possibilities of use during various workshop and assembly works.

🟠 MMA WELDING

The MMA method enables welding using electrodes wrapped with a diameter of 1,6 to 5 mm, thanks to which it works well during assembly, repair and field.

The welding current range from 25 to 200 A allows you to choose the right power for different material thicknesses.

The HOT START functions make it easier to light the arc, the ARC FORCE improves its stability during welding, and the VRD lowers the idle voltage to a safer level when the work is completed.

Such solutions increase the comfort of operation and help maintain the smooth course of the welding process.

🟠 WELDING TIG LIFT

The TIG Lift method allows you to make precise and aesthetic welds after using the appropriate TIG handle with gas valve.

The arc is ignited by gently touching the material with an electrode and raising it, without the need for high-frequency ignition.

The welding current range from 15 to 220 A allows you to adjust the parameters to both thin and thicker elements.

The Pulse and Double Pulse functions make it easier to control the welding lake, which is particularly useful when welding stainless steel and aluminium.

🟠 PLASMA CUTTING

The CUT function enables cutting of electrically conductive materials using plasma burner and compressed air or nitrogen as working gas.

The cutting current range from 25 to 50 A allows you to choose parameters for the type and thickness of the material being processed.

The device provides a stable cutting process, making it easier to make straight and precise edges.

The combination of the plasma cutter with the welder in one device increases the functionality of the equipment and allows you to perform more tasks without the need for additional machines.

🟠 2-ROLL WIRE FEEDING SYSTEM

The welder is equipped with a 2-roll wire feeder, which is responsible for stable and even wire guidance during operation.

The solution helps reduce material slip and supports smooth welding without sudden feed changes.

The device supports wires with a diameter of 0,6, 0,8, 0,9 and 1,0 mm, making it easier to adjust the equipment to the task at hand.

Even feeding of wire improves control over the welding arc and increases the repeatability of the welds.

🟠 EURO CONNECTOR

The device is equipped with a EURO connector, which allows you to quickly connect and disconnect the welding torch without stripping the housing.

This solution facilitates the replacement of the cable and reduces the time of preparing the equipment for work.

The EURO standard is widely used, so it is easier to choose compatible handles and accessories. You gain more convenient operation and more freedom during everyday use of the welding machine.
