Suvirinimo aparatas MIG/MMA 2in1 MICRO MIG 200 WELDMAN

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIG/MMA 2in1 MICRO MIG 200 WELDMAN. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: MICRO MIG 200
• Ilgis: 680 mm
• Plotis: 320 mm
• Aukštis: 480 mm

MIG MMA 2in1 MICRO MIG 200 WELDMAN MIGOMA

WELDMAN

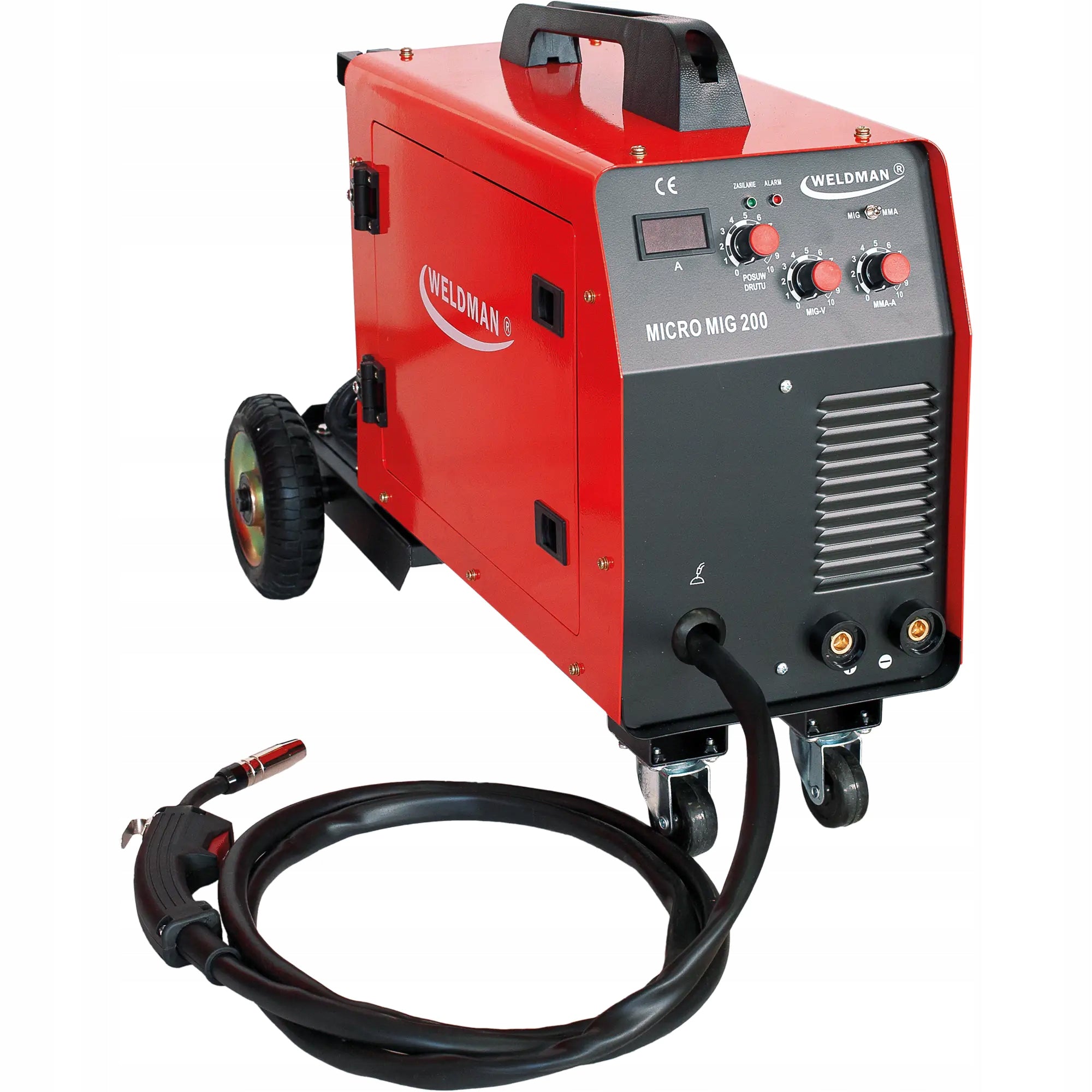

Micro Mig 200 welder is one of the most efficient and solidly made products. These devices of the MICRO MIG 200 series are made on the basis of IGBT inverter technology. As a result, the Micro Mig 200 semi-automatic welding machine has the best features of various transistors. The device uses general protections such as protection against excessive voltage, excessive current, overheating of the device, etc.

Micro Mig 200 welding machine is designed for MIG/MAG, FLUX, MMA welding of carbon steels, stainless steels, alloy steels, cast iron and aluminum. In addition, it has a wire feeder placed inside, which allows you to attach a spool up to 5kg.

Next to the wire feeder there are sockets change the polarity of the handles, which should be replaced in the case of welding without a gas shield (FLUX).

✅ display of welding current parameters

✅ LED signaling diodes: (green) overload (red)

✅ electronically controlled smooth regulation of welding current

✅ electronically controlled smooth regulation of wire feed speed

✅ quick wire feed button

✅ overload protection.

✅ Designed for workshop and field work.

✅ Welding torch 3m

✅ WELDING CURRENT 20-200 A

✅ Manual parameter adjustment

✅ REGULATION OF INDUCTANCE

✅ WELDING FLUX

✅ Low weight and mobility of the device

✅ Place for gas cylinder

✅Possibility of welding without gas

What are the advantages of Micro Mig 200 welding machine?

Setting other parameters of the device is carried out using the control panel on which the displays and control knobs are placed. The above solution allows easy and quick setting and reading of all welding parameters. Thanks to this, the Micro Mig 200 semi-automatic welding machine makes the work even more dynamic, which translates into the effectiveness of the activities performed. What’s more, thanks to its design, the Micro Mig 200 welding machine has a wide range of applications, so it will work perfectly in the flashing industry, workshops, as well as in the case of individual activities.

The welder is designed for semi-professional users

• Type of device MICRO MIG 200
• Supply voltage [V]230
• Idle current voltage [V]56
• Welding current adjustment range [A]20-200
• Efficiency max at 40°CEN 60974-1170A@60%130A@100%
• Electrode diameter [mm]1,6-4
• Protection class [IP]21
• Dimensions [cm]68x32x48
• Weight [kg]19

Enables MIG-MAG welding with gas shielded welding wire, FLUX with self-shielding welding wire and MMA method

It has the ability to change the polarity of the handle for welding with self-shielding wire.

Single-phase power supply.

When welding using the MIG-MAG method, the possibility of regulation: welding current, wire feed speed.

Wire feeder: 2-roll, with roll 0,6-0,8 for steel wire.

Cooled by a fan.

Protection against overload.

IGBT - The welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, allowing to increase the efficiency and reliability of the power source.

FCAW - the possibility of welding with core wire without the use of a gas cylinder. The wire itself (FLUX) is filled with a substance that produces gases during welding.

Inductance adjustment - allowing less heat to be introduced into the welding site. The sheet does not deform and the protective layer of zinc is not damaged, useful in lutowelding.

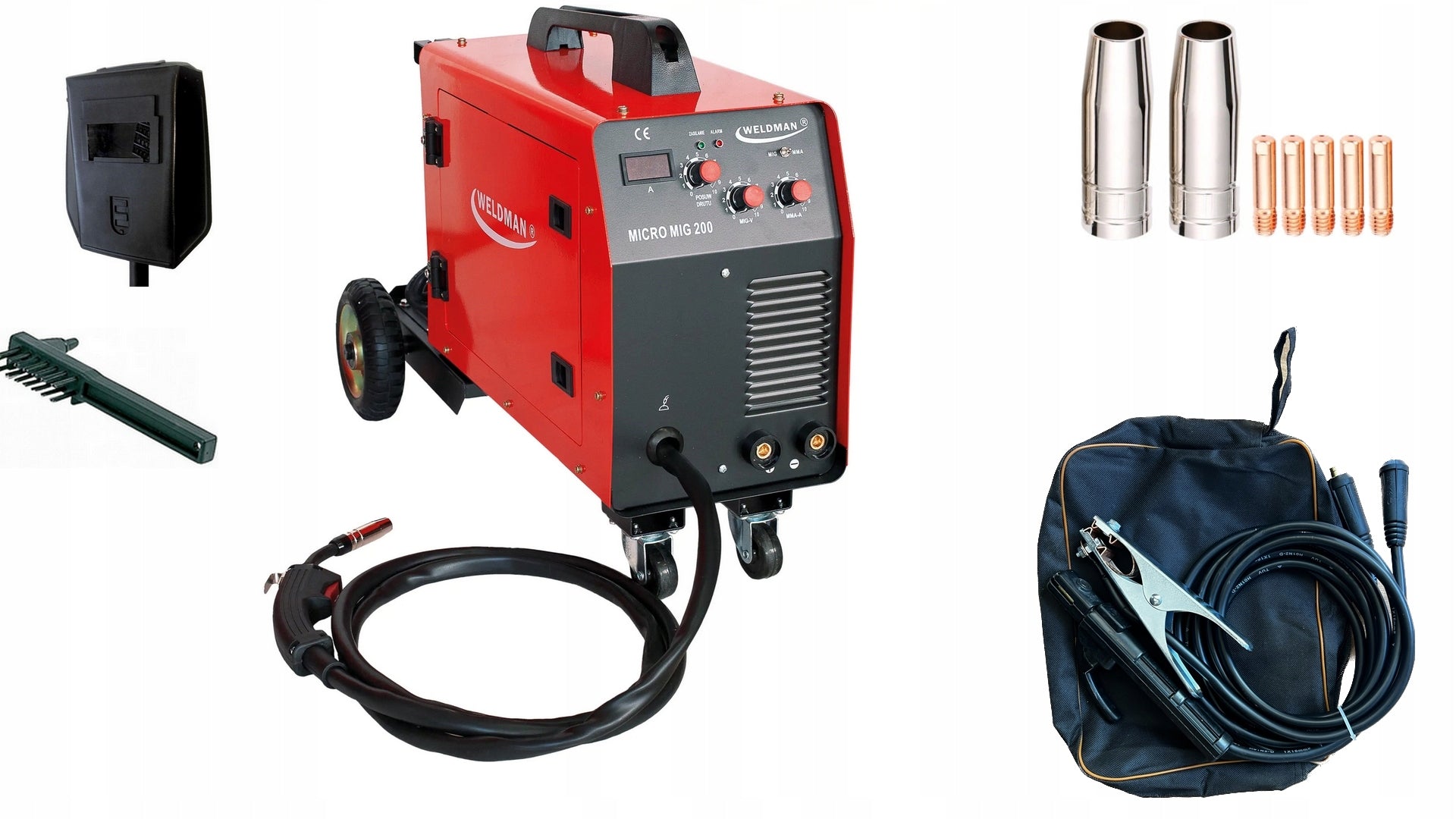

• welding torch MB 15 3 m
• mass cable with terminal 300A 2,5M
• Electrode holder 2M 200 A
• power cord with 230V 2M plug
• welding disc and brush hammer
• consumables of the welding torch
• Transport wheels

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Weldman
Parametry	Power consumption	8.7 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,6-0,8
Parametry	Device weight	19 kg
Parametry	Welding range	40–200 A
Parametry	Height	480 mm
Parametry	Length	680 mm
Parametry	Width	320 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Manufacturer code	103 105 MAPL
Parametry	EAN (GTIN)	5907195564353
Parametry	Customs tariff code	85153918
Parametry	Model	MICRO MIG 200
Parametry	Welding methods	MIG/MAG,MMA
Parametry	Additional features	transport wheels,infinitely adjustable welding current,LCD display
