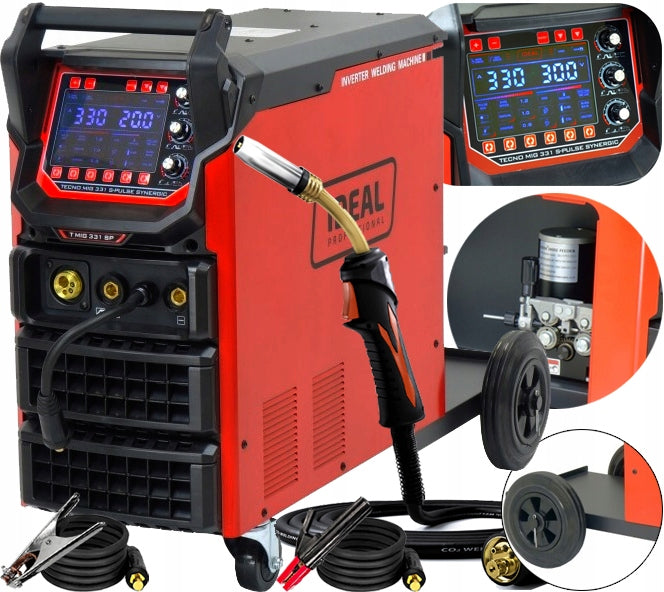

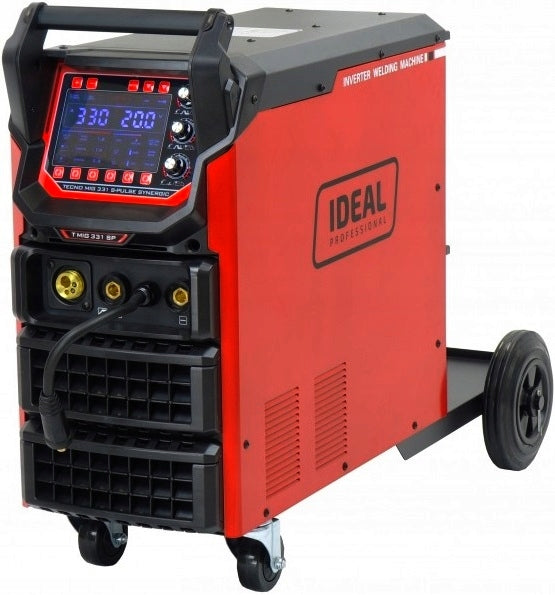

Suvirinimo aparatas MIGOMAT IDEAL TECNO MIG 331 S-PULSE SYNERGIC 4x4 330A

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIGOMAT IDEAL TECNO MIG 331 S-PULSE SYNERGIC 4x4 330A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TMIG331SP

TECNO MIG 331 S-PULSE SYNERGIC WELDING MACHINE

it is a professional, technologically advanced semi-automatic welding machine designed for welding using the following methods:

➡ MIG/MAG:

Arc welding in gas shields (CO2 or Argon+CO2) is one of the most commonly used processes for the production of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the welding material (welding wire on a roll) with an electric arc produced between the welding wire fed by the handle and the welded material.

Available Modes:

• MIG PULS - synergistic settings with single pulse,
• MIG SYN - MIG-MAG welding with synergistic settings.
• MIG MAN - MIG-MAG welding in manual (traditional) mode,
• FLUX / FCAW - self-shielding wire welding. This is a similar welding process as MIG/MAG but does not require a gas cylinder. On the wire there is a thin layer of powder, which at the time of arc formation produces gas covering the working area.

➡ TIG LIFT DC - welding with a non-melting electrode (tungsten) in an inert gas shield (Argon) using an additional handle. In the TIG DC Lift mode, the arc glow occurs when the electrode with the welded element is contacted (the button in the handle does not ignite the arc, the gas is connected directly from the reducer to the handle). In TIG Lift DC mode, the current is constant.

➡ MMA - classic welding with wrapped electrodes (rutile, alkaline, acidic).

The TECNO MIG 331 S-PULSE SYNERGIC welding machine is used for welding:

✔ low alloy steels (MMA, MIG/MAG, TIG Lift DC),

✔ low carbon steel (MMA, MIG/MAG, TIG Lift DC),

✔ alloy steels (MMA, MIG/MAG, TIG Lift DC),

✔ acid-resistant steels (MMA, MIG/MAG, TIG Lift DC),

✔ aluminium and its alloys (MIG),

✔ other weldable metals and alloys.

The device has been designed for all kinds of welding work in automotive, locksmith, repair, industrial workshops etc.

IDEAL TECNO MIG 331 S-PULSE SYNERGIC has a readable and easy to use function panel, which has m.in.:

• Selection of operating mode (MIG, MAG, SYNERGIC, PULSE, etc. )
• Selection of wire/shield gas type (e.g. CO₂, Ar+CO₂)
• Special settings – e.g. Burn Back, Crater, Post Gas
• Approval / revocation of changes
• Choice of mode: 2T/4T
• Change of parameter values (current, voltage, etc. )
• Restore settings
• Loading and saving memory settings
• 3 adjustment knobs.

✔ REPAIR WORKSHOPS,

✔ AUTOMOTIVE INDUSTRY,

✔ LOCKSMITH WORKSHOPS,

✔ ALL BODYWORK REPAIRS,

✔ FARMS,

✔ HOMEWORK,

AND WHEREVER RELIABILITY MATTERS!

✔ INDUCTANCE ADJUSTMENT - function is useful during welding using the MIG/MAG method of thin elements, preventing them from burning out and soldering galvanized elements. Changing the inductance value also reduces the amount of welding chips during CO2 shielded welding. Thanks to the inductance adjustment, the welding machine is suitable for lutowelding. Depending on the model of the welding machine, the adjustment is automatic or can be adjusted manually.

✔ SOLDERING - is a method that resembles MIG/MAG welding to a fairly large extent, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material with which we work.

✔ MANUAL MODE - the ability to manually set the welding machine and make adjustments to synergistic settings (most synergistic welding machines currently available on the Polish market do not have a fully manual mode, and thus it is not possible to manually set the m.in wire feed speed, which is not always in synergy tailored to our needs).

✔ SYNERGY - is a very helpful feature available in professional welding equipment class PREMIUM. By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

✔ PULS - Welding with pulsating current, in which high and low current are alternately used. This reduces overall heat supply and splatter while providing greater resistance to non-melting. This method can be used to weld both metals with high thermal conductivity and thinner metals without burning them. Additionally, you can get narrower and more penetrating welds on thicker metals.

✔ HOT START - facilitates the ignition of the electrode by providing more welding current with each arc.

✔ ARC FORCE - is a function that facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake.

✔ VRD - is a voltage reduction system whose task is to turn off the power supply within a few milliseconds after welding. This function is also responsible for reducing the voltage on the wrapped electrode to a safe level.

✔ POST GAS - regulation of gas outflow time after welding arc extinction. This is a helpful feature to cover the welding lake. The lack of additional gas shielding may result in oxidation of the weld.

✔ PRE GAS - gas outflow before arcing. Protects the lake from the harmful effects of atmospheric air. Regulation expressed in seconds.

✔ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow.

✔ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

✔ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

✔ WORK IN INDUSTRY - thanks to its high quality and multifunctionality, the device can be used in professional and hobby work.

✔ EASY TO USE - The welding machine is equipped with an easy-to-use control panel, so it can be used even by amateurs.

✔ CHASSIS - The semi-automatic machine is also equipped with a solid chassis, equipped with durable bearing wheels that guarantee high mobility and give the possibility of moving the welding machine on uneven ground.

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

The welder is equipped with a solid wire feeder, which guarantees stability and continuity of operation of the device.

The 4x4 feeder allows precise extension of the welding wire excluding its slippage.

The feeder has a quick wire change knob as well as a wire feed roller.

Welding machine supports D200/D300 wire spools

✔ Rollers wire feeder type 1.0 / 1.2 mm for steel

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

⏩ TECHNICAL DATA:

• Power supply: 3x400V; 50/60Hz (3ph)
• Power: 9.2 kW
• Idle voltage: 65 V

⏩ MIG PARAMETERS:

• Welding current: 20 - 330 A
• Power at work 60%: 231 A
• Power at work 100%: 330 A
• Type of feeder: built-in 4x4
• Steel wire diameter: 0,8 - 1,2 mm
• Wire spool: 5-15 kg

⏩ MMA PARAMETERS:

• Diameter of electrode: 1,6-4,0 mm
• Welding current: 20 - 295 A
• Power at work 60%: 229 A
• Power at work 100%: 295 A

⏩ OTHER:

• Weight: 45 kg
• Dimensions: 920x380x700mm
• Package dimensions: 745x385x730mm
• Degree of protection: IP21S
• Network security: C16A

WHEN YOU BUY FROM US, YOU WILL RECEIVE:

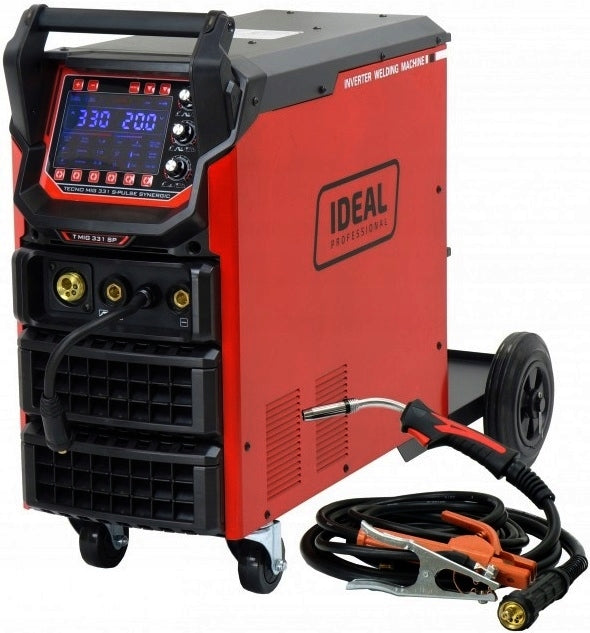

• Welding machine IDEAL TECNO MIG 331 S-PULSE SYNERGIC - 1 pc.
• Welding torch - IDEAL MB 24 - 3m - 1 pc.
• Electrode cable - 2m - 1 pc.
• Mass cable - 2m - 1 pc.
• Wire feed rollers 1,0-1,2 for steel
• Instruction service in Polish.

SET 1 LARGE MIG INDUCTANCE MB24.
