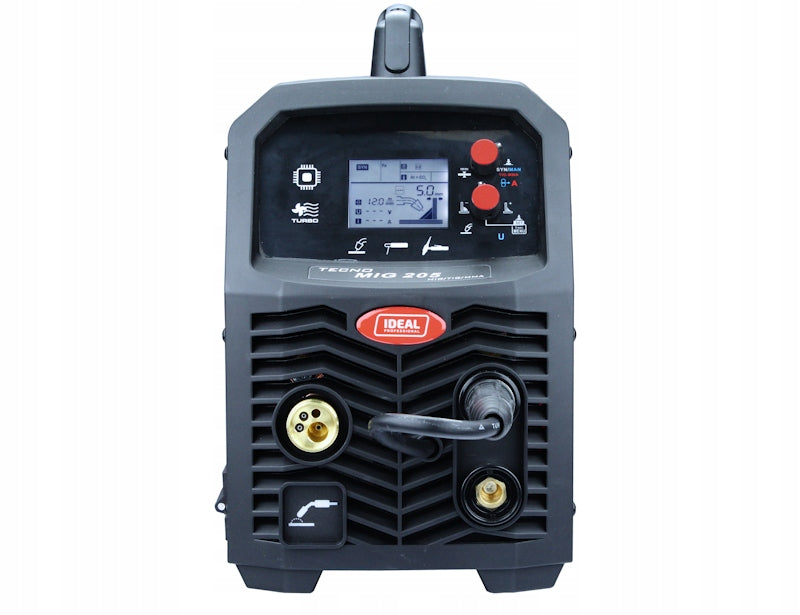

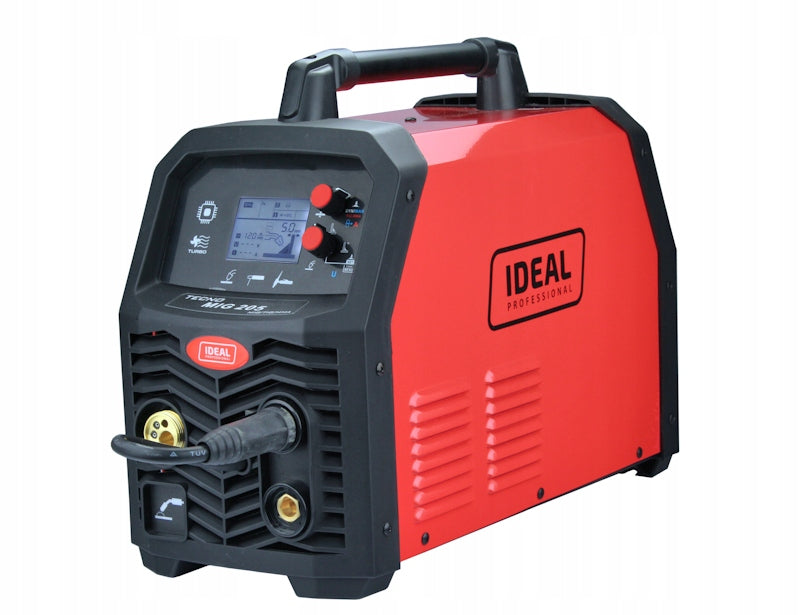

Suvirinimo aparatas MIGOMAT TECNOMIG 205 LCD SYNERGIC IDEAL

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIGOMAT TECNOMIG 205 LCD SYNERGIC IDEAL. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TMIG205LCDV2
• Ilgis: 510 mm
• Plotis: 230 mm
• Aukštis: 370 mm

Inverter semi-automatic welding machine

MIG/TIG/MMA SYNERGIC

The offered set includes:

- MIG 15/3m welding torch with EURO plug

- 2m mass cable

- Electrode cable - 2m holder

- Reinforced hose 1 m + 2 worm bands

- Welding disc

- Welding hammer with wire brush

Inverter semi-automatic welding machine TECNO MIG 205 LCD MIG/TIG/MMA SYNERGIC IDEAL set

TECNOMIG 205 LCD SYNERGIC is an inverter synergistic semi-automatic welding machine designed for MIG/MAG, TIG LIFT, MMA and FLUX arc welding. The device has been designed for a wide range of applications: from maintenance work to car body repairs.

TECNOMIG 205 LCD is used for soldering galvanized sheets, welding stainless steel, carbon and low alloy steels and aluminum. Welding is carried out in an inert gas shield, active or mixture and with reverse polarity without gas.

Quick synergistic adjustment of welding parameters via LCD display makes the device very easy to use. All you need to do is set the thickness of the welded material and start welding: intelligent and automatic welding arc control system, step by step, will select the best parameters, for each welding position and for each material. The user can also manually set the length of the welding arc and adjust the appearance of the weld to suit their needs.

LCD display allows accurate adjustment of welding parameters such as :

- regulation of inductance

- wire access

- wire burning

- gas outflow after welding

PRODUCT CHARACTERISTICS

• Intuitive controls - migomat has been designed in such a way that its operation does not cause problems even for people starting their adventure with welding
• Single-phase power supply 230 V - allows you to work with the device practically anywhere with access to the electrical network
• IGBT transistorsThe device uses modern IGBT transistors, which provide a minimum of electromagnetic interference and low power losses in basic systems. The use of IGBT transistors provides an increase in the efficiency and reliability of the power source, reducing the total weight of the welding machine.
• Readable LCD display - fast synergistic adjustment of welding parameters : welding current, welding voltage, wire feed speed
• Device equipped with EURO socket for connecting a welding torch
• Polarity change for FLUX welding without shielding gas
• Synergic control with thickness adjustment of welded material
• Accurate adjustment of welding arc length
• Smooth regulation of welding current - provides the possibility of accurate selection of welding parameters depending on the type and thickness of the material
• Lightweight and very compact, can be easily transported both inside and outside buildings
• The device is equipped with overload protection, which increases its reliability
• Professional wire feeder: internal, 2-roll
• The device has a fan cooling system which significantly increases its efficiency
• Designed to work with a generator (+/- 15%)
• Maximum spool with wire - 5 kg

The device has been equipped with many useful functions useful during operation:

• SYNERGY

It is an innovative control using a microprocessor built into the device. Migomat after approval of the necessary parameters, i.e. wire diameter, type and thickness of material automatically selecting operating parameters.

• Lutowelding (Inductance)

It is an innovative method for joining thin sheets covered with a layer of zinc. The soldering method can be successfully used to join thin sheets made of stainless steel and various name connections, m.in. acid-resistant steel of ordinary quality steel or copper with steel

• HotStart

- Function for easy initiation of the electric arc.

• ArcForce

- function facilitating the conduction and maintenance of the electric arc, especially in the case of materials and/or electrodes that are difficult to weld, e.g. corroded, uncleaned materials, alkaline, acidic electrodes, etc.

• Anti Stick

- short-circuit function, which reduces the welding current to a minimum value when the welder makes a mistake and the electrode is glued to the welded material

TECHNICAL PARAMETERS

Power 6,4 kW

Idle voltage 64 V

Maximum current 200 A (MIG) / 150 A (TIG/MMA)

Current at work 100% 160 A (MIG)

Current at 60% 200 A (MIG)

Diameter of aluminium wire 0,8 - 1,0 mm

Wire diameter for soldering 0,8 - 1,0 mm

Diameter of self-shielding wire 0,8 - 1,2 mm

Steel wire diameter 0,6 - 1,0 mm

Stainless steel wire diameter 0,8 - 1,0 mm

Welding electrode diameter 1,6 - 3,2 mm

Degrees of welding current regulation Gradually

Welding Current Adjustment Range 35 - 200 A (MIG) / 20 - 150 A (MMA/TIG)

PHYSICAL PARAMETERS

Wire spool size 0,45 - 5 kg

Degree of protection IP 23S

Weight of the device / set 15/16 kg

Overall dimensions 540x240x385 mm

POWER SUPPLY PARAMETERS

Current taken from the 20,3 A network

25C power supply network protection

Rated supply voltage 230 V; 50Hz (1ph)

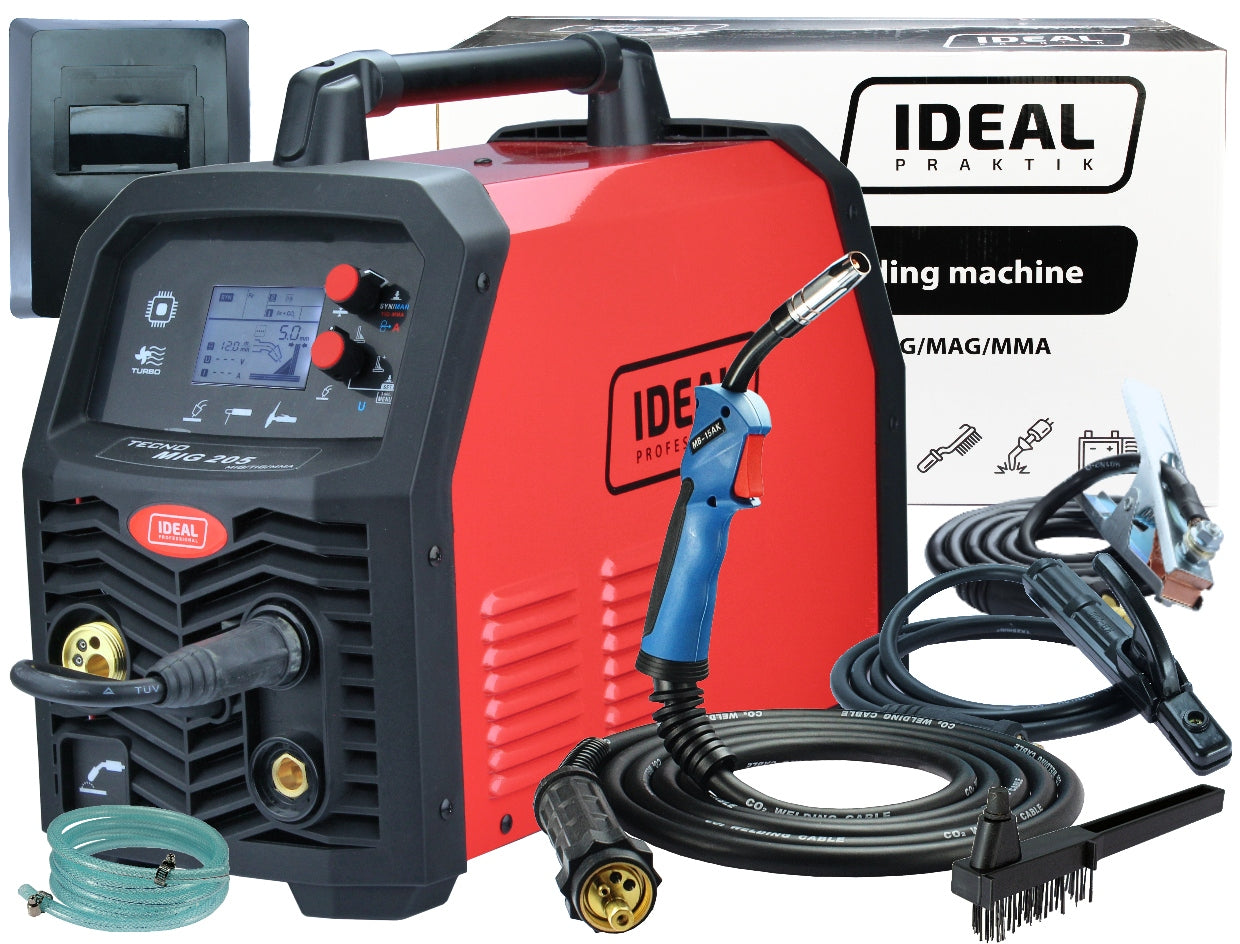

DELIVERY INCLUDES

Semi-automatic welding machine

MIG welding torch 15/3m

Mass cable 2m

Electrode cable 2m

Welding shield

Welding hammer with wire brush

Reinforced hose 1m + 2 worm bands

Operating instructions

Warranty card
