Aprašymas
Trumpai apie prekę
Prekė: Suvirinimo aparatas MMA inverteris ARC 230A WELDMAN. Kategorija: Invertoriniai suvirinimo aparatai.
- Gamintojas: Weldman
- Modelis: ARC 230
WELDMAN

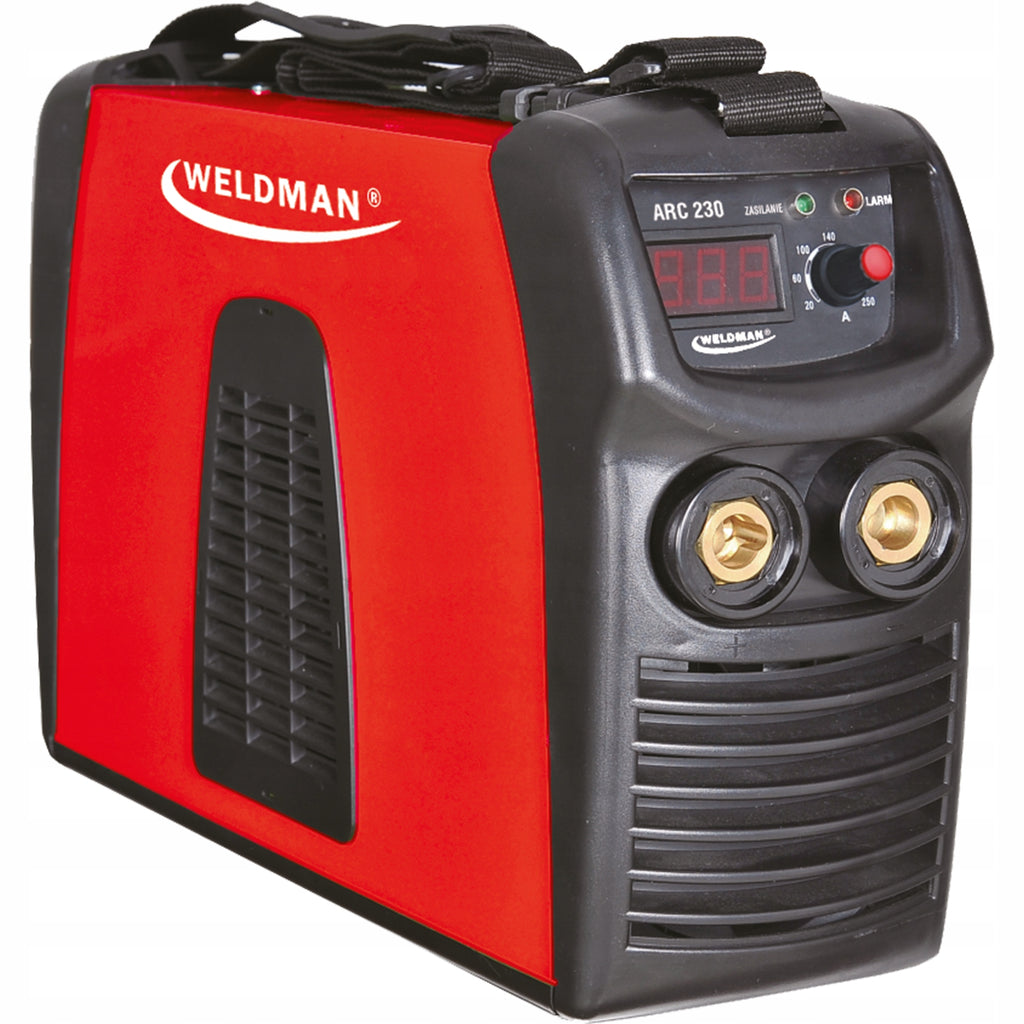

ARC 230 inverter welder for welding with DC electrodes.

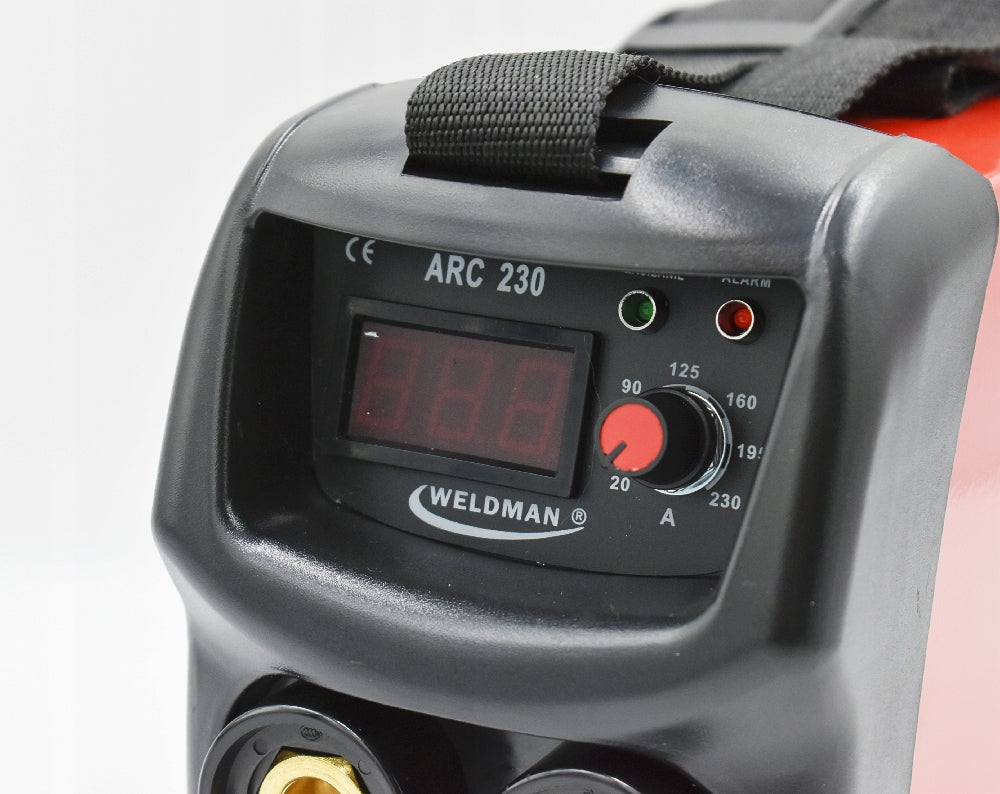

If you belong to people who like proven and reliable products, be sure to read the following description of the ARC 230 inverter welding machine for welding with DC electrodes. It is designed for welding with rutile and alkaline electrodes up to 5 mm of various steel grades (low carbon, low alloy, stainless, etc. ) and cast iron. The ARC 230 welder has a digital display of welding current, equipped with a simple system of lights. LEDs on the front panel indicate that the power supply is connected (green LED) or turned off due to overload (red LED). During operation, we will also certainly need electronically controlled smooth regulation of welding current and special protection of equipment against overload.
The ARC 230 inverter welder has features to facilitate welding:
– HOT START: increases the welding current when arcing to facilitate electrode ignition
– ARC FORCE (arch dynamics): shortens the arc length when increasing the welding current by optimizing the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the electrode contacts the welded material
– ANTI STICK: reduces welding current by preventing the electrode from sticking to the welded material
The ARC 230 inverter welder can be TIG welded when the handle is connected to the gas valve. Tactile arc glow due to rubbing with a tungsten electrode against the welded material (TIG Scratch). Small and light construction makes the ARC 230 inverter welding machine for welding with DC electrodes applicable in repair work in workshop conditions as well as in field work. Transport makes it easy to equip the welding machine with a solid shoulder strap.
- Rated voltage: 230 V
- Weight: 5 kg
- Maximum power consumption: 8,3 kVa
- Protection class: IP21
- Dimensions: 41x12x24
MMA 230A 230V 80% ARC 230 Weldman Inverter welder with large socket display DX50
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Weldman |
| Parametry | Power consumption | 9 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 5 mm |
| Parametry | Device weight | 5 kg |
| Parametry | Welding range | 20–230 A |
| Parametry | Length of ground cable | 1.6 cm |
| Parametry | Welding cable length | 2 cm |
| Parametry | Product weight with unit packaging | 9 kg |
| Parametry | Manufacturer code | 103 011 |
| Parametry | EAN (GTIN) | 5902701750077 |
| Parametry | Packaging status | original |
| Parametry | Model | ARC 230 |
| Parametry | Welding methods | MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,LCD display |
