Suvirinimo aparatas MMA inverteris PRAKTIK 205 DIGITAL IDEAL

Trumpai apie prekę

Prekė: Suvirinimo aparatas MMA inverteris PRAKTIK 205 DIGITAL IDEAL. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: PRAKTIK205D

/MMA/ /TIG LIFT/ /200A-40%/ /HOT START/ /VRD/ /ANTI STICK/

• Power 6,9 kW
• Idle voltage 60 V
• Maximum current 200 A - 40%
• Current at work 60% 160 A
• Welding electrode diameter 1,6 - 4,0
• Welding current adjustment range 10 - 200 A

• Degree of protection IP23
• Weight 8
• Weight of the device / set 4,5 / 5,6 kg
• Overall dimensions L x W x H 310x125x225 mm
• Package dimensions L x W x H 365x215x295 mm

• 16 A power supply network protection
• Rated supply voltage 230 V; 50Hz (1ph)

Inverter welder PRAKTIK 205 DIGITAL IDEAL

PRAKTIK 205 DIGITAL IDEAL is an inverter welding machine for MMA welding with a direct current electrode (DC) and the TIG Lift method with direct current (DC) with short-circuit arc ignition. Allows welding with rutile ora alkaline electrodes. Electronically controlled, smooth welding current regulation. The small size and weight make the device perfect for both workshop work and field work.

SUMMARY OF PRODUCT CHARACTERISTICS

• Single-phase power supply 230 V - enables operation of the device practically anywhere with access to the electrical network
• Digital welding current display - enables accurate adjustment of the device, ensures stable parameters and high welding quality
• Allows welding with rutile and alkaline electrodes
• Electronically controlled smooth welding current regulation
• Allows TIG LIFT welding
• Compact dimensions
• Maximum diameter of wrapped electrode 4,0 mm
• The device has a fan cooling system which significantly increases its efficiency
• The device is equipped with overload protection, which increases its reliability
• Delivery includes device with 1,5m MMA electrode cable, 1,5m mass cable
• The warranty service is carried out in the door-to-door system without transport costs on the part of the user.

ANTI STICK: anti-short-circuit - automatically turns off the welding voltage if the electrode sticks to the welded material, which facilitates its detachment and prevents the accidental formation of a welding arc

ARC FORCE: short-circuit current adjustment - facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake

HOT START: hot start - facilitates the ignition of the electrode by providing more welding current with each arc.

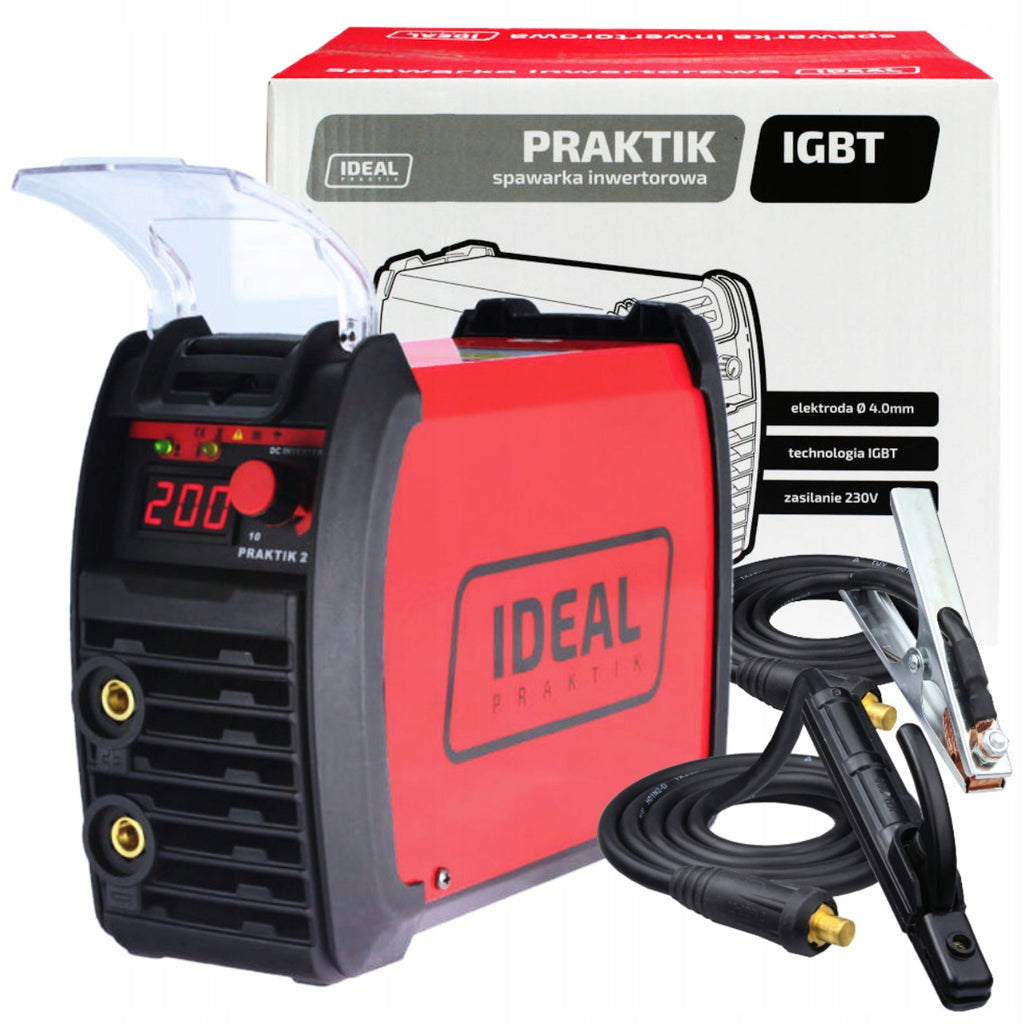

• Inverter welder
• Welding cable 1,5 m
• Bulk cable 1,5 m
• Shoulder strap
• Operating instructions
• Warranty card

Specifications
