Suvirinimo aparatas MMA Magnum VIPER 205D, 200A, 230V

Trumpai apie prekę

Prekė: Suvirinimo aparatas MMA Magnum VIPER 205D, 200A, 230V. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: Viper 205 Digital

TECHNICAL DATA:

• Power supply: AC 230 [V] / 50 [Hz]
• Max power consumption: 8 kVA
• Welding Current: 200 [A]
• Idle voltage: 63 [V]
• Power protection: 25 [A]
• Efficiency: 60%
• Cooling: fan
• Housing protection class: IP23
• Weight: 8 kg

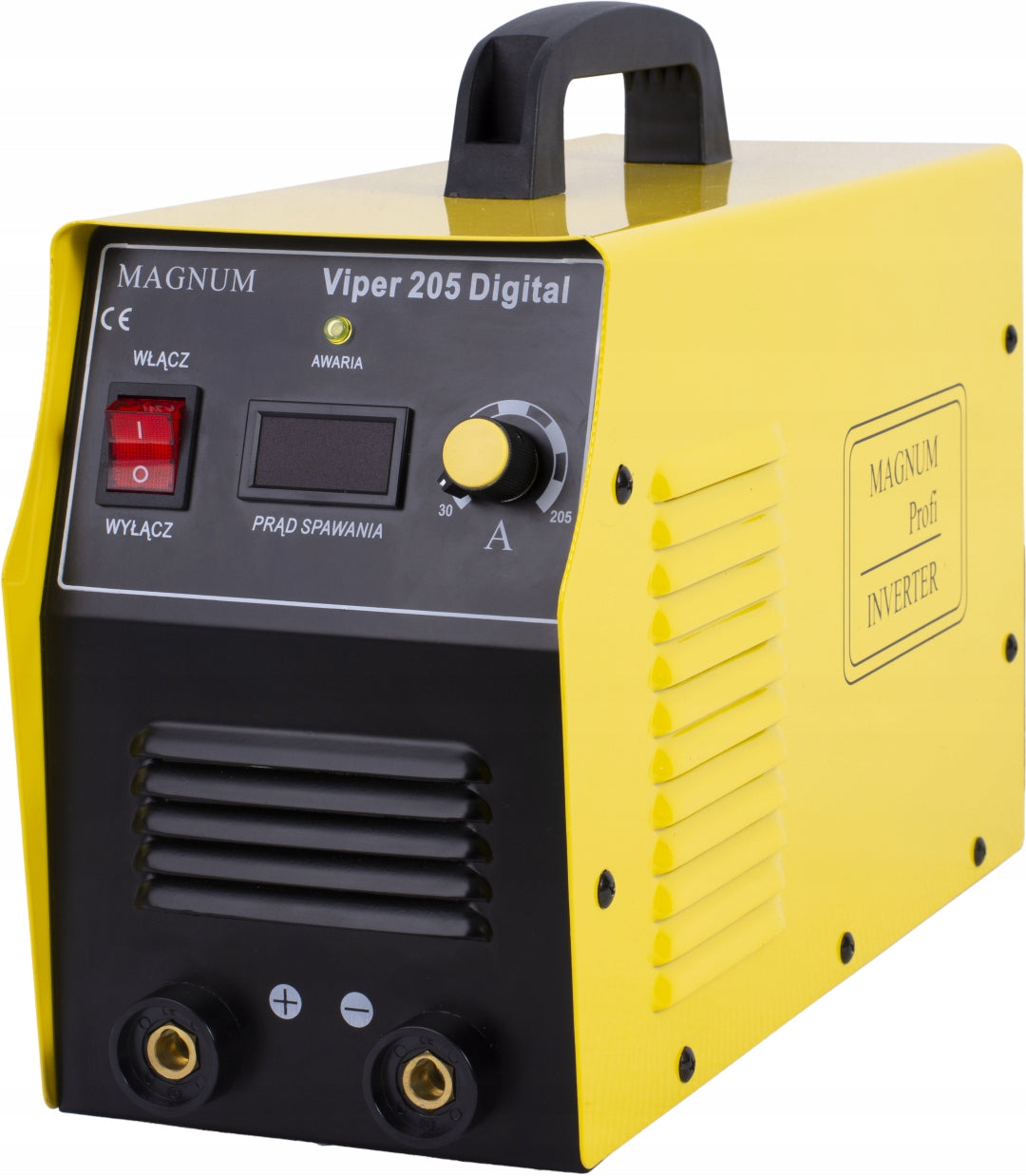

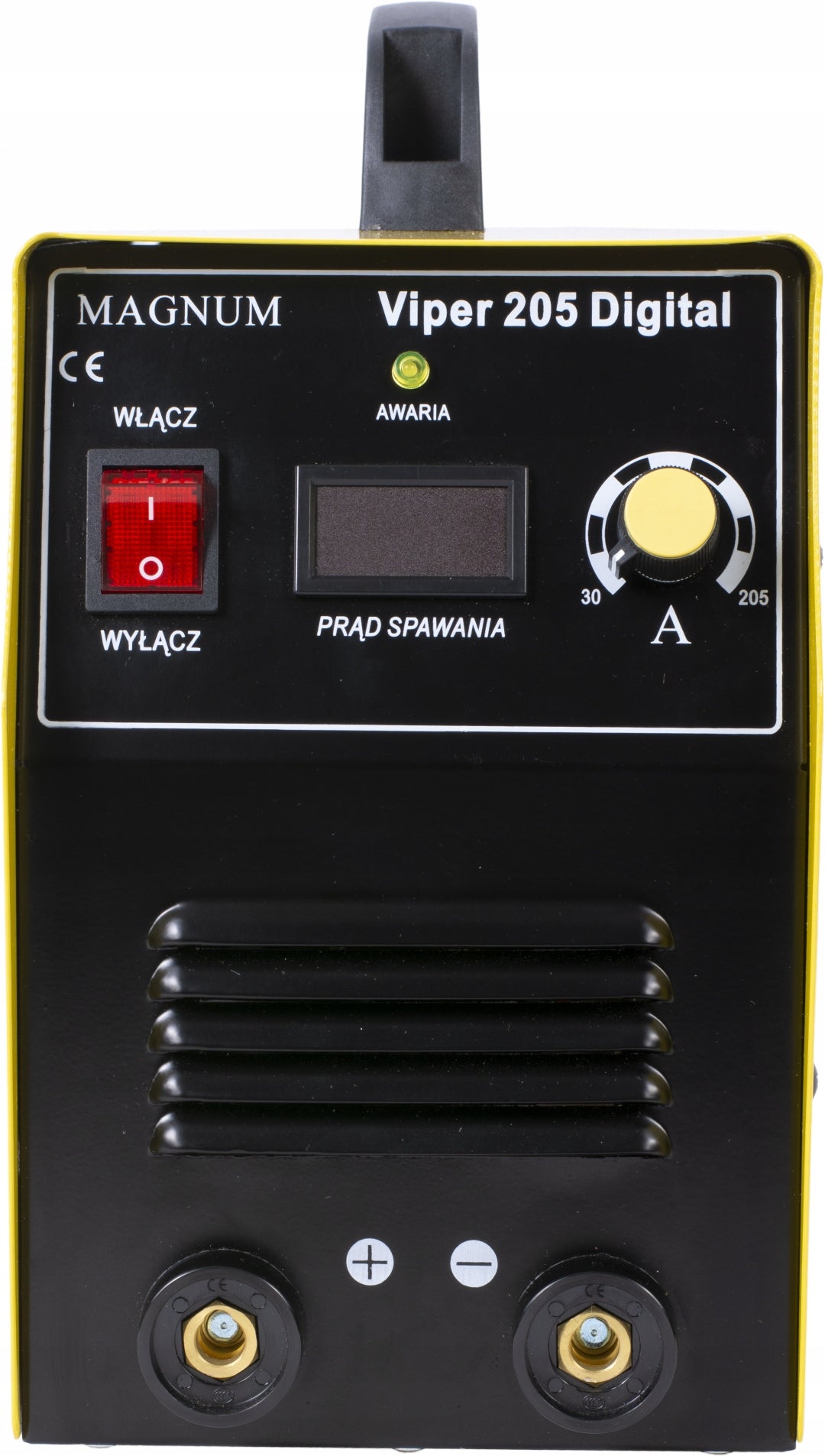

The VIPER 205 D inverter device by MAGNUM is a lightweight, portable energy source. It is used for welding with wrapped electrodes of various grades of non-alloy, low-alloy, high-alloy, stainless, heat-resistant, copper, cast iron steels. The device is characterized by high efficiency of 200 A/60% and excellent arc characteristics for rutile and alkaline electrodes.

The device is based on advanced technology, using IGBT transistors, which translates into reduced electromagnetic interference, low power losses, increased efficiency and reliability of the power source and lower energy consumption.

The VIPER 205 D welding machine is designed to work in stationary and off-road conditions, perform all kinds of workshop, repair, construction work, etc. The welding machine can also be used for welding using the TIG method using a special TIG handle with valve (TIG LIFT method). Arch ignition is then carried out by lightly rubbing the non-melting electrode against the welded material.

PRODUCT CHARACTERISTICS

• Intuitive controls - the device has been designed in such a way that its operation does not cause problems even for people starting their adventure with welding
• Single-phase power supply 230 V - allows you to work with the device practically anywhere with access to the electrical network
• Universal application - welding device allows welding with rutile, alkaline, stainless steel and cast iron electrodes
• Electronically controlled smooth regulation of welding current - ensures the possibility of accurate selection of welding parameters depending on the type and thickness of the material
• Maximum diameter of wrapped electrode 4,0 mm
• The device has a fan cooling system which significantly increases its efficiency
• The device is equipped with overload protection, which increases its reliability
• Compact weight and dimensions - allow for comfortable work in the field
• The device has a fan cooling system which significantly increases its efficiency.

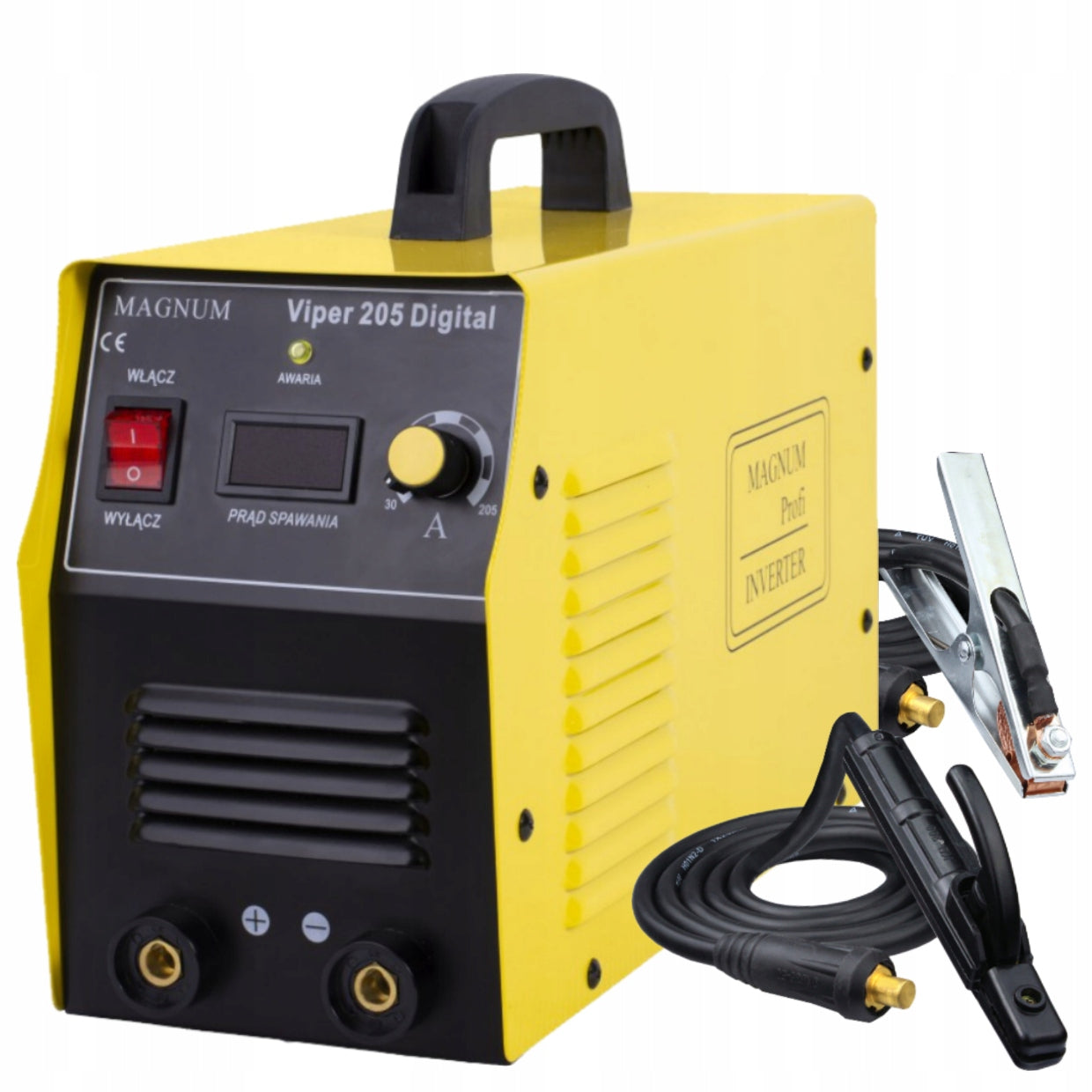

DELIVERY CONTAINS

• Complete VIPER 205 D with power plug,
• MMA Working Cable
• Bulk cable with clamp
• User manual
• Warranty card
