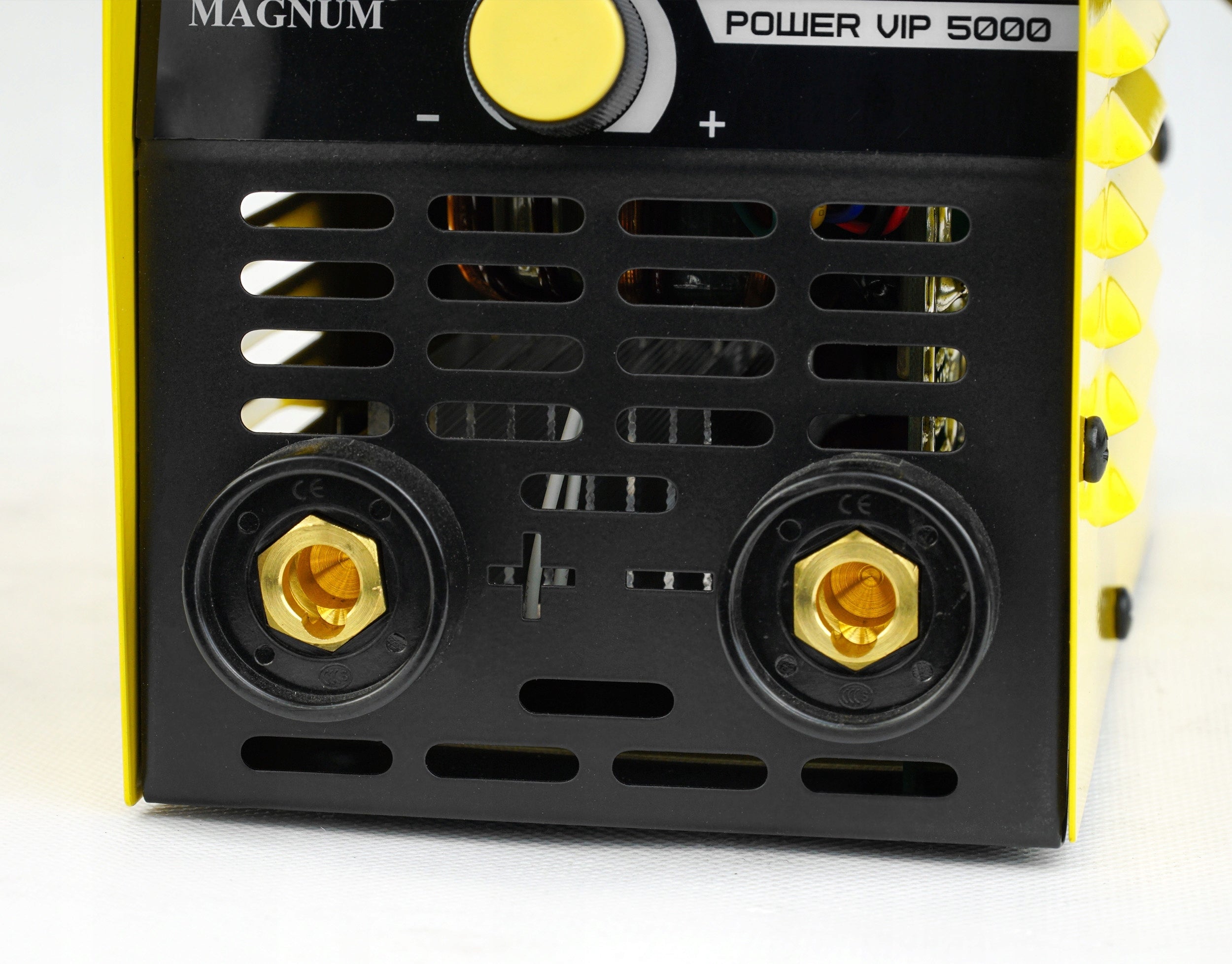

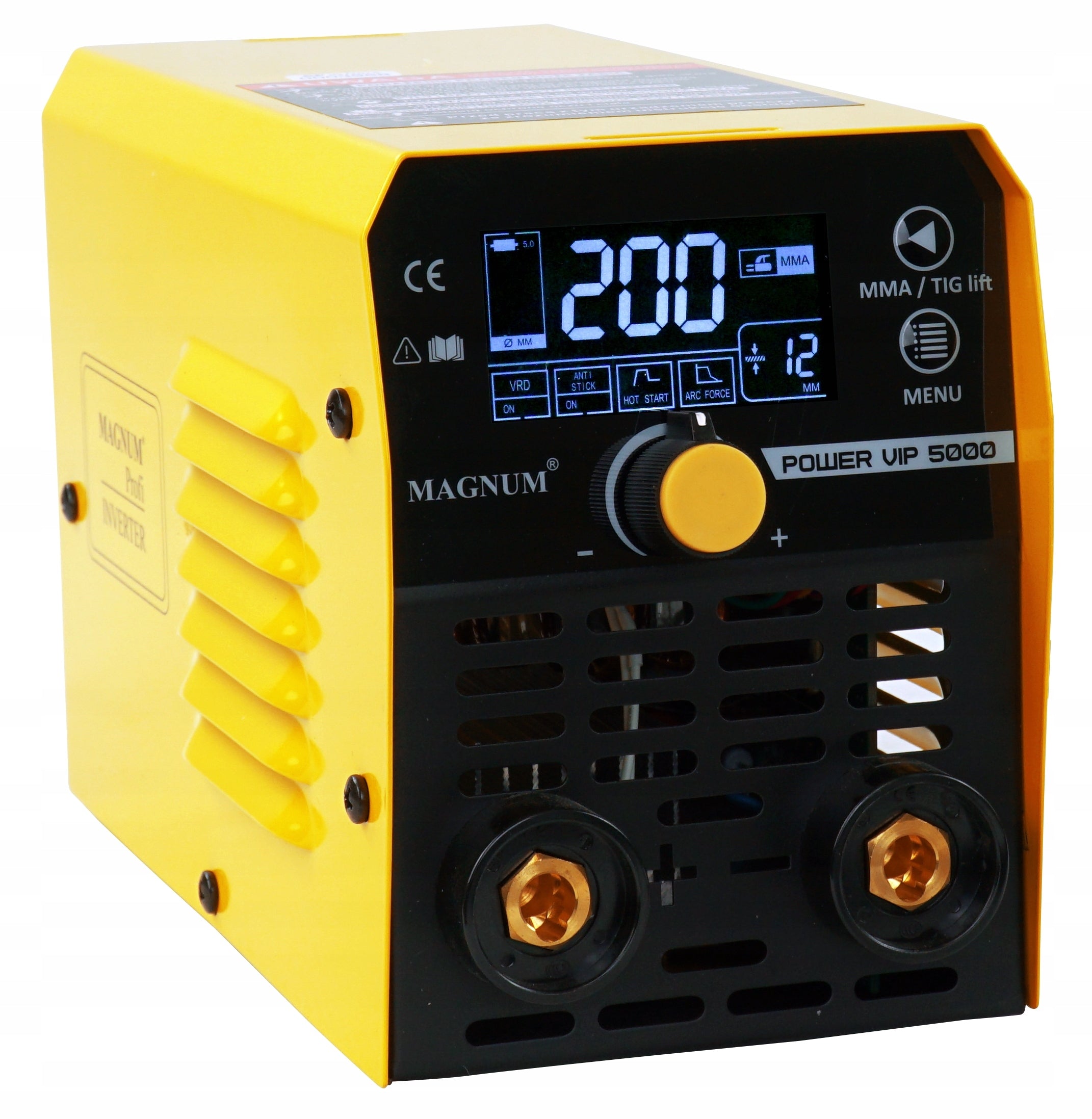

Suvirinimo aparatas MMA/TIG Magnum VIP 5000 Synergy, 200A, 230V, VRD, rinkinys

Trumpai apie prekę

Prekė: Suvirinimo aparatas MMA/TIG Magnum VIP 5000 Synergy, 200A, 230V, VRD, rinkinys. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MAGNUM POWER VIP 5000 LCD KPW2

✅ Welding machine power 200A - efficiency 60%

✅ Single-phase power supply from the 230v network

✅Made in inverter technology,

✅Sturdy metal housing

✅Function SYNERGY

✅choice of electrode diameter

✅Manual control

✅HOT START function

✅ARC FORCE function

✅VRD function

✅ANTI STICK function

✅smooth adjustment of parameters

⏭Readable digit LCD display enables accurate adjustment of the device, ensures stable parameters and high welding quality. ⏮

• Power Supply: 230V 1ph
• Maximum power consumption: 5,3 kVA
• Weight: 2,5kg
• Degree of protection: IP21S

WELDING PARAMETERS MMA:

• Maximum welding current: 200A
• Welding Current Adjustment Range: 20-200A
• Idle Voltage: 64V
• Efficiency: 60%
• Welding Current Adjustment: Smooth
• Electrode diameter: 1,6-5,0mm

ADDITIONAL FUNCTIONS:

• Anti-stick: YES
• Hot Start: YES
• Arc Force: Yes
• VRD: YES
• Synergy: Yes

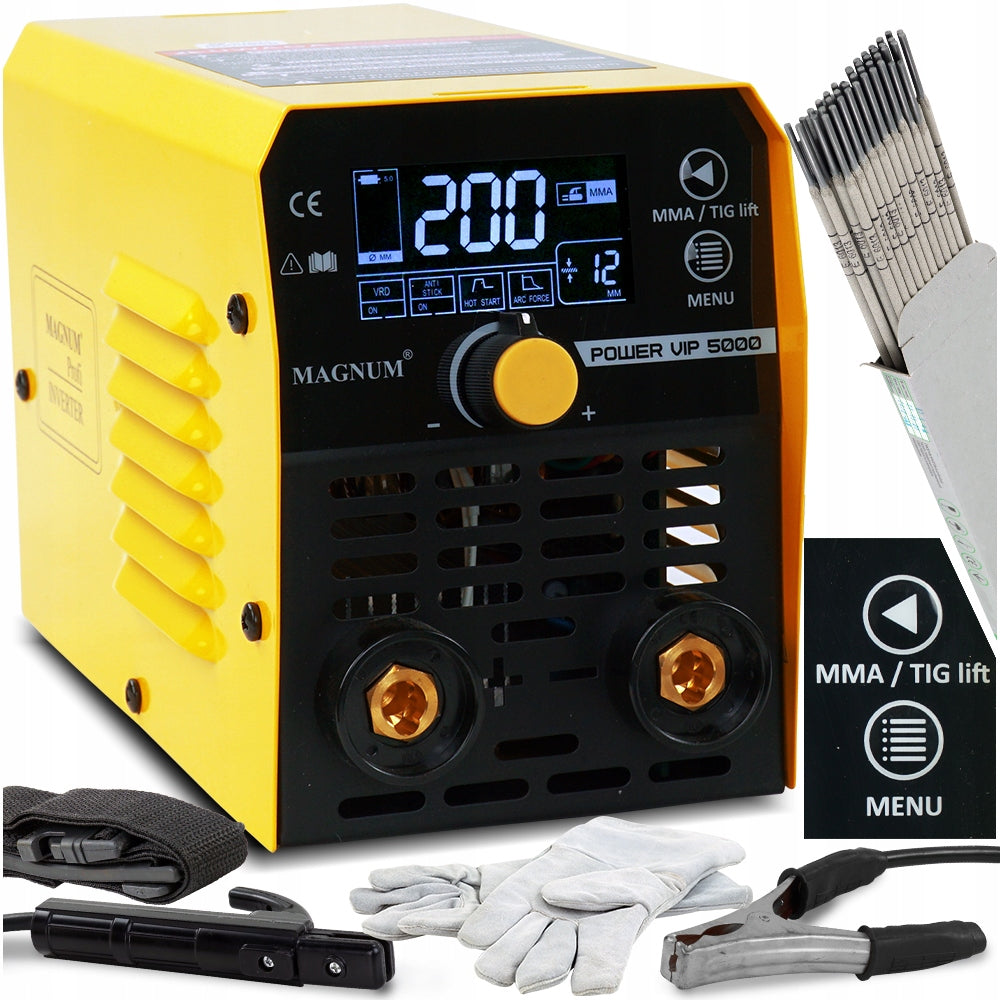

• Magnum Power VIP 5000 Synergy LCD welder
• Bulk cable
• MMA Electrode Cable
• Shoulder strap
• User manual

➡ welding gloves,

➡ pack of electrodes for MMA welding (1kg).

• VRD (Voltage Reduction Device) function - reduces the resting voltage of the idle state on the electrode to a safe value. Provides shock safety when working in humid environments.
• The welding machine has functions facilitating the welding process using the MMA method with a wrapped electrode:
• Arc Force: - facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake.
• Hot Start: - facilitates the ignition of the electrode by providing more welding current with each arc.
• Anti Stick: anti-short-circuit - automatically turns off the welding voltage if the electrode sticks to the welded material, which facilitates its detachment and prevents the accidental formation of a welding arc.
• Synergy MMA: by setting the welding current, the device suggests the correct diameter of the welding electrode and the thickness of the welded material to the selected current.

⏩REVELATIONAL SYNERGISTIC MMA WELDING MACHINE

Magnum Power VIP 5000 LCD is a welding machine designed for manual, electric MMA welding using melting coated electrodes. It is designed for all types and welding carried out both stationary and in the field.

Magnum Power VIP 5000 welder has an unprecedented in other devices SYNERGY function that allows automatic adjustment of the welding current to the diameter of the welding electrode used and graphically presented indicator of the thickness of the welded material depending on the set welding current.

The power source was built on IGBT transistors, which translates into reduced electromagnetic interference, low power losses, increased efficiency and reliability of the power source and lower power consumption.

In addition, the Power VIP 5000 is equipped with a fully adjustable Hot Start and Arce Force function as well as VRD and Anti Stick.

INVEST IN PROVEN EQUIPMENT FROM A LEADING BRAND

Magnum is a brand whose founder has been operating on the welding market since the early 90s of the twentieth century. Over the years, Magnum devices have managed to develop an appropriate reputation among satisfied customers.

A wide range of Magnum devices meets the needs of not only novice users, but also more advanced ones. Depending on the selected model, it can be dedicated to workshop applications as well as for heavy industry.

Specifications
